Description:

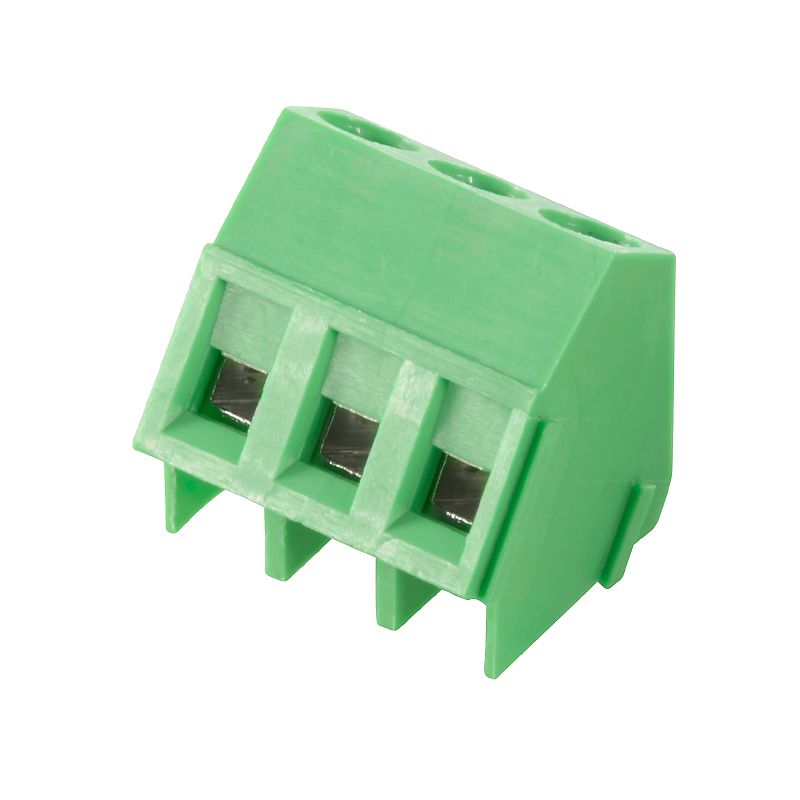

Presenting the TSS 500/12/135 33SN GN BX, a reliable solution for your electrical connection needs This component meets rigorous compliance standards, including RoHS certification, and carries a UL file number for added assurance The clamping yoke connection method ensures a secure fit for printed circuit board (PCB) mounting through THT soldering It boasts a 135° conductor outlet direction and features a compact pitch of 5 mm.
Versatile in its application, the product accommodates a broad range of conductor sizes, from 02 mm² to 25 mm², including wire specifications from AWG 30 to AWG 12 Designed for durability, it operates efficiently in temperatures ranging from -40 °C to 105 °C, while storage temperatures reach up to 70 °C With an IP20 protection rating and tinned copper-alloy contacts, this product ensures both performance and reliability in demanding environments.
Features and Benefits:
•RoHS compliant.
•IP20 protection degree.
•Suitable for a wide range of wire sizes.
•Compatible with all OMNIMATE basic products.
Specifications:
| Order No. | 2651240000 |
| IEC Rated Voltage | 630 V |
| IEC Rated Current | 20 A |
| UL Rated Voltage | 300 V |
| UL Rated Current | 20 A |
| Solder Pin Length | 3.3 mm |
| Clamping Screw | M 3 |
| Tightening Torque Min | 0.5 Nm |
| Tightening Torque Max | 0.55 Nm |
| Number of Poles | 12 |
| Net Weight | 28.8 g |
| Insulating Material | PA |
| Color | Pale green |
