2651370000 - RoHS Compliant 90° Connector, Pale Green, 6.18g (Pack of 160)
2651370000 - RoHS Compliant 90° Connector, Pale Green, 6.18g (Pack of 160)
SKU: SKU: 2651370000 Download PDF
- 2651370000 - RoHS Compliant 90° Connector, Pale Green, 6.18g (Pack of 160)
- 2651370000 - RoHS Compliant 90° Connector, Pale Green, 6.18g (Pack of 160)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

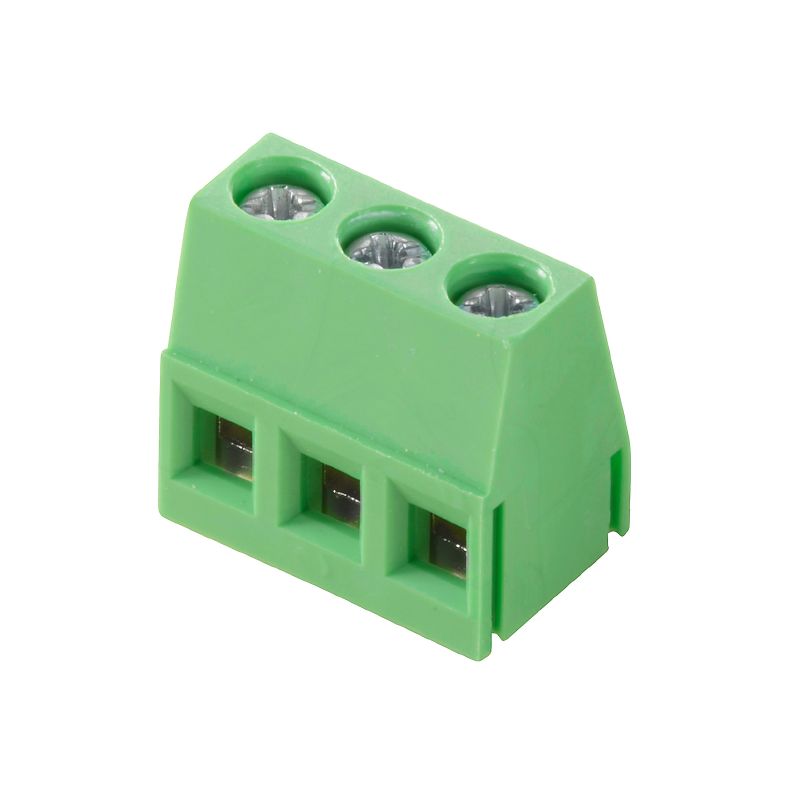

Introducing the TMS 508/06/90 30SN GN BX connector, an ideal solution for a variety of electronic connectivity needs This product adheres to RoHS standards and boasts UL certification under file number E60693, assuring its quality and safety Weighing in at just 618 grams, it features a clamping yoke connection and a 90° outlet direction for conductors As part of the OMNIMATE basic series, this connector is presented in a soothing pale green shade that meets RAL 6021 color guidelines, making it both functional and visually appealing.
Features and Benefits:
•Clamping yoke connection method.
•90° conductor outlet direction.
•Insulating material made from PA.
•UL 94 flammability rating V-0.
•Rated voltage up to 320 V.
Specifications:
| Operating temperature, max. | 105 °C |
| Rated current, min. number of poles (Tu=20°C) | 15 A |
| Rated voltage | 300 V |

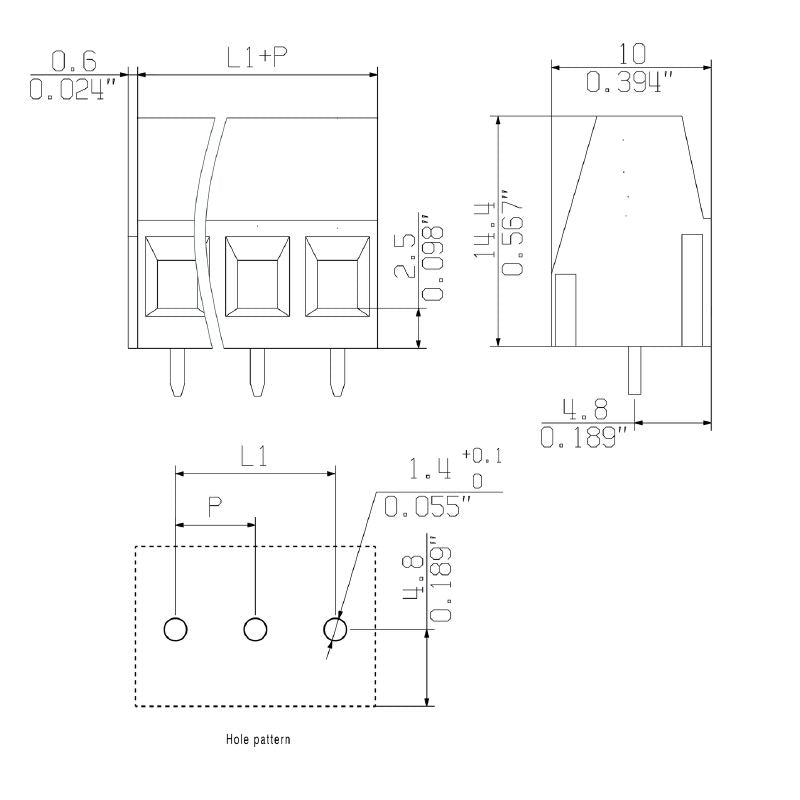

| Pitch in mm (P) | 5.08 mm |
| Number of poles | 6 |
| Solder pin length (l) | 3 mm |
| Stripping length | 6 mm |
| Protection degree | IP20 |
| Clamping range, max. | 2.5 mm² |
