Description:
Introducing the TCS 381/05/90 35SN GN BX, a robust electrical component that meets stringent ROHS standards and holds UL certification under File Number E60693 This versatile connector accommodates an IEC voltage of 320 V and supports a current rating of 10 A, suitable for wire sizes ranging from 02 to 15 mm² Compliant with UL requirements, it is rated for 150 V and works seamlessly with AWG wire sizes from 26 to 16.
Housed in a convenient box, this piece weighs just 23 g and belongs to the esteemed OMNIMATE basic product line Its design features clamping yoke connections and is appropriate for THT soldering mounting styles With a 90° outlet direction for conductors, it showcases technical specifications that include a pitch of 381 mm and encompasses 5 poles, each equipped with a solder pin designed to meet precise dimensions and torque requirements.
Features and Benefits:
•Compliant with ROHS and UL standards.
•Suitable for various wire sizes with specified clamping ranges.
•90° conductor outlet direction.
•Utilizes a clamping yoke for secure connections.
•Part of OMNIMATE basic product family.

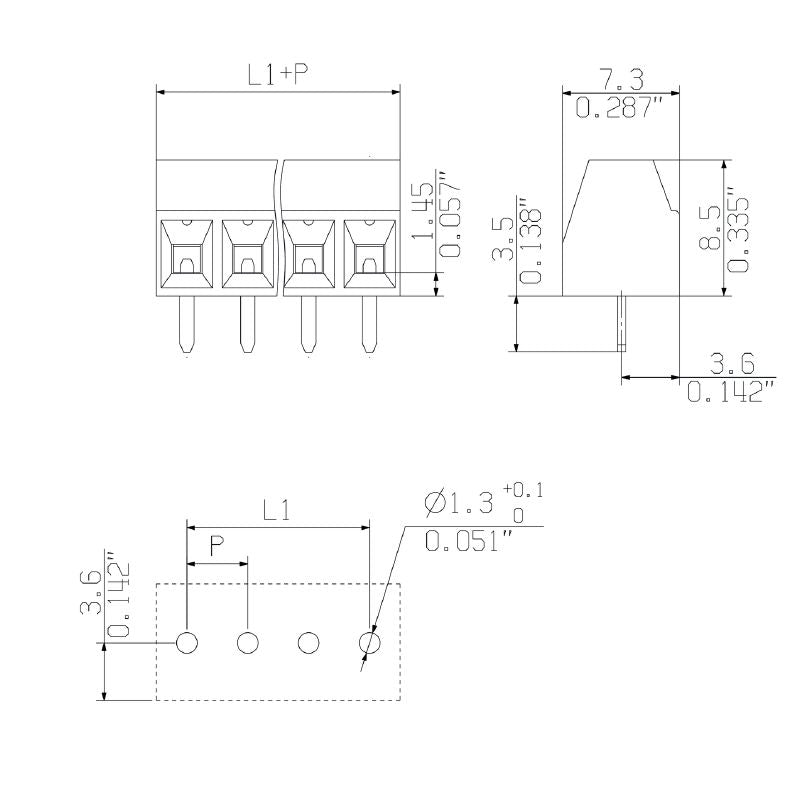

Specifications:
| Pitch (mm) | 3.81 mm |
| Solder pin length | 3.5 mm |
| Number of poles | 5 |
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 10 A |
| Wire connection cross section AWG | AWG 26 - AWG 16 |
| Protection degree | IP20 |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | -40 °C to 105 °C |
| Insulating material | PA |
| Flammability rating | UL 94 V-0 |
| Tightening torque (min) | 0.2 Nm |
| Tightening torque (max) | 0.23 Nm |
