Description:

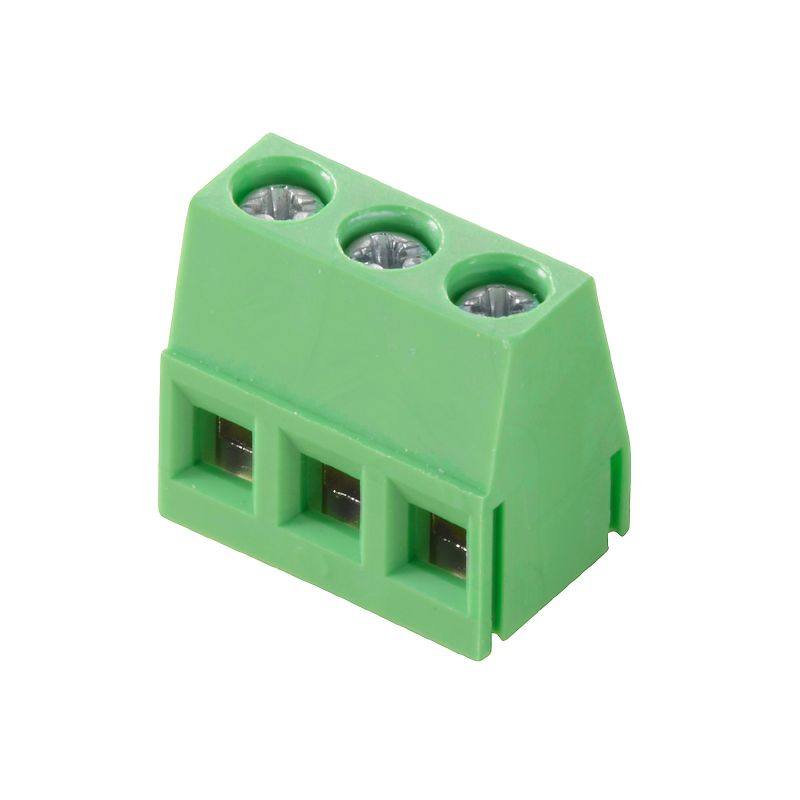

Introducing the TMS 508/14/90 30SN GN BX, a dependable solution for electrical connections that ensures optimal performance This product adheres to IEC standards with a voltage rating of 320 V and a current rating of 15 A, compatible with conductor sizes from 02 to 25 mm² Additionally, it meets UL specifications of 300 V and 15 A for wire gauges ranging from AWG 30 to AWG 12 Designed for versatility, it complies with RoHS regulations and simplifies installation with solder connections secured by clamping yokes, allowing for easy mounting on printed circuit boards (PCBs).
The product also features a convenient 90° conductor outlet for added flexibility in your applications.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Constructed with insulating material PA.
•Pale green color similar to RAL 6021.
•IP20 protection degree.
•Suitable for long-term use under specified environmental conditions.
Specifications:
| Wire connection method | Clamping yoke connection |
| Mounting onto the PCB | THT solder connection |

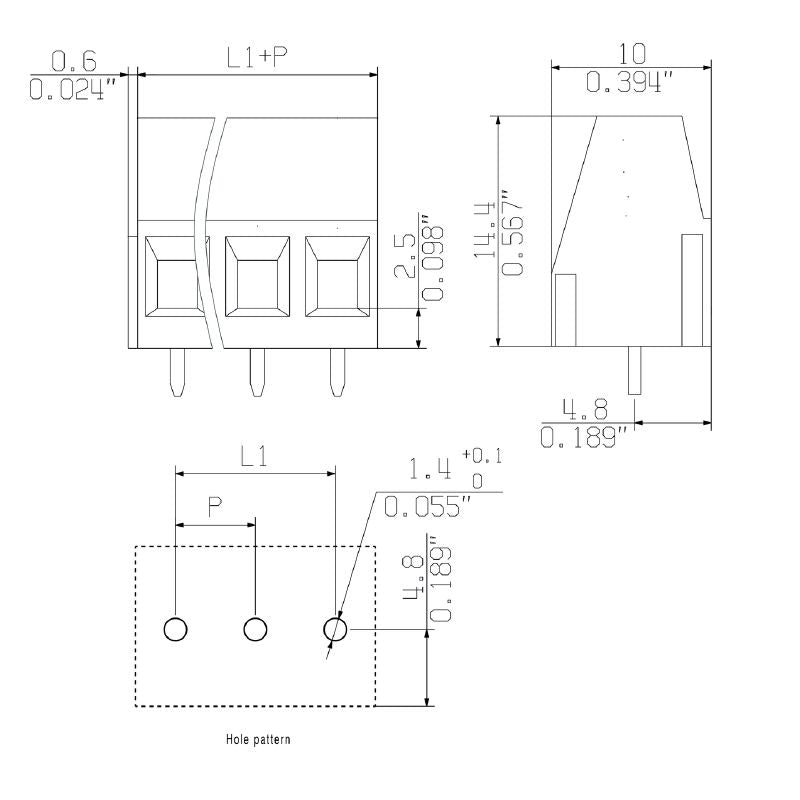

| Pitch in mm (P) | 5.08 mm |
| Number of poles | 14 |
| Solder pin length (l) | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Clamping screw | M 3 |
| Stripping length | 6 mm |
| L1 in mm | 66.04 mm |

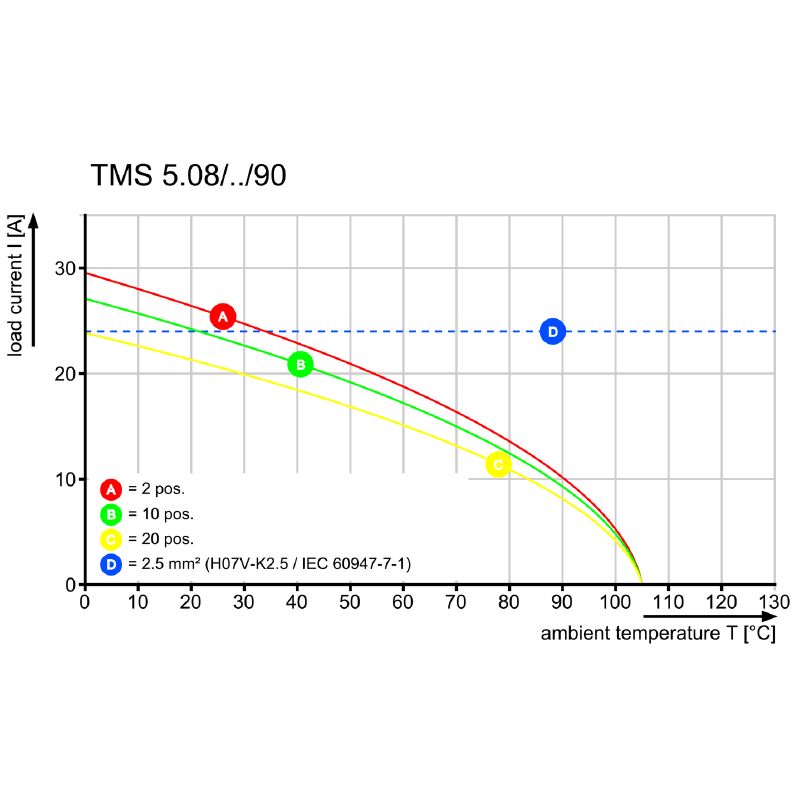

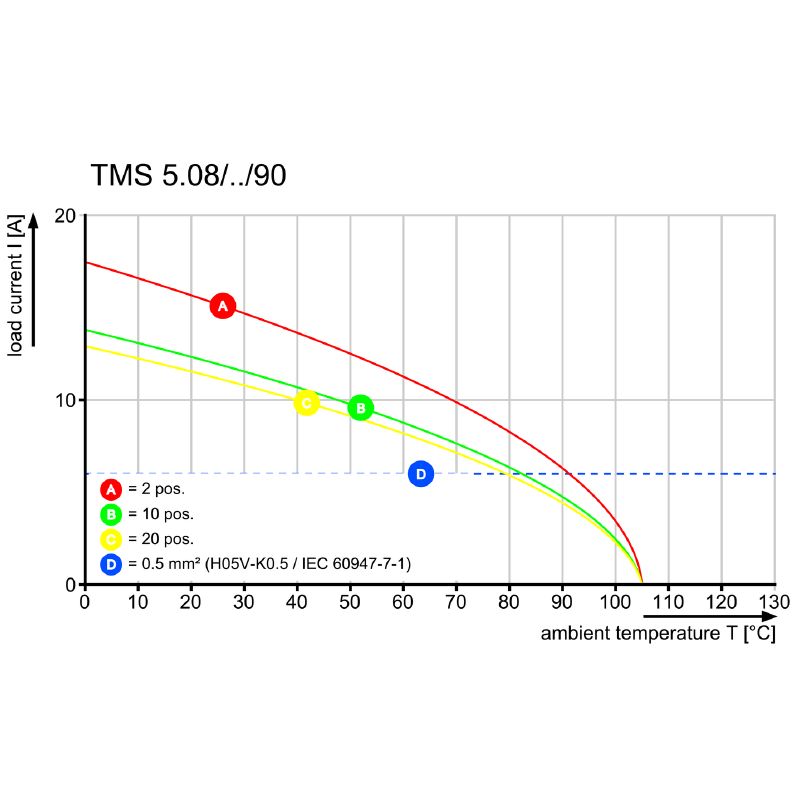

| Rated current, min. number of poles (Tu=20°C) | 15 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 250 V |
| UL voltage rating | 300 V |
| Rated current (Use group B / UL 1059) | 15 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Rated data acc. to UL 1059 | CUrus |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
