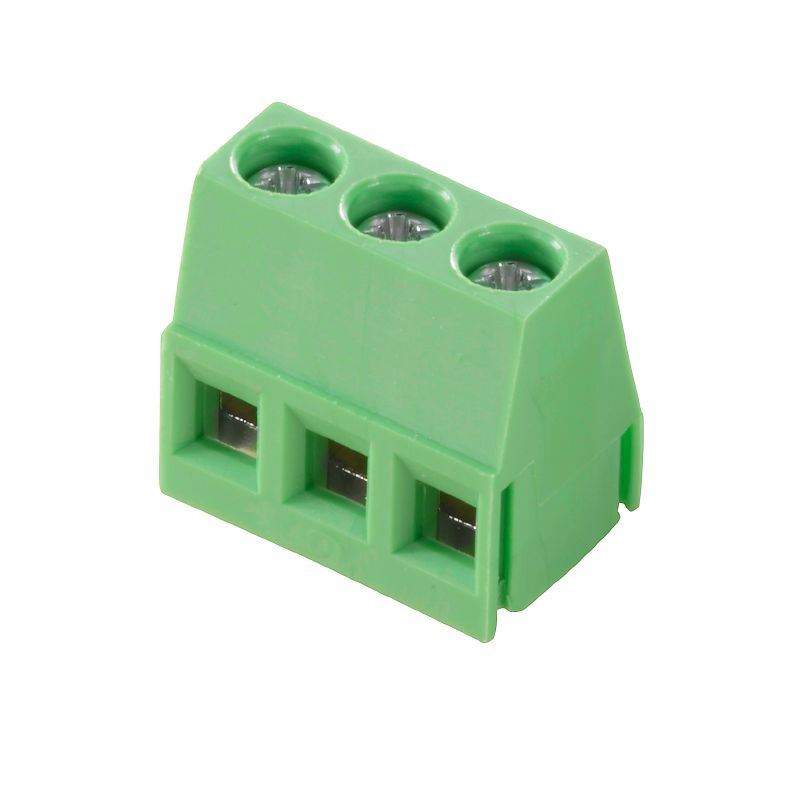

2651070000 - 90° Conductor Outlet Terminal, 5mm Pitch, RoHS Compliant (Pack of 64)
2651070000 - 90° Conductor Outlet Terminal, 5mm Pitch, RoHS Compliant (Pack of 64)
SKU: SKU: 2651070000 Download PDF
- 2651070000 - 90° Conductor Outlet Terminal, 5mm Pitch, RoHS Compliant (Pack of 64)
- 2651070000 - 90° Conductor Outlet Terminal, 5mm Pitch, RoHS Compliant (Pack of 64)
Couldn't load pickup availability
Description:
Introducing the TMS 500/14/90 30SN GN BX, a versatile component that meets current environmental regulations, including RoHS compliance, and holds certifications like cURus This product is engineered for efficient wire connections utilizing a clamping yoke method and is designed for through-hole technology (THT) soldering onto circuit boards It can handle a wide range of wire sizes from 02 mm² to 2.
5 mm² per IEC standards and from AWG 30 to AWG 12 according to UL standards With a 90° outlet direction and a compact 5 mm pitch, this connector provides reliable electrical performance and connectivity.
Features and Benefits:
•Clamping yoke connection method for secure wire fastening.
•Suitable for various wire gauges, enhancing usability.
•Integrated strain relief design for improved stability.
•IP20 protection degree ensures suitability for indoor use.
•Lightweight design at 14.42 g facilitates easy handling.
Specifications:
| Net weight | 14.42 g |
| Pitch in mm (P) | 5 mm |
| Number of poles | 14 |
| Solder pin length (l) | 3 mm |
| Solder pin dimensions | 0.7 x 0.9 mm |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque, max. | 0.55 Nm |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, max. | 105 °C |
| Insulating material | PA |
| Contact material | Copper alloy |
| Rated current | 15 A |
| Rated voltage | 300 V |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 12 |
| Protection degree | IP20 |
