2650450000 - 4-Pole 90° PCB Connector for 0.2-1.5 mm² Wires (Pack of 480)
2650450000 - 4-Pole 90° PCB Connector for 0.2-1.5 mm² Wires (Pack of 480)
SKU: SKU: 2650450000 Download PDF
- 2650450000 - 4-Pole 90° PCB Connector for 0.2-1.5 mm² Wires (Pack of 480)
- 2650450000 - 4-Pole 90° PCB Connector for 0.2-1.5 mm² Wires (Pack of 480)
Couldn't load pickup availability
Description:
Introducing the TCS 381/04/90 35SN GN BX connector, designed to securely accommodate wire sizes from 02 to 15 mm² with its reliable clamping yoke connection This connector can be easily mounted on a PCB through a THT solder connection It offers a conductor outlet positioned at a 90° angle, making it versatile for various applications Compliant with RoHS standards and UL certified, this product is suitable for both low and high-voltage uses, with a minimum rated current of 10 A.
Featuring a robust density of 4 poles, it is engineered for dependable performance across a range of electrical systems.
Features and Benefits:
•Clamping range suitable for multiple wire gauges from 0.2 mm² to 1.5 mm².
•Compatible with a variety of wire connection methods including AWG 26-16.
•Constructed with PA insulating material and is compliant to UL 94 flammability standard V-0.
•Robust design with IP20 protection degree suitable for various applications.

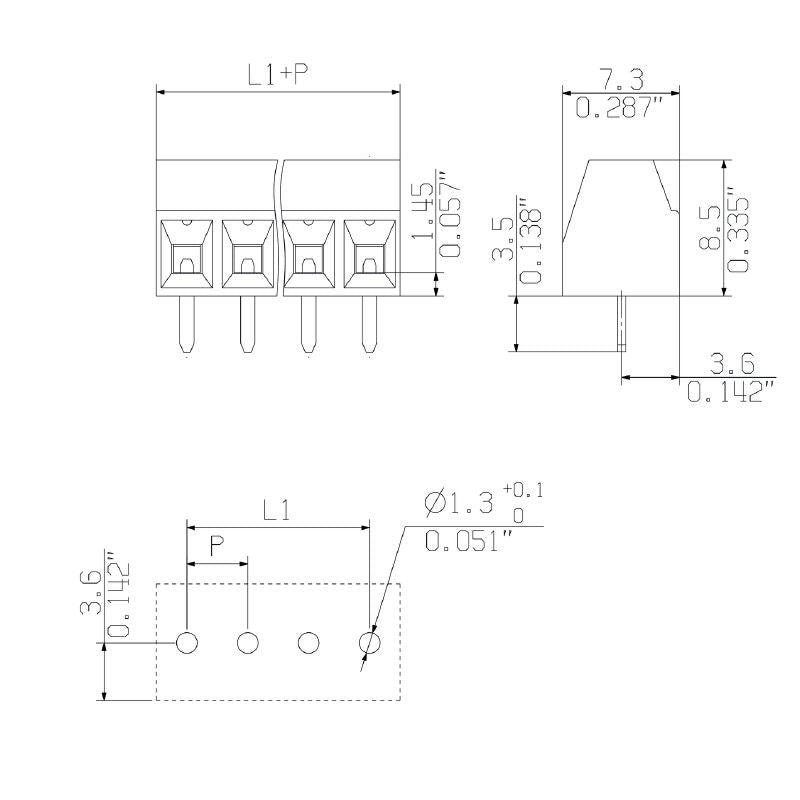

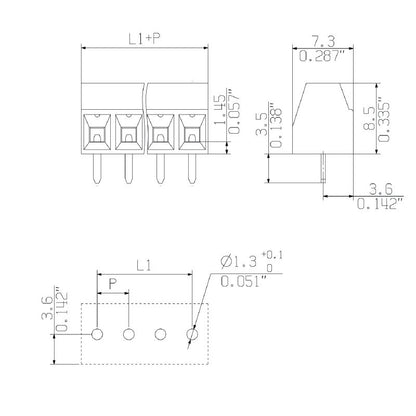

Specifications:
| Rated voltage (IEC) | 320 V |
| Rated current (IEC) | 10 A |
| Number of poles | 4 |
| Solder pin length | 3.5 mm |
| Clamping screw | M 2 |
| Stripping length | 5 mm |
| Operating temperature, max. | 105 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Pitch | 3.81 mm |
| Protection degree | IP20 |
