Description:

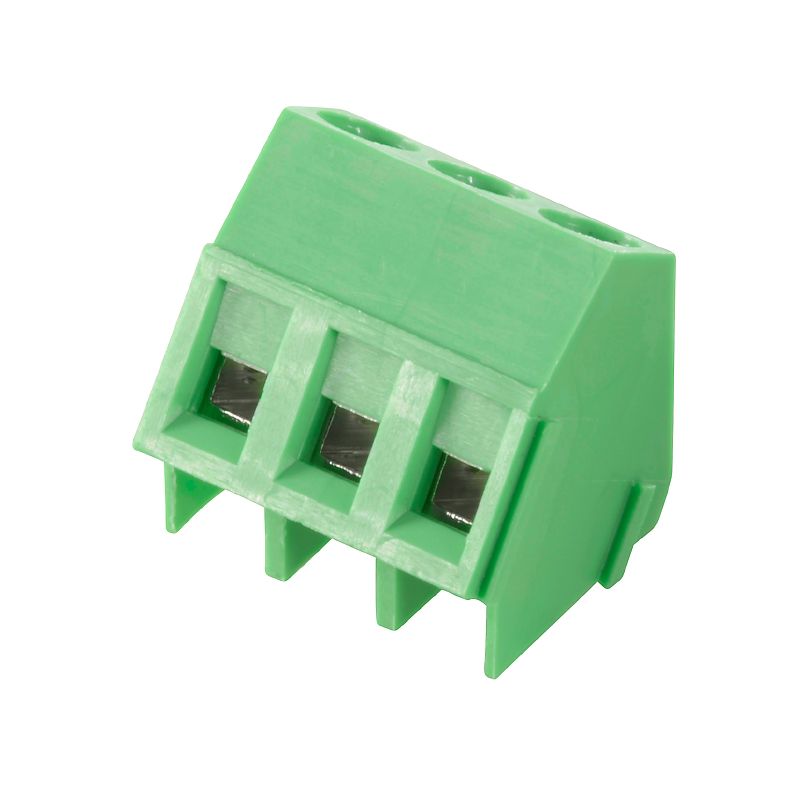

Introducing the TSS 500/05/135 33SN GN BX terminal block, expertly crafted for wire sizes between 02 to 25 mm² (AWG 30 to AWG 12) This versatile component operates at a maximum voltage of 630 V and can handle up to 20 A of current It features a dependable clamping yoke for secure wire connections and boasts an IP20 protection rating Fully compliant with RoHS standards, this terminal block comes with various certifications, assuring its quality and reliability.
Each unit is carefully packaged, weighing only 12 g for easy handling and installation.
Features and Benefits:
•Pale green color.
•Compliant with RoHS regulations.
•Clamping yoke connection for reliable wire methods.
•Compact design with a minimum stripping length of 7.5 mm.
•Temperature range for storage and operation.
•Suitable for various wire cross-sections including solid and flexible types.
Specifications:
| IEC rated voltage | 630 V |
| IEC rated current | 20 A |
| UL rated voltage | 300 V |
| UL rated current | 20 A |

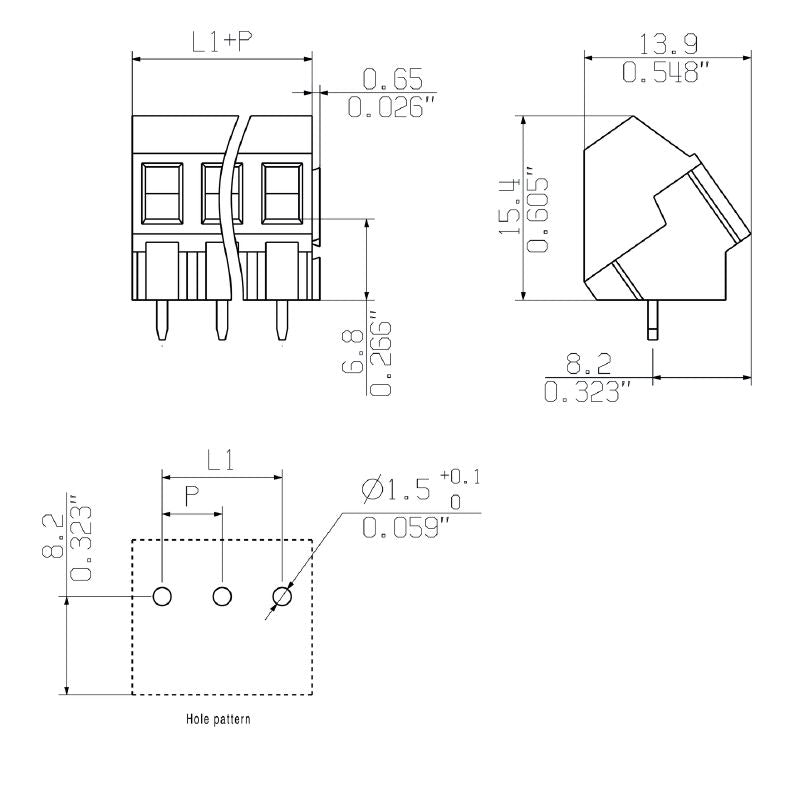

| Pitch in mm | 5 mm |
| Number of poles | 5 |
| Protection degree | IP20 |
| Material | PA |
| Insulating material group | I |
| UL 94 flammability rating | V-0 |
| Solder pin length | 3.3 mm |
| Number of solder pins per pole | 1 |
| Conductor outlet direction | 135° |
| Clamping range | 0.2 - 2.5 mm² |
