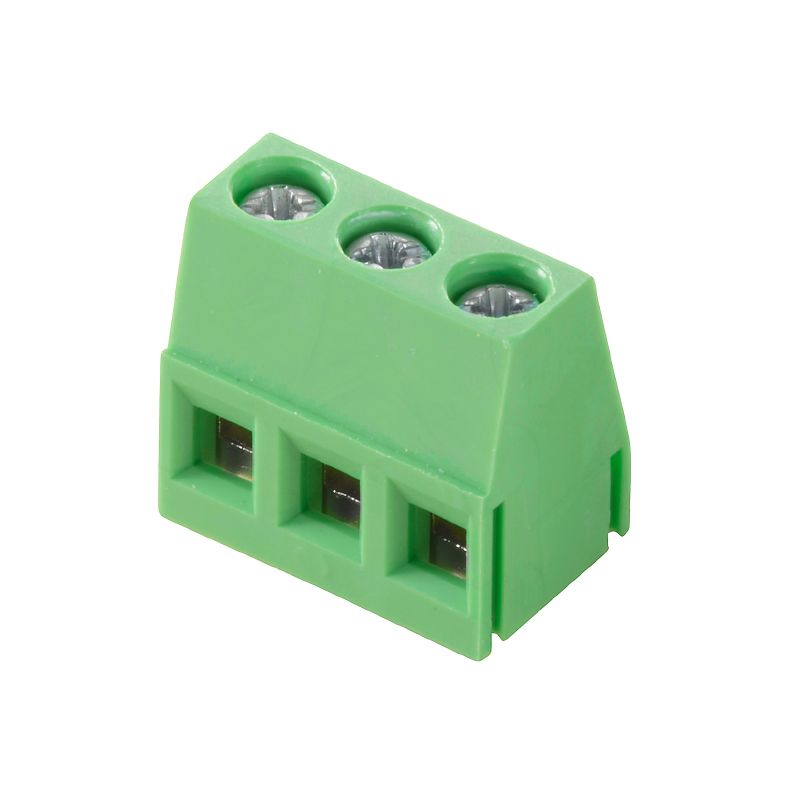

2651490000 - Compact 5.08mm Terminal Block with 90-Degree Outlet (Pack of 48)
2651490000 - Compact 5.08mm Terminal Block with 90-Degree Outlet (Pack of 48)
SKU: SKU: 2651490000 Download PDF
- 2651490000 - Compact 5.08mm Terminal Block with 90-Degree Outlet (Pack of 48)
- 2651490000 - Compact 5.08mm Terminal Block with 90-Degree Outlet (Pack of 48)
Couldn't load pickup availability
Description:
Introducing the TMS 508/18/90 30SN GN BX terminal block, engineered for diverse electrical needs This component features a clamping yoke connection that simplifies wire integration Meeting IEC standards for voltage and current ratings, it accommodates wire sizes ranging from 02 to 25 mm² and AWG from 30 to 12 With its 90-degree conductor outlet and a compact 508 mm pitch, this terminal block is perfect for tight spaces.
It is also optimized for straightforward solder connection to PCBs using THT methods, making it a reliable choice for your electrical projects.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Designed for optimal PCB mounting with THT solder connections.
•Low flammability rating of UL 94 V-0.
•Features a robust clamping yoke connection method.
•IP20 protection degree for dust ingress.
Specifications:
| Rated current | 15 A |
| Rated voltage | 300 V |
| Number of poles | 18 |
| Pitch | 5.08 mm (0.2 in) |
| Solder pin length | 3 mm |
| Clamping range | 0.2 - 2.5 mm² |
| Tightening torque | 0.5 - 0.55 Nm |
| Storage temperature | -40 °C to 70 °C |
| Operating temperature | Max 105 °C |
| Insulating material | PA |
| Contact material | Copper alloy |
| Solder eyelet hole diameter | 1.4 mm |
| Number of solder pins per pole | 1 |
| Stripping length | 6 mm |
