Description:

Capture stunning slow-motion footage with the PCE-HSC 1660 high-speed camera, perfect for industrial and research applications This compact camera boasts an impressive refresh rate of 2420 frames per second, making it easy to record high-speed movements with clarity Connecting effortlessly to your PC or laptop via USB 30, the included software recognizes the SloMo camera instantly, allowing for immediate recording after driver installation.

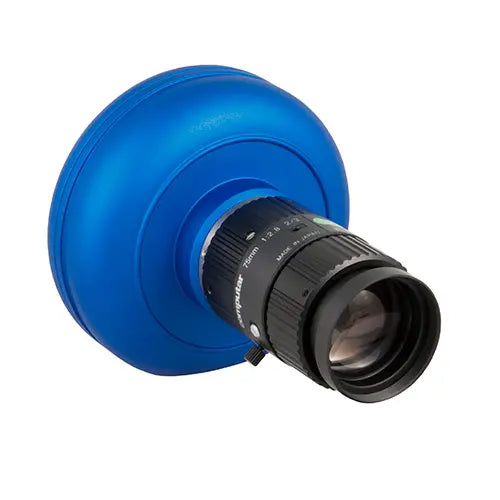

Featuring a 10-bit CMOS image sensor, this device delivers black and white images at a resolution of 1280 x 1024 Additionally, the PCE-HSC 1660 comes equipped with a C-Thread mounting option and utilizes a 75 mm / 3 in f/28 lens for versatile setup possibilities.

Features and Benefits:

    •USB 3.0 connection.

    •1.3 megapixel.

    •Maximum 2420 FPS.

    •10-bit CMOS.

    •Plug and Play.

    •Controllable directly via PC.

    •Trigger port.

    •Threaded tripod connector.

Specifications:

 CMOS 1.3 Megapixel
 Max. resolution 1280 x 1024
 Max. recording rate 2420 FPS
 Resolution / recording rate 1280 x 1024 / 210 FPS, 1024 / 1024 / 260 FPS, 1024 x 2768 / 346 FPS, 640 x 480 / 825 FPS, 512 x 512 / 950 FPS, 256 x 256 / 2420 FPS
 Pixel depth 10 Bit CMOS
 Pixel size 4.8 µm per pixel
 Memory Via connected PC
 Power supply Via USB 3.0 Port
 Interface USB 3.0
 Trigger External
 Mount and Lens C-Thread with F=75 mm and f/2.8
 Housing material Aluminium
 Dimensions 80 x 74 x 40 mm / 3.1 x 2.9 x 1.6 in
 Operating Conditions 0 ... 40°C / 32 ... 104°F, Max 80% RH
 Storage conditions -20 ... 60°C / -4 ... 140°F, Max. 95% RH
 LED Power 6 x 3W LED
 LED Filter 5800 K Frost filter, 3200K Amber filter
 Dimmer function Yes
 Main power supply 100 ... 240V AC
 Output 12V / 2 A
 Battery pack 7.4V @ 6000-mAh
 Battery run-time Approx. 150 minutes
