PCE-T236 - Digital Tachometer for Contact & Non-Contact Speed Measurement

PCE-T236 - Digital Tachometer for Contact & Non-Contact Speed Measurement

SKU: SKU: PCE-T236   Download PDF

Select a Variant:
  • PCE-T236 - Digital Tachometer for Contact & Non-Contact Speed Measurement
Qty:
Regular price Now $177.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $177.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

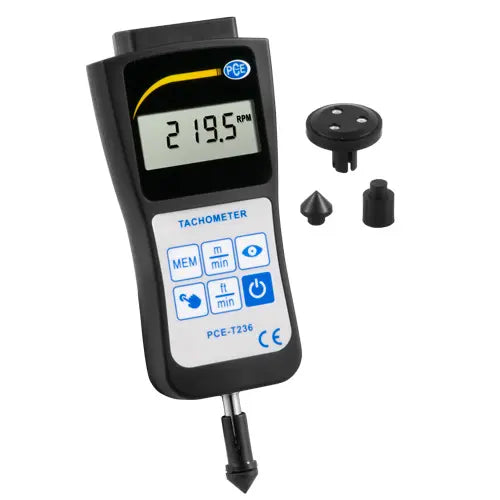

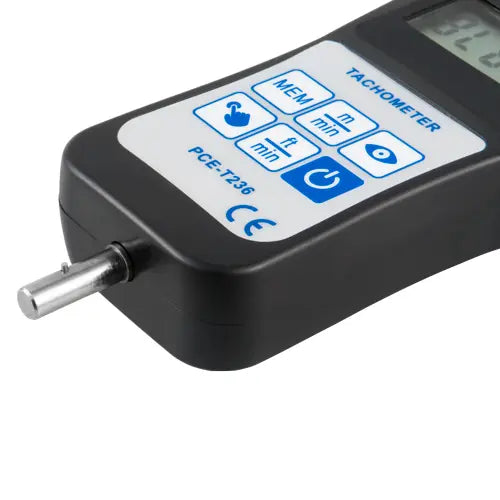

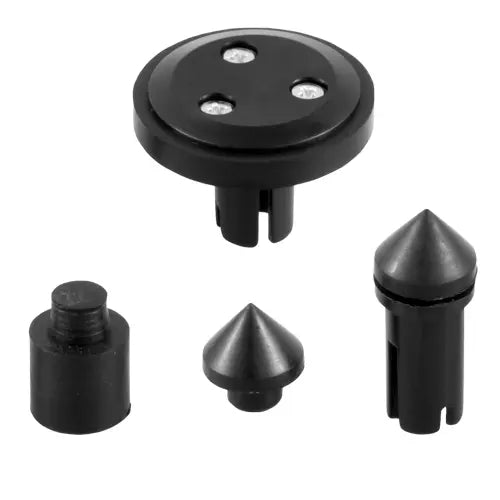

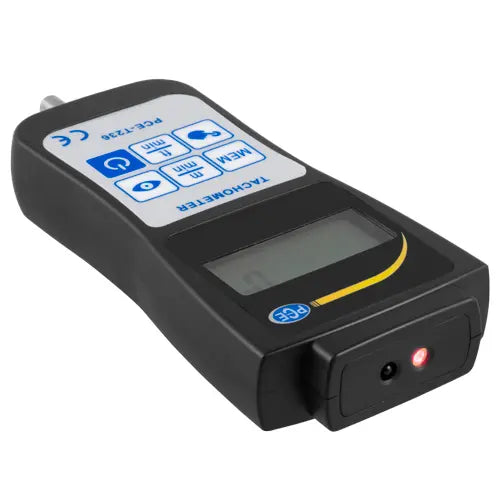

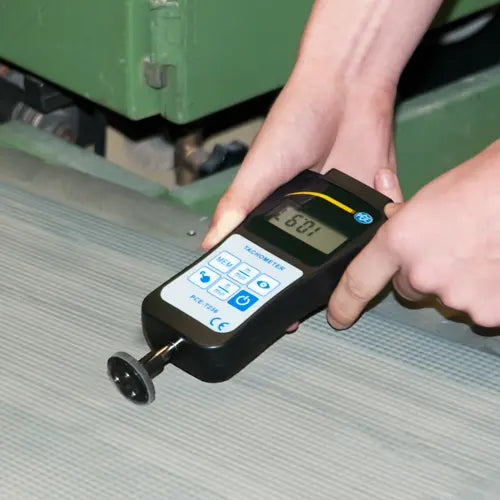

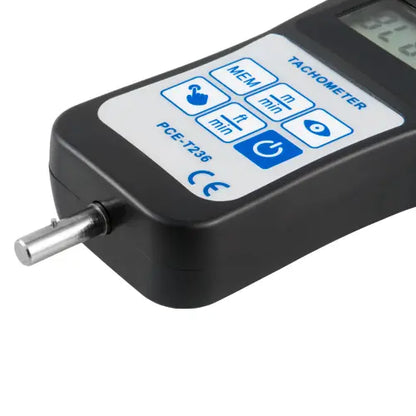

Introducing the PCE-T236, a versatile digital handheld tachometer perfect for measuring rotation speed and linear or surface speed This device allows for both contact and non-contact measurements, offering readings in rpm, m/min, or ft/min Equipped with a built-in laser, the tachometer also includes mechanical attachments with contact probes, making it ideal for a range of applications including machinery, motors, conveyor belts, and other moving components.

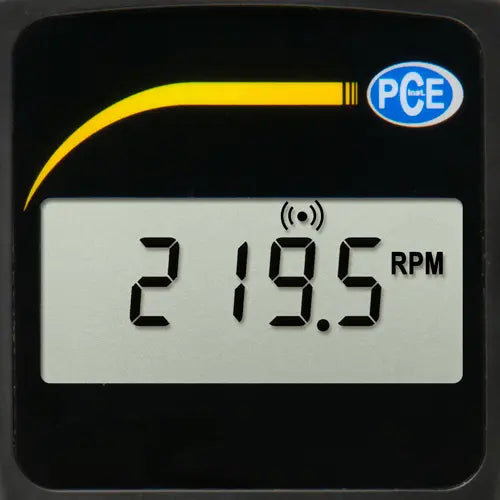

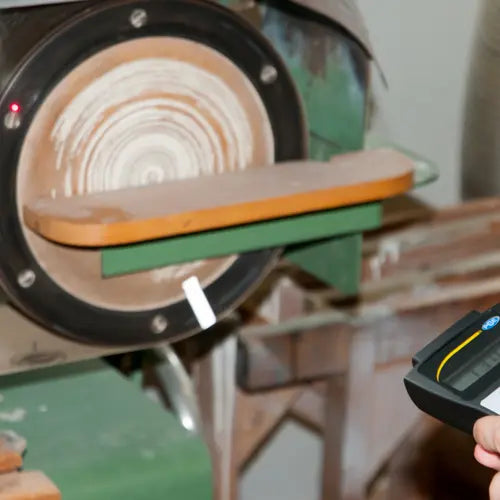

For non-contact measurements, simply use the provided laser-reflective tape affixed to the object in motion One standout feature of the PCE-T236 is its 5-digit LCD display, which automatically rotates 180° to ensure easy readability whether you're using contact or non-contact measurement methods This makes it a reliable tool for all your speed measurement needs.

Features and Benefits:

    •For both contact and non-contact measurement.

    •Automatic rotation of LCD screen orientation.

    •Displays units in rpm, m/min or ft/min.

    •Memory saves minimum, maximum and last values.

    •Rugged heavy-duty ABS plastic enclosure ensures longevity.

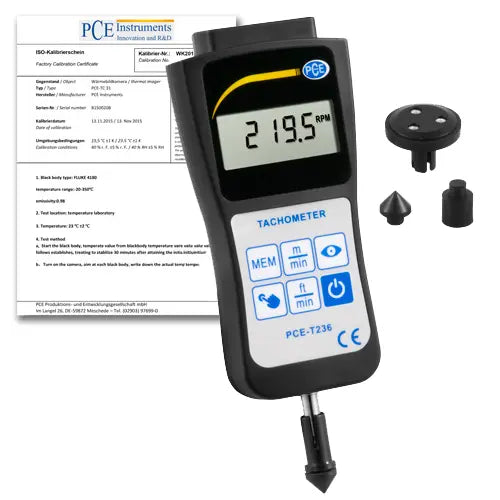

    •Incl. ISO calibration certificate.

    •Measuring rotation speed of machines, motors, conveyor belts and other moving parts..

Specifications:

 Optical measurement range 5 ... 99999 rpm
 Contact measurement range 0.5 ... 19999 rpm, 0.05 ... 1999 rpm, 0.2 ... 6560 ft/min
 Optical resolution 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm
 Contact resolution 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm, 0.05 ... 99.99 = 0.01 rpm, Greater than 1999 = 0.1 rpm, 0.2 ... 999.9 = 0.1 ft/min, Greater than 6560 = 1.0 ft/min
 Accuracy Less than 60000 rpm = ±0.05% fs , Greater than 60000 rpm = ±0.15% fs
 Max. distance for optical measurement 300 mm / 11.8 in
 Memory Minimum, maximum and last values
 Power supply 4 x 1.5V AAA batteries
 Operating temp. range 0 ... 50°C / 32 ... 122°F
 Dimensions Approx. 65 x 215 x 38 mm / 2.56 x 8.47 x 1.50 in
