PCE-RT 2000 - Portable Roughness Tester with OLED Display and Rechargeable Battery

PCE-RT 2000 - Portable Roughness Tester with OLED Display and Rechargeable Battery

SKU: PCE-RT 2000   Download PDF

Select a Variant:
  • PCE-RT 2000 - Portable Roughness Tester with OLED Display and Rechargeable Battery
Qty:
Now $2,277.00   Web pricing policy
BEFORE   $0.00 Now $2,277.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

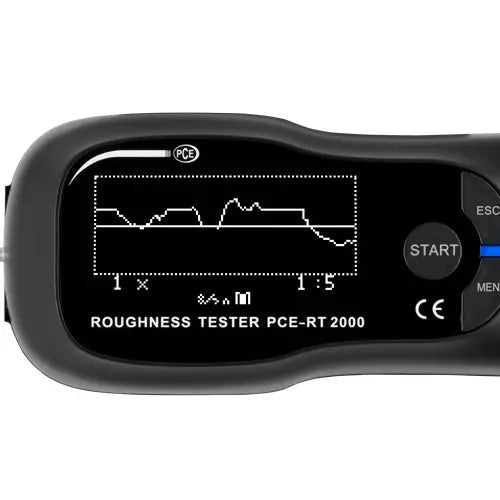

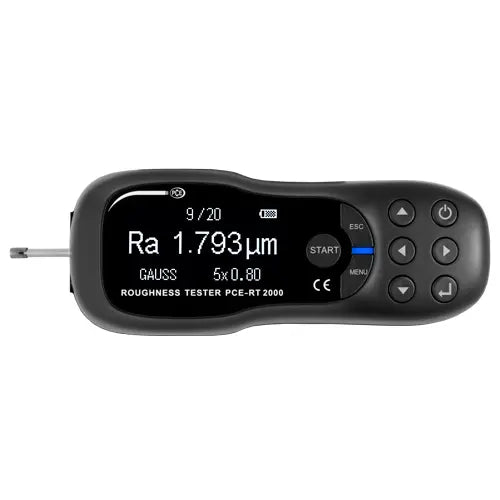

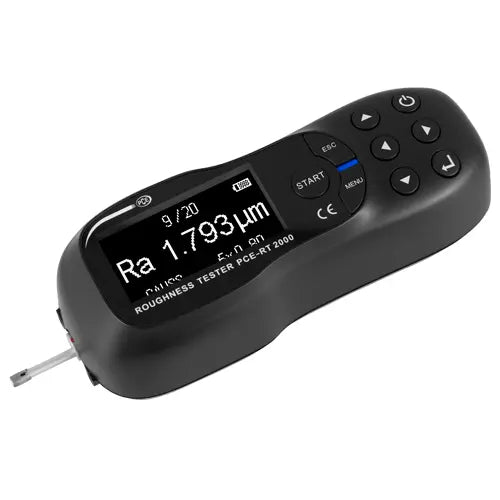

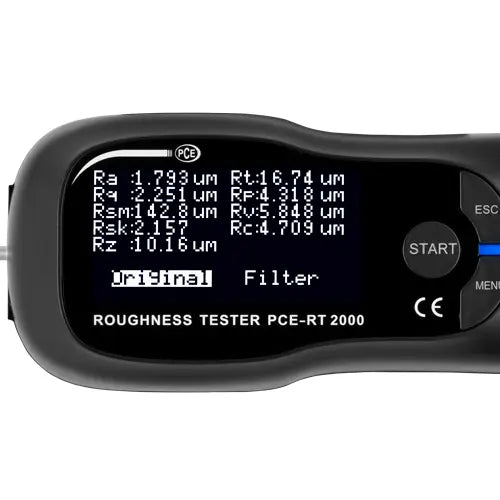

Experience precision with the PCE-RT 2000, a compact roughness tester designed for quick and reliable surface roughness measurements Its expansive OLED display allows for clear numeric and graphical representations of metrics such as Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, and Rc, utilizing an inductive measurement method Easy to operate, simply place the device on the surface; the integrated piezo sensor captures roughness data and shows results immediately.

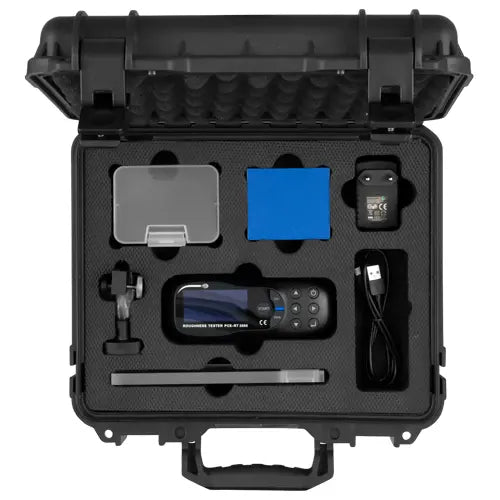

Powered by a rechargeable Li-ion battery, this profilometer also includes a charger and features an automatic shut-off to extend battery life Additionally, a Micro USB cable is provided for convenient charging and data transfer to software, ensuring thorough documentation of your measurements.

Features and Benefits:

    •Large OLED display for numeric and graphical results.

    •Measures various roughness parameters including Ra, Rq, Rsm.

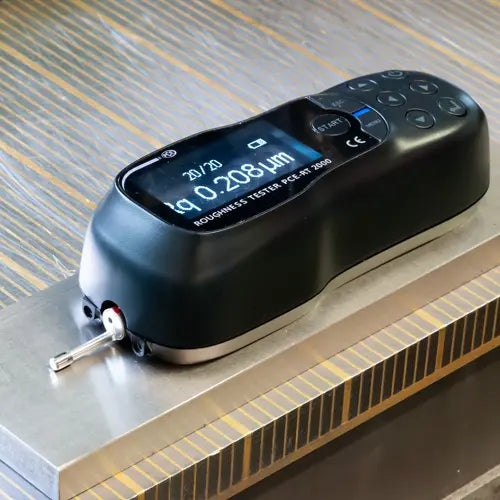

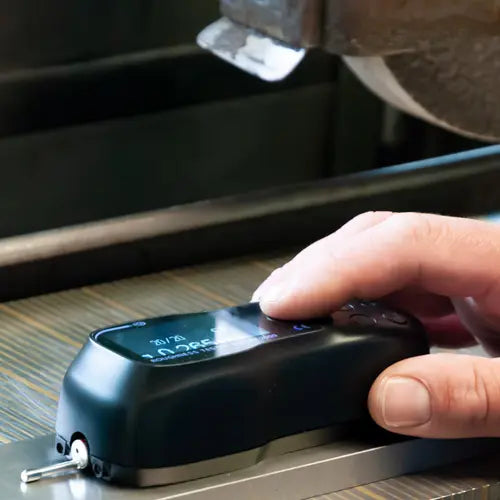

    •Easy to operate by placing on the surface for measurement.

    •Powered by rechargeable Li-ion battery.

    •Includes data transmission capability to create measurement documentation.

    •Lightweight and portable design for convenience.

    •Quality assurance in manufacturing.

    •Surface inspection in mechanical engineering.

    •Material characterization in research and development.

Specifications:

 Measurement parameters Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
 Measuring ranges Ra, Rq, Rc 0.005 μm ... 16 μm
 Measuring ranges Rz, Rt, Rp, Rv 0.02 μm ... 200 μm
 Measuring range Rsm 5 μm ... 1000 μm
 Measuring range Rsk -1 ... 1

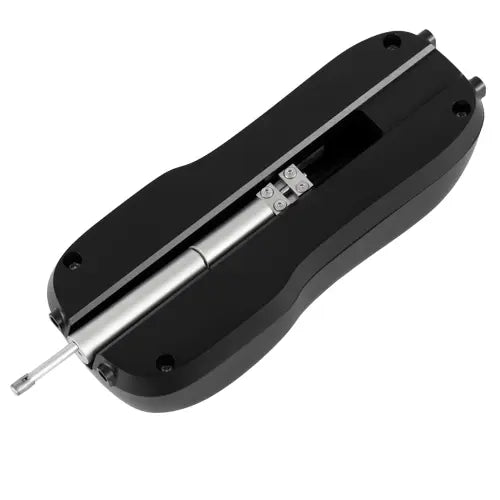

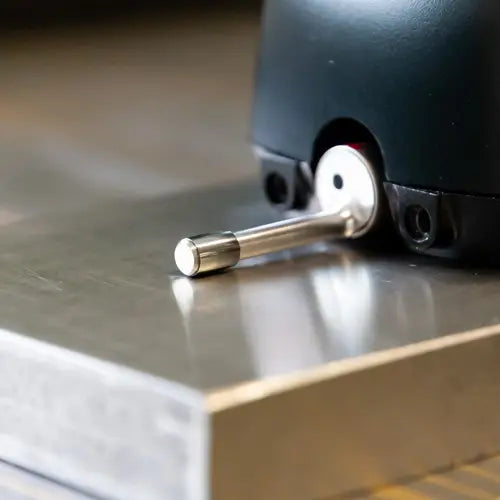

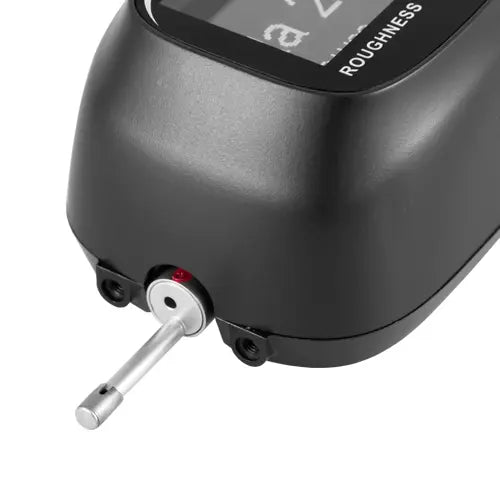

 Radius stylus tip 5 μm
 Material stylus tip Diamond, 90° angled
 Max. Recommended force for static measurement 4 mN (0.4 gf)
 Measuring principle Inductive
 Radius longitudinal guide bar 45 mm / 1.8 in
 Standards ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
 Maximum driving distance 15 mm / 0.6 in
 Cut-off wavelength 0.135 mm 0.25 mm
 Cut-off wavelength 0.5 mm 0.8 mm
 Cut-off wavelength 1 mm 2.5 mm
 Reversing speed 1 mm / s
 Measurement accuracy <± 10%
 Repeatability <6%
 Display OLED
 Units μm / μinch (switchable)

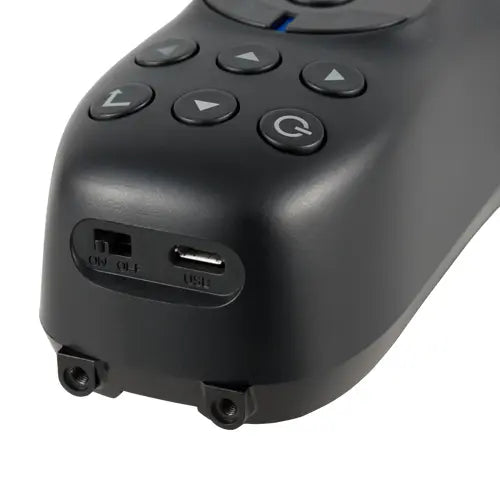

 Interface Micro USB
 Power supply Rechargeable Li-ion battery
