Description:

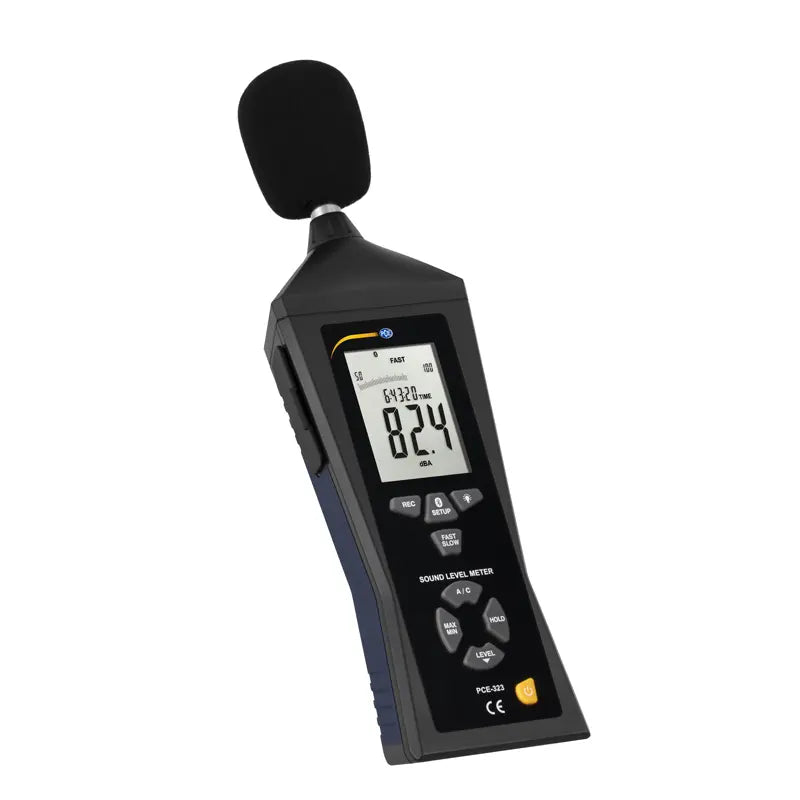

Experience precise noise measurement with this innovative decibel meter, compatible with both Android and iOS devices With an impressive accuracy class of 2 and a live view feature, it allows for seamless monitoring of sound levels The package includes a reliable battery, power adapter, and software for PC connectivity, supporting A and C frequency weightings
This device boasts a measuring range from 30 dB to 130 dB, making it ideal for tracking noise from various sources such as ventilation systems, stamping machines, and traffic.

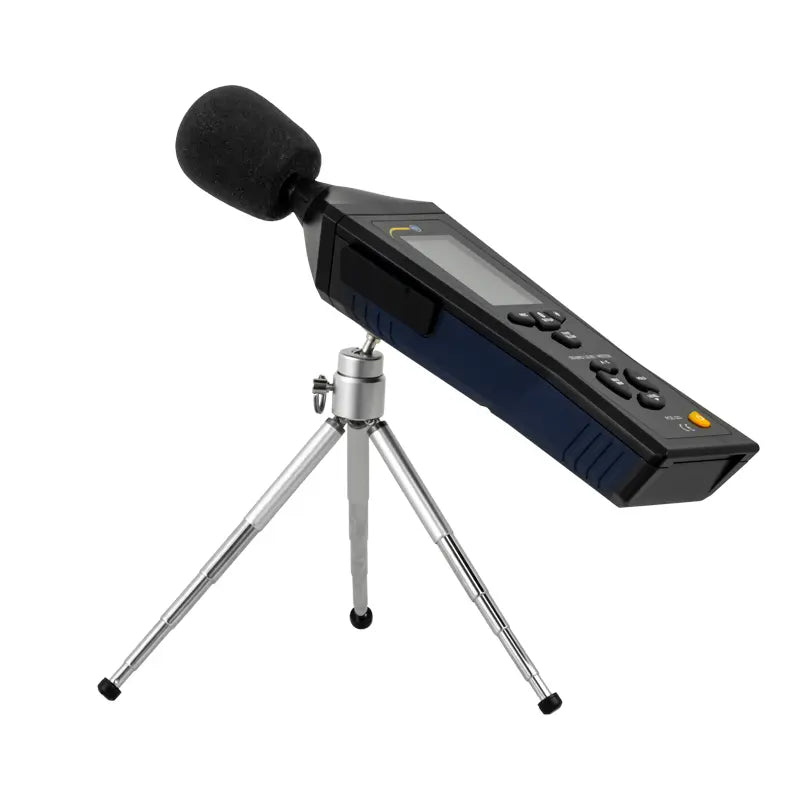

Users can easily switch between frequency ratings and store up to 32,700 readings For flexibility, the meter can be mounted on a tripod for ideal microphone positioning

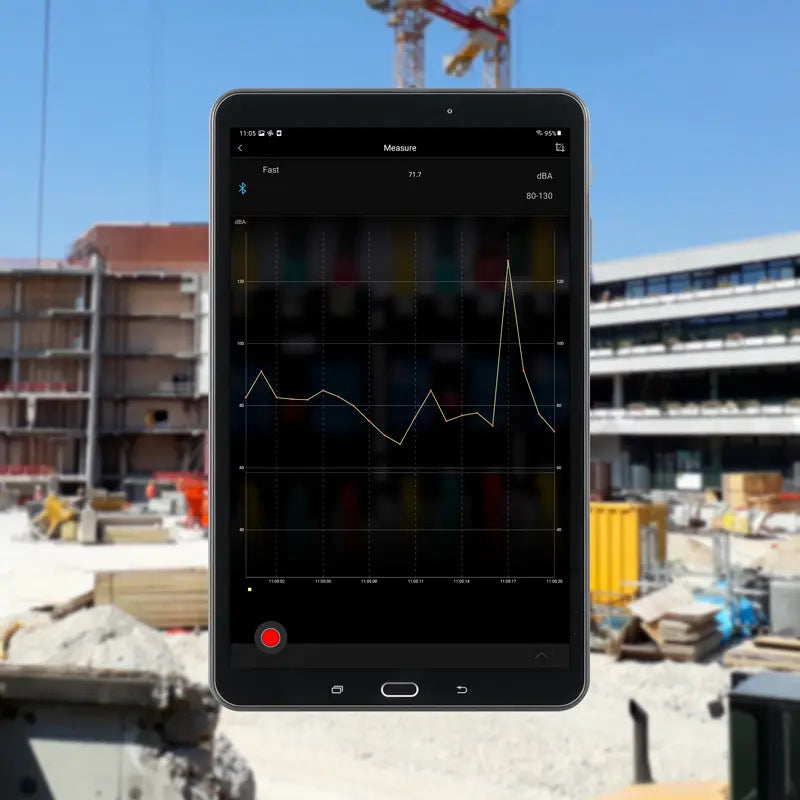

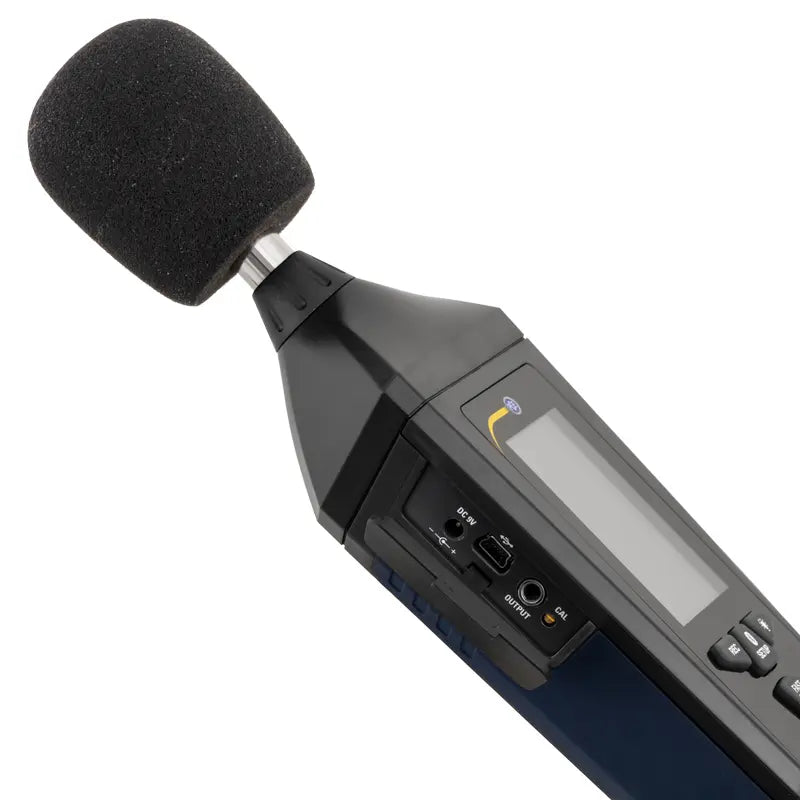

The Bluetooth functionality enables real-time data transmission to your mobile app, with the option to export data in CSV format for further analysis Connection to a computer is facilitated via a mini USB interface, ensuring live data transfer and exporting capabilities.

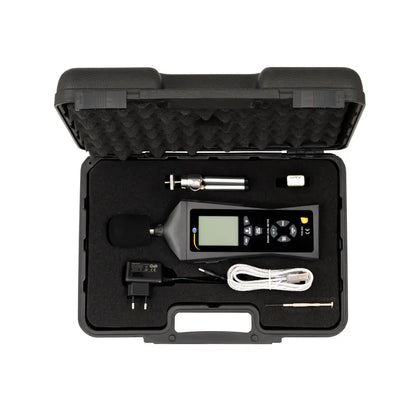

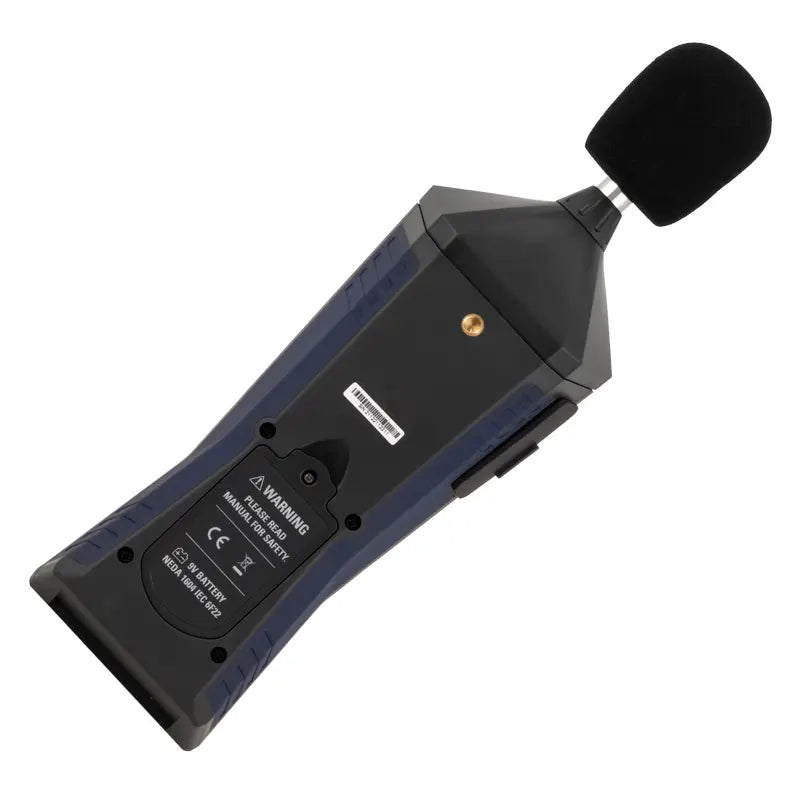

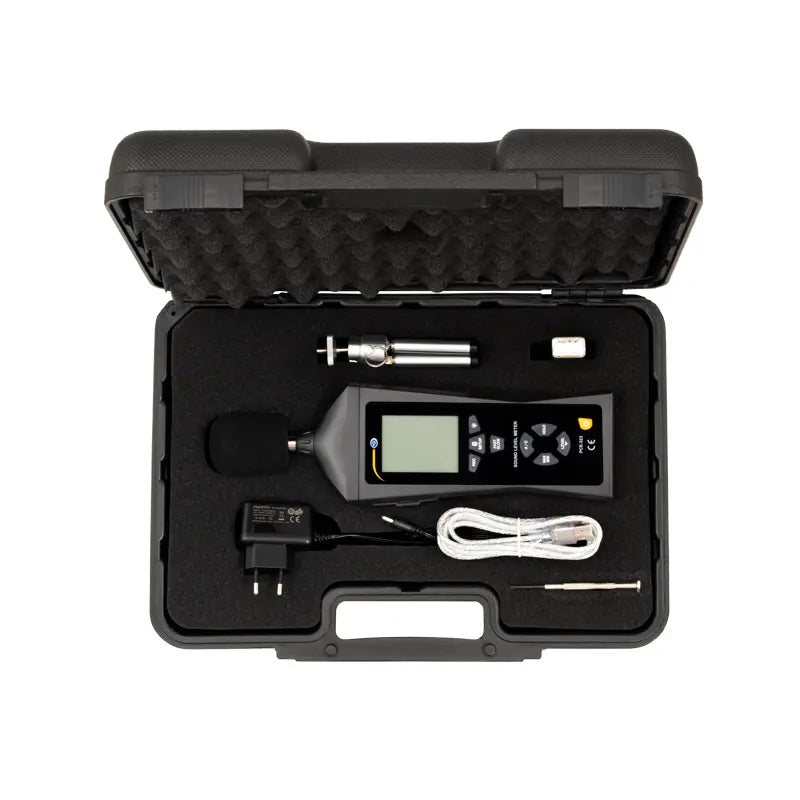

It can operate on a stationary 12V DC power supply or utilize a 9V block battery for portable use For easy transport, a protective case is included with the unit.
Features and Benefits:
•Accuracy class 2.
•Measuring range of 30 ... 130 dB.
•Different noise level ranges.
•Bluetooth interface with free app.
•Battery and power adapter included.
•Frequency weighting A and C.

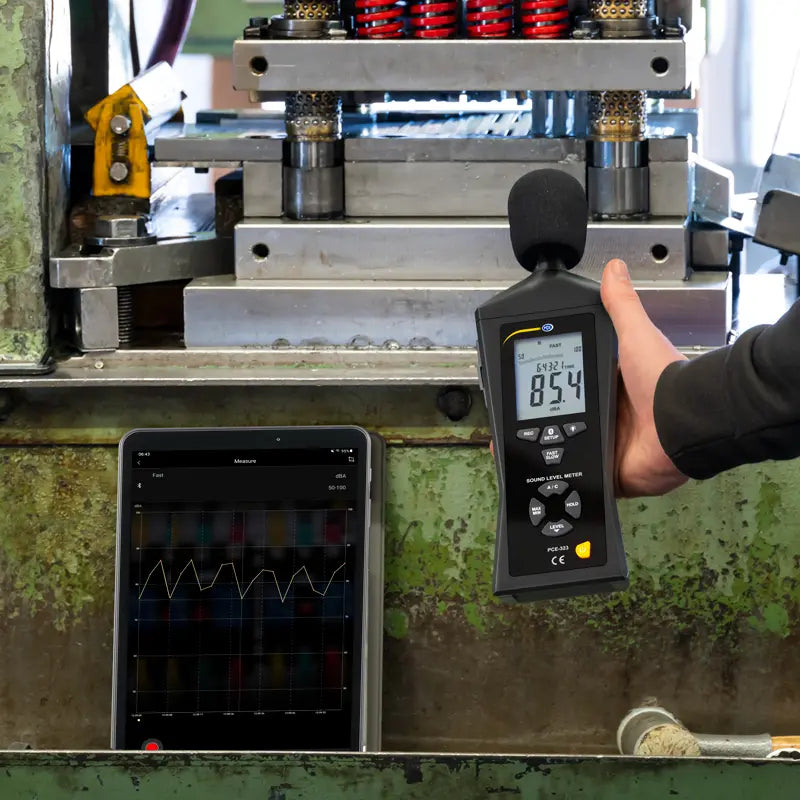

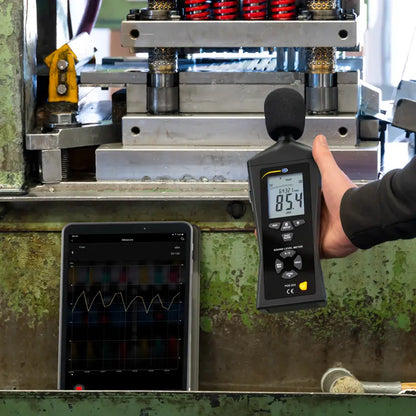

•Used to control noise levels on stamping presses.
•Used for measuring noise levels in ventilation systems.

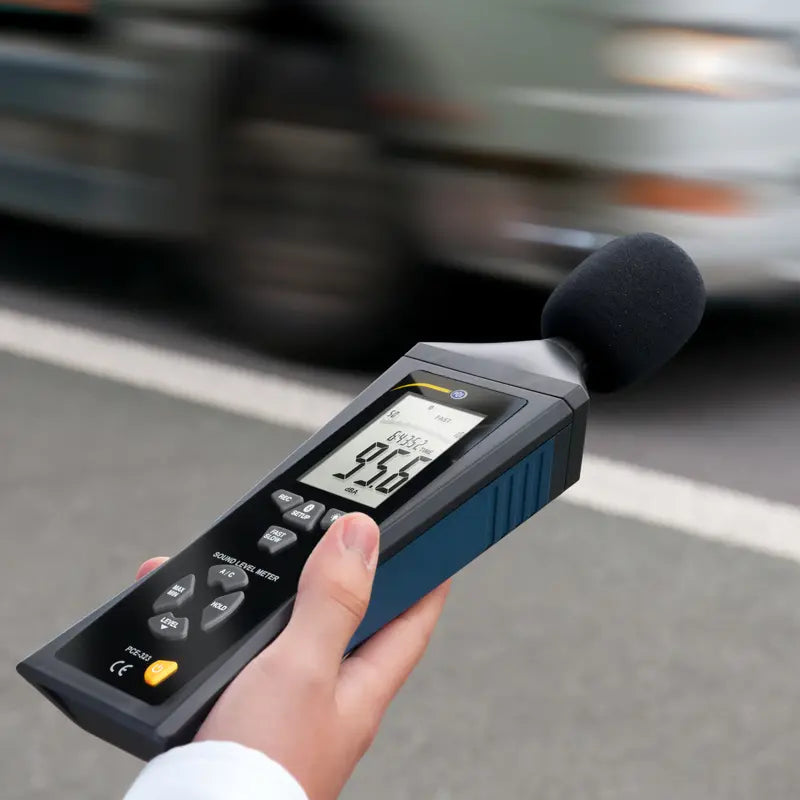

•Applicable on busy roads for noise monitoring.
Specifications:
| Noise level ranges: | Auto 30 ... 130 dB, High 80 ... 130 dB, Medium 50 ... 100 dB, Low 30 ... 80 dB |
| Dynamic range: | 50 dB |
| Resolution: | 0.1 dB |
| Accuracy: | ±1.4 dB (under reference conditions @ 94 dB, 1 KHz) |
| Frequency range: | 31.5 Hz...8 kHz |
| Time rating: | FAST (125 ms), SLOW (1 s) |
| Frequency weighting: | A and C |
| Microphone type: | 1/2" electret condenser |

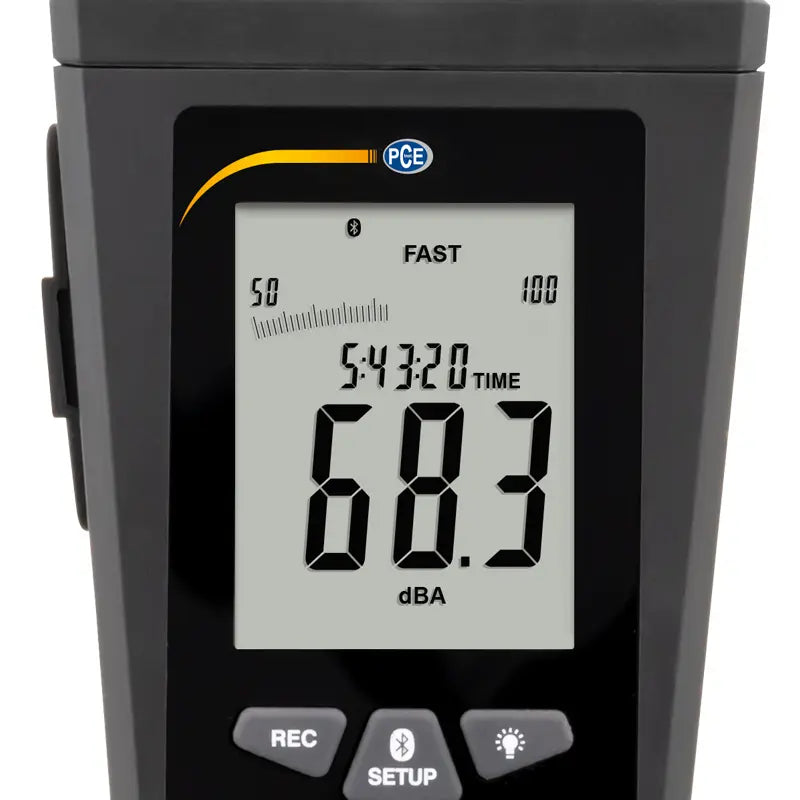

| Display: | 4-digit LCD display with background lighting |
| Display update: | 2 Hz |
| Data storage: | 32700 readings |
| Storage interval: | 1 ... 59 seconds |
| Analog output: | 1 Vrms/dB AC (impedance 100), 10 mV/dB DC (impedance 1k) |
| Data interface: | USB, Bluetooth 4.0 |
| Bracket: | 3/8" connection |
| Functions: | MIN, MAX, HOLD, indication when noise level exceeds or falls below threshold |
| Shutdown: | Automatically after ca. 15 minutes of inactivity |
| Power supply: | 9 V block battery, Primary: 100 ... 240 V AC, 50 / 60 Hz, 0.2 A, Secondary: 9 V DC, 0.5 A |
| Operating conditions: | 0 ... +40 °C / 32 .. 104 °F, 10 ... 90 % RH, non-condensing, Altitude <2000 m / 6561 ft |
| Storage conditions: | -10 ... +60 °C / 14 ... 140 °F, 10 ... 75 % RH, non-condensing |
| Dimensions: | 278 x 76 x 50 mm / 10.9 x 3.0 x 2" |
