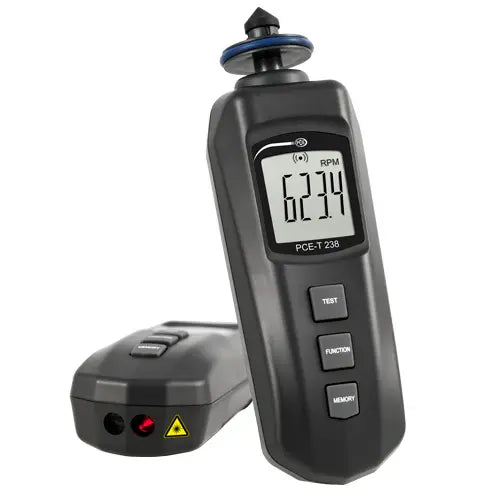

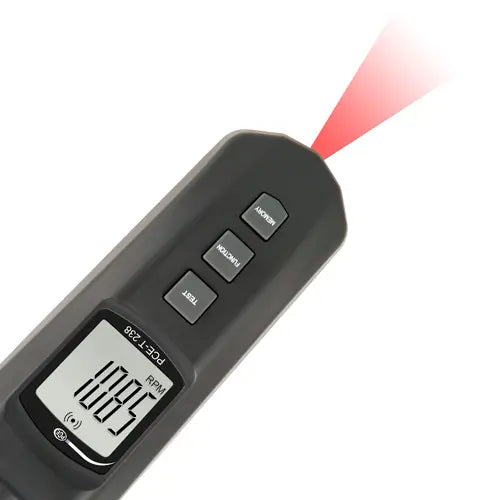

PCE-T 238 - Battery-Powered Handheld Tachometer for Speed Measurement

PCE-T 238 - Battery-Powered Handheld Tachometer for Speed Measurement

SKU: PCE-T 238   Download PDF

Select a Variant:
  • PCE-T 238 - Battery-Powered Handheld Tachometer for Speed Measurement
Qty:
Now $263.00   Web pricing policy
BEFORE   $0.00 Now $263.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-T 238 handheld tachometer, a versatile battery-operated instrument built for both contact and non-contact measurements Capable of measuring speeds up to an impressive 99,999 rpm, it is perfect for verifying surface speeds with ease This device is designed for mobile operation, allowing you to take measurements quickly without the need for extensive setup Its functionality is unaffected by rotation direction, making it an indispensable tool for machine maintenance and for inspecting hard-to-reach areas.

Features and Benefits:

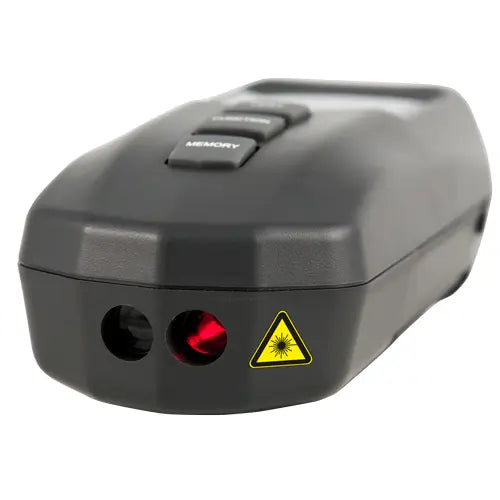

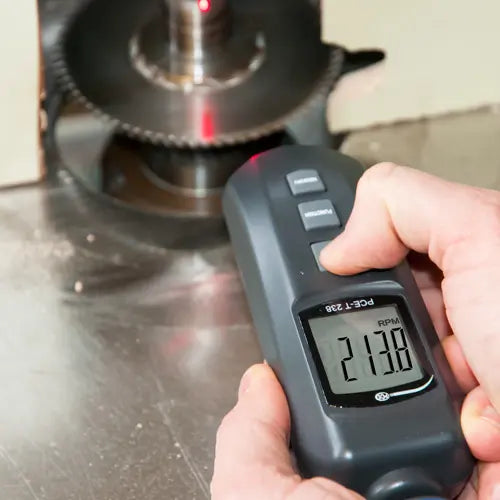

    •Non-contact measurement via a laser.

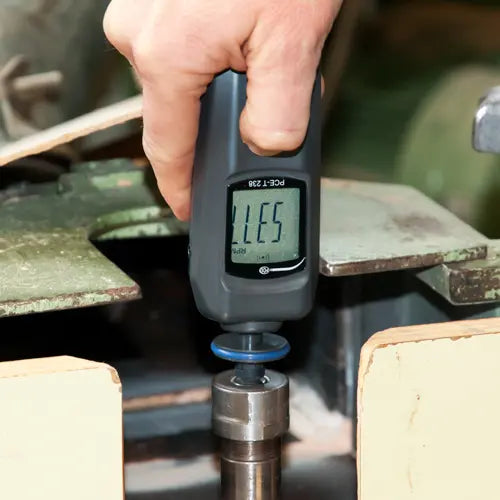

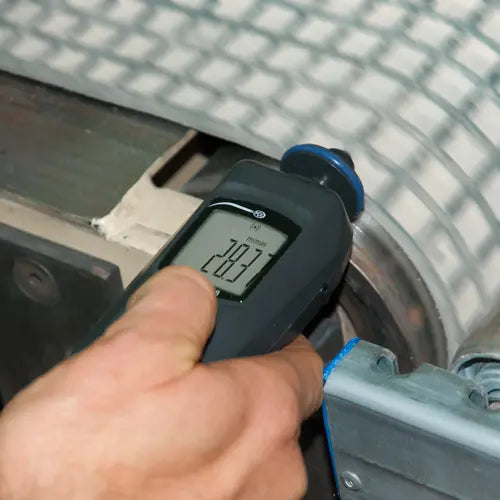

    •Contact measurement of m/min via surface wheel.

    •Robust ABS plastic housing.

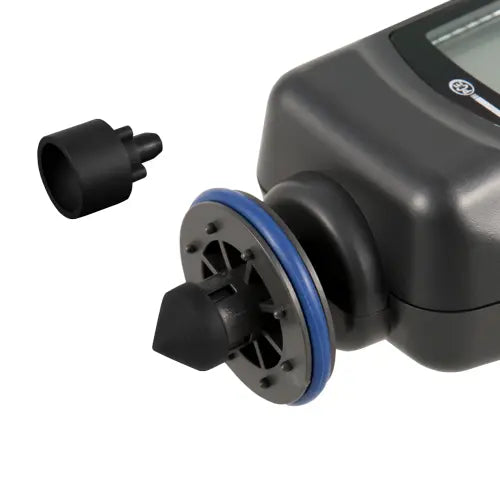

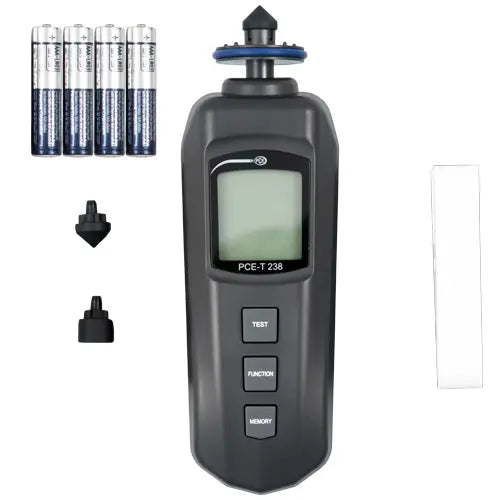

    •Different rubberized measuring tips (cone shape and funnel shape) included.

    •Ability to check the speed of hard-to-reach components.

    •Independent of rotation direction.

    •Suitable for a wide range of measurement environments.

    •Suitable for the care and maintenance of machines.

    •Measurement of various rotating components in industrial settings.

Specifications:

 Measuring range contactless measurement 5 ... 99,999 RPM
 Measuring range contact measurement 0.5 ... 19,999 RPM
 Measuring range surface measurement 0.05 ... 1,999.9 m/min
 Resolution RPM At <1,000 rpm: 0.1; At ≥1,000 rpm: 1
 Resolution m/min At <100 m/min: 0.01; At ≥1000 m/min: 1

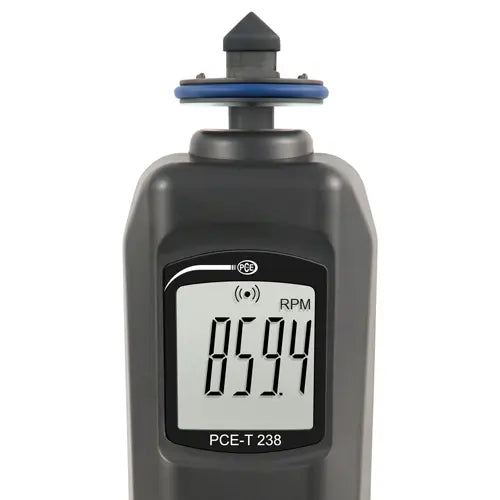

 Display LCD, size: 32 x 28 mm / 1.2 x 1.1 in, 5 digits
 Measurement accuracy ± (0.1% of rdg. + 1 digit)
 Measuring distance for non-contact measurements Typically 5 ... 150 cm / 2 ... 59 in
 Laser Class II, power: 1 mW
 Operating conditions 0 ... 50°C / 32 ... 122°F, <80 % relative humidity
 Memory Last value, extreme values with call function
 Data interface RS232
 Power supply 4 x 1.5V AAA batteries
 Power consumption Contactless measurement: ca. DC 20-mA; Contact measurement: ca. DC 9.5-mA
 Dimensions 165 x 50 x 33 mm / 6.5 x 1.9 x 1.3 in
