PCE-VE 1014N-F - High-Resolution Videoscope with Imagen & Video Recording Capabilities

PCE-VE 1014N-F - High-Resolution Videoscope with Imagen & Video Recording Capabilities

SKU: SKU: PCE-VE 1014N-F   Download PDF

Select a Variant:
  • PCE-VE 1014N-F - High-Resolution Videoscope with Imagen & Video Recording Capabilities
Qty:
Regular price Now $3,947.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $3,947.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

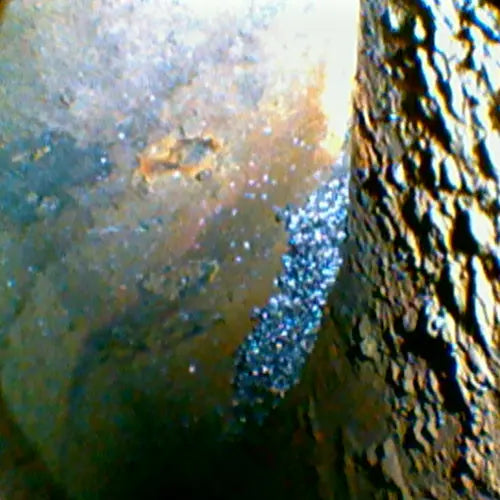

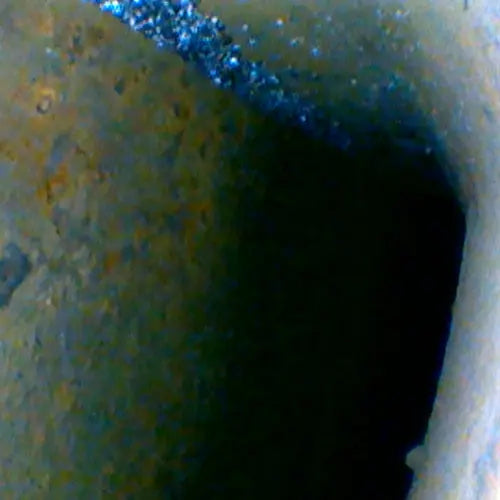

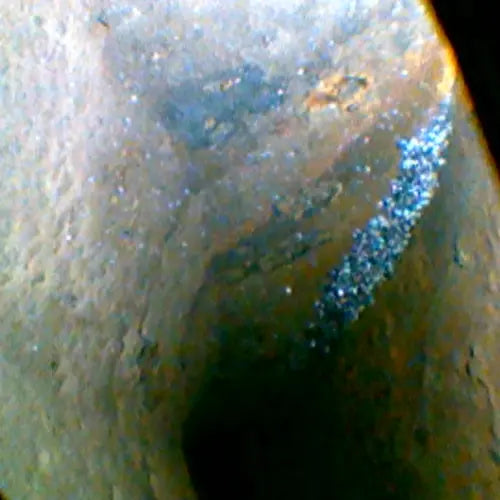

Introducing the PCE-VE 1014N-F Videoscope, an exceptional tool for inspections that offers remarkable versatility This instrument is compatible with various videoscope cables, making it adaptable to a range of needs Its standout feature is the expansive display, which provides an exceptional view of the inspection area, thanks to its high resolution and size Capture stunning images and videos effortlessly, with the added benefit of audio recordings accompanying your footage.

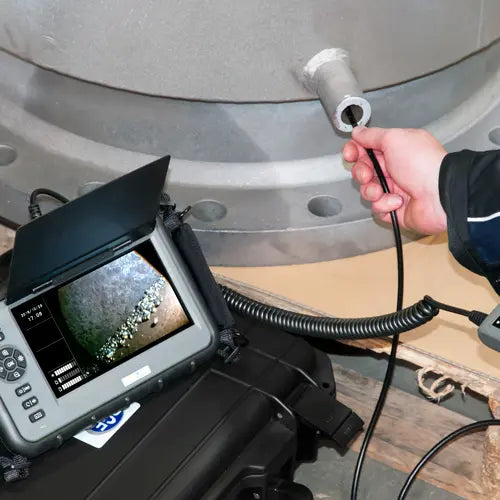

The videos can be saved directly to the videoscope's SD card using a simple keystroke, and when transferred to a computer, the recorded visuals are displayed with impressive clarity The device supports SD cards up to 32 GB, and with an 8 GB card, you can store more than 60,000 images or up to 530 minutes of video Designed for exploration in hard-to-reach places, the videoscope features two-way optics for enhanced maneuverability.

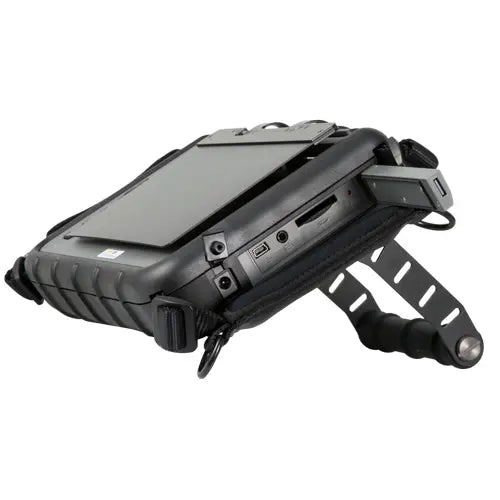

If the camera’s display orientation needs adjustment, simply rotate the images displayed at a 90° angle The handheld controller also allows for digital zoom and LED brightness adjustments for optimal visibility For longer recording sessions, the videoscope can be mounted on a tripod using the attached threading, ensuring stable positioning Enjoy customizable automatic shut-off settings, with options to choose time intervals between 5 to 30 minutes.

Additionally, the unit can be comfortably managed with padded shoulder straps, combining practicality with ease of use.

Features and Benefits:

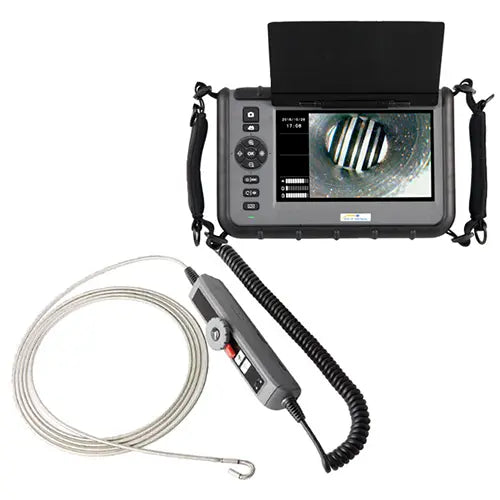

    •1.5 m / 4.9 ft videoscope cable with 2 way camera-head.

    •Camera head diameter: 4.5 mm / 0.18 in.

    •Storage of pictures and videos.

    •8 GB memory card included.

    •LED lighting.

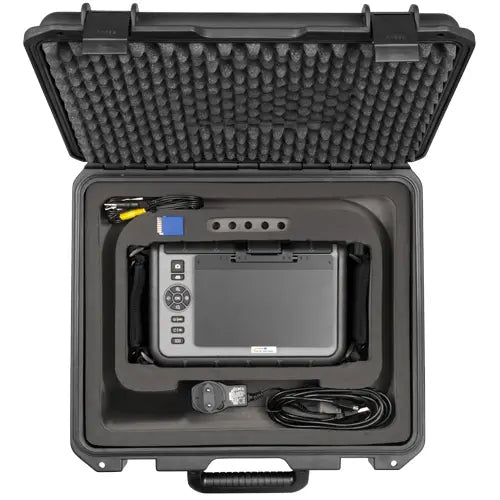

    •Robust carrying case included.

Specifications:

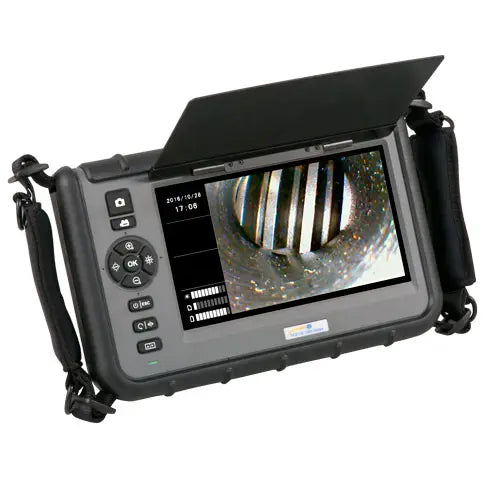

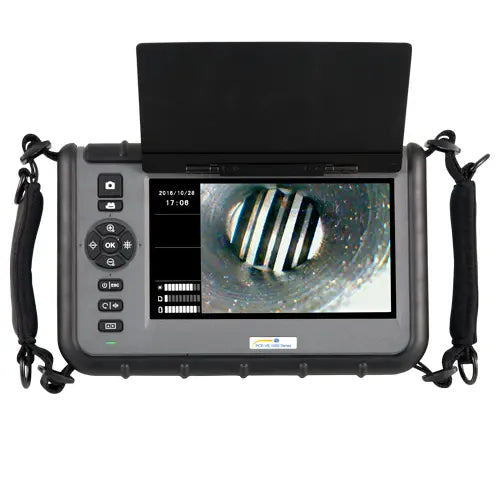

 Display 7" LCD (800 x 480)
 Image resolution 640 x 480 JPEG
 Video recording 640 x 480 MPEG (with sound recording)
 Drop test 1 m / 3.3 ft
 Power supply Li-Ion rechargeable battery
 Interface USB
 Image and video storage on SD card (maximum 32 GB)
 AV output NTSC / PAL
 Audio input built-in microphone
 Brightness adjustment 10-step adjustable on the main unit
 Runtime per battery charge 5 hours
 Battery charging time 3 hours
 Charging temperature 10 ... 40°C / 50 ... 104°F
 Operating temperature 0 ... 60°C / 32 ... 140°F
 Storage temperature 0 ... 60°C / 32 ... 140°F
 Protection class IP57
 Dimensions 240 x 154 x 47 mm / 9.4 x 6 x 1.9 n
 Cable length 1.5 m / 4.92 ft
 Camera head length ca. 13 mm / 0.5 in
 Camera head material stainless steel
 Camera head diameter 4.5 mm / 0.18 in
 Depth of field 10 ... 60 mm / 0.4 ... 2.4 in
 Video output NTSC
 Viewing angle 135°
 Control unit dimensions 228 x 35 x 53 mm / 9 x 1.4 x 2.1 in
 Weight ca. 400 g / < 1 lb
