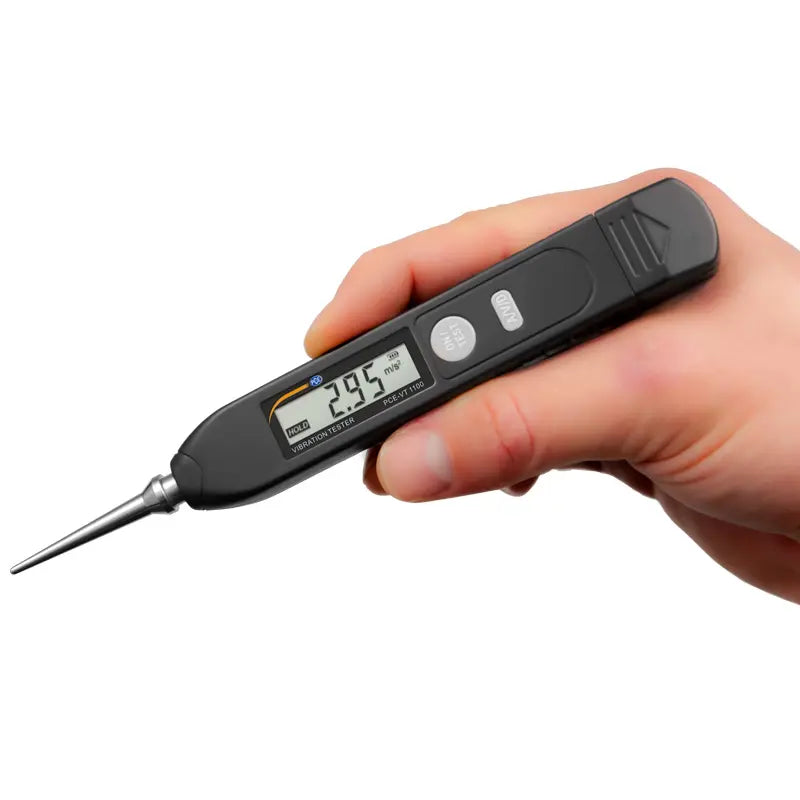

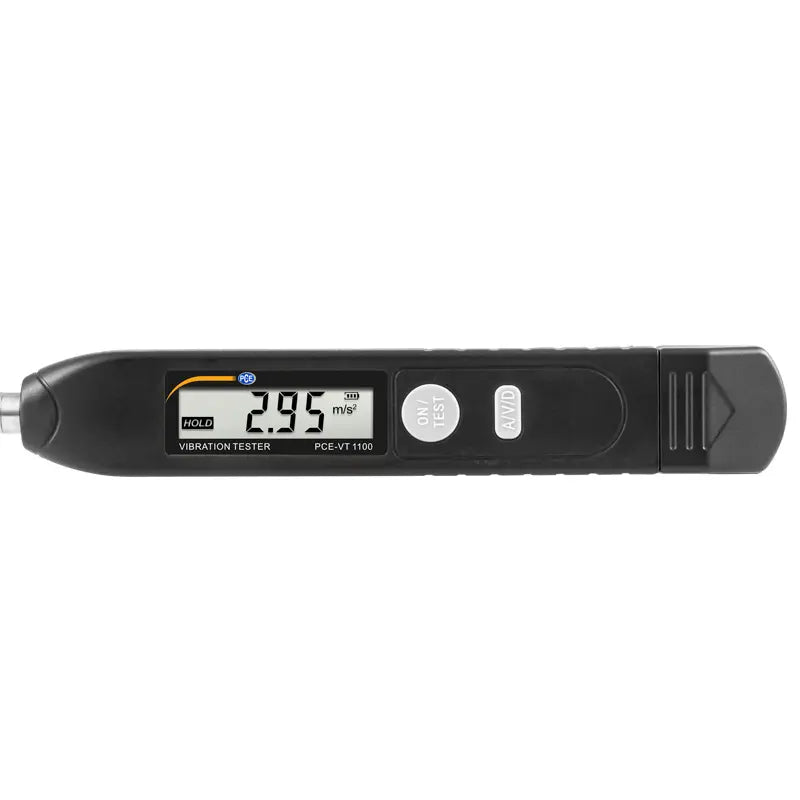

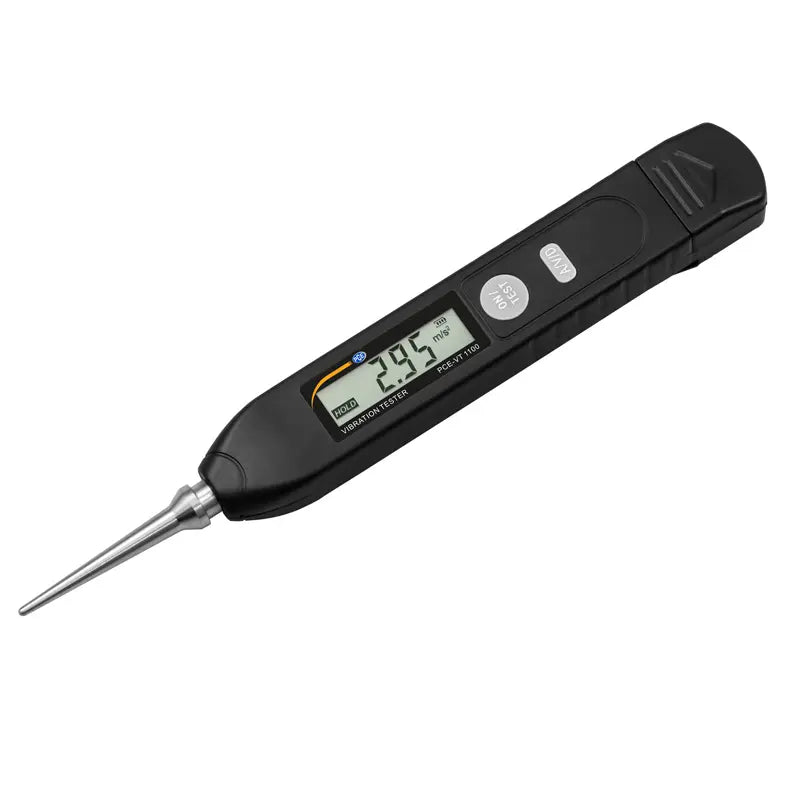

PCE-VT 1100 - Handheld Vibration Tester for Machinery Assessment

PCE-VT 1100 - Handheld Vibration Tester for Machinery Assessment

SKU: PCE-VT 1100   Download PDF

Select a Variant:
  • PCE-VT 1100 - Handheld Vibration Tester for Machinery Assessment
Qty:
Now $376.00   Web pricing policy
BEFORE   $0.00 Now $376.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

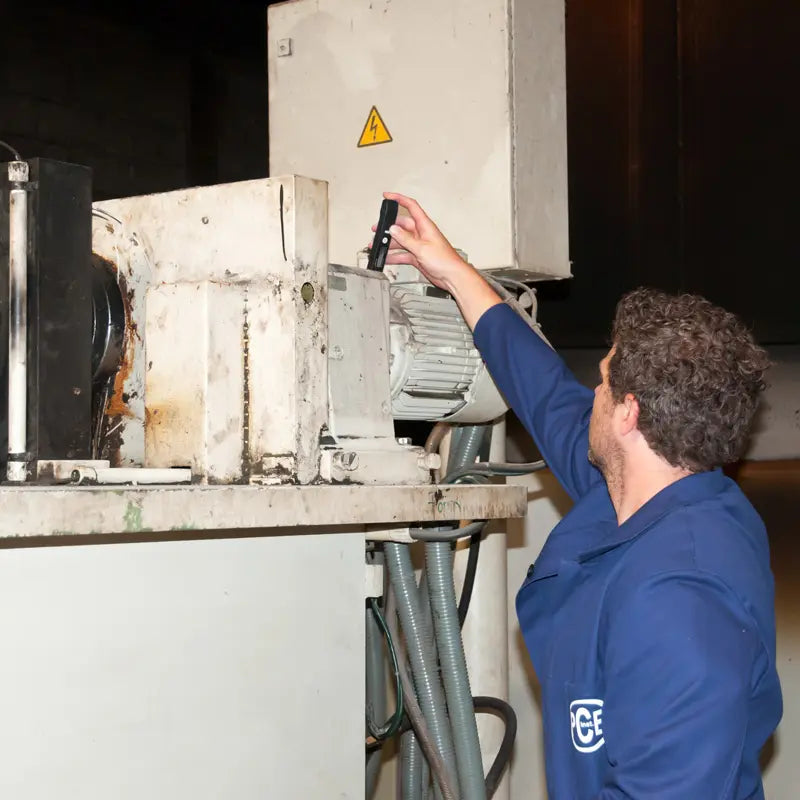

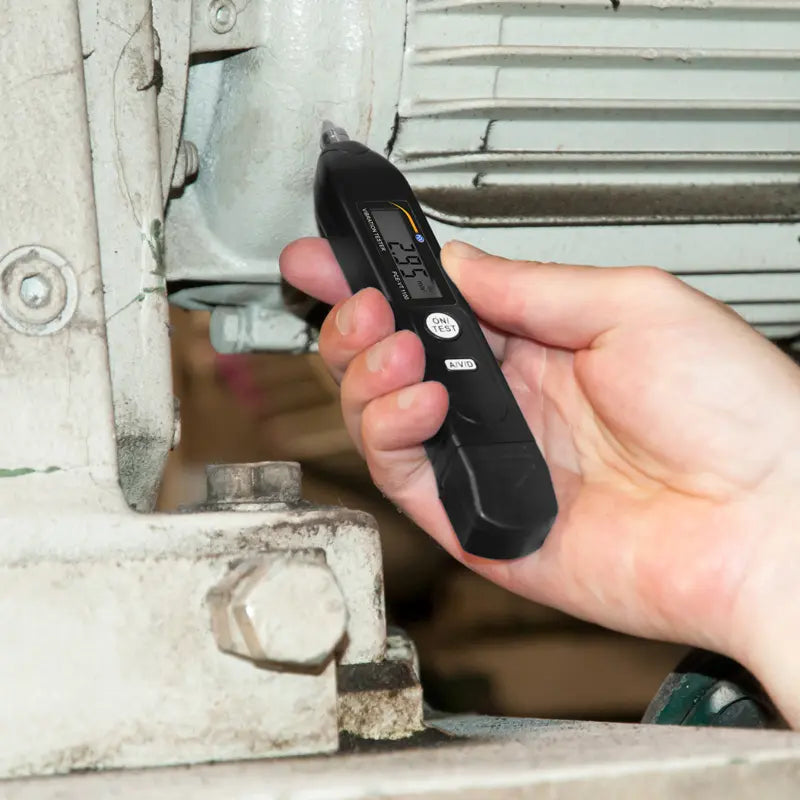

Introducing the PCE-VT 1100S vibration tester, a highly efficient tool for assessing vibration levels in machinery and equipment This portable, battery-powered device measures acceleration, vibration velocity, and displacement with ease Equipped with an accelerometer that retains past readings, it allows users to conveniently evaluate the current state of machines directly on-site, enabling prompt maintenance adjustments as needed.

Ideal for preventive upkeep, this tester is essential for identifying imbalances and monitoring the health of bearings, gears, and smaller electric motors.

Features and Benefits:

    •Measures speed, distance, and acceleration.

    •Memory for previous measurements.

    •User-friendly and battery-operated.

    •Wide frequency range for measurement.

    •Automatic shutdown after 20 seconds of inactivity to conserve battery life.

    •Includes battery level indicator.

    •Used for individual assessment of vibration on machines and systems.

    •Rapid measurement of imbalance.

    •Checking bearing and gear conditions.

    •Assessing the status of smaller electric motors.

Specifications:

 Measuring Range (Acceleration): 0.01 ... 199.9 m/s² peak
 Frequency Range (Acceleration): 10 Hz ... 1 kHz
 Measuring Range (Vibration speed): 0.01 ... 199.9 mm/s rms
 Frequency Range (Vibration speed): 10 Hz ... 1 kHz
 Measuring Range (Displacement): 0.001 ... 1.999 mm p-p
 Frequency Range (Displacement): 10 ... 500 Hz
 Measurement Accuracy (Acceleration): ≤ 3 %
 Measurement Accuracy (Vibration speed): ±5 %, ±2 Digits
 Measurement Accuracy (Displacement): +10/-20 % (10...20 Hz); ±5 % (20...1000 Hz)
 Display: LCD, Response time approx. 1 second
 Power Supply: 2 x 6 V CR2032 button cell
 Battery Life: about 5 hours (in continuous operation)
 Environmental Conditions: 0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.
 Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"

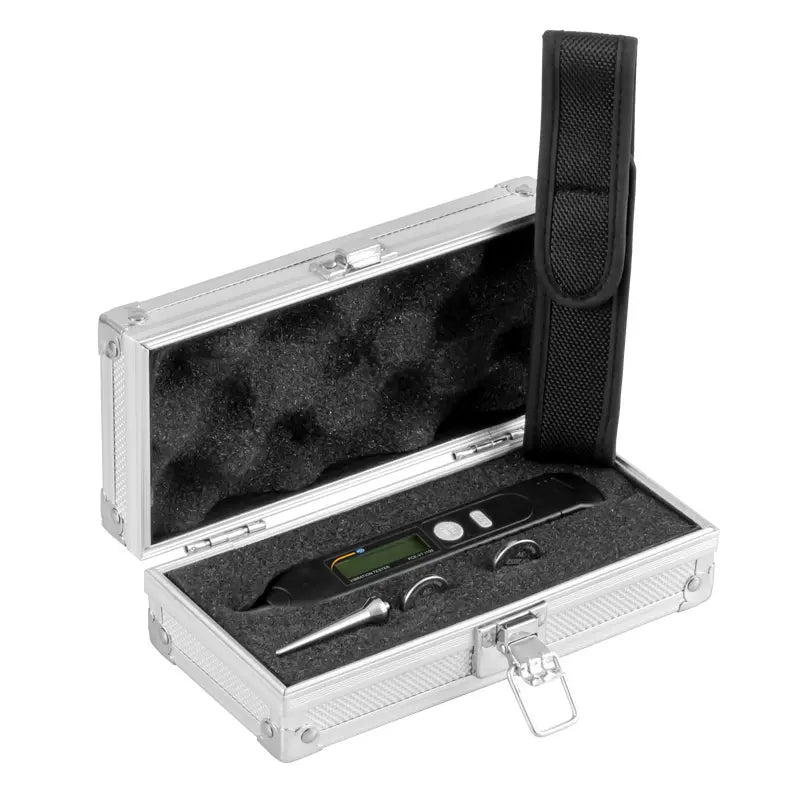

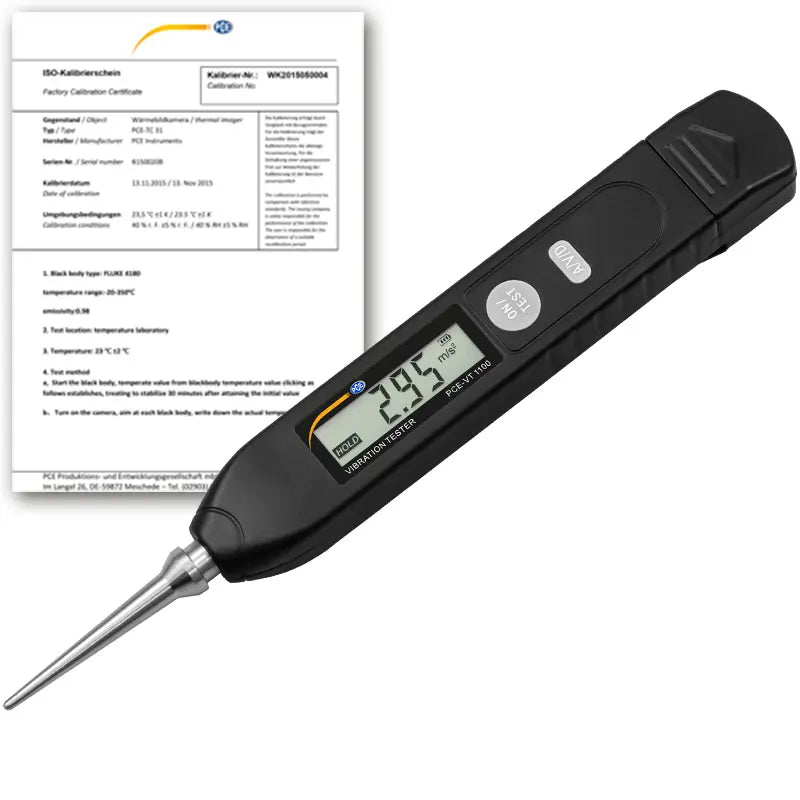

 Delivery Scope: 1 x Accelerometer PCE-VT 1100S, 1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77"), 2 x Batteries, 1 x Carrying case, 1 x Storage box, 1 x User manual, 1 x ISO Calibration Certificate
