PCE-TDS 200 L - Ultrasonic Flow Meter ±32 m/s with 2.8" Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PCE-TDS 200 L ultrasonic flow meter, a reliable instrument tailored for precision measurements in fluid dynamics This device boasts a measurement range of ±32 m/s, achieving an accuracy of ±15% for pipe diameters of DN ≥50 mm and ±35% for smaller diameters It ensures great reproducibility at ±05% of the measured value With the capability to measure in multiple units such as m³, liters, and gallons, it provides versatility for various applications.

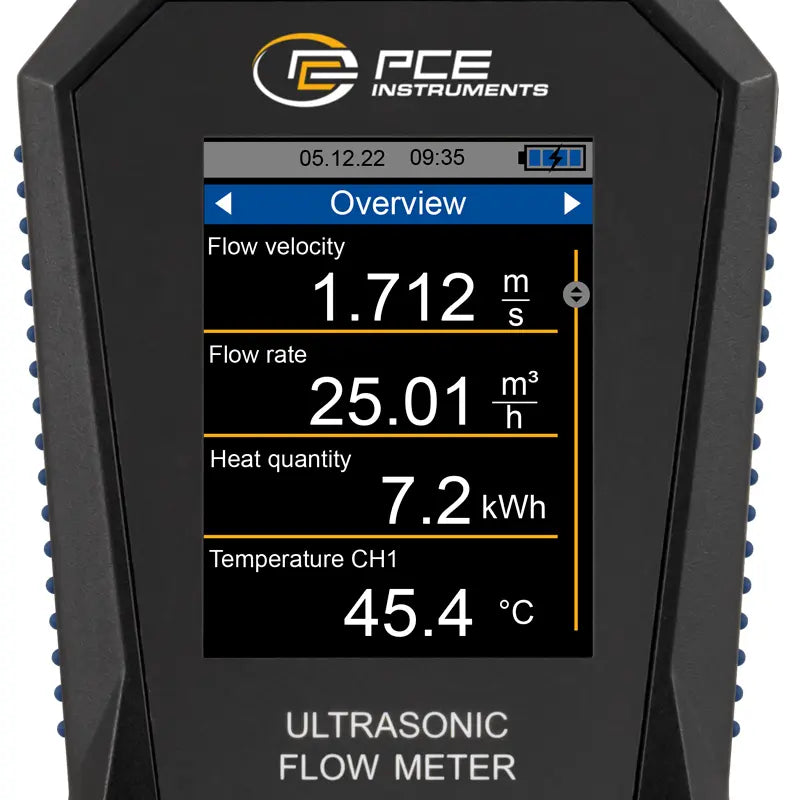

Equipped with an impressive 32 GB internal memory, this meter can record up to 10 million measurement points, making it ideal for extensive data tracking The user-friendly 28" LC display simplifies reading results, while the USB-C interface facilitates effortless data transfer For enhanced data analysis, optional software is available Constructed to withstand diverse environments, the flow meter holds a protection class rating of IP52, ensuring durability and reliability in your operations.

Features and Benefits:

•Measuring range of ±32 m/s.

•USB-C interface for data transfer.

•Optional software for analysing the measured values.

•Reproducibility of ±0.5 % of the measured value.

•Capable of measuring heat quantity.

•Database memory for 10 million measuring points.

•Customizable alarm limits.

•Support for multiple units of measurement.

•Used for flow measurement in heating systems.

•Suitable for various liquids including water, oil, and alcohol-based fluids.

•Ideal for large pipe diameter applications (DN 300 ... 6000 mm).

Specifications:
