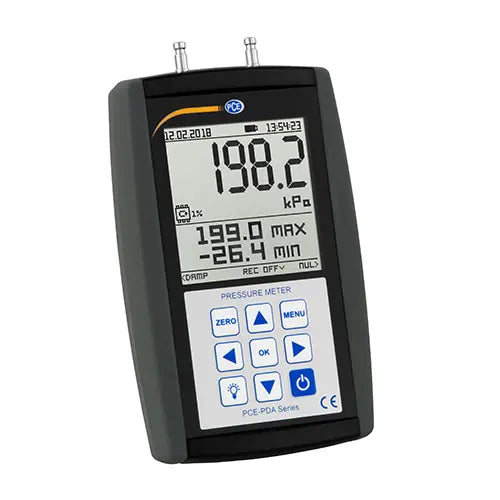

PCE-PDA 1L - Precision Differential Pressure Gauge with Data Logger and Dual Display

PCE-PDA 1L - Precision Differential Pressure Gauge with Data Logger and Dual Display

SKU: PCE-PDA 1L Download PDF

Variant:
  • PCE-PDA 1L - Precision Differential Pressure Gauge with Data Logger and Dual Display
Now $875.00
BEFORE   $0.00 Now $875.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the PCE-PDA 1L, a dependable differential pressure gauge engineered for precise gas pressure measurements This innovative device supports Pitot tube compatibility and includes useful features such as maximum and minimum functions along with a built-in data logger It can effectively measure differential pressure, temperature, flow velocity, and volume flow, presenting results in over 16 different units for your convenience.

The dual graphic display is designed for clarity, offering enhanced accuracy through a high-precision mode that improves resolution Additionally, this gauge excels in conducting leak tests on pressure lines, continuously storing measured values for thorough analysis.

Features and Benefits:

    •Graphic display with lighting.

    •Min and Max value memory.

    •Data logger and leak test.

    •Quick coupling connection.

    •Temperature measurement, flow measurement.

    •High precision measuring mode.

    •Simple operation (voice-controlled).

    •Units switchable (Pa, kPa, hPa, ...).

Specifications:

 Measuring range temperature 0 ... 50°C / 32 ... 122°F
 Resolution (temperature) 0.1°C / 0.2°F
 Accuracy (temperature) ± 1°C / 2°F
 Measuring range pressure ± 2 kPa
 Resolution (pressure) 0.1 / 1 Pa
 Accuracy (pressure) ± 0.5% of final value
 Nominal pressure 2 kPa
 Over pressure 10 kPa
 Burst pressure 100 kPa
 Media Liquids / air
 Measuring rate 10 Hz
 Measurement units Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
 Pressure connections 5 mm nipple for quick connectors
 Max, Min and Hold function Yes
 Data logger 1024 memory slots
 Recording time per memory location 1 s ... 255 h
 Recording interval 1 s ... 24h
 Medium For air and non-explosive gases
 Zero correction Yes, with a zero key
 Averaging Yes, between 0.1 ... 9.9 s
 Display Graphic LCD with backlight
 Protection IP41
 Power supply 2 x 1.5V AA battery / 1.2V NiMh battery / 5V / 500-mA USB power adapter
 Current consumption 50-mA (with backlight) / 10-mA (without backlight)
 Operating temperature 0 ... 50°C / 32 ... 122°F
 Storage temperature 10 ... 55°C / 50 ... 131°F
 Dimensions 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
