Description:

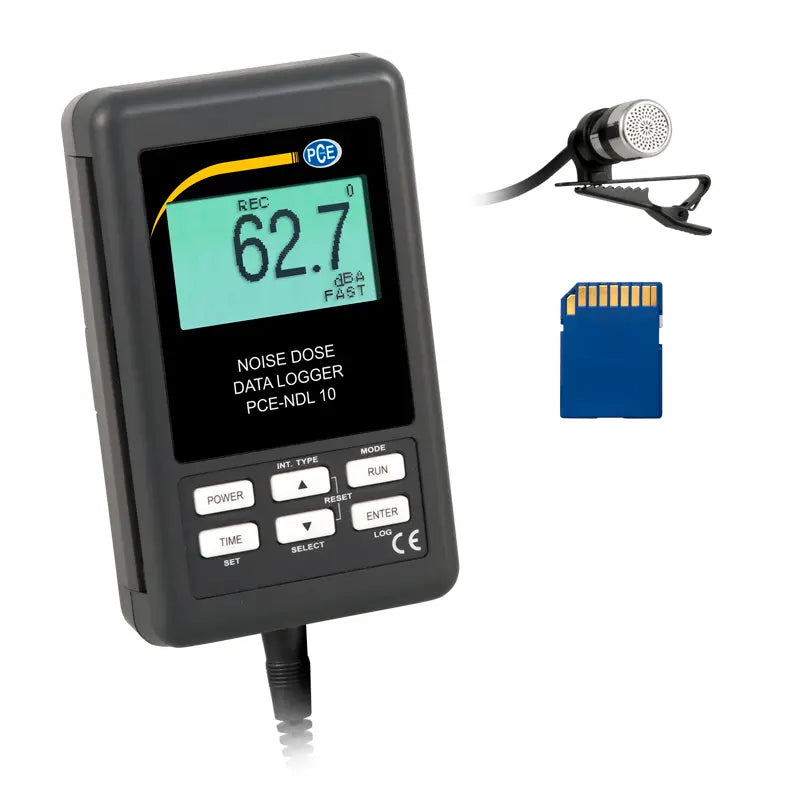

Introducing the PCE-NDL 10, an advanced decibel meter equipped with data logging functions This noise dosimeter captures sound pressure level (SPL) and dosimetry measurements in decibels (dB), securely storing the data in its internal memory Users can easily transfer recorded measurements to an SD card for further analysis For initial SD card setup, connect the PCE-NDL 10 to an AC power adapter (available separately as NET-LUT or NET-LUT-US).

Features and Benefits:

    •Measures SPL and dose in dB.

    •Manual or adjustable automatic data logging.

    •Data hold, min / max, date / time, auto shutdown (on / off) and audible alarm (on / off) functionality.

    •Internal memory and SD card slot (SD card included).

    •RS-232 and USB interface.

    •Backlit LCD screen.

    •Portable.

Specifications:

 Type SPL and dose
 Measuring range 30 ... 130 dB (SPL) / 70 ... 130 dB (dose, in 1 dB increments)
 Dose rating levels 80, 84, 85, 90 dB
 Dose exchange rate 3, 4, 5 or 6 dB
 Accuracy ± 3.5 dB (31.5 Hz), ± 2.5 dB (63 Hz), ± 2.0 dB (125 Hz), ± 1.9 dB (250 Hz), ± 1.9 dB (500 Hz), ± 1.4 dB (1000 Hz), ± 2.6 dB (2000 Hz), ± 3.6 dB (4000 Hz), ± 5.6 dB (8000 Hz)
 Resolution 0.1 dB
 Frequency range 31.5 ... 8000 Hz
 Frequency weighting A and C
 Time evaluation 125 ms (fast) / 1 s (slow)
 Data logging Manual (interval must be set to '0') or adjustable automatic
 Adjustable auto logging interval 1 ... 3600 s
 Sampling rate Approx. 1 second
 Storage Internal memory for up to 16,000 readings, SD card slot for 1 ... 4 GB SD card (card included)
 Interface RS-232 and USB
 Measurement error ≤ 0.1% of the total stored data
 Measurement outside range Display of '----'
 Functions Data hold, min / max, date / time, auto shutdown (on / off), audible alarm (on / off)
 Calibration Internal calibration possible at 94 dB with PCE-SC 42 acoustic calibrator (sold separately - see accessories)
 Power supply 6 AAA Batteries or optional power supply
 Operating conditions 0 ... +50 ° C (+32 ... +122 ° F), < 85% RH
 Display Backlit LCD, 50 x 30 mm (1.97 x 1.18")

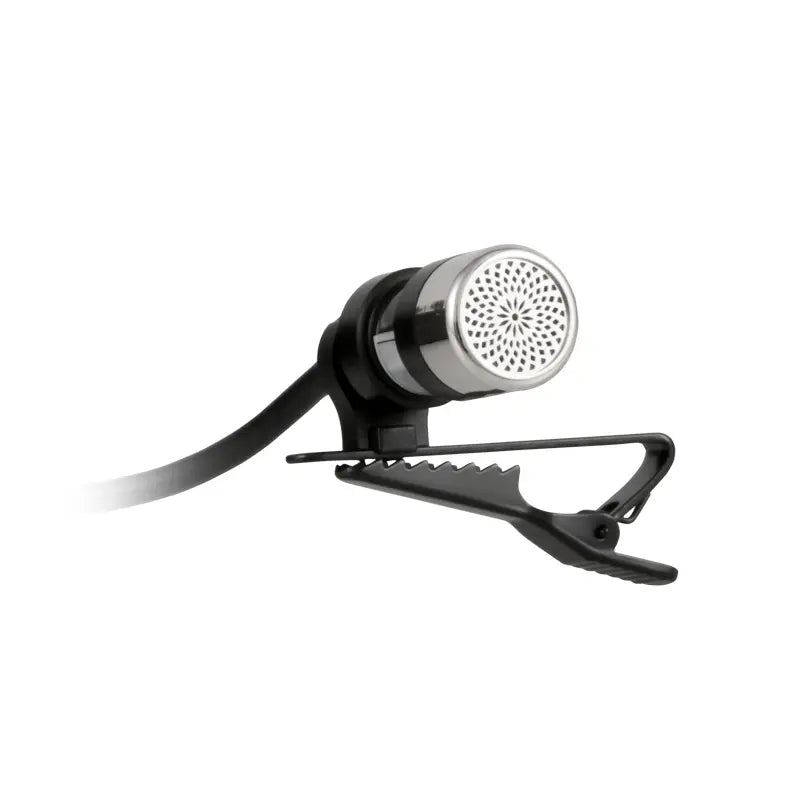

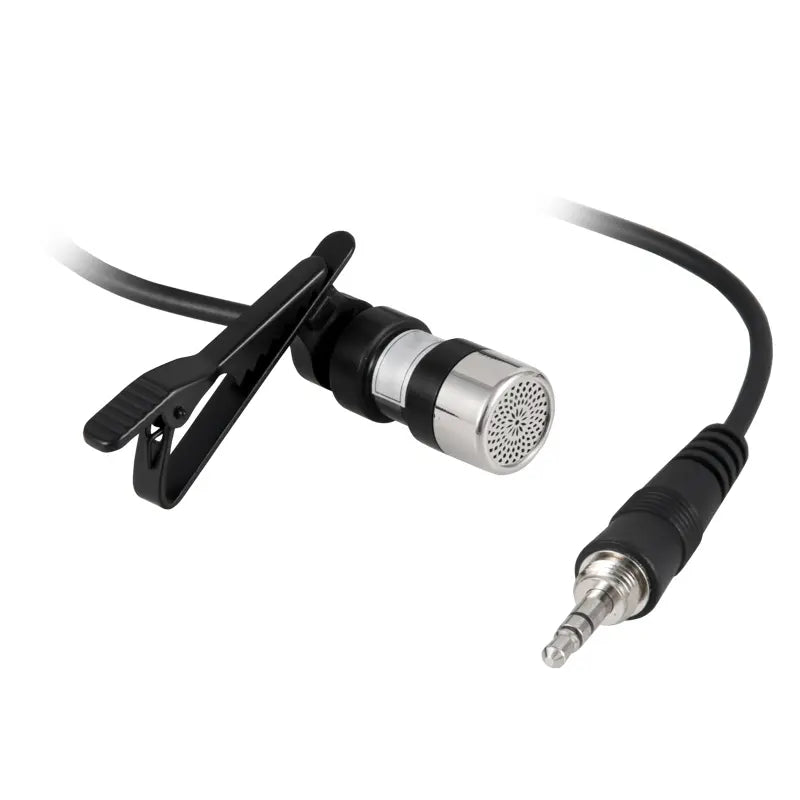

 Microphone Electric condensation / Ø 12.7 mm (0.5")
 Approx. device dimensions 132 x 80 x 32 mm (5.20 x 3.15 x 1.26")
