PCE-SCI-E - Versatile IoT Meter for 0-600V AC/DC Measurement

PCE-SCI-E - Versatile IoT Meter for 0-600V AC/DC Measurement

SKU: PCE-SCI-E   Download PDF

Select a Variant:
  • PCE-SCI-E - Versatile IoT Meter for 0-600V AC/DC Measurement
Qty:
Now $263.00   Web pricing policy
BEFORE   $0.00 Now $263.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

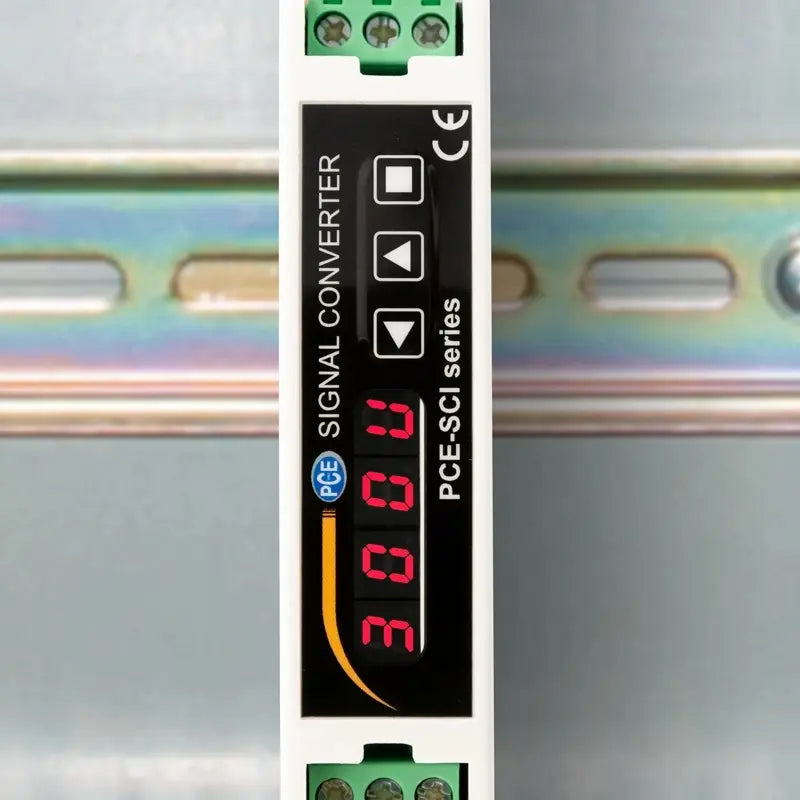

Introducing the IoT Meter designed for top hat rail installation, capable of measuring AC/DC voltages from 0 to 600 V This versatile device provides output signals in the range of 4 to 20 mA and 0 to 10 V, and can be easily configured using its intuitive keypad It also supports a current measurement range of 0 to 5 A AC/DC, with the option to connect a current transformer for broader measurement capabilities.

Perfect for process control applications, it facilitates galvanic isolation thanks to identical input and output ranges Operating with a voltage range of 18 to 265 V AC/DC and a frequency of 45 to 65 Hz, this meter is suitable for a wide array of settings.

Features and Benefits:

    •DIN rail mounting.

    •Adjustable measuring range of 0 ... 600 V AC/DC.

    •Active and passive output signals.

    •Integrated display and keypad for configuration.

    •Frequency measurement capability.

    •Current measuring range up to 5 A AC/DC.

Specifications:

 Input Signals AC Voltage Adjustable Measuring Ranges 0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 / 150 / 300 / 450 / 600 V AC, 0 ... 50 / 60 / 75 / 100 / 150 / 200 / 300 / 500 mV AC
 Accuracy <0.3 % of full range
 Maximum Input Signal 800 V AC for the measuring ranges 10 ... 600 V AC, 50 V AC for the measuring ranges 50 mV AC ... 2 V AC
 Measuring Resistance 13 MΩ for measuring ranges 10 ... 600 V AC, 81 KΩ for measuring ranges 50 mV AC ... 2 V AC
 Measurement Type True RMS
 Protection Category CAT-II 300 V AC
 DC Voltage Adjustable Measuring Ranges Unipolar 0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 / 150 / 300 / 450 / 600 V DC, 0 ... 50 / 60 / 75 / 100 / 150 / 200 / 300 / 500 mV DC
 DC Voltage Adjustable Measuring Ranges Bipolar ±1 / ±2 / ±10 / ±15 / ±30 / ±60 / ±100 / ±150 / ±300 / ±450 / ±600 V DC, ±50 / ±60 / ±75 / ±100 / ±150 / ±200 / ±300 / ±500 mV DC
 Alternating Current Adjustable Measuring Ranges 0 ... 1 / 2 / 3 / 4 / 5 A AC, 0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA AC
 Direct Current Adjustable Measuring Ranges 0 ... 1 / 2 / 3 / 4 / 5 A DC, 0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA DC
 Frequency Adjustable Measuring Ranges for Voltage 0 ... 100 / 45 ... 55 / 55 ... 65 Hz
 Frequency Adjustable Measuring Ranges for Current 0 ... 100 / 45 ... 55 / 55 ... 65 Hz
 Output Signals Active Current Output 4 ... 20 mA minimum 0 mA and maximum <22 mA
 Output Signals Passive Current Output 4 ... 20 mA maximum 30 V DC
 Voltage Output 0 ... 10 V DC minimum 0 V DC and maximum <11 V DC
 Power Supply 18 ... 265 V AC/DC isolated
 Operating Conditions 0 ... 50 °C / 32 ... 122 °F, 0 ... 95 % RH, non-condensing
 Storage Conditions -20 ... 70 °C / -4 ... 158 °F, 0 ... 95 % RH, non-condensing
 Weight <150 g / 5.3 oz
 Dimensions 106 x 108 x 22.5 mm / 4.1 x 4.2 x 0.9"
