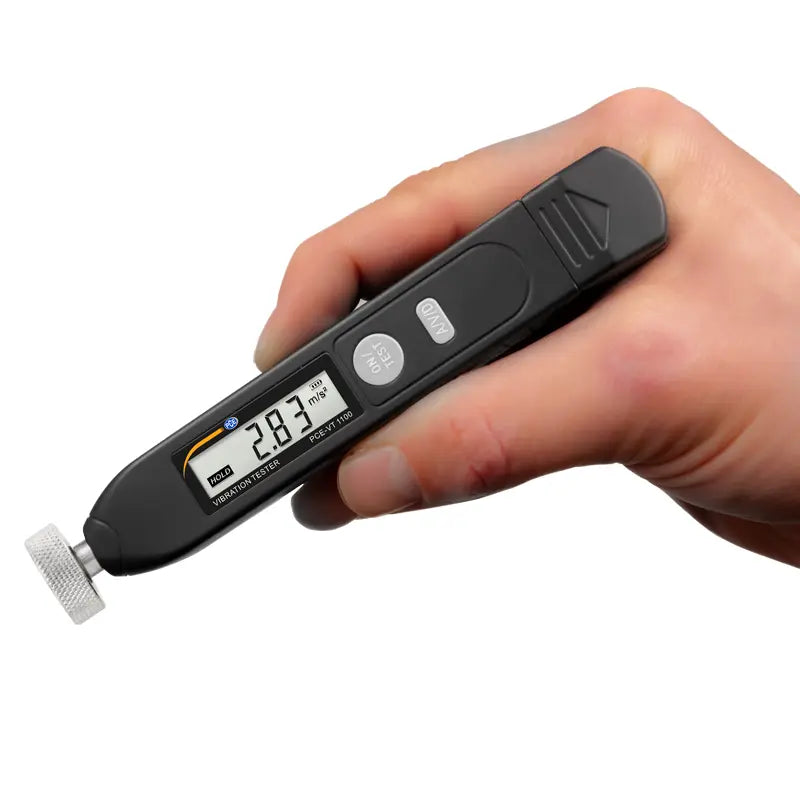

PCE-VT 1100M - Hand-Held Vibration Meter for Machine Maintenance

PCE-VT 1100M - Hand-Held Vibration Meter for Machine Maintenance

SKU: SKU: PCE-VT 1100M Download PDF

Variant:
  • PCE-VT 1100M - Hand-Held Vibration Meter for Machine Maintenance
Regular price Now $409.00
Regular price BEFORE   $0.00 Sale price Now $409.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

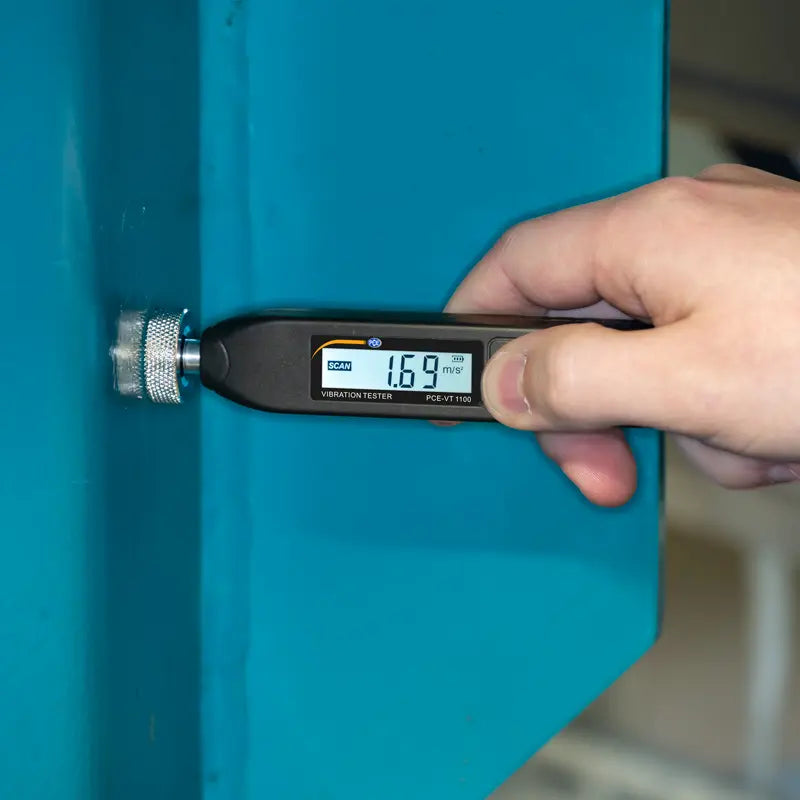

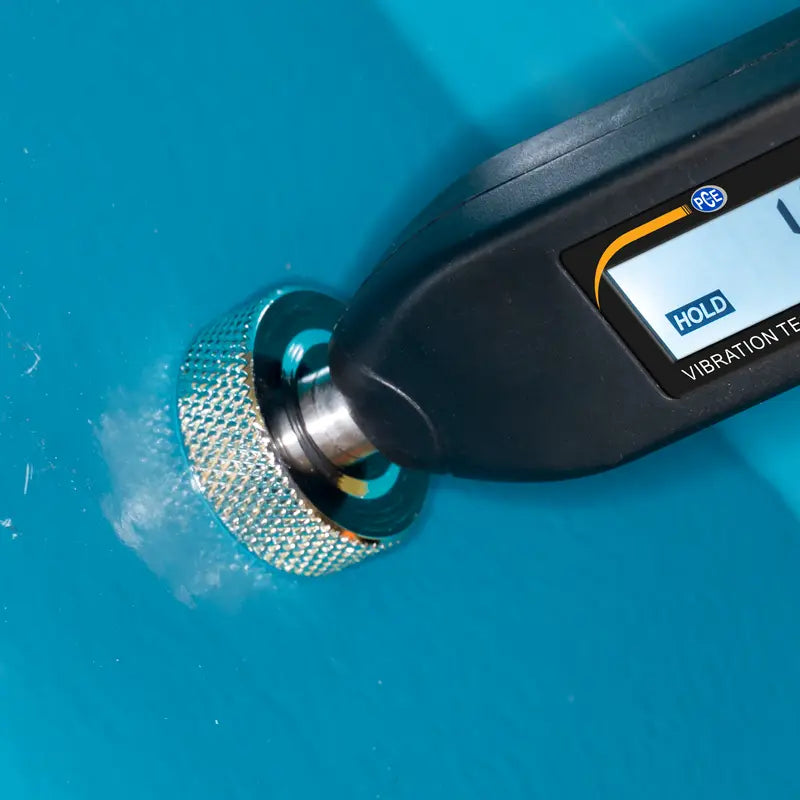

Introducing a versatile handheld accelerometer, ideal for assessing vibrations on machinery and systems This user-friendly tool allows for on-site evaluation, making it simple to make adjustments immediately after taking measurements Primarily intended for proactive maintenance of production equipment, it is particularly effective for monitoring the condition of smaller electric motors This model boasts features such as vibration measurement capabilities and memory storage for previous readings, all while operating over an extensive frequency range.

Powered by batteries, it also incorporates an automatic shutdown feature to preserve energy.

Features and Benefits:

    •Measures speed, distance, acceleration.

    •Retention of values after each measurement.

    •Battery-powered and easy to handle.

    •Wide frequency range.

    •Automatic shutdown after 20 seconds of inactivity.

    •Low battery indicator.

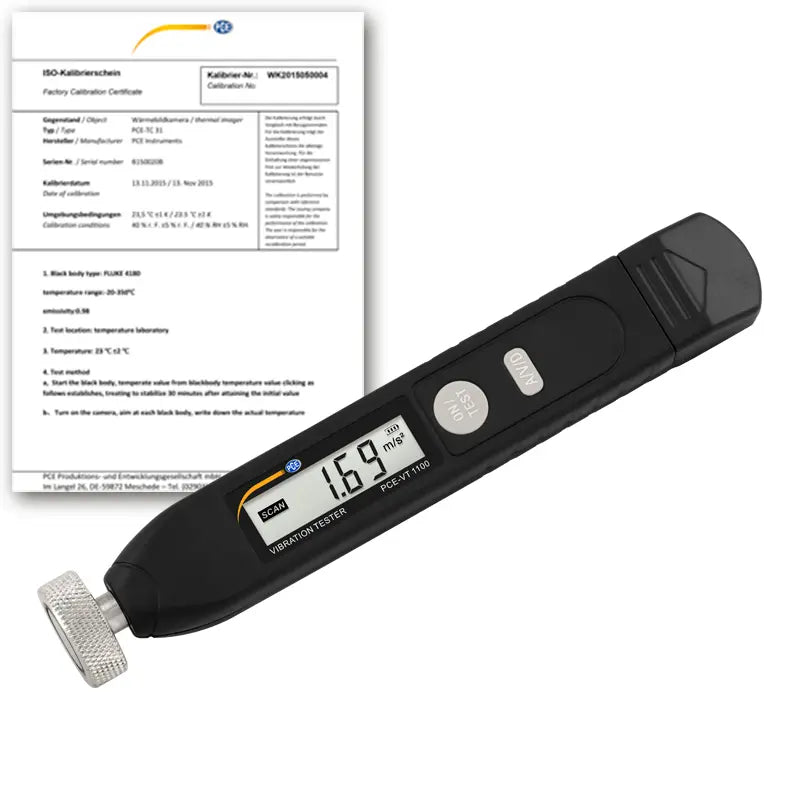

    •Includes ISO Calibration Certificate.

    •Used for assessing vibrations in machinery and electric motors.

    •Serves in maintenance practices for production equipment.

Specifications:

 Measuring Range Acceleration 0.01 ... 199.9 m/s² peak
 Frequency Range Acceleration 10 Hz ... 1 kHz
 Measuring Range Vibration Speed 0.01 ... 199.9 mm/s rms
 Frequency Range Vibration Speed 10 Hz ... 1 kHz
 Measuring Range Displacement 0.001 ... 1.999 mm p-p
 Frequency Range Displacement 10 ... 500 Hz
 Measurement Accuracy Acceleration ≤ 3 %
 Measurement Accuracy Vibration Speed ±5 %, ±2 Digits
 Measurement Accuracy Displacement +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)

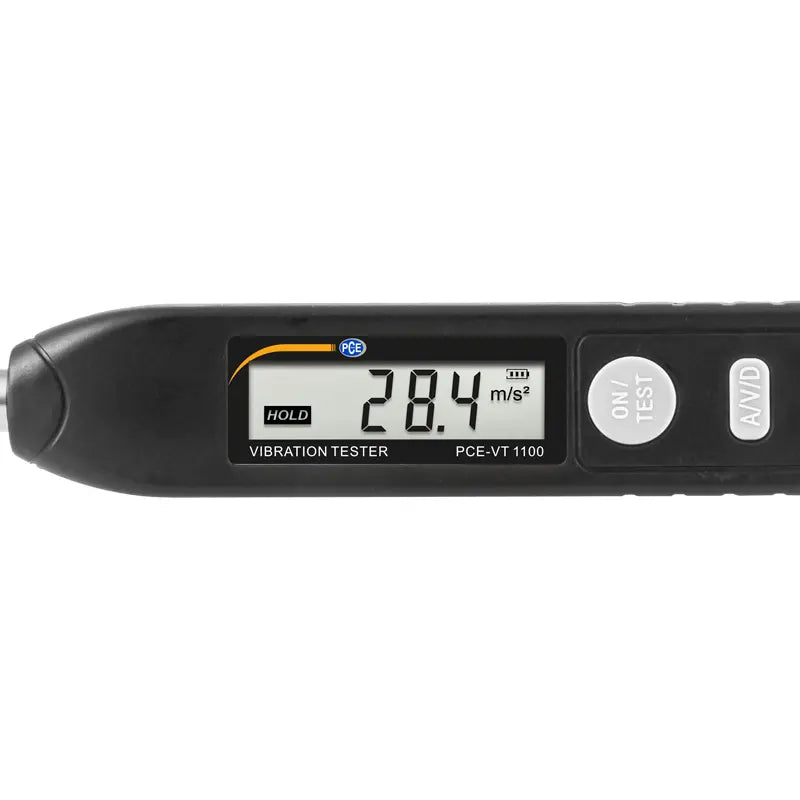

 Display LCD, Response time approx. 1 second
 Power Supply 2 x 6V CR2032 button cell
 Battery Life About 5 hours (in continuous operation)
 Environmental Conditions 0 ... 40°C / 32 ... 104°F, 0 ... 84% r.H.
 Dimensions 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in
