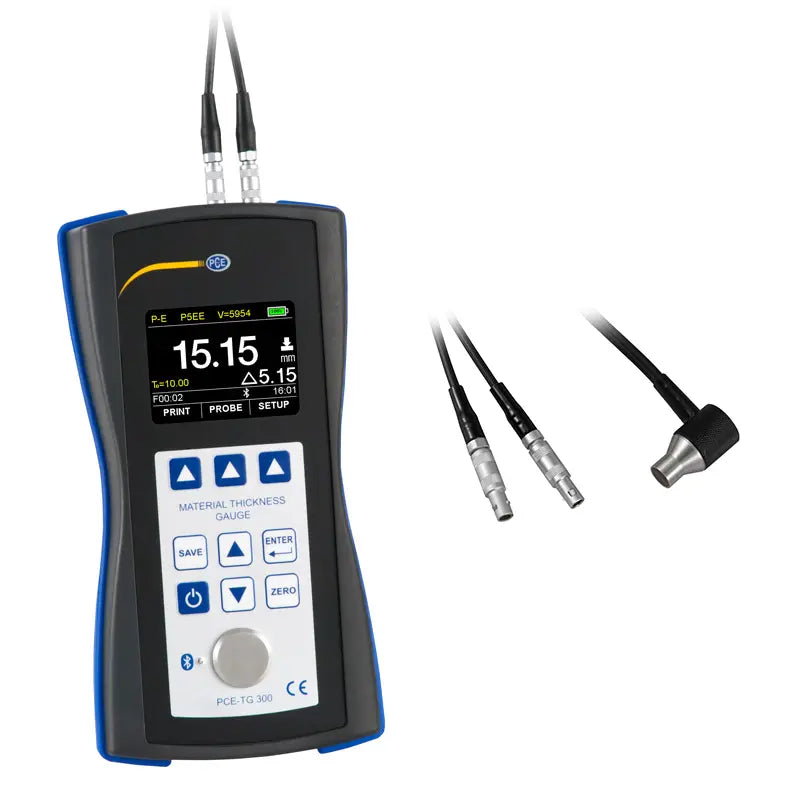

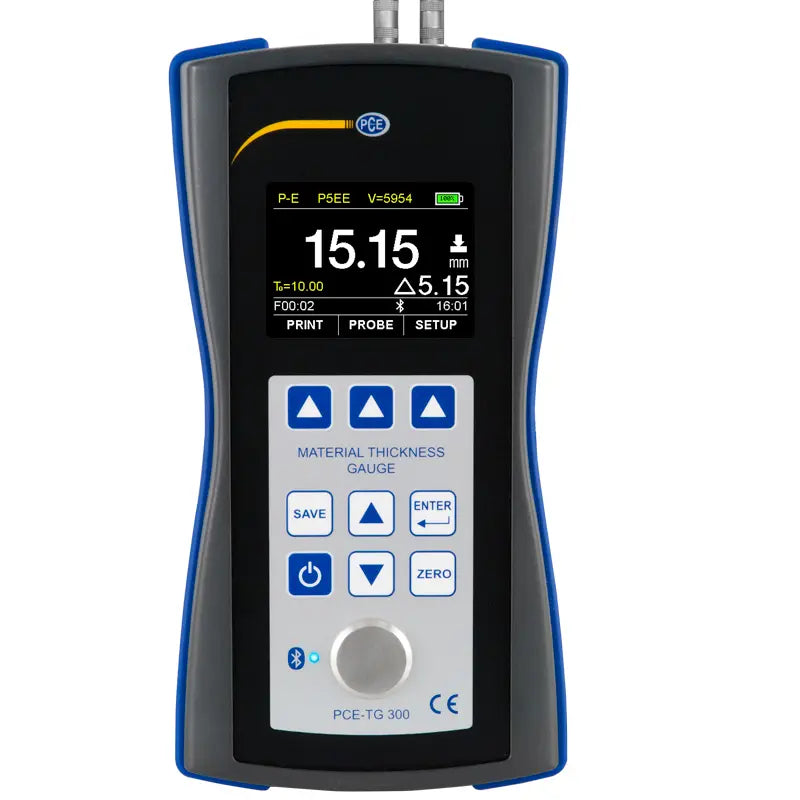

PCE-TG 300-NO7 - Advanced Ultrasound Thickness Meter, 600mm Range, TFT Display

Description:

Introducing the PCE-TG 300-NO7, a state-of-the-art condition monitoring tool equipped with specialized sensors for diverse applications This device excels at measuring wall thickness in any homogeneous material, boasting an impressive measuring range of up to 600 mm It operates effectively in both pulse-echo and echo-echo modes Designed for versatility, the PCE-TG 300-NO7 includes sensors tailored for damping or scattering materials such as plastics and castings.

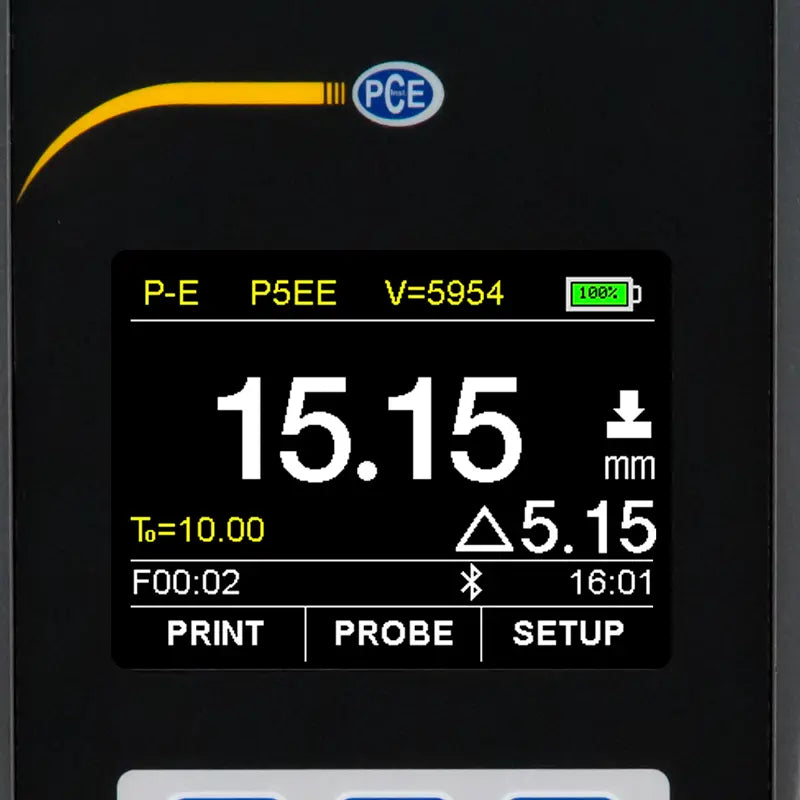

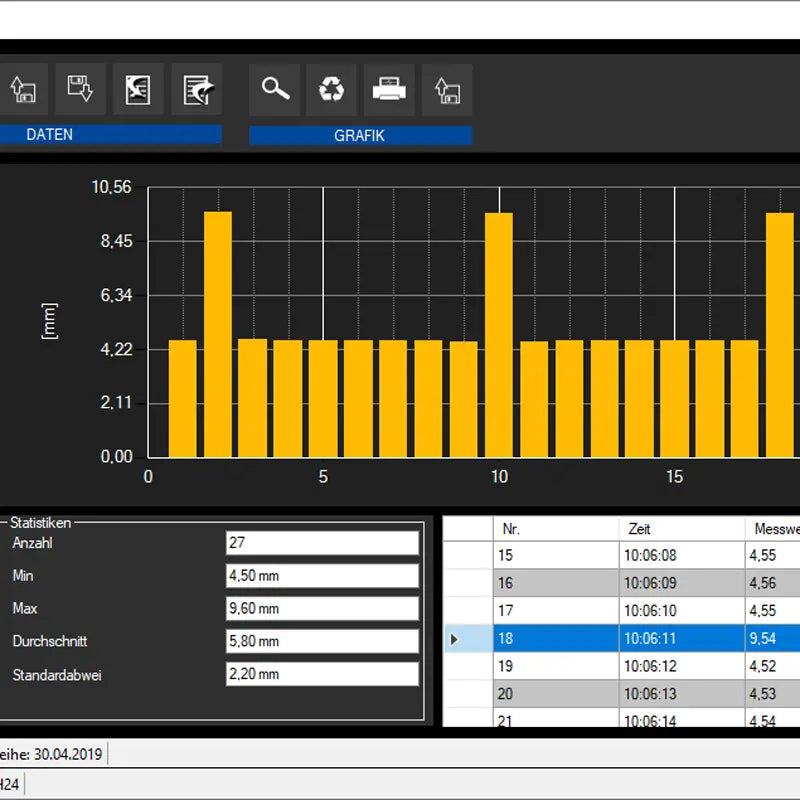

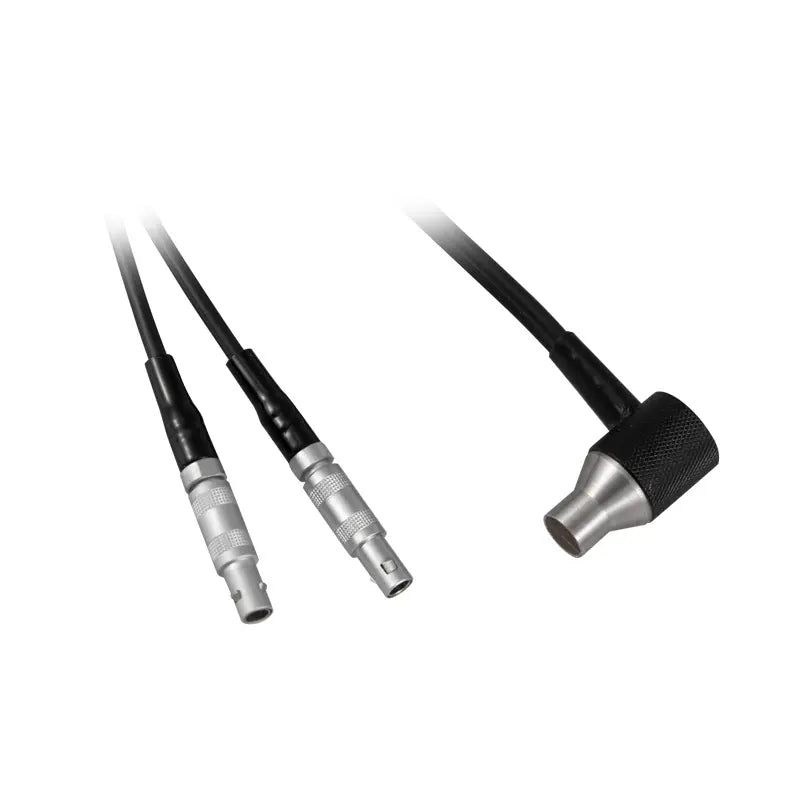

A convenient 90° angled sensor allows for access to difficult-to-reach areas Users have the flexibility to customize the speed of sound in the thickness meter to suit a variety of materials The measurements are displayed on a vibrant and easy-to-read TFT color screen Additionally, the internal memory can be utilized with optional software for efficient storage and retrieval of various measurement points.

Utilizing a non-destructive ultrasound technique, this device allows for reliable measurements on finished products With the Echo-Echo mode, it can also measure coated surfaces when paired with the appropriate sensor.

Features and Benefits:

•Large measuring range up to 600 mm.

•Various sensors available for different applications.

•Battery operated for convenient use.

•Error and voids detection capabilities.

•Records internal measurement data.

•Print functionality via Bluetooth.

•Condition monitoring for wall thickness measurement in various homogeneous materials.

•Non-destructive testing for products with various coatings.

•Use in industries where precise thickness measurement is required.

Specifications:
