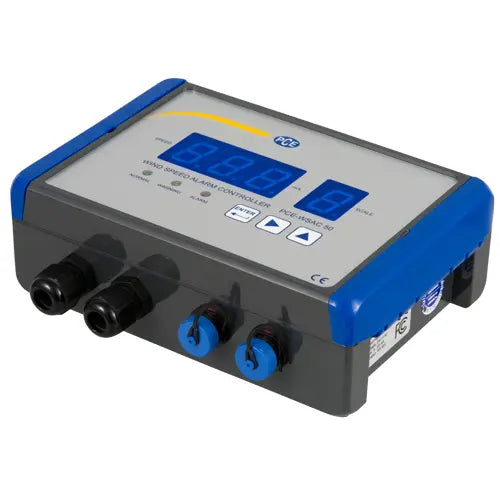

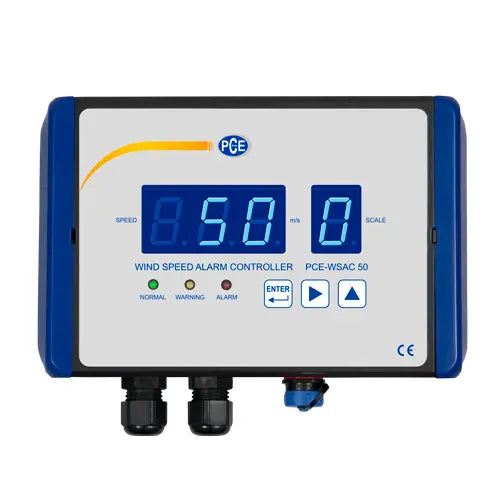

PCE-WSAC 50-111 - Precision Anemometer with Pre-Alarm & RS485 Interface

PCE-WSAC 50-111 - Precision Anemometer with Pre-Alarm & RS485 Interface

SKU: SKU: PCE-WSAC 50-111   Download PDF

Select a Variant:
  • PCE-WSAC 50-111 - Precision Anemometer with Pre-Alarm & RS485 Interface
Qty:
Regular price Now $653.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $653.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

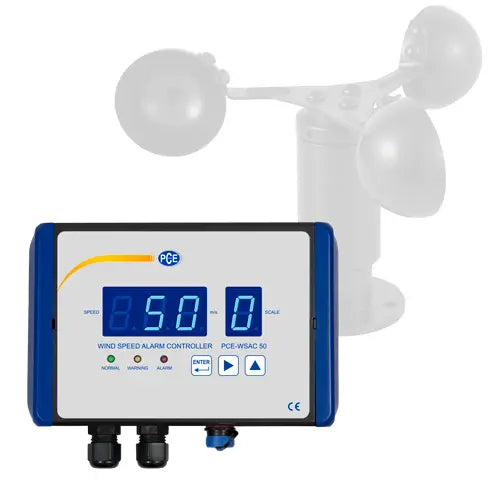

Introducing the PCE-WSAC 50-111 Anemometer, a sophisticated wind monitoring device equipped with both pre-alarm and alarm functionalities It features an RS485 interface and simplifies operation while providing real-time wind speed readings This device excels in measuring wind activity, capable of detecting even the slightest breezes The wind warning device allows for tracking the current wind speed as well as calculating the average speed over the past two or five minutes.

When wind speeds exceed predetermined thresholds, it first activates a pre-alarm, which is indicated by a flashing yellow LED and an intermittent beep Should conditions intensify, the primary alarm triggers, featuring a flashing red LED and a continuous warning tone Versatile in its applications, this anemometer is essential for environments like factories, wind turbines, and mining operations where wind conditions must be carefully monitored.

Additionally, you can connect a relay to the device if needed With its dependable accuracy and ability to measure low wind speeds, the PCE-WSAC 50-111 stands out for its reliability and precision in wind assessment.

Features and Benefits:

    •Wind warning device with adjustable alarms.

    •2 alarm types.

    •Integrated beeper to alert.

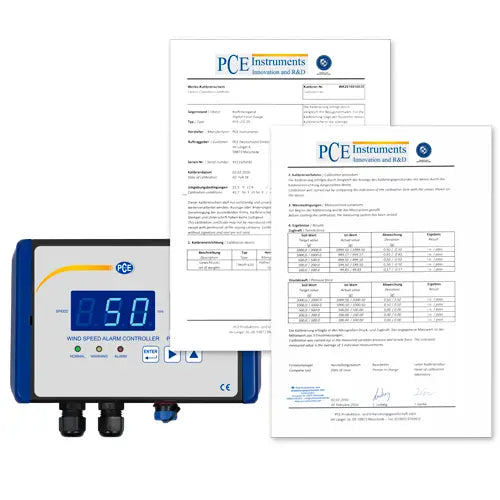

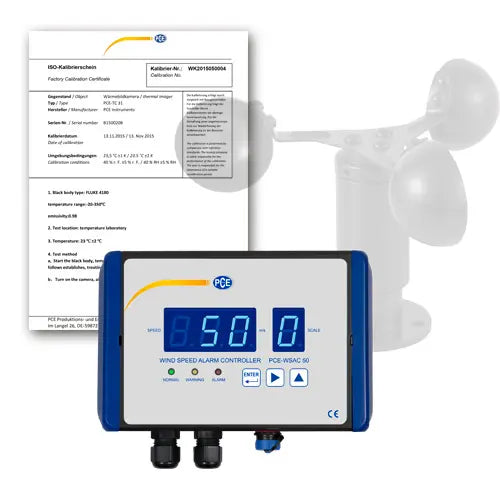

    •ISO Calibration Certificate included.

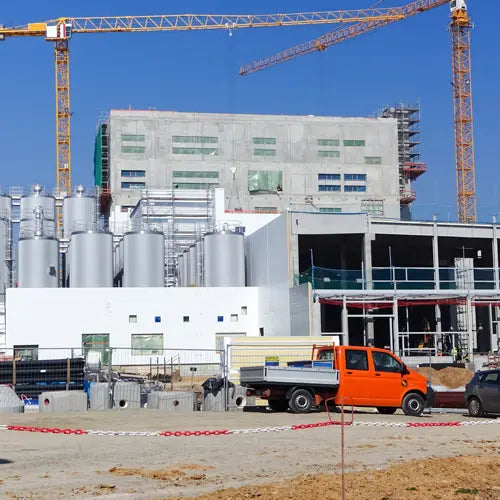

    •Factories.

    •Mines.

    •Wind turbines.

Specifications:

 Power supply 230V AC
 Supply voltage for sensors (output) 12V DC / 24V DC
 Measuring range 0 ... 50 m/s
 Measuring accuracy ± 3% of measuring range
 Signal input 4 ... 20 mA
 Alarm relay 2 NO/NC relays with max. load of 220V AC / 10 A
 Interface RS485
 Operating temperature -20 ... 60°C / -4 ... 140°F
 Protection class IP66
 Dimensions 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in
