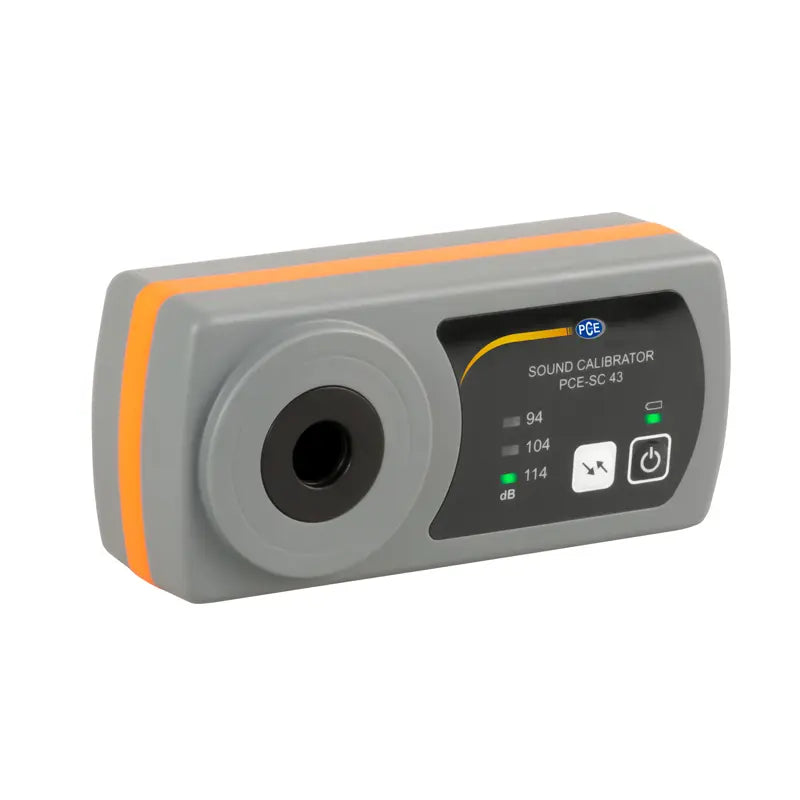

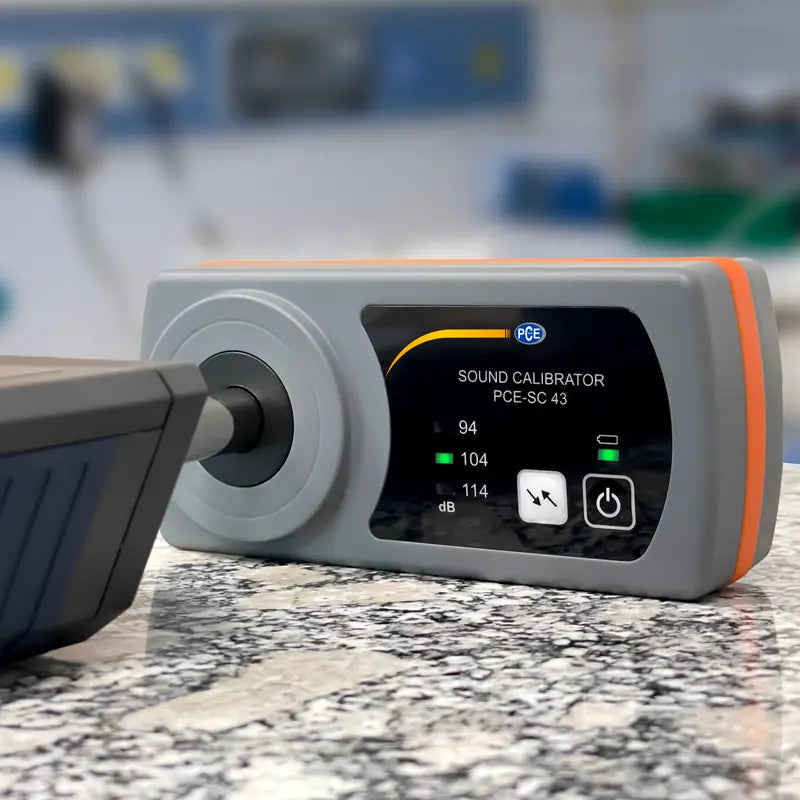

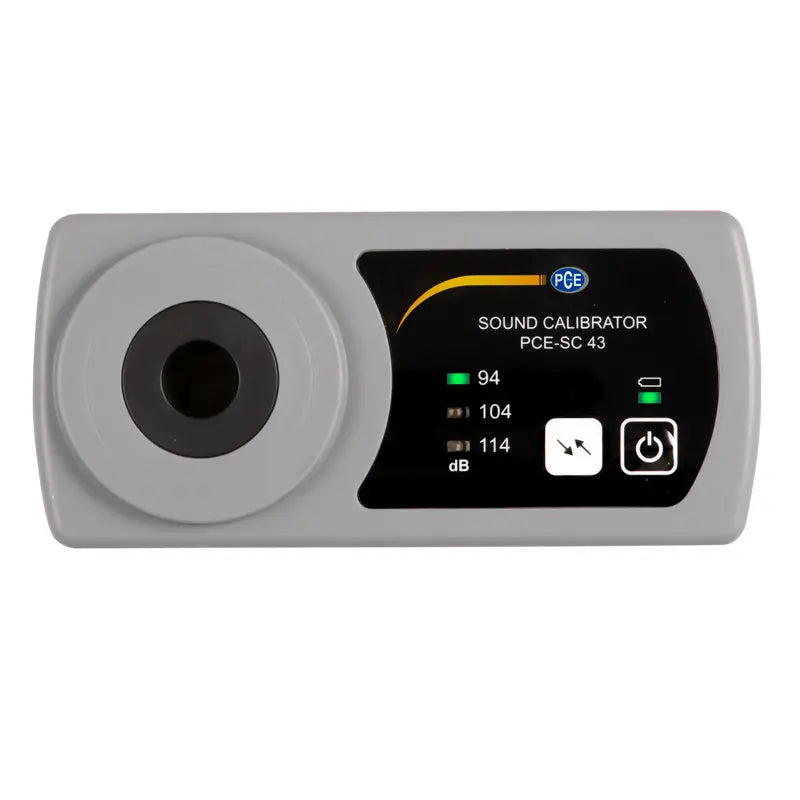

PCE-SC 43 - Class II Decibel Calibrator with Ergonomic Design

PCE-SC 43 - Class II Decibel Calibrator with Ergonomic Design

SKU: PCE-SC 43   Download PDF

Select a Variant:
  • PCE-SC 43 - Class II Decibel Calibrator with Ergonomic Design
Qty:
Now $152.00   Web pricing policy
BEFORE   $0.00 Now $152.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your sound measurement accuracy with this Class II decibel meter calibrator, designed for precision with an accuracy of ± 04 dB It operates at a frequency of 1000 Hz and features a 1/2 inch microphone opening, allowing for versatile measurements This calibrator can produce sound pressure levels of 94 dB, 104 dB, and 114 dB, easily selectable with the push of a button With its ergonomic design, this device not only ensures comfort during use but also boasts an impressive battery life of around 50 hours on replaceable batteries.

To save energy, it includes an automatic shut-off feature that activates after 20 minutes of inactivity For added assurance in sound measurement, this calibrator can be equipped with an optional ISO certificate, enhancing its reliability Perfect for professionals seeking trustworthy sound validation tools.

Features and Benefits:

    •Sound pressure levels of 94, 104, and 114 dB.

    •Compatible with weighting filters A, B, C, and D.

    •Sound class 2 for enhanced precision.

    •Powered by replaceable batteries.

    •Includes a 1/2 inch microphone connection.

    •Approximately 50 hours of battery life.

Specifications:

 Sound pressure level 94 dB, 104 dB, 114 dB
 Accuracy ±0.4 dB
 Class 2
 Frequency 1000 Hz for A, B, C and D frequency weighting
 Frequency accuracy ±1.7 %
 Stabilization time 10 seconds
 Total harmonic distortion <3 %
 Temperature influences <0.4 dB at 0 ... 40 °C / 32 ... 104 °F
 Humidity influences 25 ... 90 % RH
 Atmospheric pressure <0.1 dB at 65 ... 108 kPa
 Stability at <60 seconds ±0.15 dB
 Stability after one year ±0.35 dB (normal use)
 Operating conditions 0 ... 40 °C / 32 ... 104 °F, <25 ... 90 % RH, non-condensing
 Storage conditions -20 ... 50 °C / -4 ... 122 °F, <90 % RH, non-condensing
 Automatic shutdown after 20 minutes
 Power supply 2 x 1.5 V AA batteries
 Battery life ca. 50 hours
 Microphone size 1/2 inch
 Dimensions 60 x 130 x 37.5 mm / 2.3 x 5.1 x 1.4"
