Product Information

Description:

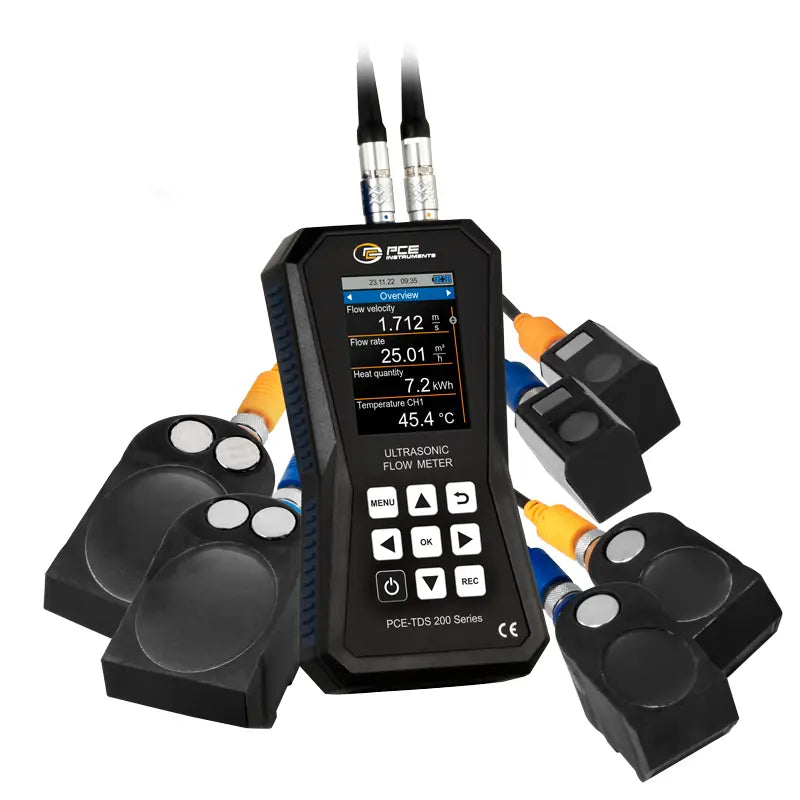

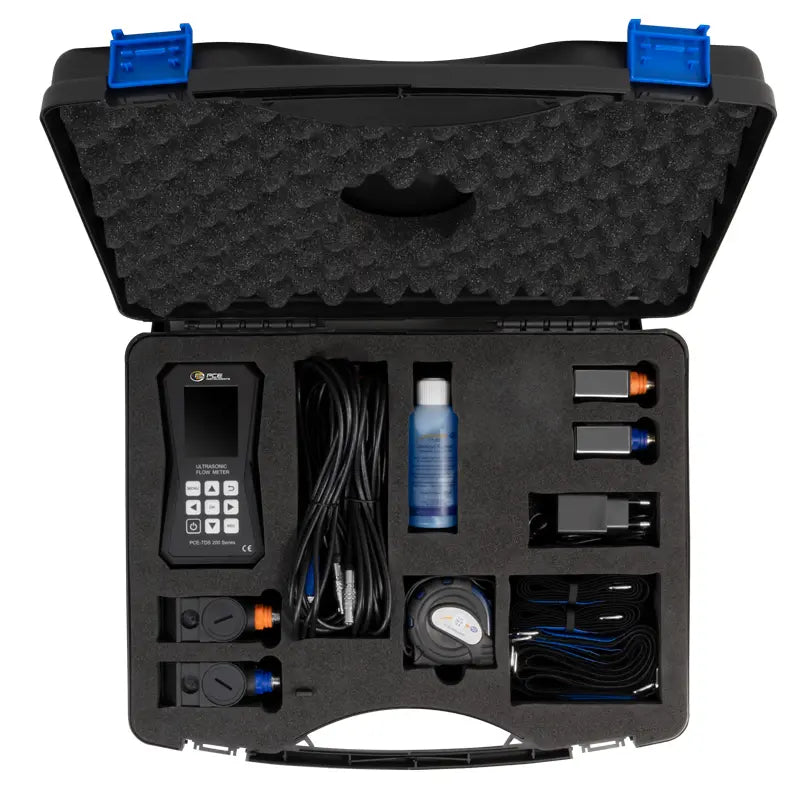

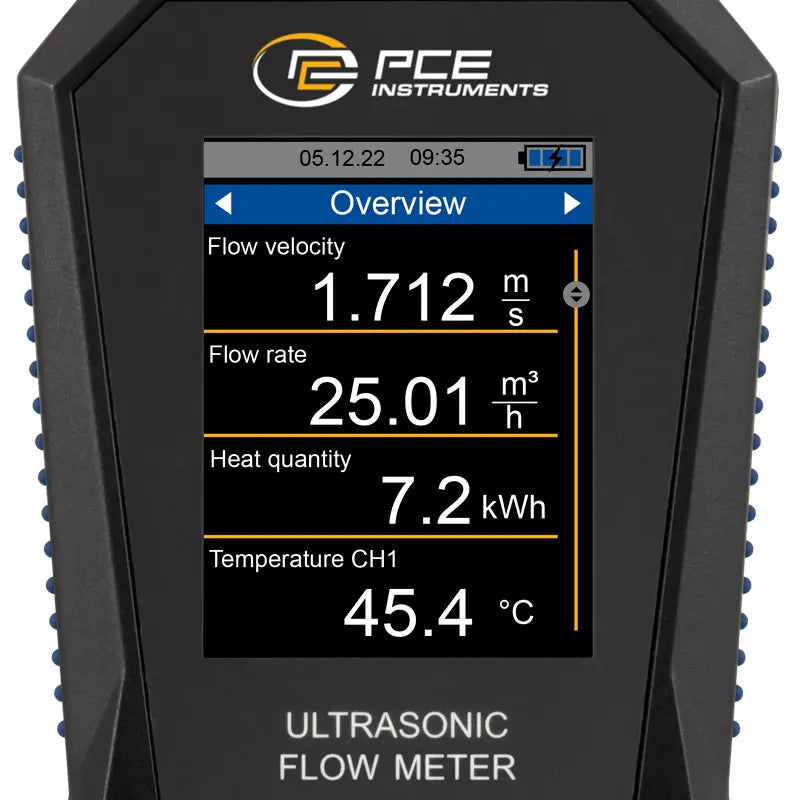

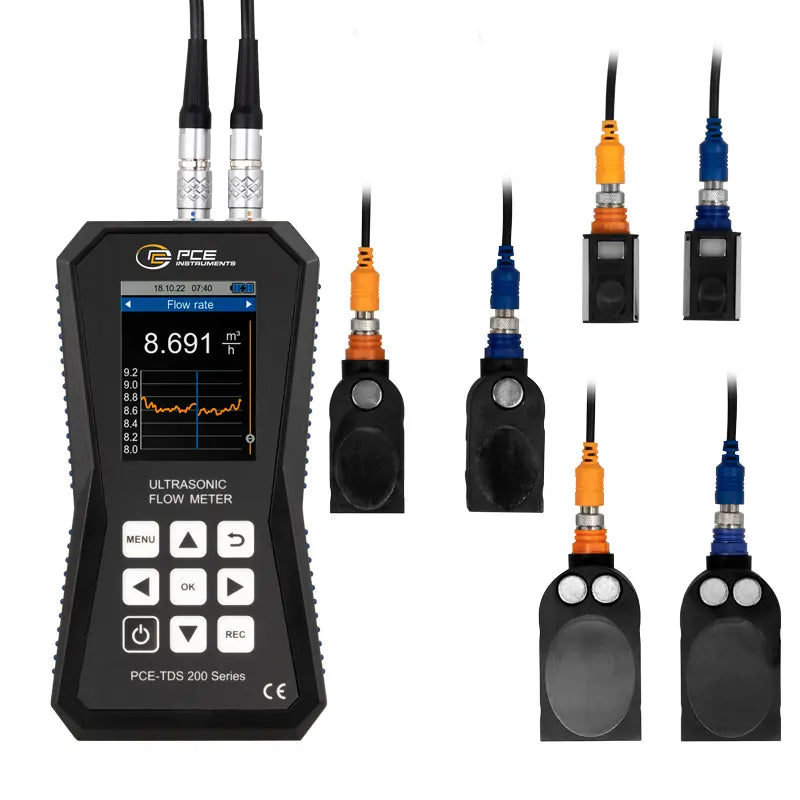

Introducing the advanced ultrasonic flowmeter, equipped with an expansive 32 GB data storage capacity This device boasts a measuring range of ±32 m/s, delivering precision with an accuracy of ±15% fs for DN ≥50 and ±35% fs for DN <50 It comes complete with a variety of measuring probes and features adjustable alarm settings to suit your needs The user-friendly 28" LC display is compatible with all types of media, enhancing usability.

Certification options include DAkkS or ISO for added reliability This flowmeter excels in data management, capable of logging up to 10 million measurement points while offering a broad selection of units such as m³, l, gal, and more Additionally, it has the versatility to measure heat quantities through thermocouple connections, making it an ideal choice for diverse applications.

Features and Benefits:

•Measuring range ±32 m/s.

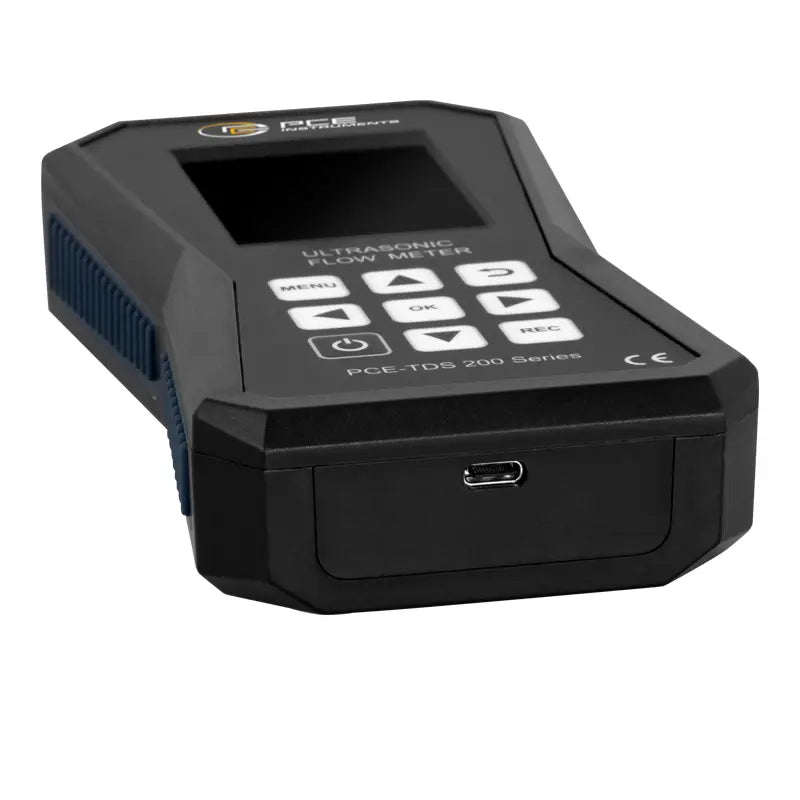

•USB-C interface for data transfer.

•Optional software for analysing the measured values.

•Reproducibility ±0.5 % of measured value.

•Heat quantity measurement capability.

•Data memory for 10 million measuring points.

•Individually adjustable alarm limits.

•Optionally available with ISO or DAkkS calibration certificate.

•Inspection of heating systems.

•Flow measurement of various liquids including water, oil, diesel, and user-defined mediums.

Specifications:

Measuring range	±32 m/s
Accuracy	DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s; DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility	±0.5 % of measured value

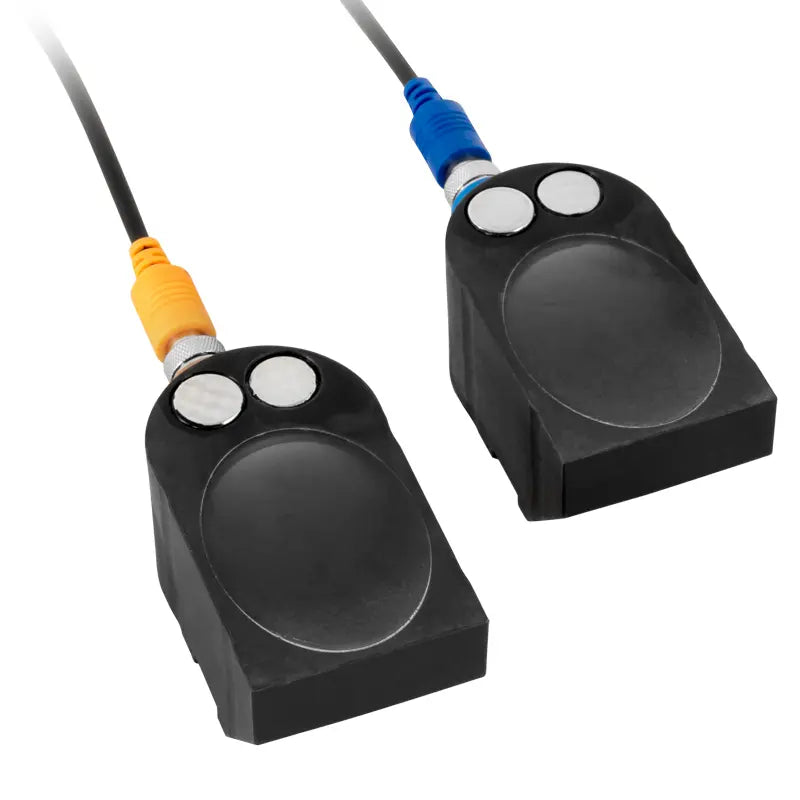

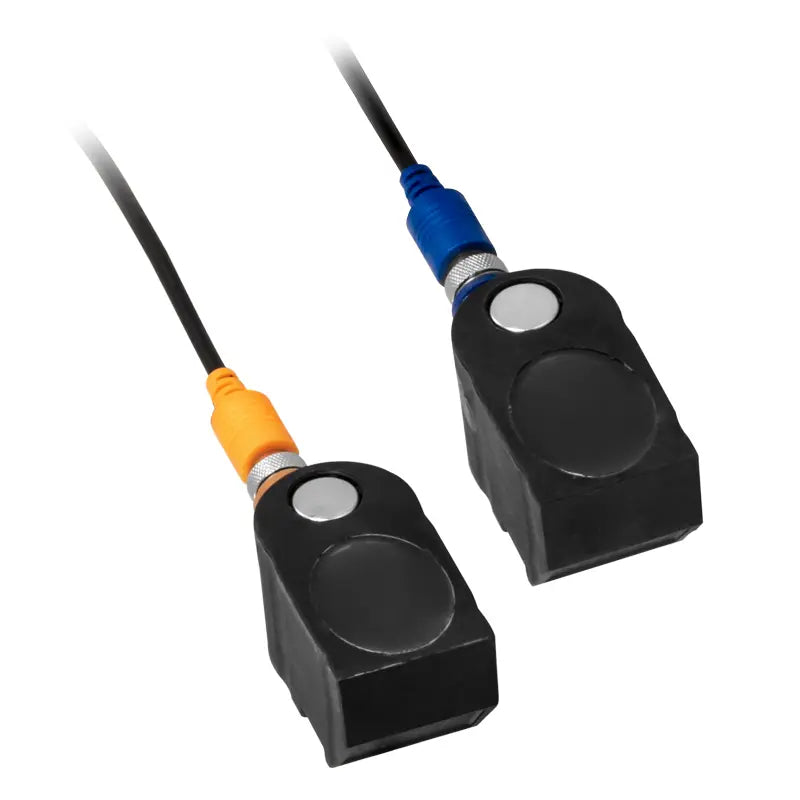

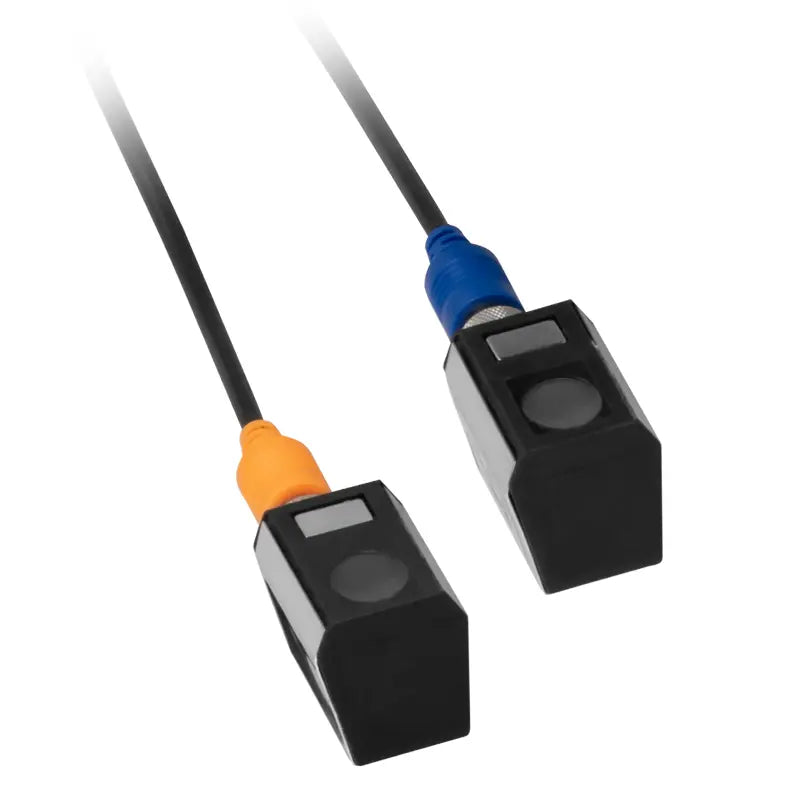

Pipe diameter for PCE-TDS 200 S SENSOR	DN 15 ... 100 / 20 ... 108 mm
Temperature resistance for sensors	-30 ... 160 °C
Dimensions for PCE-TDS 200 S SENSOR	45 x 30 x 30 mm
Units for flow velocity	m/s, ft/s
Units for volume flow	m³, l, gal, igl, mgl, cf, bal, ib, ob
Data logger memory capacity	32 GB / 10 million measuring points
Power supply	Internal: LiPo battery (3.7 V, 2500 mAh); External: USB 5 VDC, 500 mA
Operating time	approx. 10 h
Dimensions	165 x 85 x 32 mm
