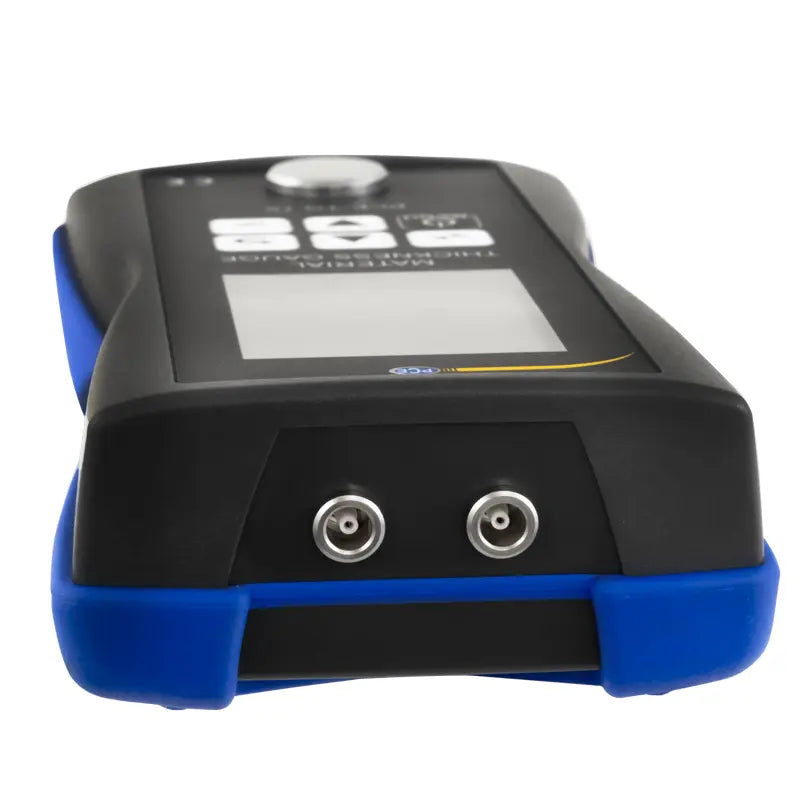

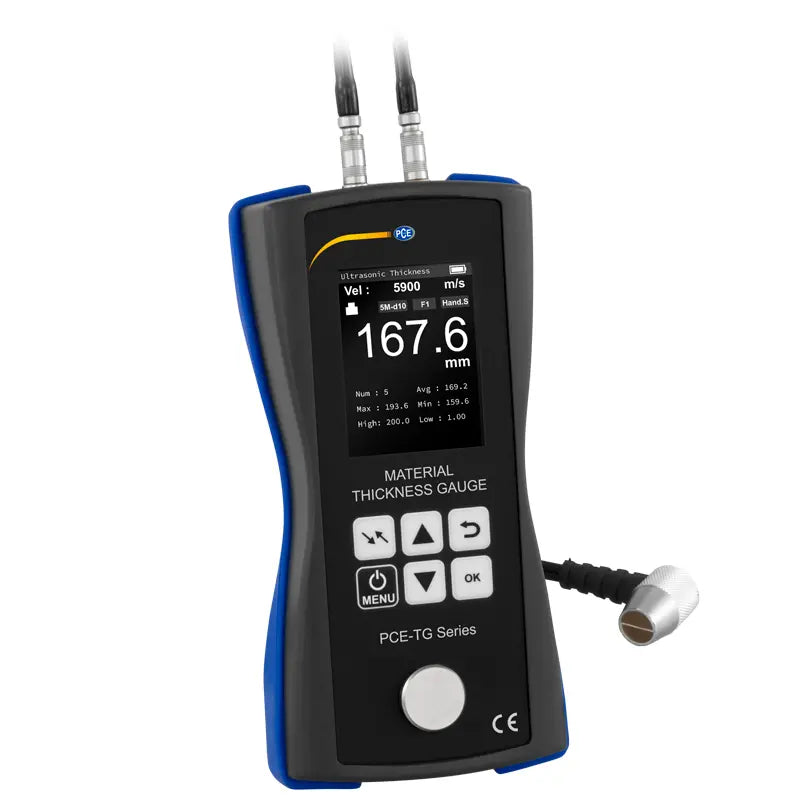

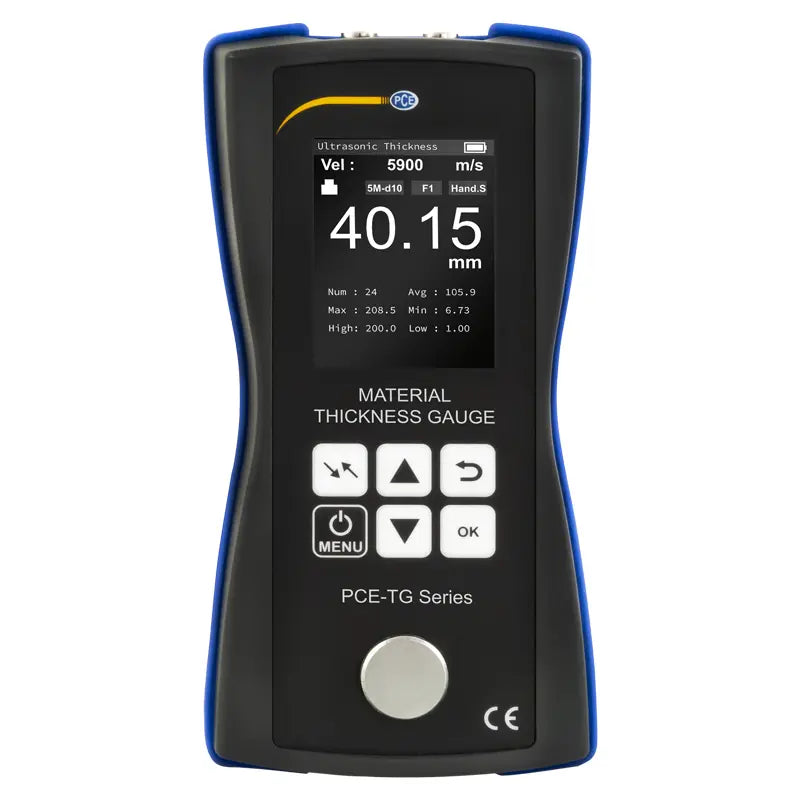

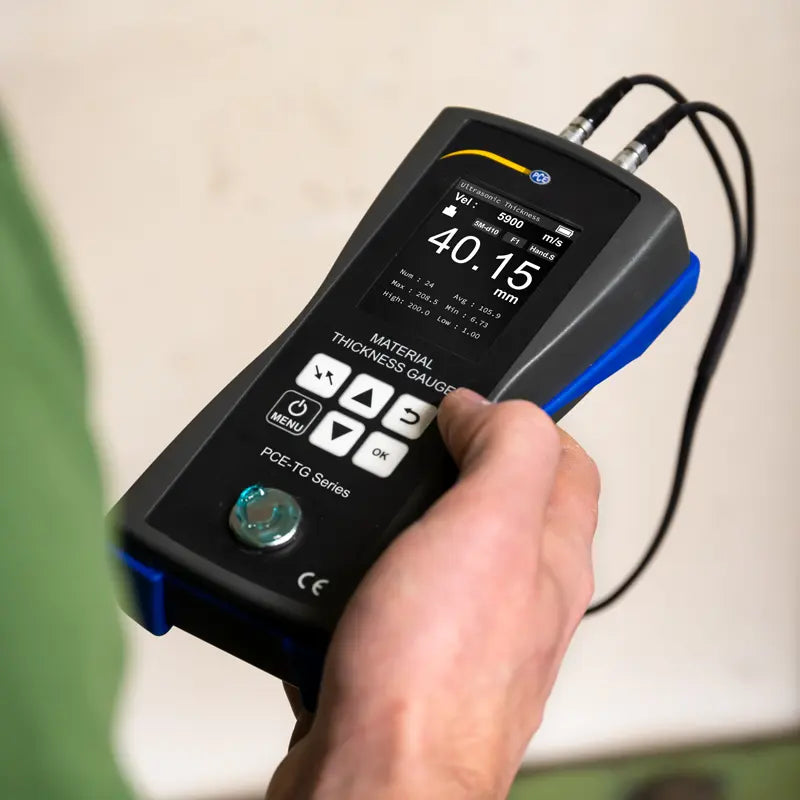

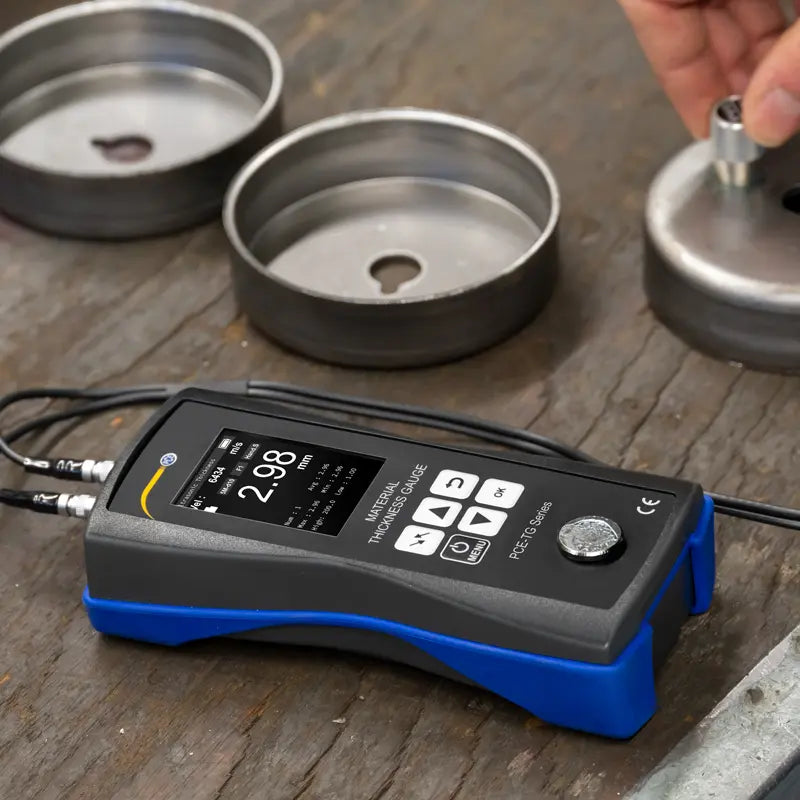

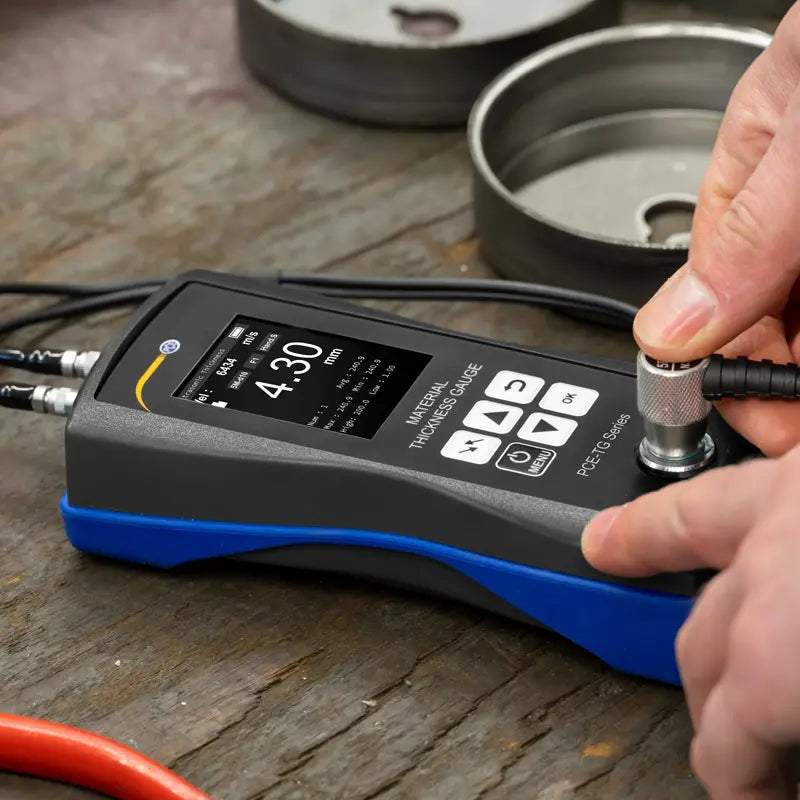

PCE-TG 75 - Versatile Paint Thickness Tester, Measures up to 225mm

PCE-TG 75 - Versatile Paint Thickness Tester, Measures up to 225mm

SKU: SKU: PCE-TG 75 Download PDF

Variant:
  • PCE-TG 75 - Versatile Paint Thickness Tester, Measures up to 225mm
Regular price Now $521.00
Regular price BEFORE   $0.00 Sale price Now $521.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the versatile paint thickness tester, engineered to measure material thicknesses of up to 225 mm (885 inches) This robust device includes a data memory feature for saving measurement values, an adjustable sound speed setting tailored for different materials, and an alarm function that alerts you when readings surpass established thresholds Its integrated calibration reference allows for precise operation, and the easy-to-read display provides a clear view of stored measurements for straightforward analysis.

Ideal for quality assurance and inspecting incoming goods, this tester can also be enhanced with an optional ISO calibration certificate for professional validation.

Features and Benefits:

    •Measured value memory.

    •Calibration reference on the housing.

    •Automatic shutdown.

    •Material thickness measurement up to 225 mm / 8.85".

    •Battery status indicator.

    •Optionally with ISO calibration certificate.

    •Quality assurance.

    •Incoming goods inspections.

Specifications:

 Measuring range: 1.00 ... 225.0 mm / 0.04 ... 8.85"
 Resolution: 0.01 mm at ≤99.99 mm, 0.1 mm at ≥100.0 mm
 Accuracy: ±0.5 % of measured value + 0.05 mm
 Storage space: 500 measured values
 Probe frequency: 5 MHz

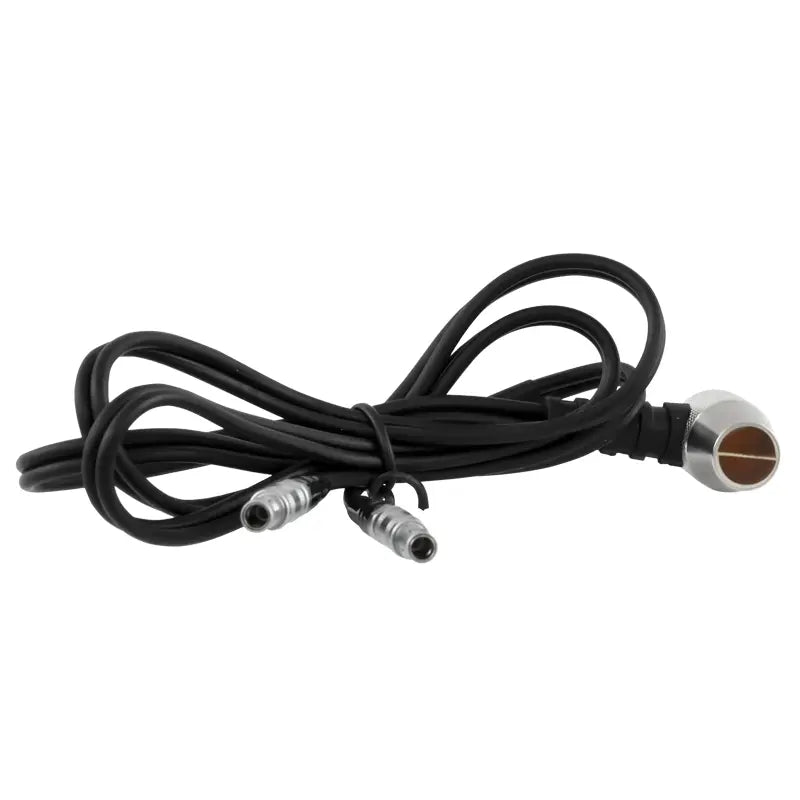

 Standard sensor: sensor PCE-TG 5M10d
 Adjustable speed of sound: 1000 ... 9999 m/s
 Smallest pipe diameter: Ø20 x 3 mm (steel)
 Material library: 15 memory locations

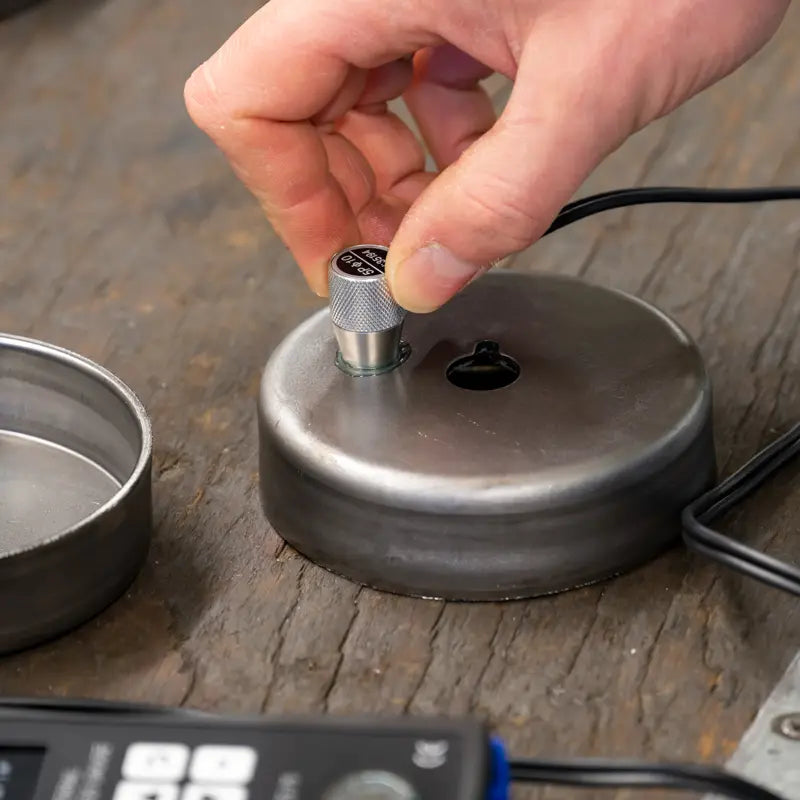

 Calibration reference: 4 mm

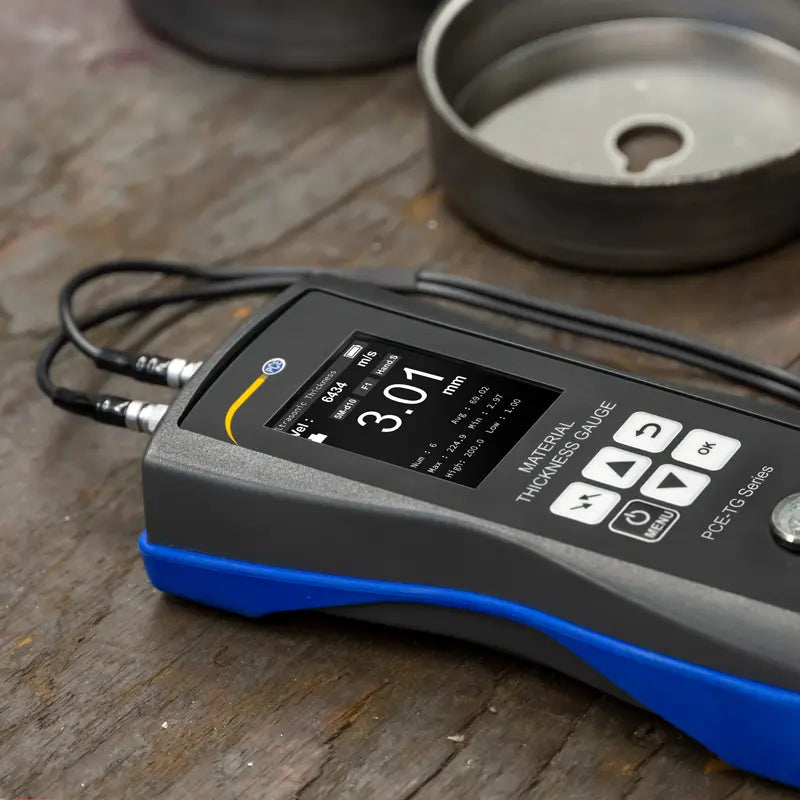

 Display: 2.4 inch TFT LCD color display with brightness adjustment

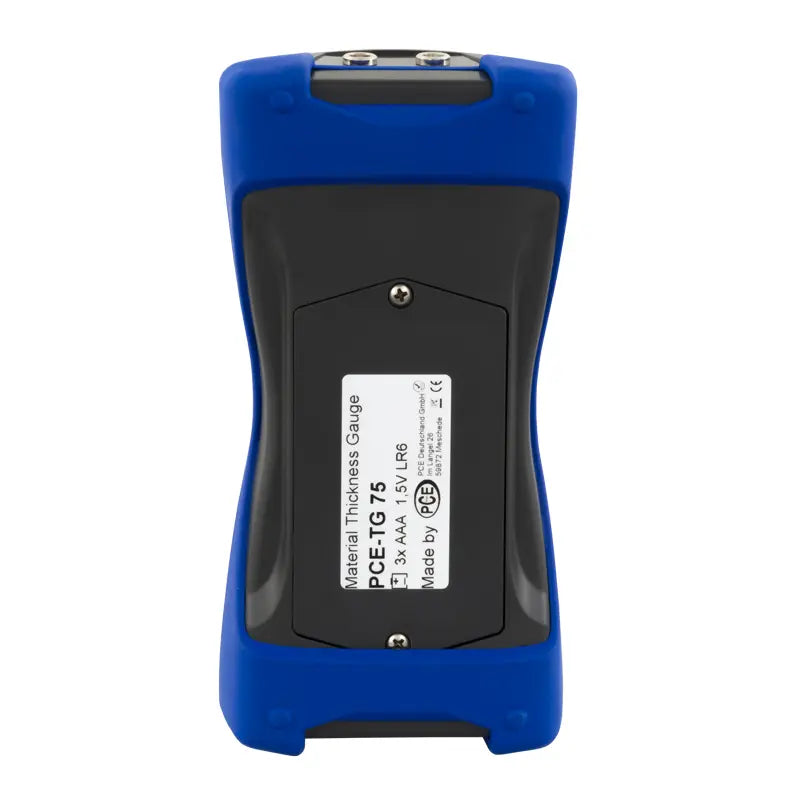

 Power supply: 3 x 1.5 V AA batteries
 Automatic switch-off: switched off, 2, 5, 10, 30 minutes
 Ambient conditions: 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
 Dimensions: 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
 Color:

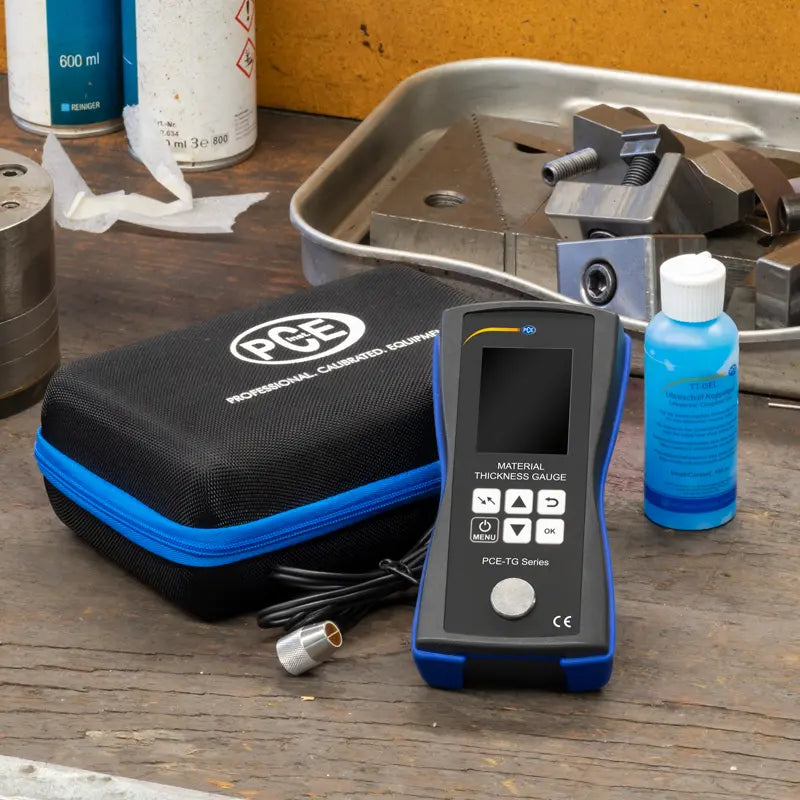

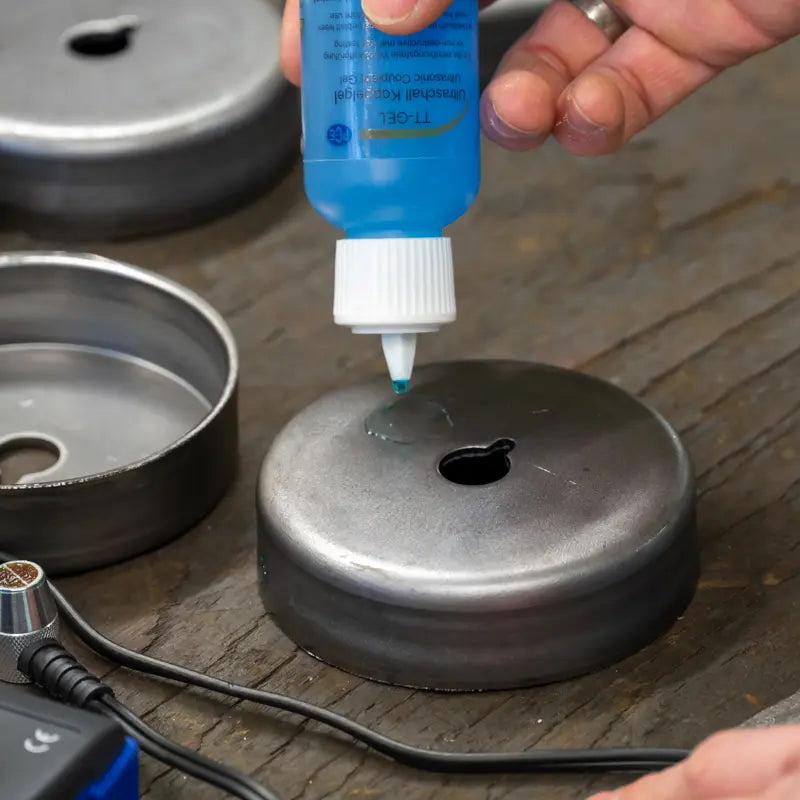

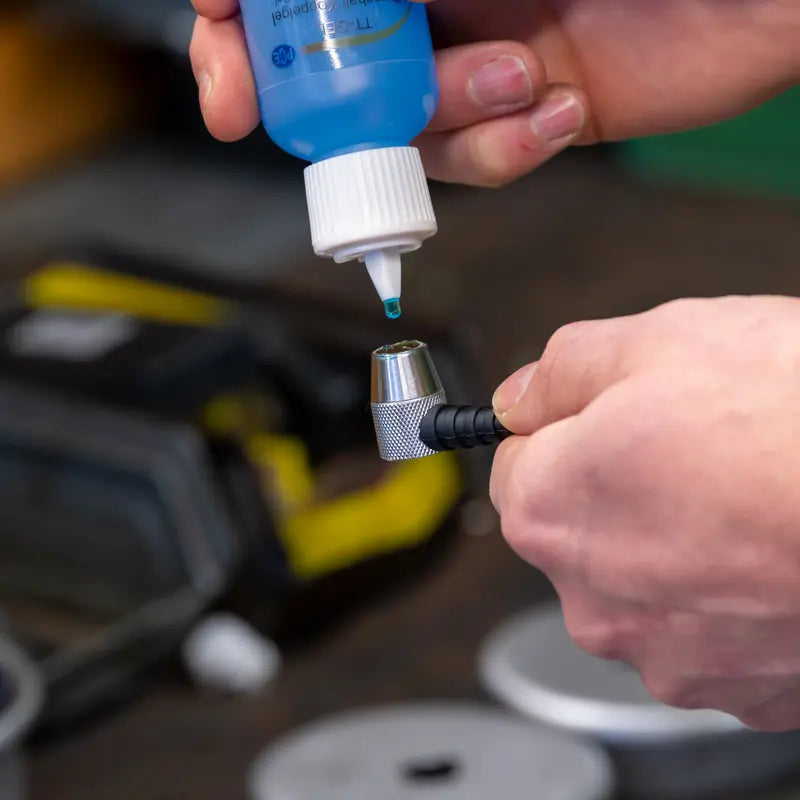

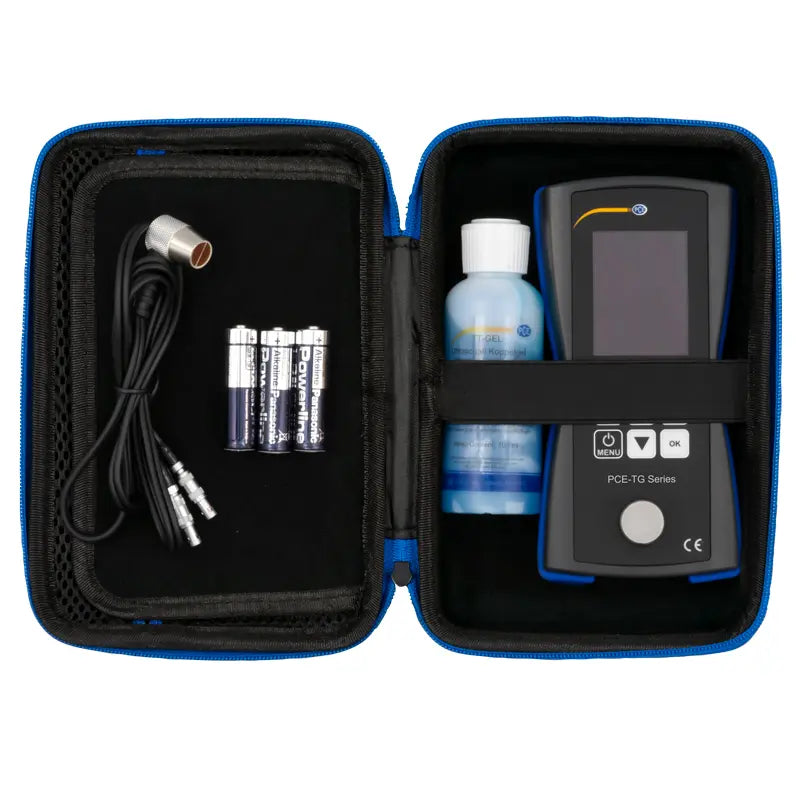

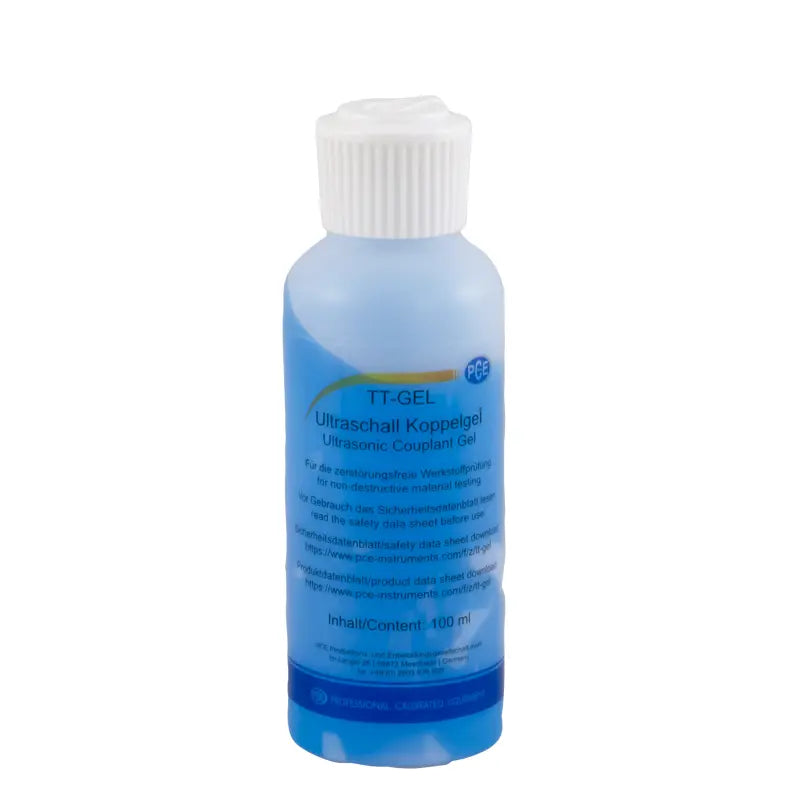

 Delivery Scope: 1 x Paint Thickness Tester PCE-TG 75, 1 x Sensor PCE-TG 5M10d, 1 x Coupling gel (TT-GEL), 1 x Transport bag, 3 x 1.5 V AA batteries, 1 x Quick start guide
