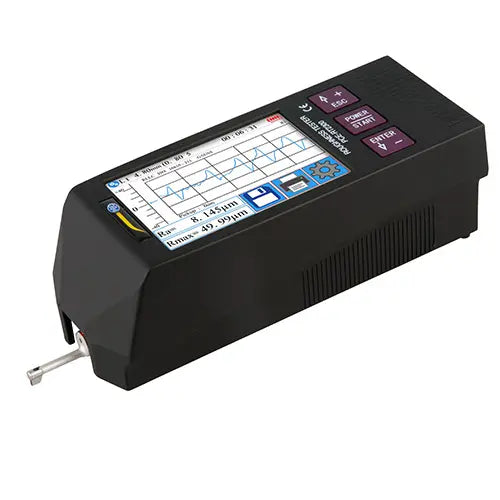

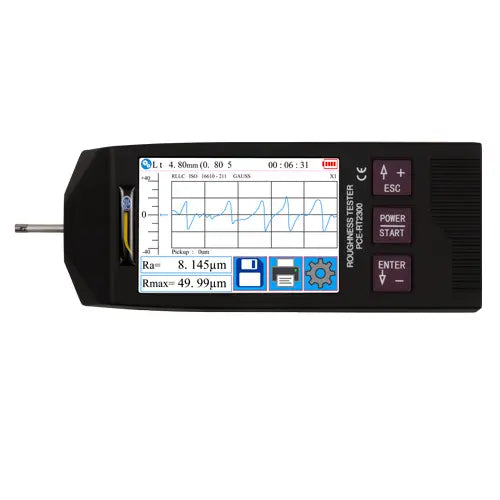

PCE-RT 2300 - Portable Profilometer for Surface Roughness Measurement

PCE-RT 2300 - Portable Profilometer for Surface Roughness Measurement

SKU: PCE-RT 2300 Download PDF

Variant:
  • PCE-RT 2300 - Portable Profilometer for Surface Roughness Measurement
Now $2,765.00
BEFORE   $0.00 Now $2,765.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PCE-RT 2300, an efficient and portable material tester tailored for quick evaluation of surface roughness parameters like Ra, Rz, Rq, and Rt This device boasts a user-friendly touchscreen interface and includes a detachable motor unit for easy handling It measures up to 320 μm (126 mil) in surface roughness, making it versatile for various surface types Featuring an internal rechargeable battery, it can conveniently be powered via a standard USB adapter.

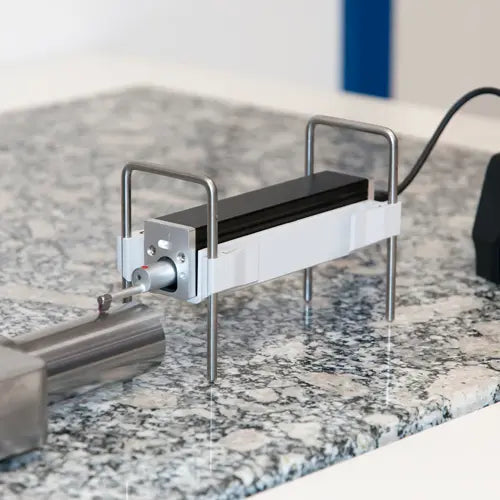

The removable sensor is designed for precise measurements on both small and narrow profiles, while results are clearly displayed on a large LCD screen This profilometer complies with ISO, ANSI, and JIS standards, ensuring professional-grade accuracy in your measurements.

Features and Benefits:

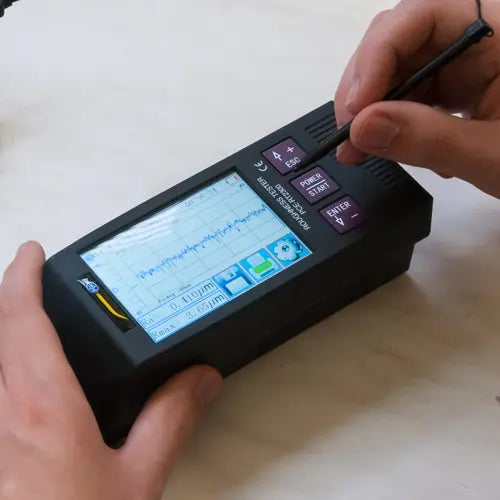

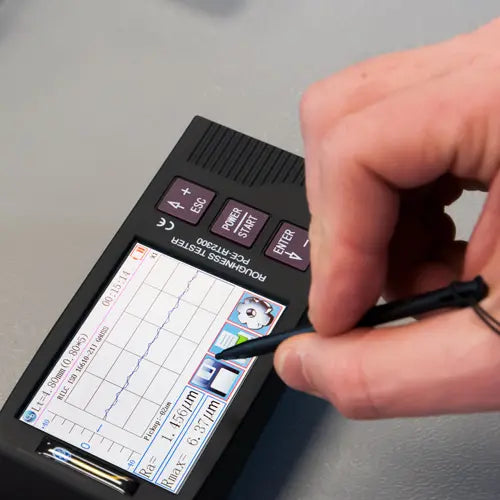

    •Touchscreen interface and PC connection.

    •Measurement of all roughness profile values.

    •Battery and mains operation.

    •Adjustable different filters.

    •Diamond test head.

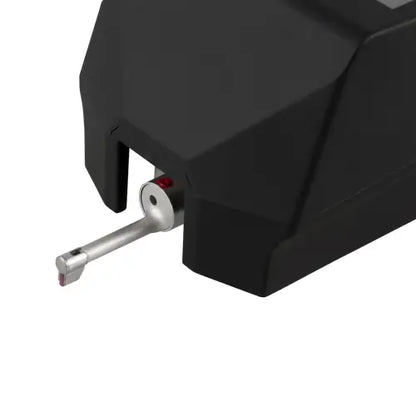

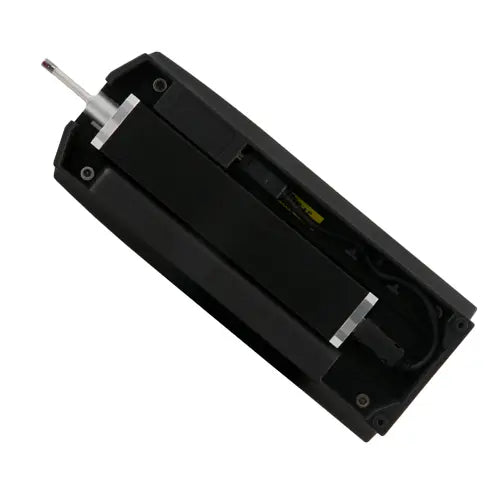

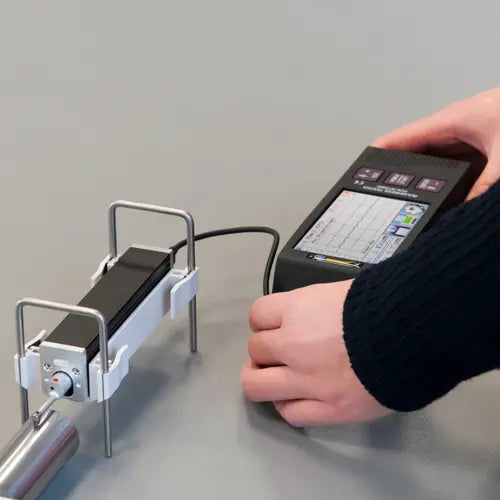

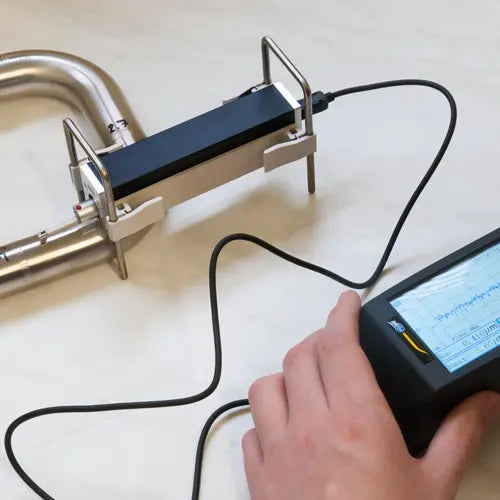

    •Removable motorized sensor.

    •Large measuring range: Rz: 0.02 μm ... 320 μm; Ra, Rq: 0.005 μm ... 32 μm.

Specifications:

 Measuring range Rz: 0.02 μm ... 320 μm; Ra, Rq: 0.005 μm ... 32 μm, Rz = 320µm (-160µm~160µm) / 12600μin (-6300μin~+6300μin)
 Accuracy ± 10%
 Repeatability ± 6%
 Resolution ± 20 μm: 0.01 μm; ± 40 μm: 0.02 μm; ± 80 μm: 0.04 μm

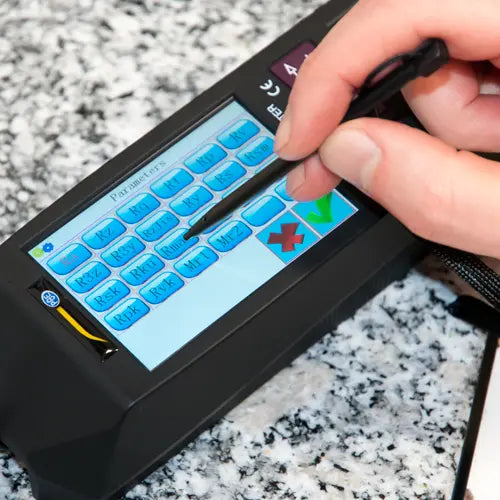

 Measurement Parameters Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
 Measurement Standards ISO4287, ANSI b46.1, DIN4768, JISb601
 Graphic Primary profile (roughness + waviness), Roughness profile (roughness), Loading curves
 Measuring filter RC, PC-RC, Gaus, DP
 Measuring section (Cut Off) 0.25 mm, 0.8 mm, 2.5 mm
 Measuring length 1 ... 5* measuring path Max. 17.5 mm (including pre- and post-run)

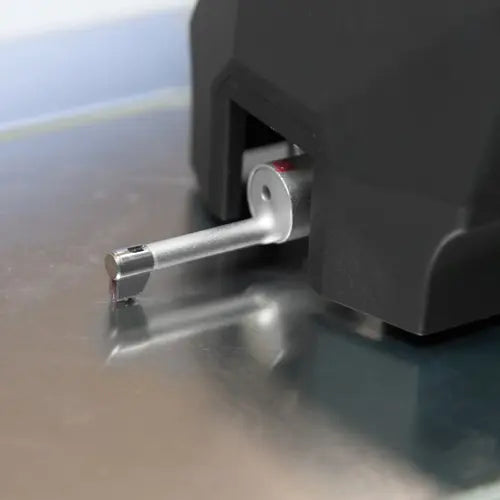

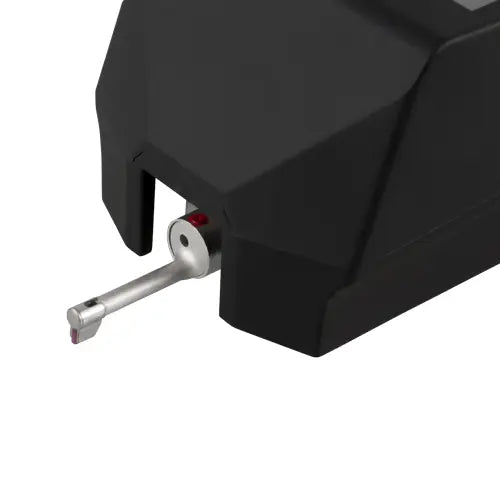

 Sensor Diamond probe tip 90° cone angle, 5 μm
 Contact force sensor <4 mN
 Feed rate 0.25 mm: 0.135 mm / s; 0.8 mm: 0.5 mm / s; 2.5 mm: 1 mm / s

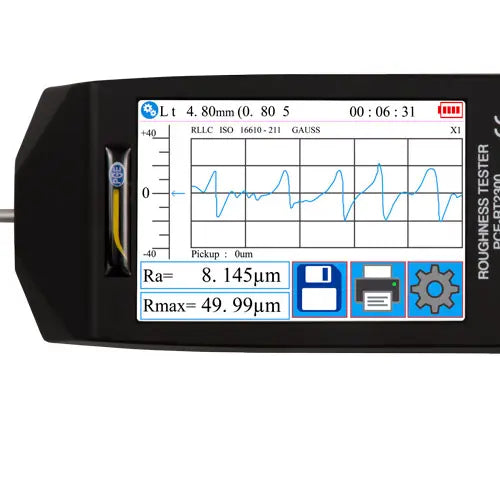

 Display 3.5" LCD screen

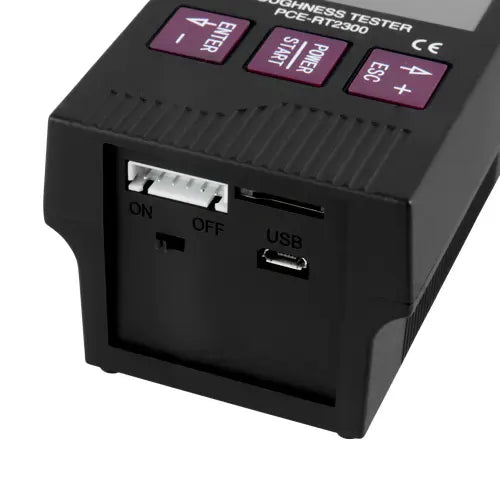

 Power supply 3.7V Li-Ion Battery; 5V / 800-mA USB Power Adapter
 Operating time 50 h
 Operating conditions -20 ... 40°C / -4 ... 104°F, max. 90% rh
 Storage conditions -40 ... 60°C / -40 ... 140°F, max. 90% rh
 Dimensions Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in; Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in
