PCE-PA 8300-2 - Durable Clamp Meter with 3000 A Measurement & SD Card

PCE-PA 8300-2 - Durable Clamp Meter with 3000 A Measurement & SD Card

SKU: PCE-PA 8300-2   Download PDF

Select a Variant:
  • PCE-PA 8300-2 - Durable Clamp Meter with 3000 A Measurement & SD Card
Qty:
Now $3,098.00   Web pricing policy
BEFORE   $0.00 Now $3,098.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

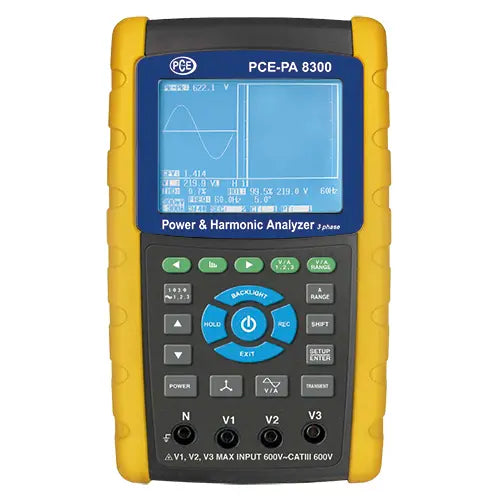

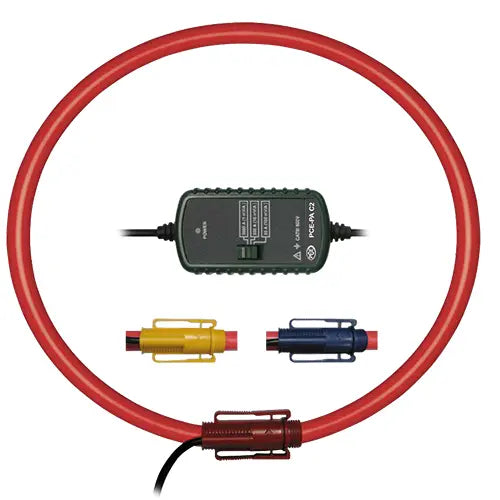

Introducing the PCE-PA 8300 Clamp Meter, an essential tool for accurate power and harmonics analysis Encased in a sturdy housing, this meter boasts a user-friendly design, making it a reliable choice for assessing network capacity With an impressive LCD graphic display and SD card memory function, you can easily capture and store data The device includes three flexible Rogowski coils, allowing for precise measurements of up to 3000 A AC.

Whether you're a professional or a DIY enthusiast, the PCE-PA 8300 is designed to meet your measurement needs effectively.

Features and Benefits:

    •Voltage measurement range of 10 V ... 600 V AC.

    •Current measurement range of 30 A ... 3000 A AC.

    •Performance measurement range of 0 kW ... 9.999 MW (VA/VAR).

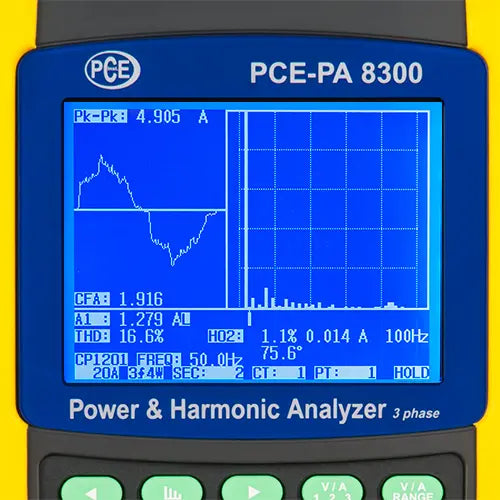

    •Simultaneous display of harmonics and waveform.

    •Graphic Phasor diagram.

    •Captures transients including dip, swell, and outage.

    •Durable enclosure.

    •SD card memory for data storage.

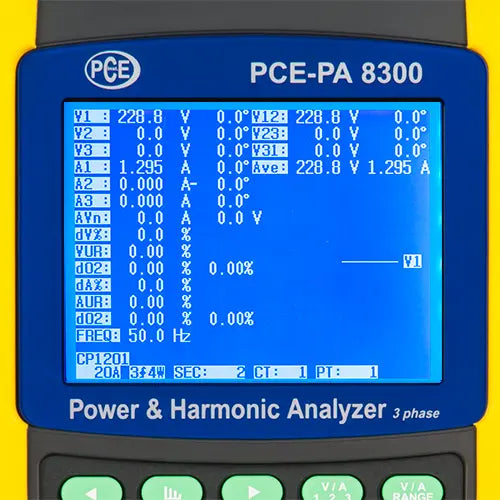

    •LCD graphic display.

    •Compatibility with various manufacturers' power clamps.

    •Adjustable back-up interval for long-term data collection.

    •Auto-setting of measurement range (AC V).

    •Power efficiency, delay angle, and frequency measurement.

    •Harmonic spectrum measurement up to the 50th order.

Specifications:

 Voltage Measurement (AC V) Range 10 V ... 600 V (phase to neutral) / 10 V ... 600 V (phase to phase)
 Current measurement (AC A) Set 2 Range 30 A / 300 A / 3000 A
 Effective power Measurement Range 0 KW ... 9.999 KW / 10 KW ... 99.99 KW / 100 KW ... 999.9 KW / 1 MW ... 9.999 MW
 Apparent Power Measurement Range 0 KVA ... 9.999 KVA / 10 KVA ... 99.99 KVA / 100 KVA ... 999.9 KVA / 1 MVA ... 9.999 MVA
 Reactive Power Measurement Range 0 KVAR ... 9.999 KVAR / 10 KVAR ... 99.99 KVAR / 100 KVAR ... 999.9 KVAR / 1 MVAR ... 9.999 MVAR
 Active Energy Measurement Range 0 KWH ... 9.999 KWH / 10.00 KWH ... 99.99 KWH / 100.0 KWH ... 999.9 KWH / 1 MWH ... 9.999 MWH
 Apparent Energy Measurement Range 0 KVARH ... 9.999 KVARH / 10.00 KVARH ... 99.99 KVARH / 100.0 KVARH ... 999.9 KVARH / 1 MVARH ... 9.999 MVARH
 Power Factor Range 0 ... 1
 Delay Angle Range -180° ... +180°
 Frequency Range 45 Hz ... 65 Hz
 Display 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
 Safety Standards IEC1010CAT III 600V
 Operating Frequency of Current Clamp 40 Hz ... 1 kHz
 Overload Protection 720 V RMS / 1300 A with current clamp
 Data Storage SD memory card
 Operating Temperature 0° C ... +50° C / 32° F ... 122° F
 Maximum Wire Diameter 50 mm / 1.9 in
 Weight of Device 948 g / 33.4 oz (incl. battery)
 Weight of Current Clamp 467 g / 16.4 oz (incl. cable)
 Dimensions of Device 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
 Dimensions of Current Clamp 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
