PCE-TG 300-NO5/90 - Versatile IoT Meter for Wall Thickness & Material Measurement

PCE-TG 300-NO5/90 - Versatile IoT Meter for Wall Thickness & Material Measurement

SKU: PCE-TG 300-NO5/90   Download PDF

Select a Variant:
  • PCE-TG 300-NO5/90 - Versatile IoT Meter for Wall Thickness & Material Measurement
Qty:
Now $1,318.00   Web pricing policy
BEFORE   $0.00 Now $1,318.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

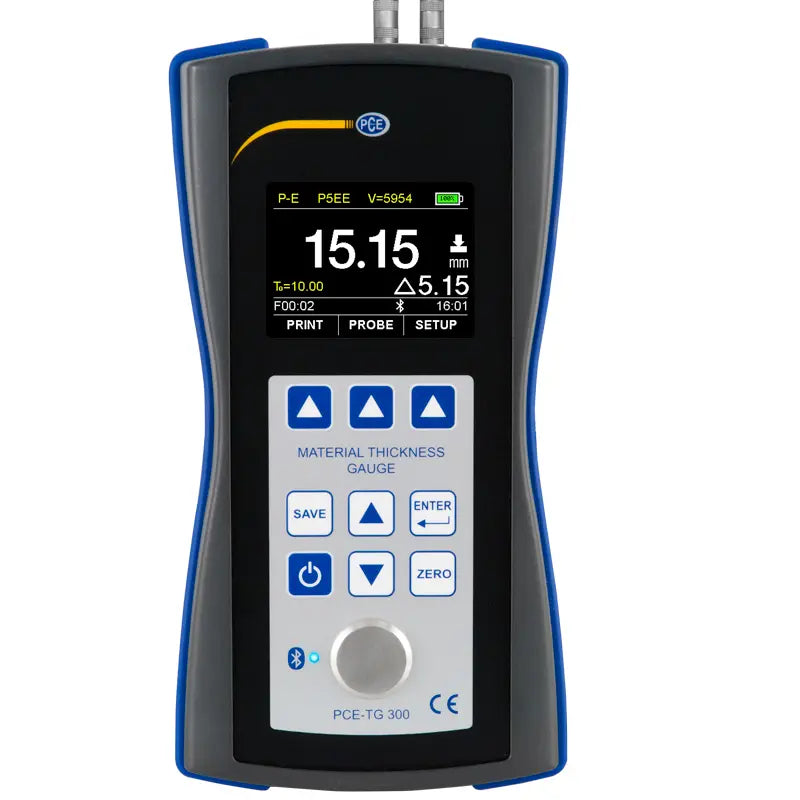

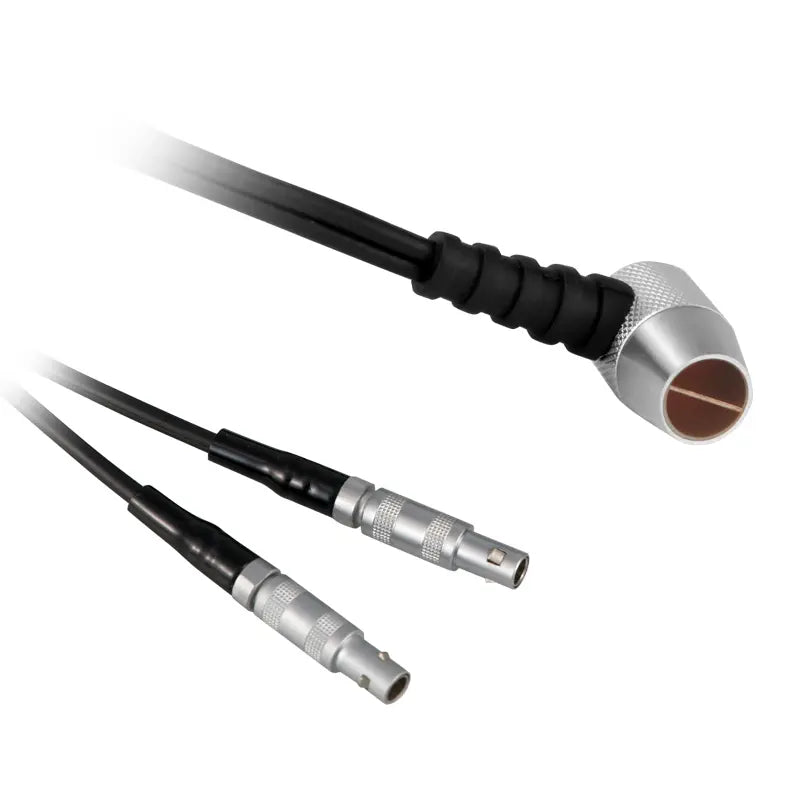

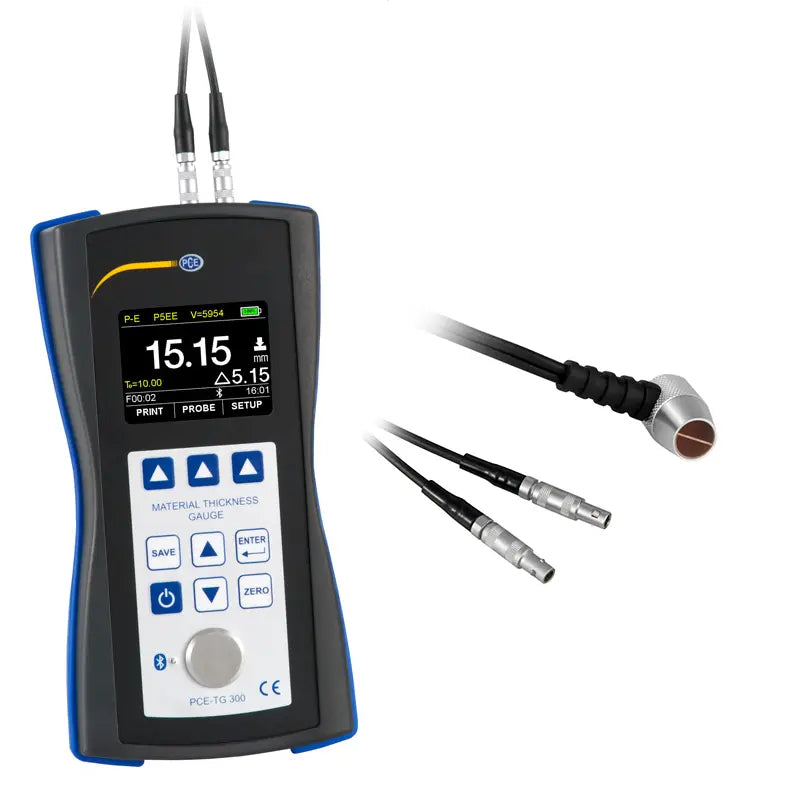

Discover the PCE-TG 300-NO5/90 IoT thickness meter, expertly crafted with specialized sensors for versatile applications This device excels in measuring wall thicknesses across all homogeneous materials For those materials that may dampen or scatter signals, like plastics or cast products, an additional sensor option is available Equipped with a 90° angled sensor, this meter is perfect for accessing difficult-to-reach areas.

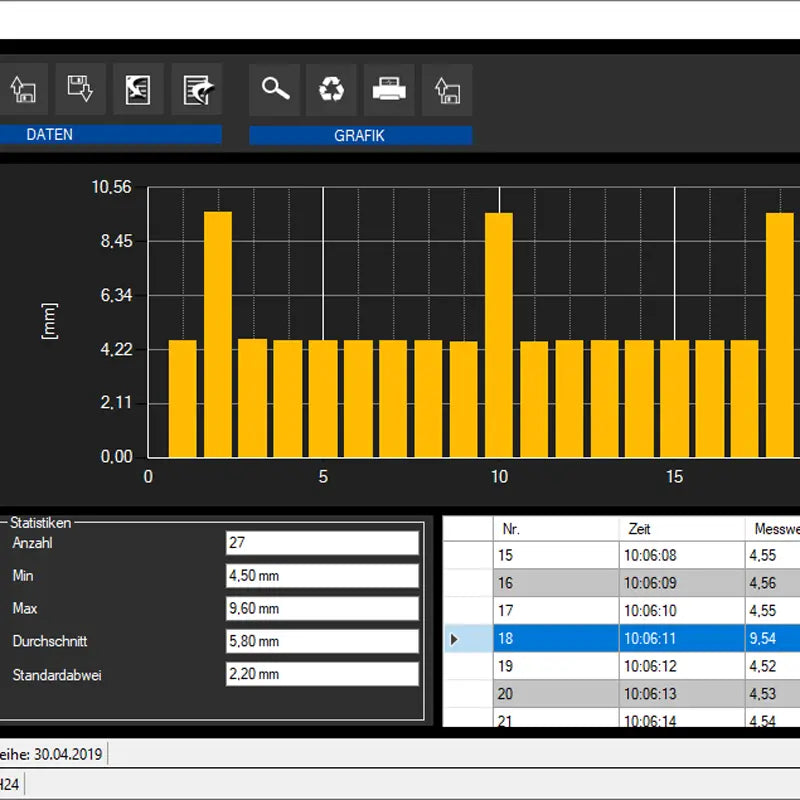

The speed of sound is adjustable, providing flexibility to suit a wide range of materials Measurements are easily displayed on a vibrant TFT color screen, and the internal memory can store multiple data points for later analysis through compatible software This non-destructive ultrasound method is suitable for finished items, and with the Echo-Echo mode (requiring the PCE-TG 300-P5EE sensor), you can even measure coated surfaces with accuracy.

Features and Benefits:

    •Large measuring range up to 600 mm.

    •Various sensors available for different materials.

    •Battery-operated for convenience.

    •Error and voids detection capability.

    •Internal measurement data storage.

    •Print function via Bluetooth.

Specifications:

 Measuring range: 1 ... 600 mm / 0.039 ... 23.62" (steel)
 Minimum diameter of pipes: 20 x 3 mm / 0.787 ... 0.118"
 Frequency: 5 MHz
 Diameter: 10mm / 0.39"
 Accuracy: ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm)
 Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
 Measurable materials: metals, plastics, ceramics, epoxy resin, glass, and all homogeneous materials
 Working modes: Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g. paint)
 Calibration: sound velocity calibration, zero calibration, two-point calibration
 View Mode: Normal Mode, Scan Mode, Difference Mode
 Units: mm / inch

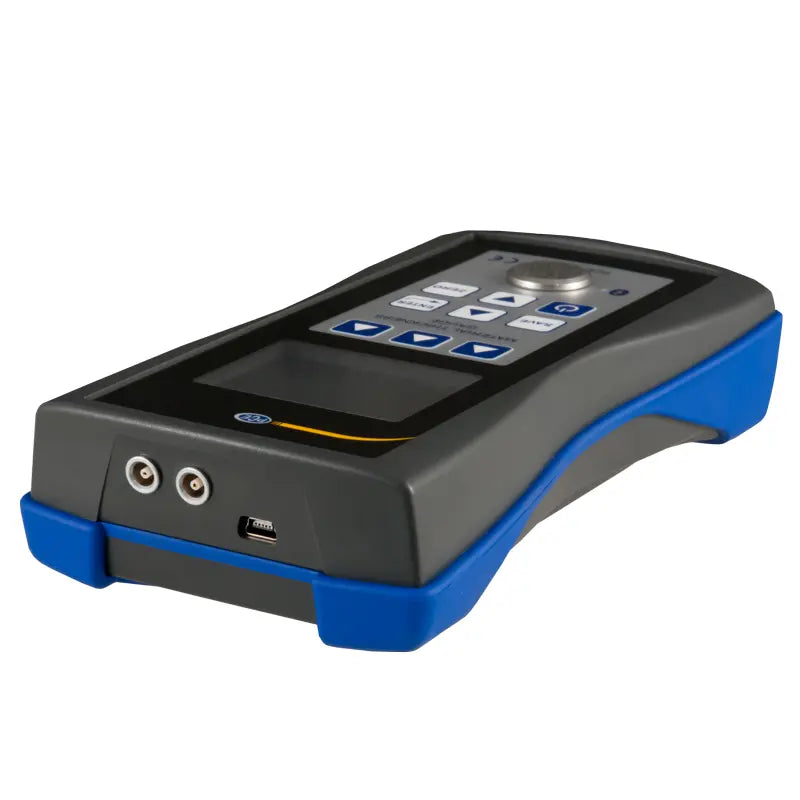

 Data transfer: printing via Bluetooth / USB 2.0
 Memory: non-volatile memory with 100 data groups with 100 data sets each
 Operating time: continuous operation 100 h, automatic stand-by mode (adjustable), auto power off mode (adjustable)

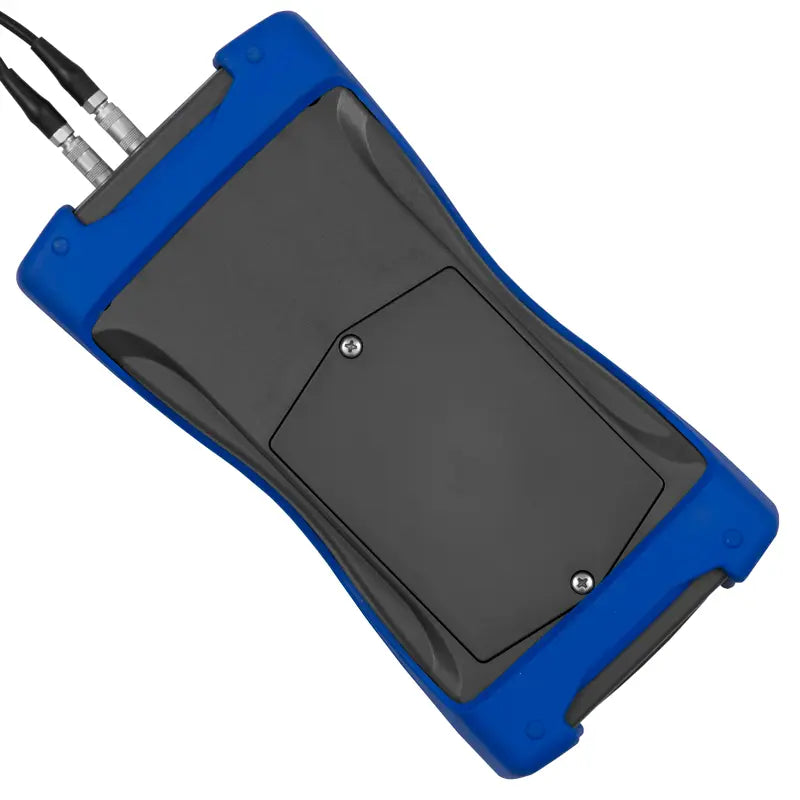

 Power supply: 4 x AA battery 1.5 V

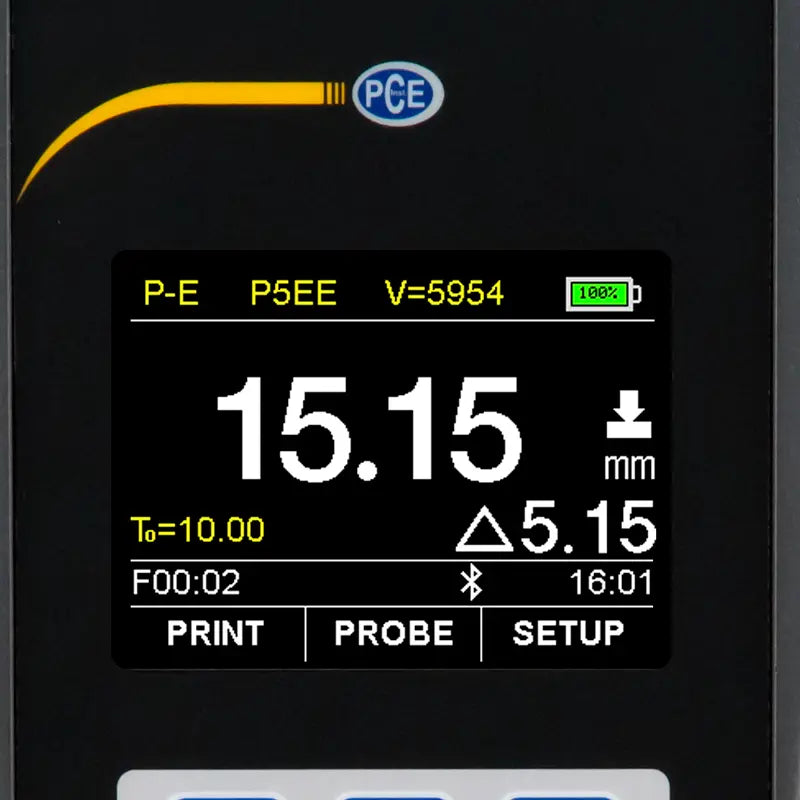

 Display: 320 x 240 pixels TFT LCD color display with brightness adjustment
 Operating conditions: 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing
 Storage conditions: -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing
 Dimensions: 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5"
 Weight: 375 g / 13.2 oz
