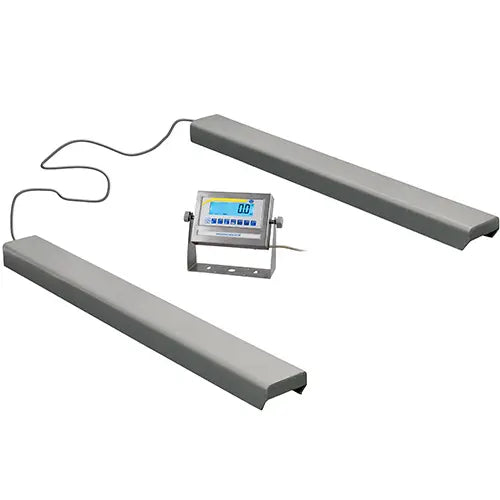

PCE-SW 5000N - Heavy-Duty Weighbridge with Adjustable 4m Beam Width

PCE-SW 5000N - Heavy-Duty Weighbridge with Adjustable 4m Beam Width

SKU: SKU: PCE-SW 5000N Download PDF

Variant:
  • PCE-SW 5000N - Heavy-Duty Weighbridge with Adjustable 4m Beam Width
Regular price Now $1,650.00
Regular price BEFORE   $0.00 Sale price Now $1,650.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

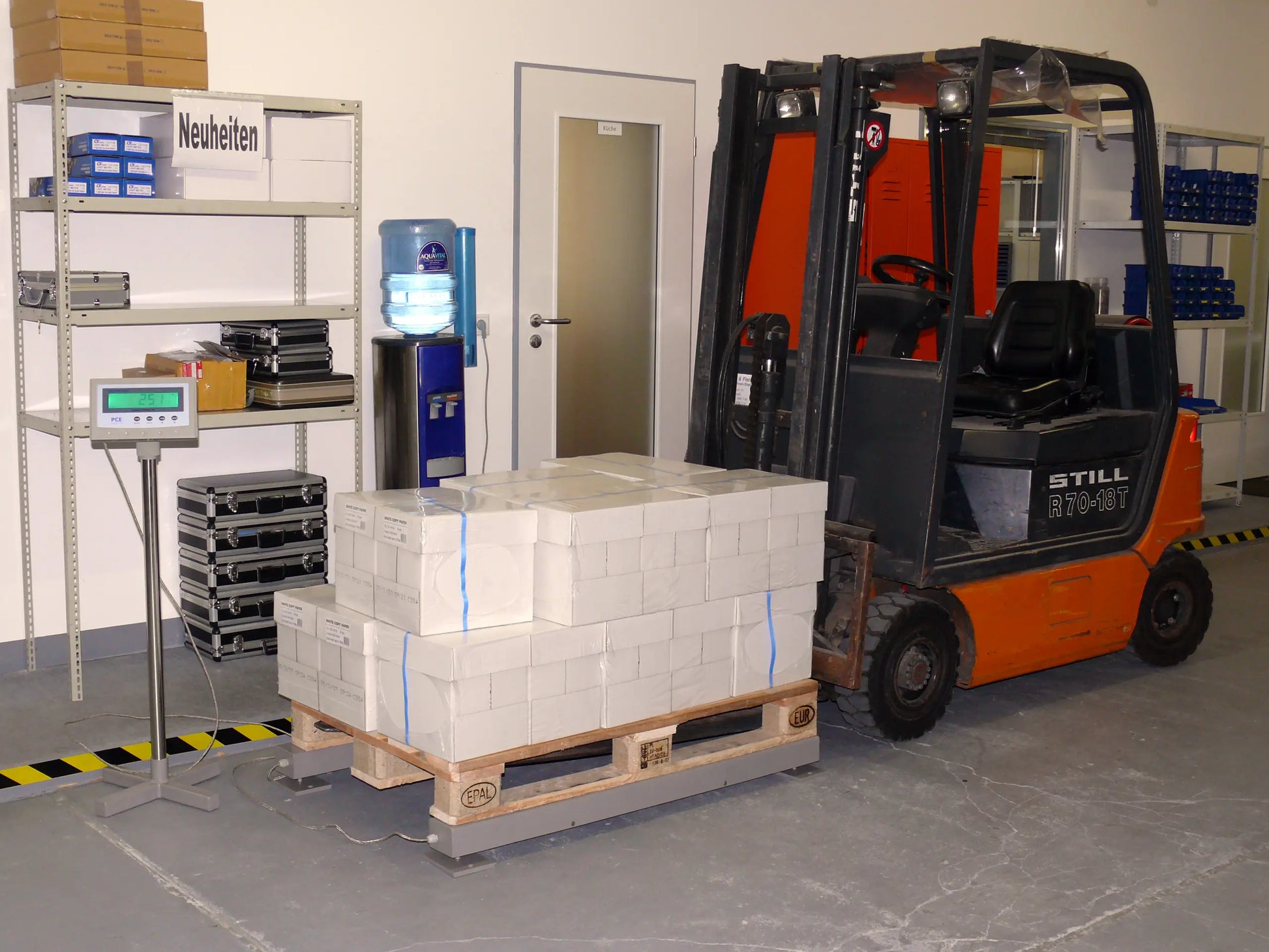

Introducing the PCE-SW 5000N, a robust weighbridge or pallet scale enhanced with two heavy-duty parallel weighing beams constructed from lacquered steel, allowing for an adjustable distance of up to 4 m (13 ft) between them This versatility makes it suitable for various pallet, box, and container sizes The scale also boasts a stainless-steel-encased display that can be mounted on a wall up to 4 m (13 ft) away from the weighing beams for added convenience.

Key features include a bi-directional RS-232 interface for seamless connectivity to PCs or printers, multifunctional TARE settings across the entire weighing spectrum, and additional capabilities for threshold, summation, and counting functions Powered by a 6V rechargeable battery, the display unit is designed for longevity, while its IP 54 ingress protection rating ensures reliability in demanding environments.

This weighbridge is perfect for use in warehouses, logistics, shipping and receiving areas, loading docks, supply chain operations, retail settings, and inventory management.

Features and Benefits:

    •Bi-directional RS-232 interface for PC or printer connection.

    •Multiple TARE for whole weighing range.

    •Threshold, sum-up and counting functions.

    •6V rechargeable battery inside display.

    •Ingress protection rating: IP 54.

    •Ideal for use in various applications including warehouse, logistical and retail settings.

    •Warehouse.

    •Storage facility.

    •Shipping.

    •Receiving.

    •Loading dock.

    •Logistical.

    •Supply chain.

    •Retail.

    •Inventory.

    •Stock room.

Specifications:

 Weighing range 5000 kg / 11023 lb (=5.5 T)
 Resolution 2 kg
 Accuracy ±8 kg
 Tare range Multiple tare across entire weighing range
 Display LCD with 25 mm / 1" digit height
 Cable length to display ca. 4 m / 13 ft
 Interface Bi-directional RS-232
 Calibration Multi-point calibration possible
 Power supply 6V battery installed in the display (BAT-6V-4.5Ah)
 Housing Scale: painted steel / Display: stainless steel
 Protection IP 54
 Environment 0 ... +40 °C / +32 ... +104 °F / 10 ... 80% r.H.
