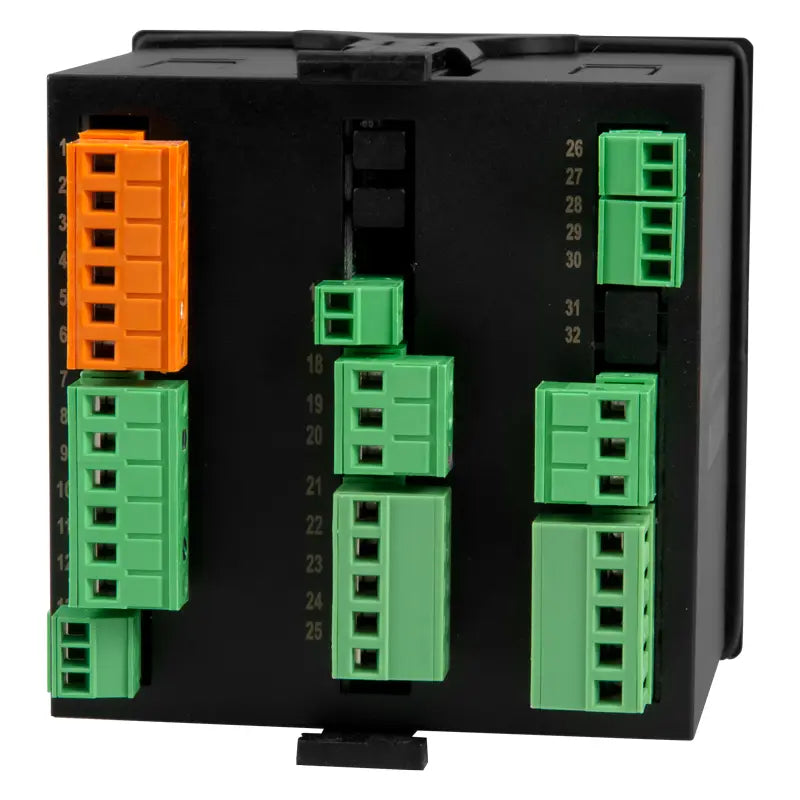

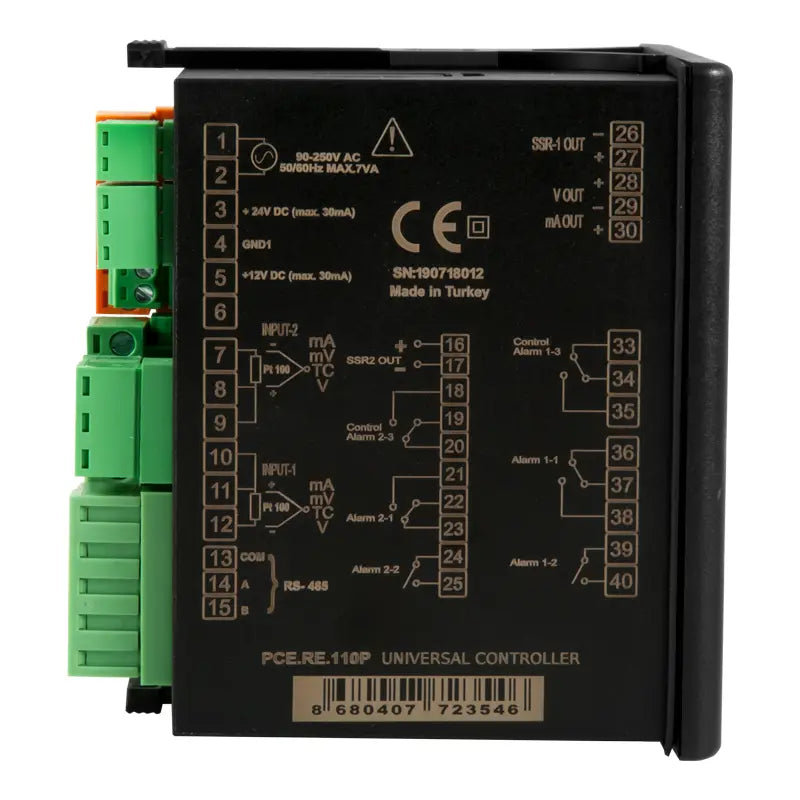

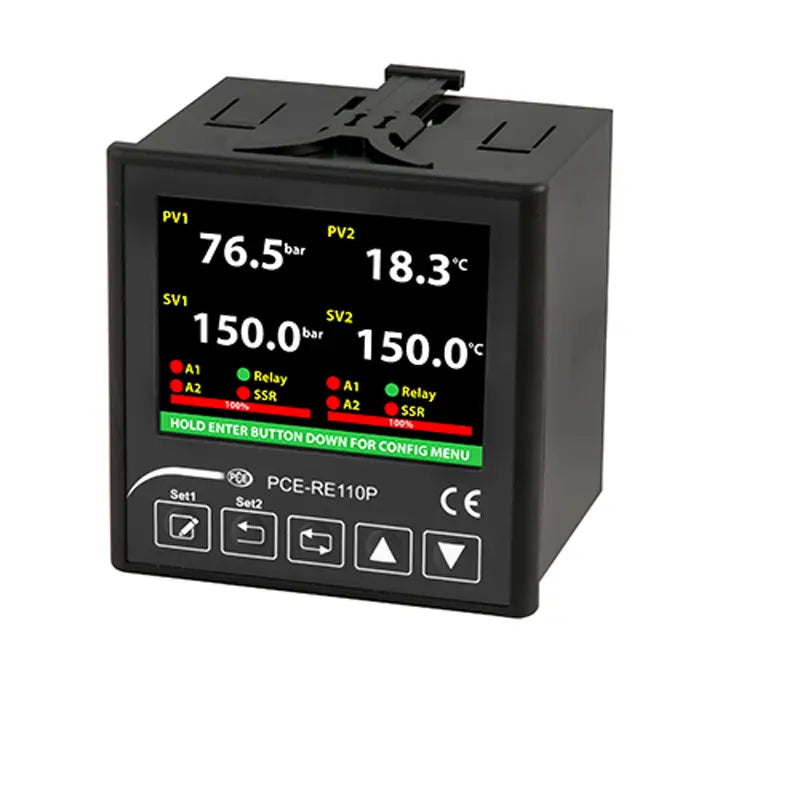

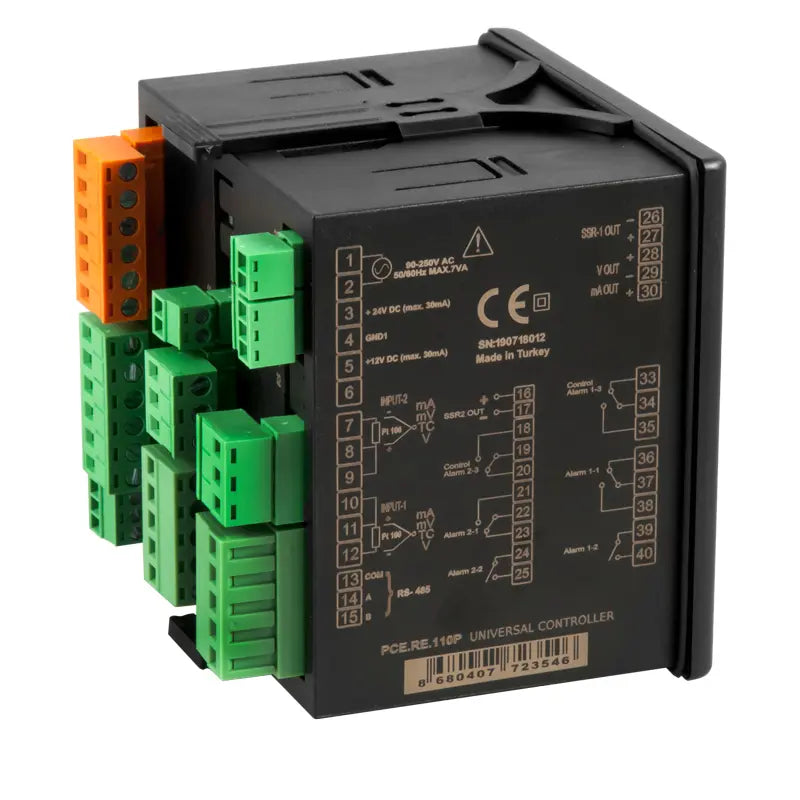

PCE-RE110P - Color LCD Temperature Controller with Alarming and PID Functions

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a sophisticated temperature controller that offers a range of versatile control outputs, including a universal analogue input, program control capabilities, an RS485 interface, four digital inputs, and an internal power supply for sensors This device incorporates two measuring inputs tailored for effective process management along with two control output circuits: a relay and a solid-state relay (SSR).

Equipped with alarm functionalities, the controller displays both real-time measurements and set point values on a vibrant color LCD screen It supports various control methods, such as ON-OFF and PID, and includes advanced features like self-optimization and AUTO-PID to enhance performance Additionally, the soft start function helps mitigate overshoots during initial process setups, ensuring a smooth operation every time.

Features and Benefits:

•2 measuring inputs.

•Relay, SSR and analog outputs.

•92 x 92 panel mounting.

•3.5" color display.

•Modbus RTU interface.

•90 ... 250V AC power supply.

•Program control, softstart, autotune.

•Digital input.

Specifications:
