PCE-DD-D - Shore D Hardness Tester for Materials Over 6mm Thickness

PCE-DD-D - Shore D Hardness Tester for Materials Over 6mm Thickness

SKU: PCE-DD-D   Download PDF

Select a Variant:
  • PCE-DD-D - Shore D Hardness Tester for Materials Over 6mm Thickness
Qty:
Now $121.00   Web pricing policy
BEFORE   $0.00 Now $121.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

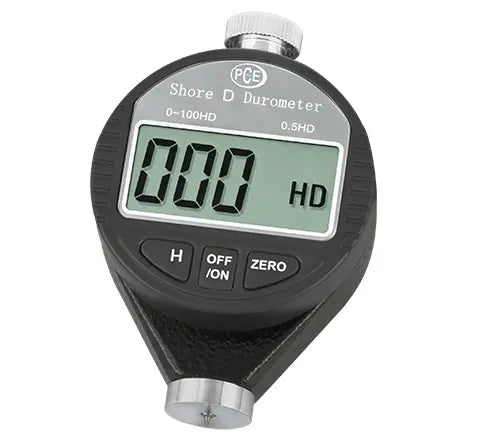

Introducing the PCE-DD-D Shore D durometer, a reliable hardness tester crafted for assessing the Shore hardness of various materials, including hard rubber, resin, acrylic, glass, and thermoplastics This device employs a conical impact rod with a 30º point, applying a force of 50 Newtons (N) to create indentations on samples For optimal results, material thickness should be no less than 6 mm (024 in.

) If your sample falls short, simply reinforce it from behind using additional material for accurate readings.

Features and Benefits:

    •For Shore D hardness testing.

    •Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc..

    •Handheld, portable, digital measuring device.

    •Measurement range: 0 ... 100 Shore D.

    •Accuracy: ± 2 Hardness - Grade.

    •Large, easy-to-read display.

    •Hold functionality.

Specifications:

 Measurement range 0 ... 100 Shore D
 Resolution 0.5 Hardness - Grade
 Accuracy ± 2 Hardness - Grade
 Depth of indentation 0.0 ... 2.5 mm / 0.0 ... 0.01 in
 Pressure force 5 kg / 11.02 lbs
 Indenter 30°
 Dimensions 85 mm x 60 mm x 25 mm / 3.3 in x 2.36 in x 0.4 in
 Power supply 1 x 1.5V (SR44)
 Delivery Scope 1 x PCE-DD-D Hardness tester, 1 x Plastic carrying case, 1 x Battery, 1 x User manual
