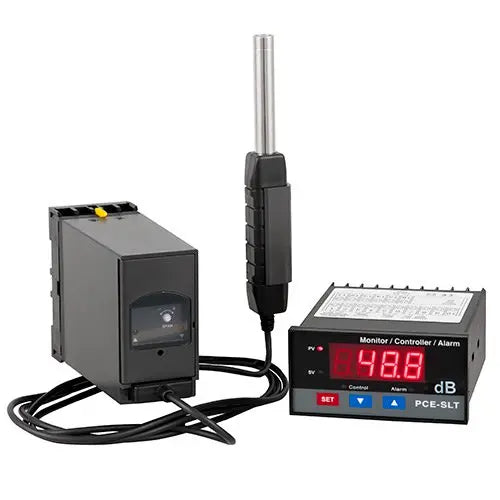

PCE-SLT - Class II Portable Decibel Meter with Visual Alarm, 1.5m Cable

PCE-SLT - Class II Portable Decibel Meter with Visual Alarm, 1.5m Cable

SKU: SKU: PCE-SLT Download PDF

Variant:
  • PCE-SLT - Class II Portable Decibel Meter with Visual Alarm, 1.5m Cable
Regular price Now $653.00
Regular price BEFORE   $0.00 Sale price Now $653.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

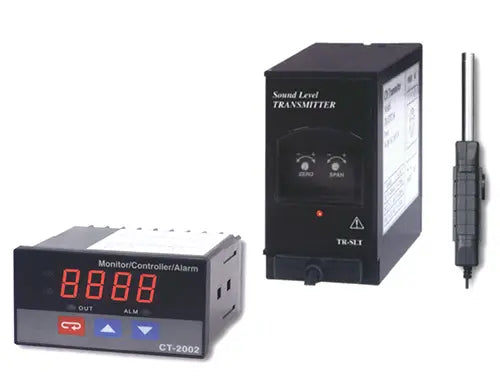

The PCE-SLT is an advanced sound level meter classified as class II (type 2), designed to accurately measure sound pressure levels (SPL) in decibels (dB) This device features both audible and visual alarm outputs, making it perfect for ongoing assessments of noise exposure in industrial settings like foundries and manufacturing floors It is equipped with a wall-mountable acoustic sensor connected via a 1.

5 m (492 ft) cable, along with a transmitter Additionally, the unit comes with a digital indicator that boasts an IP 65 rating, ensuring robust performance in demanding environments.

Features and Benefits:

    •Measuring range: 30 ... 130 dB in 3 ranges.

    •Resolution: 0.1 dB.

    •Accuracy: ± 1.5 dB.

    •IP 54 ingress protection rating on transmitter offers limited protection against dust ingress and splashed water.

    •IP 65 ingress protection rating on digital indicator offers total protection against dust ingress and protection against low-pressure water jets.

    •Continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories, and manufacturing production floors..

Specifications:

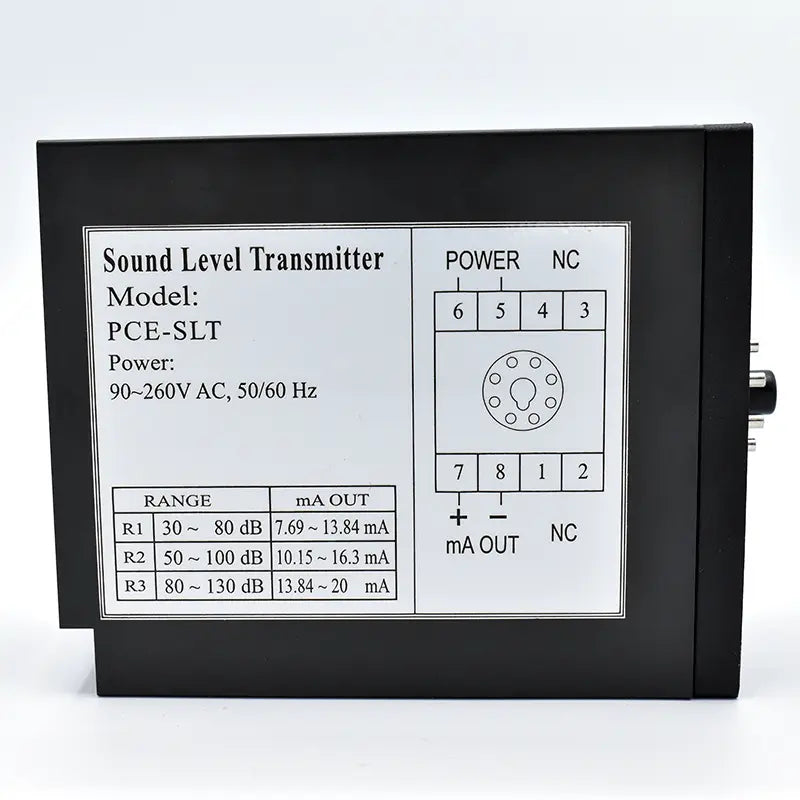

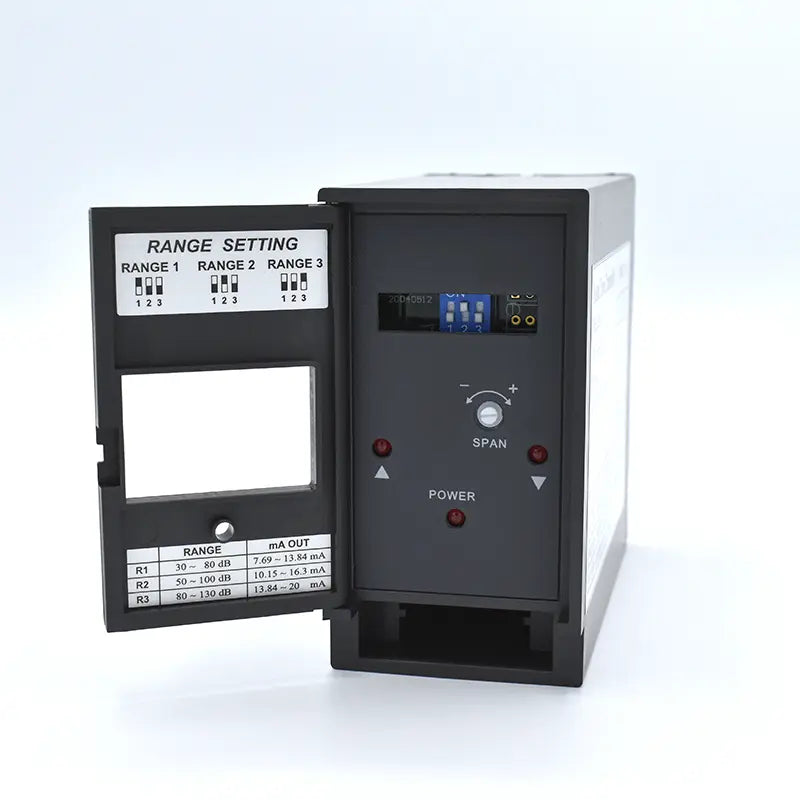

 Measuring range 30 ... 130 dB in 3 ranges: I. 30 ... 80 dB(A), II. 50 ... 100 dB(A), III. 80 ... 130 dB(A)
 Resolution 0.1 dB
 Accuracy ±1.5 dB
 Frequency weighting A
 Power supply Via transmitter
 Cable length (sensor to transmitter) 1.5 m / 4.92'
 Operating conditions 0 ... 50°C / 32 ... 122°F, max. 85% RH
 Microphone 1/2" precision electret
 Standard IEC 61 672 (Class II)
 Transmitter Housing ABS plastic
 Transmitter Power supply 90 ... 260 AC V
 Transmitter Calibration Adjustable by set screw
 Transmitter Output 4 ... 20-mA
 Protection class IP 54 ingress protection rating
 Digital indicator input signal 4 – 20-mA
 Indicator Dimensions - 1999 ... 9999 (1 ... 3 decimals, according to the measurement value / chosen by the user)
 Regulation output 3 points (Com, NO, NC)
 Alarm output Relay output: 5 A / 240V AC
 Power 90 ... 260 AC V / 50 ... 60 Hz
 Dimensions / Switchboard 92 (+ 0.8) mm x 45 (+ 0.5) mm
 Protection class digital indicator IP 65 ingress protection rating
