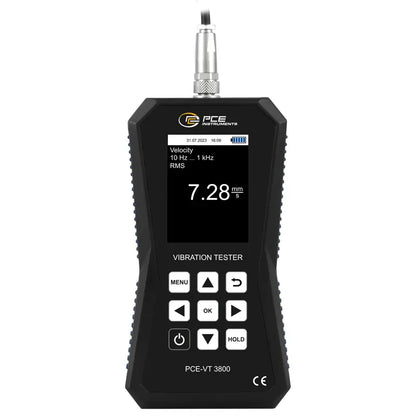

PCE-VT 3800S - Advanced Accelerometer for Vibration Measurement with ISO Option
PCE-VT 3800S - Advanced Accelerometer for Vibration Measurement with ISO Option
SKU: SKU: PCE-VT 3800S Download PDF
- PCE-VT 3800S - Advanced Accelerometer for Vibration Measurement with ISO Option
- PCE-VT 3800S - Advanced Accelerometer for Vibration Measurement with ISO Option
Couldn't load pickup availability
Description:
Introducing a versatile accelerometer tailored for peak value assessment in machinery and industrial settings This device can be optionally equipped with ISO factory certification and comes with user-friendly software supporting multiple languages With a micro USB connection, you can easily link it to your PC for enhanced functionality

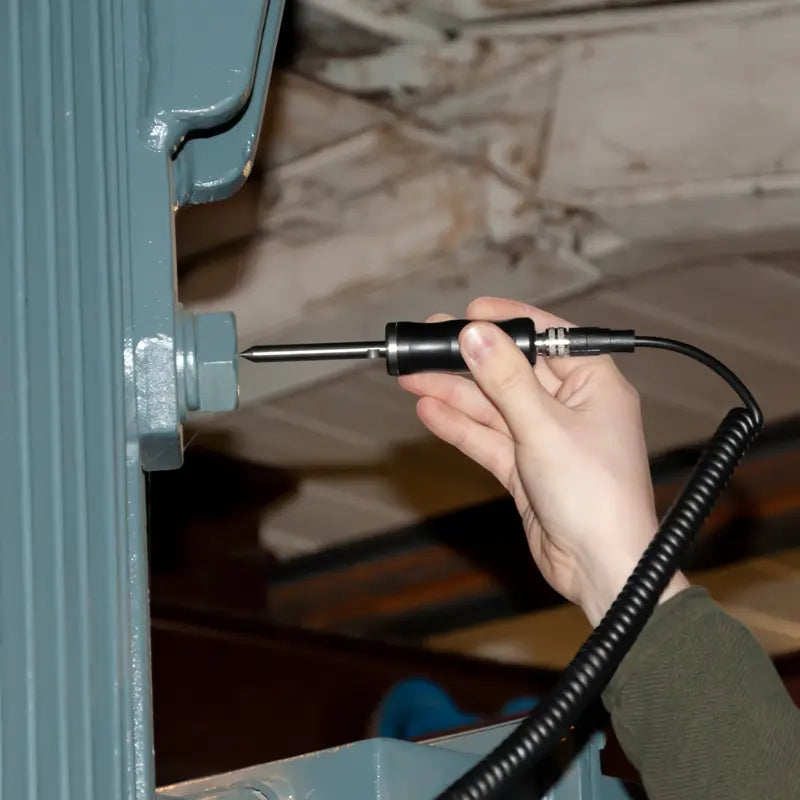

The accelerometer excels at analyzing vibrating components, with capabilities to measure vibration displacement up to 3.
9 mm, velocity reaching 3999 mm/s, and acceleration of up to 3999 m/s² It offers various measurement parameters, such as RMS, peak, peak-to-peak, and crest factor, enabling comprehensive analysis

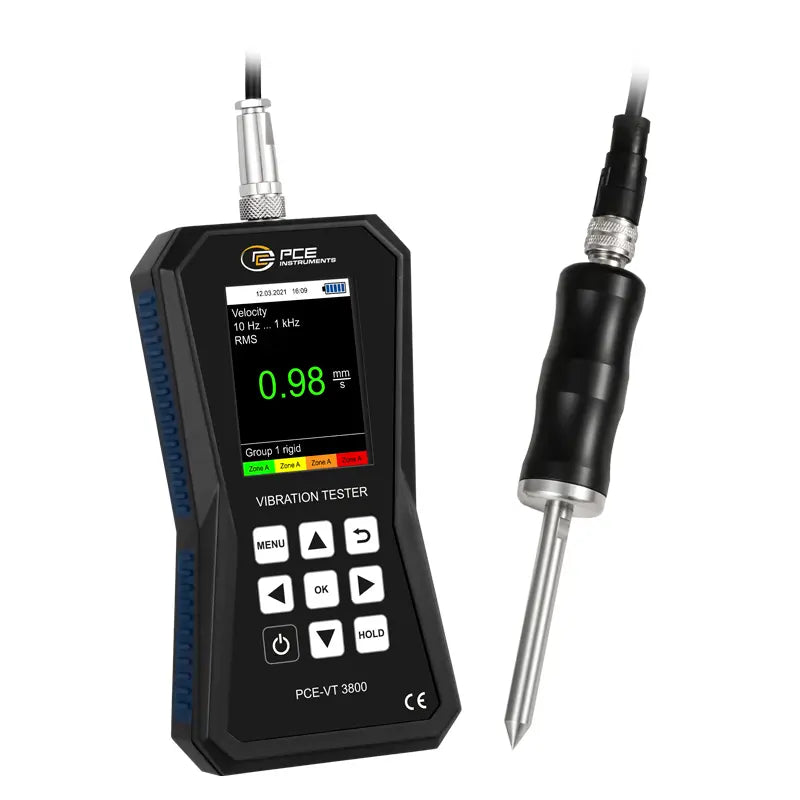

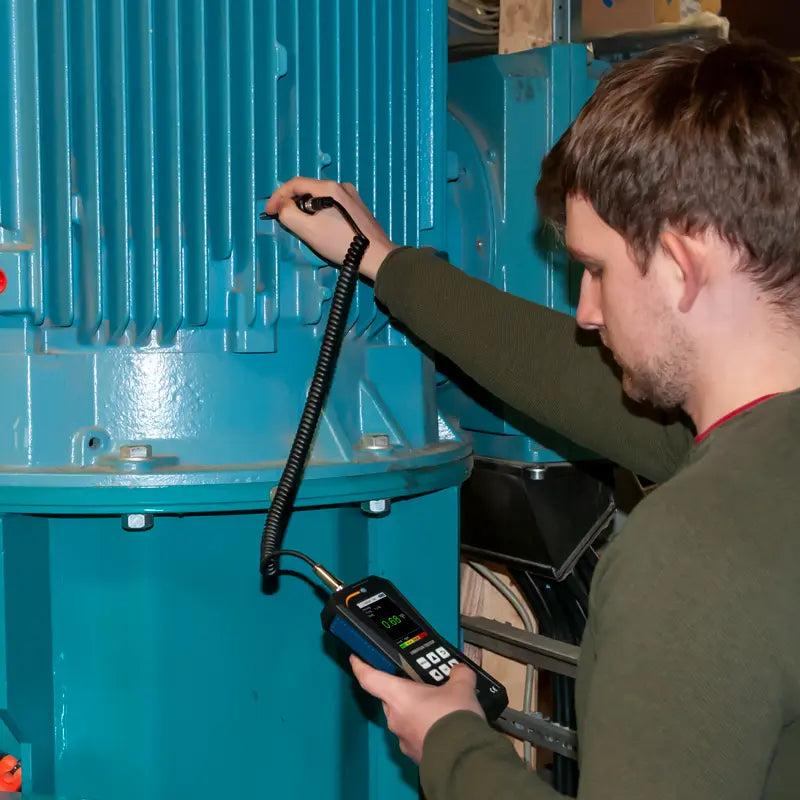

An automatic evaluation feature based on ISO 10816-3 provides real-time insights into a machine's vibration state, crucial for effective maintenance and repairs Powered by a 2500 mAh built-in LiPo battery, it boasts an impressive battery life of up to 20 hours and can be easily recharged via micro USB.
Data gathered can be stored directly on the device with options for both manual and automatic saving Additionally, the included software allows for detailed data processing on a PC and the capability to export results as CSV files Stay up to date with firmware updates through the software as well Whether for maintenance or analysis, this accelerometer is an essential tool for monitoring machine performance.
Features and Benefits:
•Data logger function.
•Automatic ISO 10816-3 evaluation.
•Measuring range up to 399.9 m/s² / 15744 in/s².

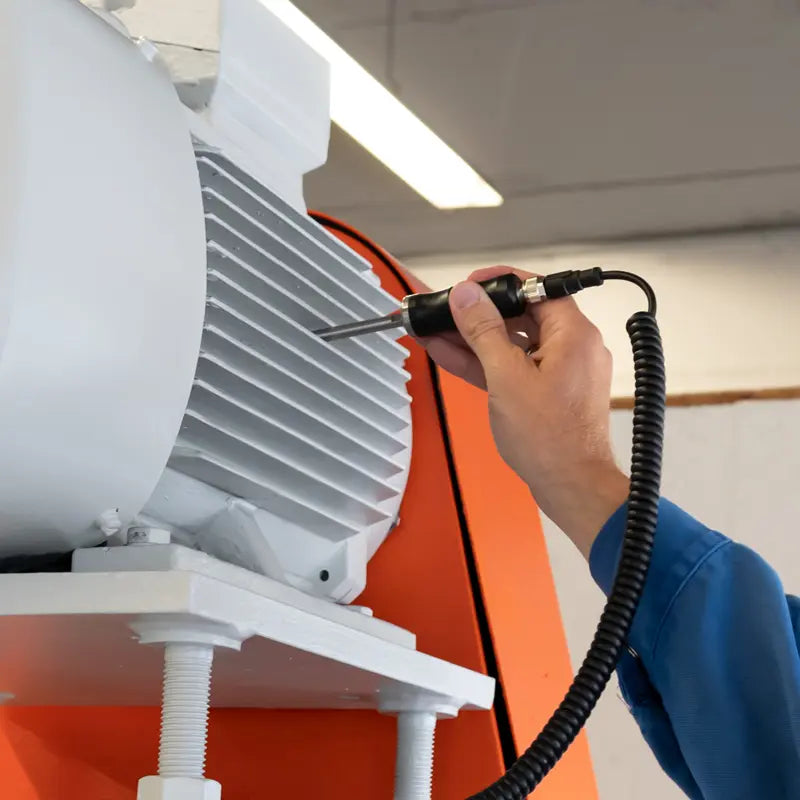

•Hand-held device for mobile vibration measurement.
•Rechargeable battery.

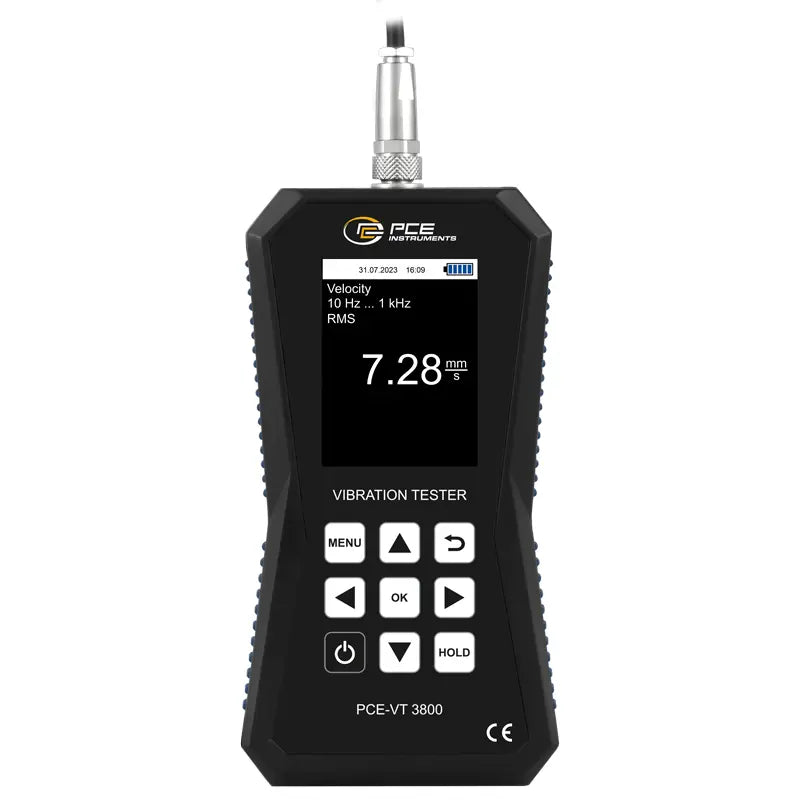

•2.48" LC display.
Specifications:
| Measuring Range Acceleration | 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² |
| Resolution Acceleration | 0.1 m/s² / 3.94 in/s² |
| Accuracy Acceleration @ 160 Hz | ±2 % |
| Frequency Range Acceleration | 10 Hz ... 10 kHz |
| Measuring Range Velocity | 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s |
| Resolution Velocity | 0.1 mm/s / 0.0039 in/s |
| Accuracy Velocity @ 160 Hz | ±2 % |
| Frequency Range Velocity | 10 Hz ... 1 kHz |
| Measuring Range Displacement | 0.000 ... 3.9 mm / 0.000 - 0.154 in |
| Resolution Displacement | 1 µm / 39.4 µin |
| Accuracy Displacement @ 160 Hz | ±2 % |
| Frequency Range Displacement | 10 Hz ... 200 Hz |
| Measurement Parameters | RMS, Peak, Peak-Peak, Crest factor |
| Manual Memory | 99 folders with 50 measured values each |
| Data Logger | Various start/stop triggers, Measurement interval between 1 s … 12 h, 50 memory locations with 43200 measured values each |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu Languages | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Power Supply Internal | LiPo battery (3.7 V, 2500 mAh) |
| Power Supply External | USB 5 VDC, 500 mA |
| Operating Time | ca. 15 … 20 h (depending on display brightness) |
| Operating and Storage Conditions Temperature | -20 ... +65 °C / -4 ... 149 °F |
| Humidity | 10% RH ... 95% RH, non-condensing |
| Protection Class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Weight | 239 g / 8.4 oz |

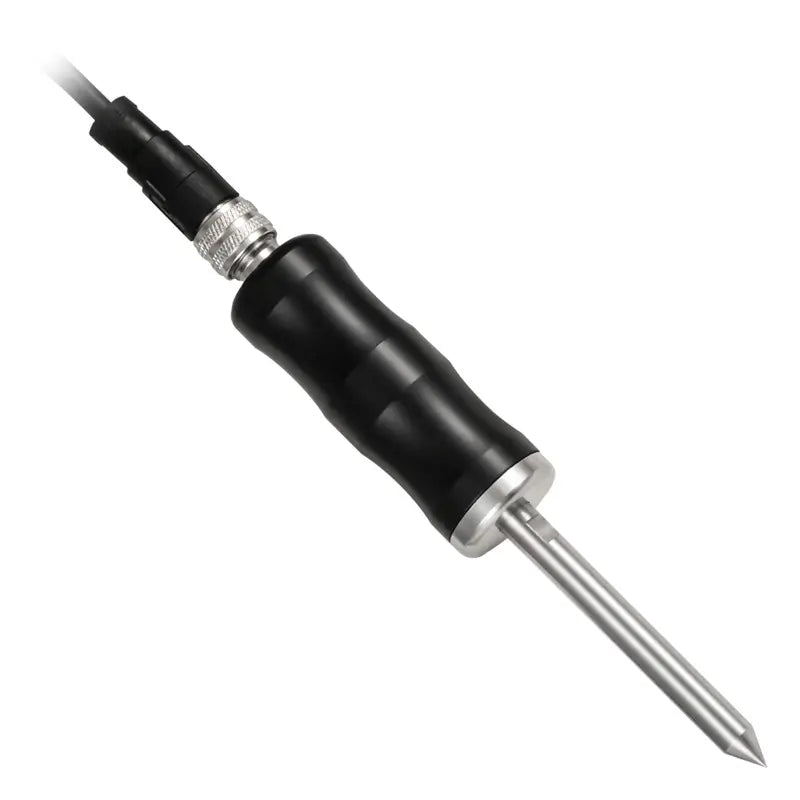

| Technical Data Vibration Sensor Resonance Frequency | 24 kHz |
| Transverse Sensitivity | ≤ 5% |
| Destruction Limit | 5000 g (peak) |
| Operating and Storage Temperature | -55 °C … +150 °C / -67 °F ... 302 °F |
| Housing Material | stainless steel and plastic |
| Mounting Thread | ¼ - 28“ |
| Dimensions Vibration Sensor | Ø 29 x 81 mm / 1.14 x 3.18" |
| Weight Vibration Sensor (without cable) | 119 g / 4.2 oz |
| Protection Class Vibration Sensor | IP52 |
