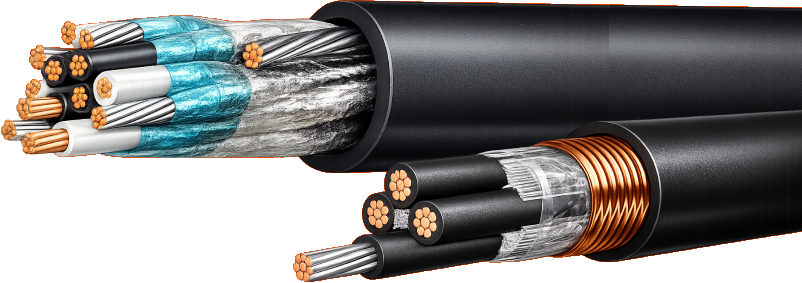

Instrumentation Cable and PLTC

Instrumentation Cable and PLTC

WHAT INSTRUMENTATION CABLE AND PLTC ARE:

Instrumentation Cable and PLTC is designed to deliver clean signals in harsh environments while minimizing noise and signal interference. Both types of cables are approved for use in Class I and Class II hazardous locations. The cables in this category consist of insulated conductors that are resistant to sunlight, moisture, and vapors as well as low-smoke zero-halogen cables.

Instrumentation cables are a cost-effective alternative to conduit as there is no need for pull boxes. Instrumentation cable is commonly used for control applications in pulp and paper, petrochemical and other process industries. However, instrumentation cable is used in a broad range of applications, specifically where cable is subjected to corrosive elements or mechanical damage. The cables can be used in direct burial applications or can be strung aerially with support from a messenger wire. Instrumentation cable is employed when minimal noise and interference is required. The cable is available in individually shielded pairs or triads with an overall shield plus the option of aluminum or steel interlocked armor.

START HERE TO FIND THE RIGHT CABLE FOR YOUR PROJECT:

300V Instrumentation Cable
300V Instrumentation Cable Typical applications include audio, intercom, control, energy management and alarm circuits see options
600V Flexible Control and Power Cables
600V Flexible Control and Power Cables Tight installations, trays, conduits and raceway, cranes and hoists, pendant stations, load lifts and platf... see options
600V Instrumentation Cable
600V Instrumentation Cable Approved for installation indoors or outdoors, aerially, in conduits, ducts and cable trays in circuits not... see options
600V Multi-Conductor Control and Power Cables
600V Multi-Conductor Control and Power Cables In free air, raceways, direct burial or wet or dry locations see options
CCW Control and Power Cables
CCW Control and Power Cables For use as services, feeders and branch circuits for power, lighting, control, and signal circuits see options
Type TC-ER Control and Power Cables
Type TC-ER Control and Power Cables For use with AC motors controlled by pulse-width modulated inverter in VFD applications rated up to 1000 V,... see options
Type TC-ER1 Control and Power Cables
Type TC-ER1 Control and Power Cables In free air, raceway and direct burial, in wet or dry locations,permitted for Exposed Run (ER) use in accor... see options
Low Smoke Zero Halogen Cable
Low Smoke Zero Halogen Cable Suitable for installation in cable tray as an interconnect cable, suitable for installation in vessels’ qua... see options
Multi-Paired Unshielded
Multi-Paired Unshielded Computers, Industrial equipme, Data transmission, Control circuits see options
Service Wire Tray Cable Nonshielded and Shielded MV-90/MV-105 2400/5000 Volt Copper Cable
Service Wire Tray Cable Nonshielded and Shielded MV-90/MV-105 2400/5000 Volt Copper Cable Class B stranded copper and extruded conductor shield, insulated with heat and moisture resistant EPR see options
Service Wire Tray Cable Shielded XHHW-2/PVC Shielded 600 Volt Copper Cable
Service Wire Tray Cable Shielded XHHW-2/PVC Shielded 600 Volt Copper Cable Suitable for use in hazardous locations Class I - Div 2 Class II - Div 2 see options
Service Wire Tray Cable XHHW-2/PVC 600 Volt Copper Cable
Service Wire Tray Cable XHHW-2/PVC 600 Volt Copper Cable Suitable for use in NEC hazardous locations: Class I - Div 2 Class II - Div 2 see options
Service Wire Tray Cable XHHW-2/PVC Shielded 600 Volt Copper Cable
Service Wire Tray Cable XHHW-2/PVC Shielded 600 Volt Copper Cable Suitable for use in hazardous locations: Class I - Div 2 Class II - Div 2 see options
10-16 AWG Braid Shielded Instrumentation and Tray Cable 600 Volt 200C FEP Cables
10-16 AWG Braid Shielded Instrumentation and Tray Cable 600 Volt 200C FEP Cables Tray, Instrumentation, Control see options



PLTC stands for Power-Limited Tray Cable. These cables are similar to instrumentation cables in regards to the fact that they offer great weather resistance and are impervious to moisture and sunlight and are generally used for the same applications requiring less voltage. They are approved for use in hazardous locations and pass multiple UL flame tests. PLTC is typically approved for voltages not exceeding 300V. Common applications for PLTC are burglar alarms, petrochemical refineries, intercom systems, industrial control systems, cash registers, power limited circuits, and other cable tray installations.

MOST PURCHASED Instrumentation Cable and PLTC
