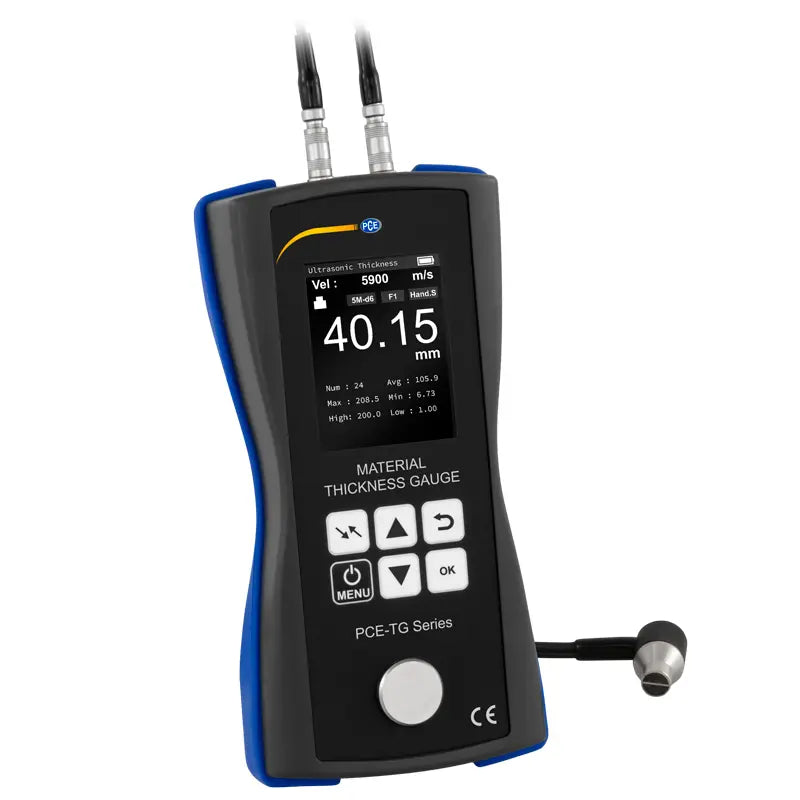

PCE-TG 150 - 300mm Wall Thickness Meter with Data Storage and Alarm

PCE-TG 150 - 300mm Wall Thickness Meter with Data Storage and Alarm

SKU: SKU: PCE-TG 150   Download PDF

Select a Variant:
  • PCE-TG 150 - 300mm Wall Thickness Meter with Data Storage and Alarm
Qty:
Regular price Now $693.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $693.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

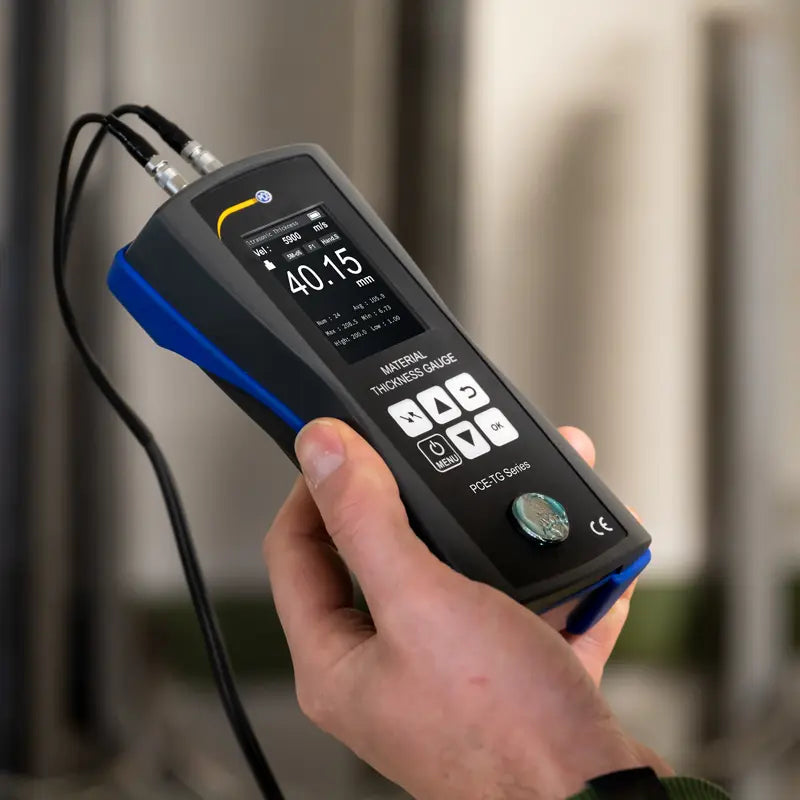

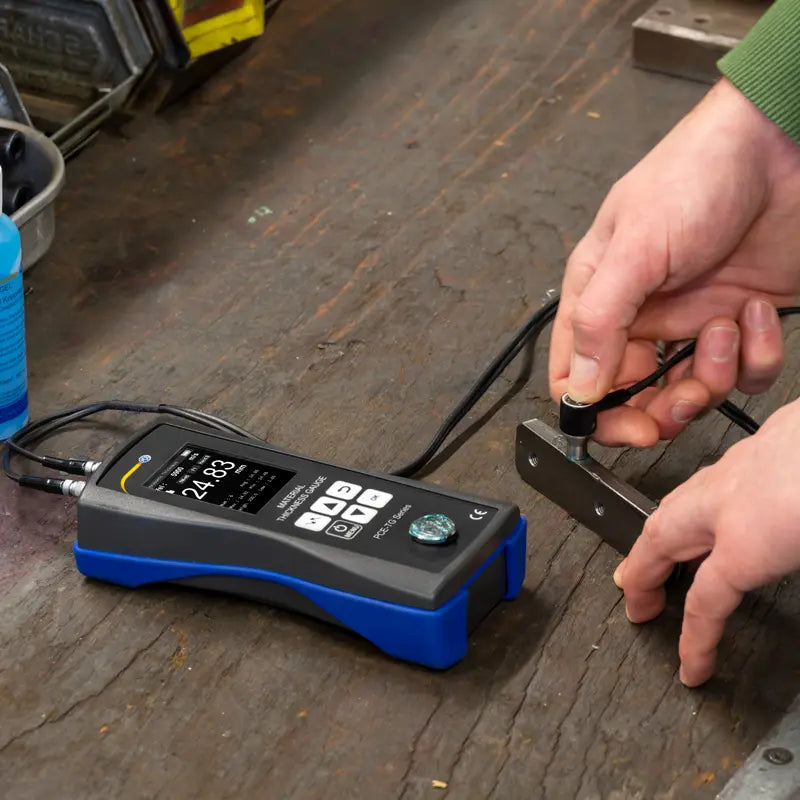

Introducing a versatile wall thickness gauge that combines advanced features with ease of use This meter is capable of measuring material thickness up to 300 mm (1181"), and boasts a data memory function for efficient tracking It includes a calibration reference conveniently located on the housing Equipped with an adjustable sound speed setting, this tool is designed for precision in quality assurance and incoming goods inspections.

A built-in limit alarm alerts users through visual or auditory signals when measurements surpass the pre-set maximum or minimum values, enhancing safety and accuracy Additionally, the device can store measured values, allowing for comprehensive analysis, and presents these readings graphically, including averages, and extremes For those seeking absolute assurance, this gauge is available with an optional ISO calibration certificate.

Features and Benefits:

    •Measured value memory.

    •Calibration reference on the housing.

    •Automatic shutdown.

    •Material thickness measurement up to 300 mm / 11.81".

    •Battery status indicator.

    •Optionally with ISO calibration certificate.

    •Quality assurance.

    •Incoming goods inspections.

Specifications:

 Measuring range: 1.20 ... 300.0 mm / 0.04 ... 11.81"
 Resolution: 0.01 mm at ≤99.99 mm; 0.1 mm at ≥100.0 mm
 Accuracy: ±0.5 % of measured value + 0.05 mm
 Storage space: 1500 measured values

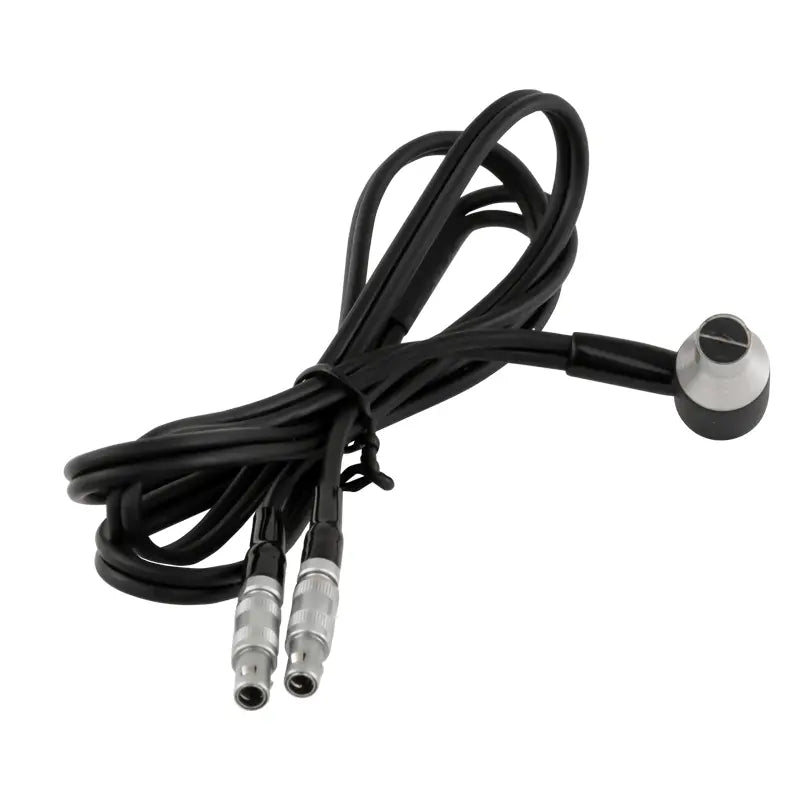

 Standard sensor: PCE-TG HT
 Temperature range sensor: -10 ... 350 °C / 14 ... 662 °F
 Probe frequency: 5 MHz
 Diameter: Ø12mm
 Adjustable speed of sound: 1000 ... 9999 m/s
 Smallest pipe diameter: Ø20 x 3 mm (steel)
 Material library: 15 memory locations
 Calibration reference: 4 mm
 Display: 2.4 inch TFT LCD color display with brightness adjustment

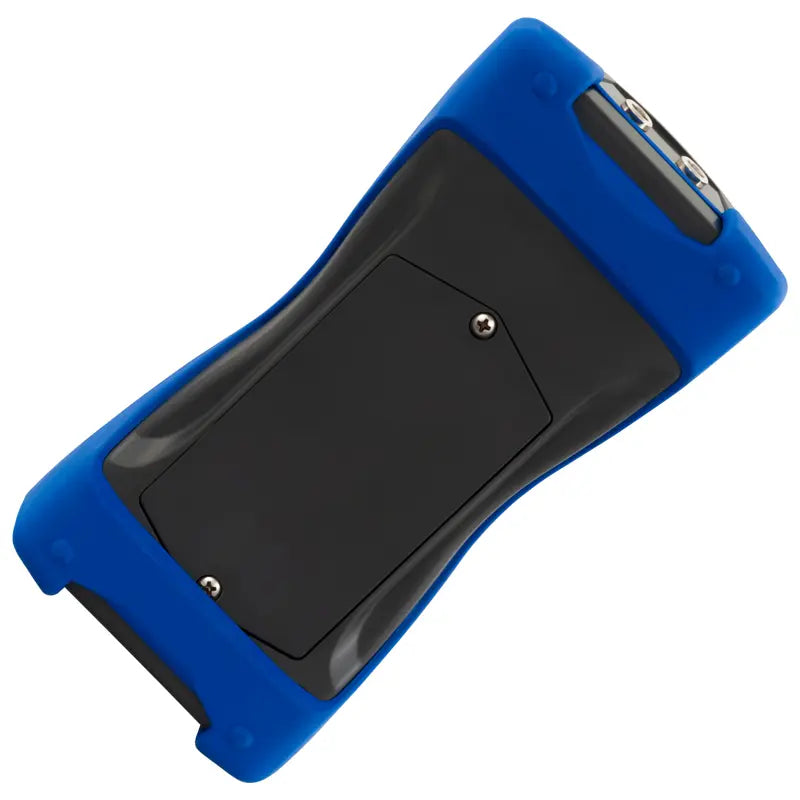

 Power supply: 3 x 1.5 V AA batteries
 Automatic switch-off: switched off, 2, 5, 10, 30 minutes
 Ambient conditions: 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
 Dimensions: 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
 Weight: 320 g / 11.2 oz
