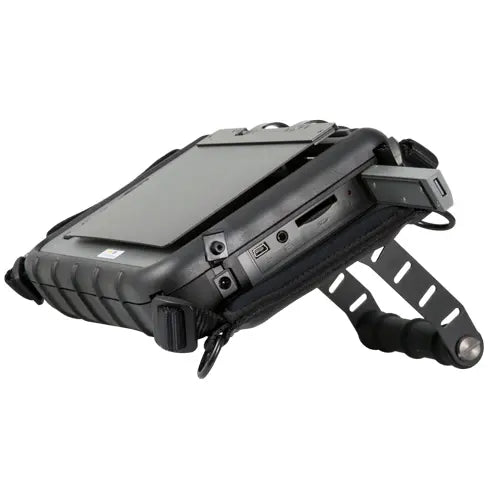

PCE-VE 1034N-F - 7" LCD Videoscope with 360° Image Rotation and LED Lights

PCE-VE 1034N-F - 7" LCD Videoscope with 360° Image Rotation and LED Lights

SKU: SKU: PCE-VE 1034N-F   Download PDF

Select a Variant:
  • PCE-VE 1034N-F - 7" LCD Videoscope with 360° Image Rotation and LED Lights
Qty:
Regular price Now $4,936.80   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $4,936.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

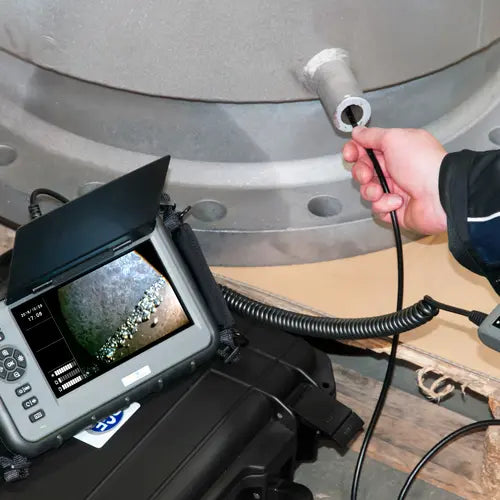

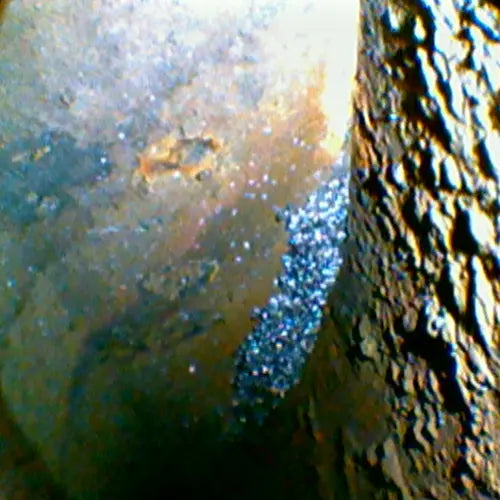

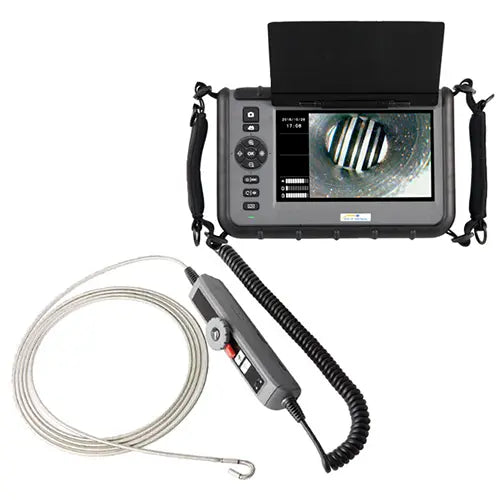

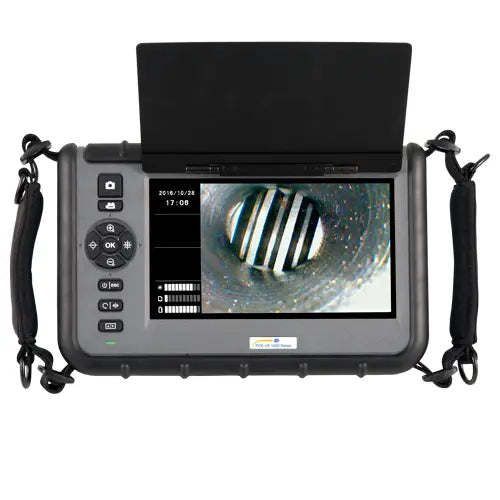

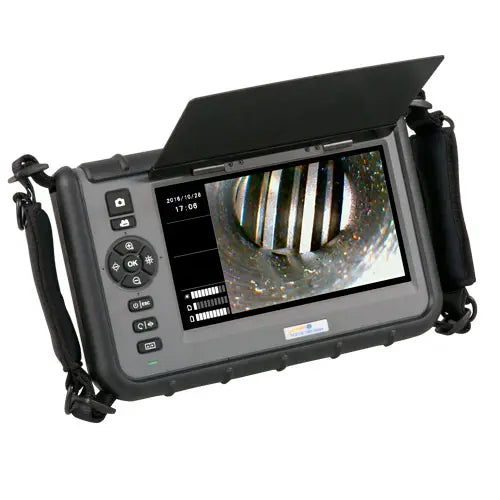

Introducing the PCE-VE 1034N-F Videoscope, a highly adaptable inspection tool designed for precision viewing It boasts a generous 7" LCD screen, perfect for capturing both images and videos with clarity This device features a two-way head that allows for 360° image rotation in 90° increments, and thanks to its powerful LED lights, visibility in tight spaces is exceptional With a 45 mm (018 in) camera head, it can connect to a variety of videoscope cables, making it a versatile solution for various inspection needs.

Users can store visuals and audio recordings on an SD card, supporting up to 32 GB of memory—enabling the storage of over 60,000 images or upwards of 530 minutes of video The videoscope includes beneficial features like adjustable LED brightness and image rotation to enhance viewing in hard-to-reach areas It also comes equipped with a tripod thread for stable, long-term recordings and adjustable automatic shut-off options for added convenience.

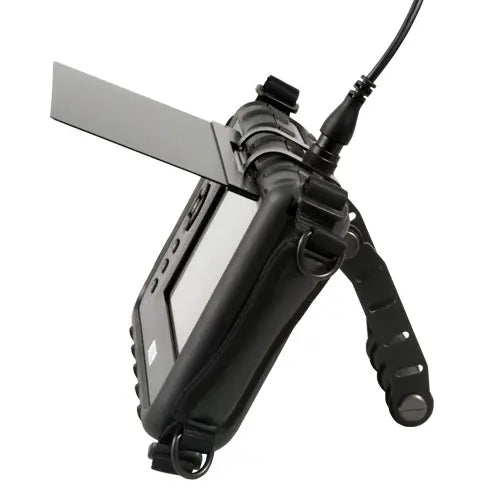

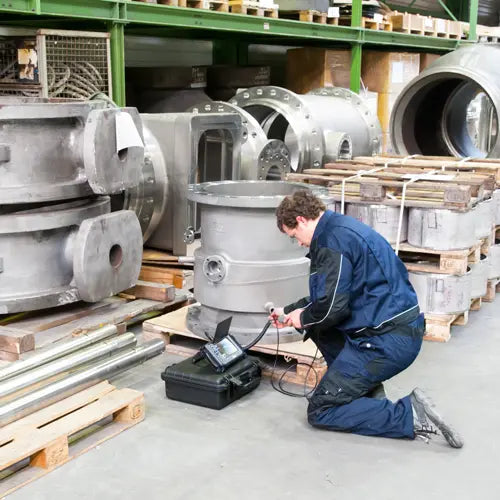

For ease of transportation, padded shoulder straps ensure comfortable handling while on the move This videoscope is a reliable companion for anyone needing detailed inspections in challenging environments.

Features and Benefits:

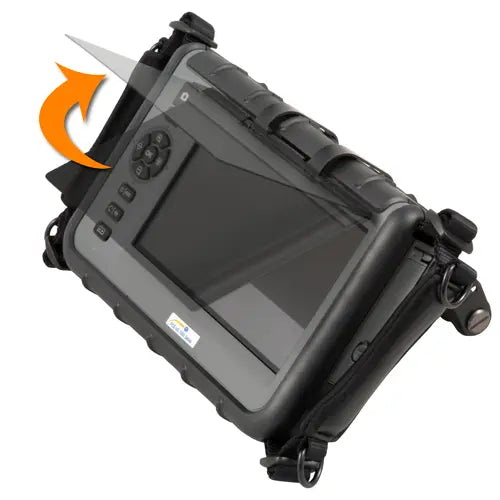

    •Large 7" LCD display for detailed viewing.

    •Capability to record images and videos with audio.

    •360° image rotation in 90° steps on display.

    •LED brightness adjustment for optimal visibility.

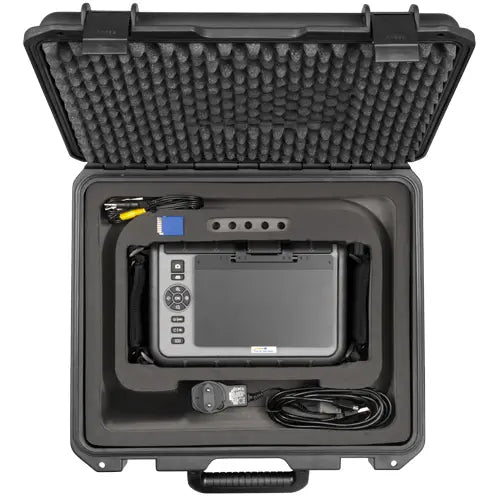

    •Includes robust carrying case and various accessories.

    •Adjustable automatic switch-off function.

Specifications:

 Display: 7" LCD (800 x 480)
 Image resolution: 640 x 480 JPEG
 Video recording: 640 x 480 MPEG (with sound recording)
 Drop test: 1 m / 3.3 ft
 Power supply: Li-Ion rechargeable battery
 Interface: USB
 Image and video storage: On SD card (maximum 32 GB)
 AV output: NTSC / PAL
 Audio input: Built-in microphone
 Brightness adjustment: 10-step adjustable on the main unit
 Runtime per battery charge: 5 hours
 Battery charging time: 3 hours
 Charging temperature: 10 ... 40°C / 50 ... 104°F
 Operating temperature: 0 ... 60°C / 32 ... 140°F
 Storage temperature: 0 ... 60°C / 32 ... 140°F
 Protection class: IP57
 Dimensions: 240 x 154 x 47 mm / 9.4 x 6 x 1.9 in
 Cable length: 3 m / 9.8 ft
 Camera head diameter: 4.5 mm / 0.18 in
 Camera head length: ca. 13 mm / 0.5 in
 Camera head material: Stainless steel
 Resolution: VGA (640 x 480)
 Depth of field: 10 ... 60 mm / 0.4 ... 2.4 in
 Operating and storage temperature: -20 ... 60°C / -4 ... 140°F
 Protecton class: IP67
 Video output: NTSC
 Viewing angle: 135°
 Control unit dimensions: 228 x 35 x 53 mm / 9 x 1.4 x 2.1 in
 Weight: ca. 400 g / ca. 14 oz.
