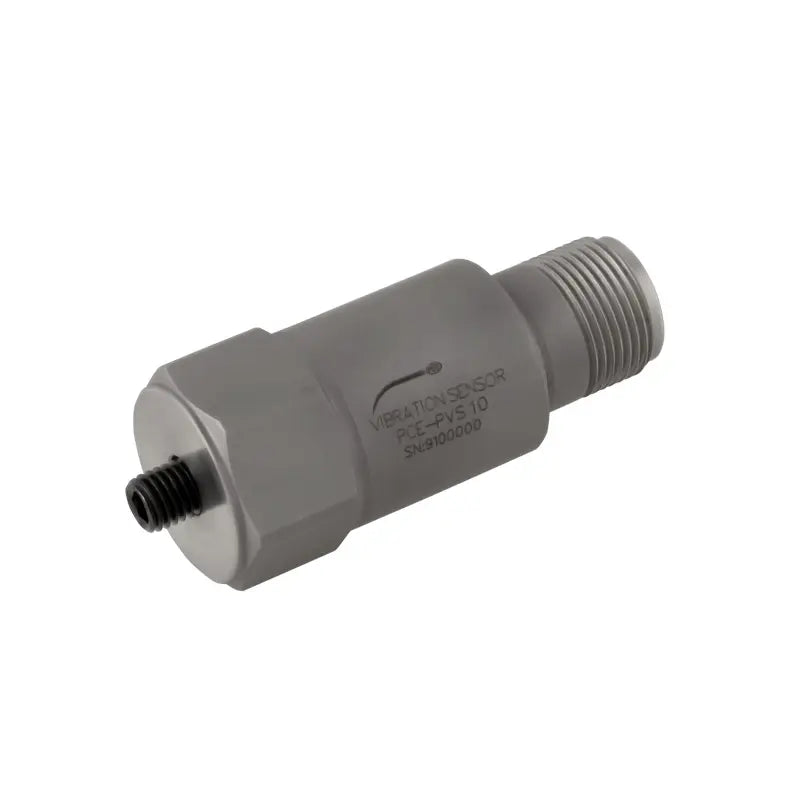

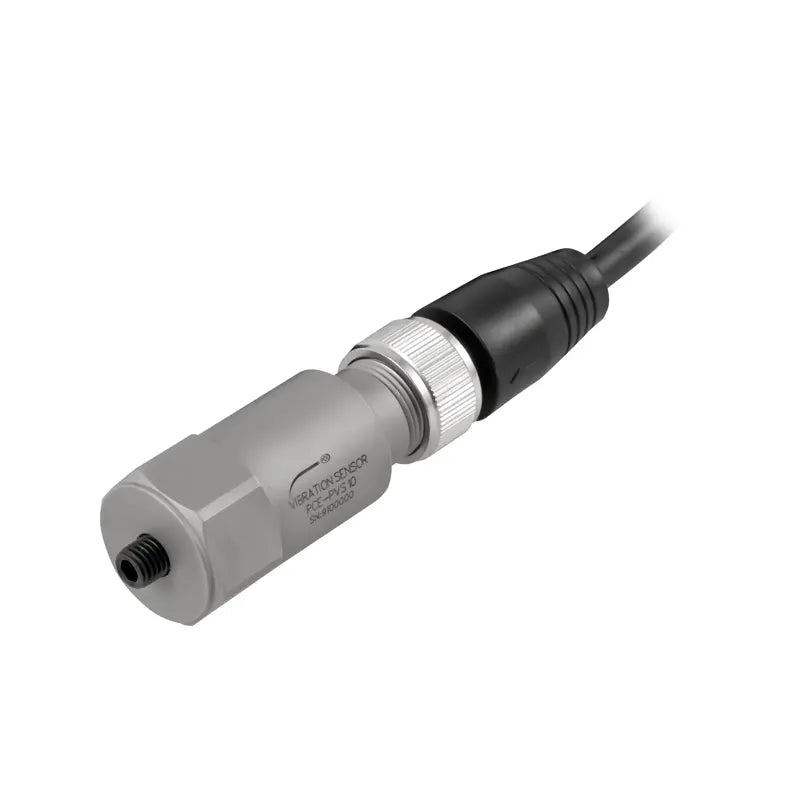

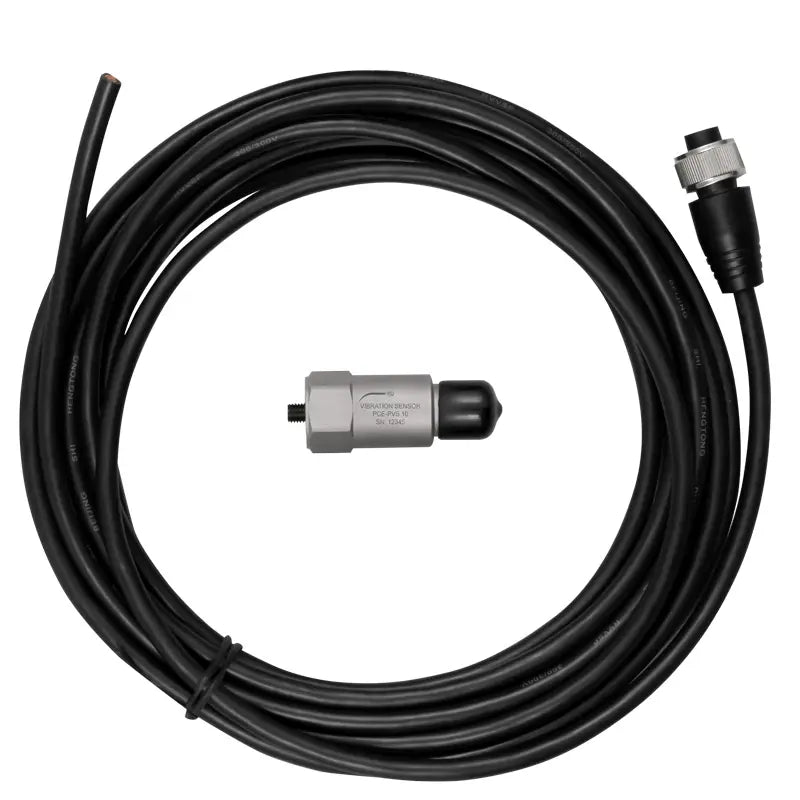

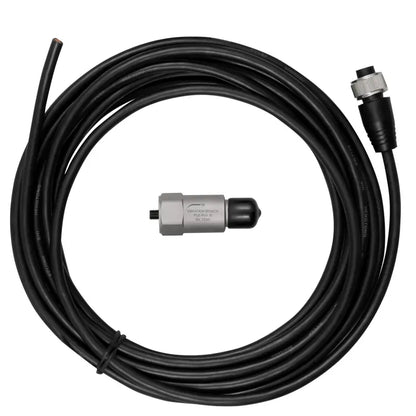

PCE-PVS 10 - Vibration Speed Sensor with MIL-C-5015 Connection, 3-1500 Hz

PCE-PVS 10 - Vibration Speed Sensor with MIL-C-5015 Connection, 3-1500 Hz

SKU: PCE-PVS 10   Download PDF

Select a Variant:
  • PCE-PVS 10 - Vibration Speed Sensor with MIL-C-5015 Connection, 3-1500 Hz
Qty:
Now $645.00   Web pricing policy
BEFORE   $0.00 Now $645.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Acceleration Sensor, engineered for continuous vibration speed monitoring with a clear 4 20 mA output This innovative device features a MIL-C-5015 connection and operates effectively within a frequency spectrum of 3 1500 Hz It accurately measures vibration speeds of either ± 127 mm/s or ± 254 mm/s, depending on the specific model Designed for versatility, this sensor can be easily installed in both horizontal and vertical orientations, using a voltage range of 12 .

24 V DC With its sturdy construction, it promises reliable functionality across various applications.

Features and Benefits:

    •Horizontal or vertical installation.

    •Process signal output.

    •MIL-C-5015 connector.

    •M6 process connection.

    •Different measuring ranges.

    •Robust construction.

Specifications:

 Measuring range: ± 12.7 mm / s
 frequency range: 3 ... 1500 Hz
 output: 2 conductors 4 ... 20 mA
 sensitivity: <5%
 Shock limit: ± 1000 g
 Power supply: 12 ... 24 V DC in current loop
 Isolation from ground: > 108 ohms
 Output impedance: <100 ohms
 design: Vertical connection

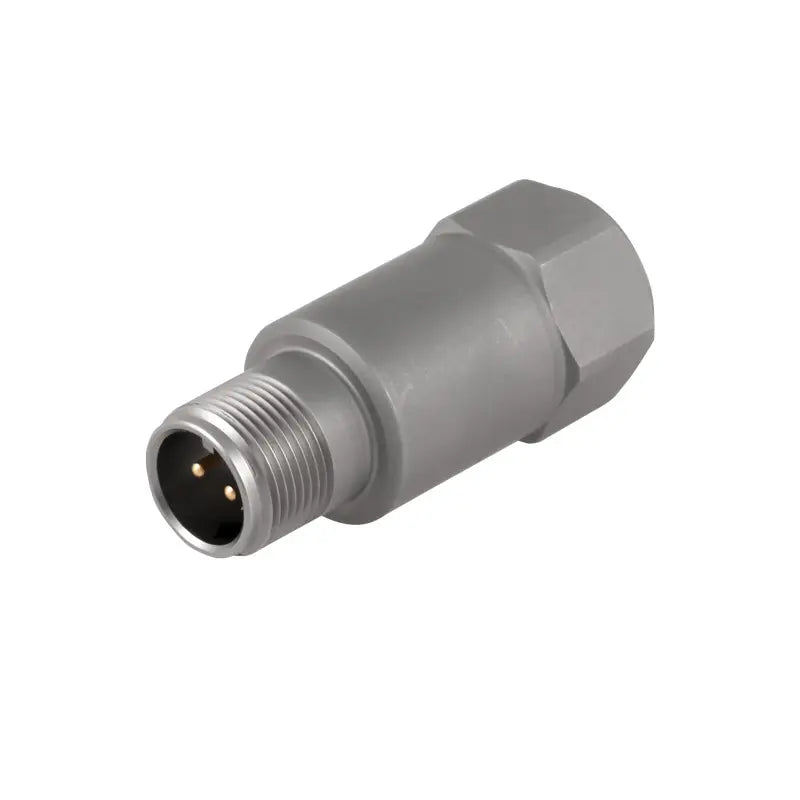

 Connection type: 2 pin MIL-C-5015
 operating temperature: -40 ... 85 ° C
 Dimensions: Ø22 x51
 Mounting thread: M6
