PCE-VT 3950S - Rechargeable 399.9 m/s² Accelerometer with Data Storage

PCE-VT 3950S - Rechargeable 399.9 m/s² Accelerometer with Data Storage

SKU: PCE-VT 3950S   Download PDF

Select a Variant:
  • PCE-VT 3950S - Rechargeable 399.9 m/s² Accelerometer with Data Storage
Qty:
Now $2,133.00   Web pricing policy
BEFORE   $0.00 Now $2,133.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

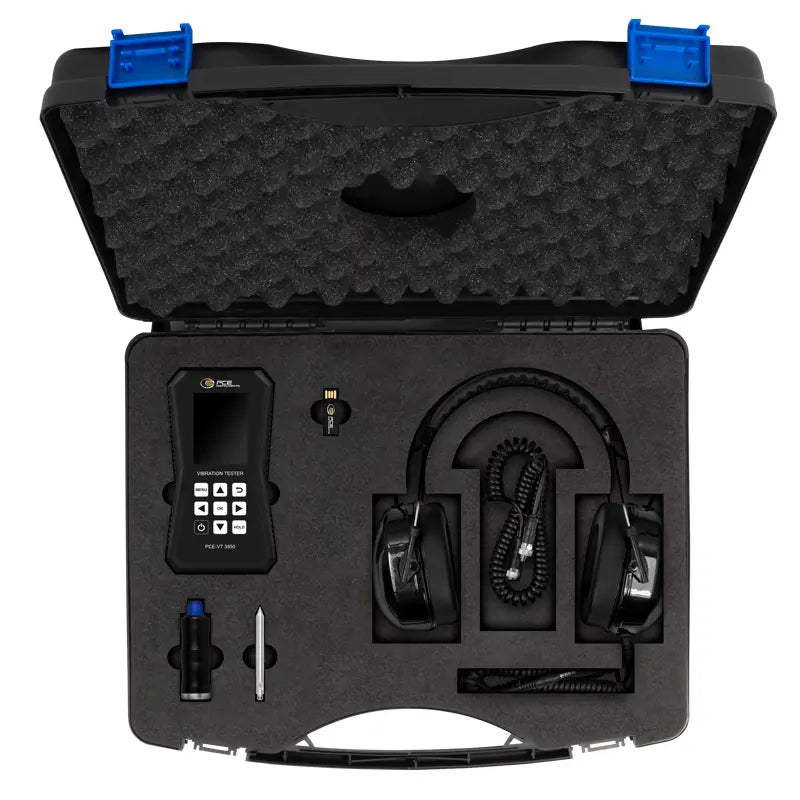

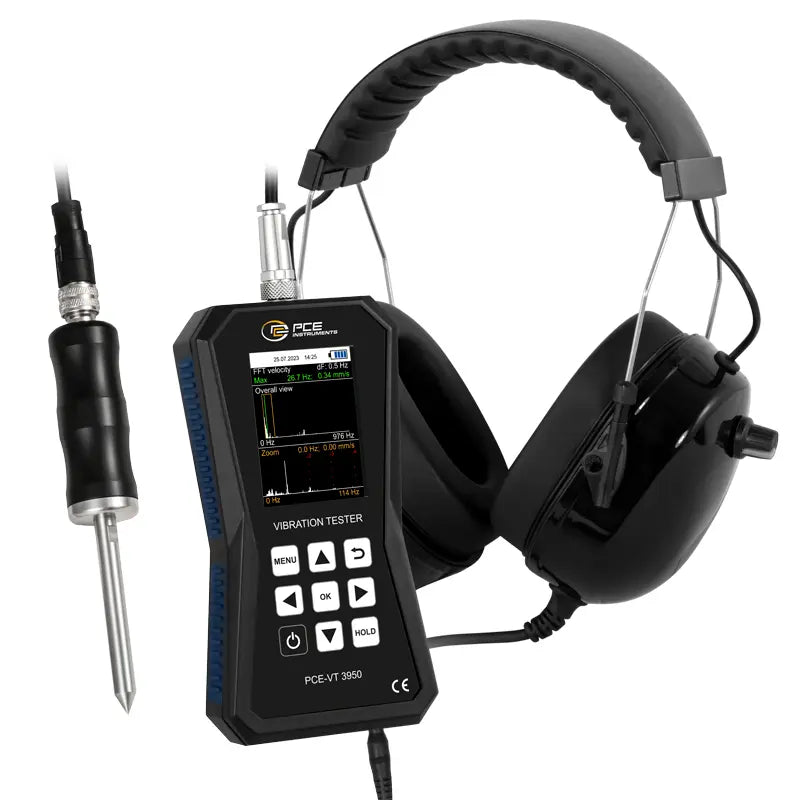

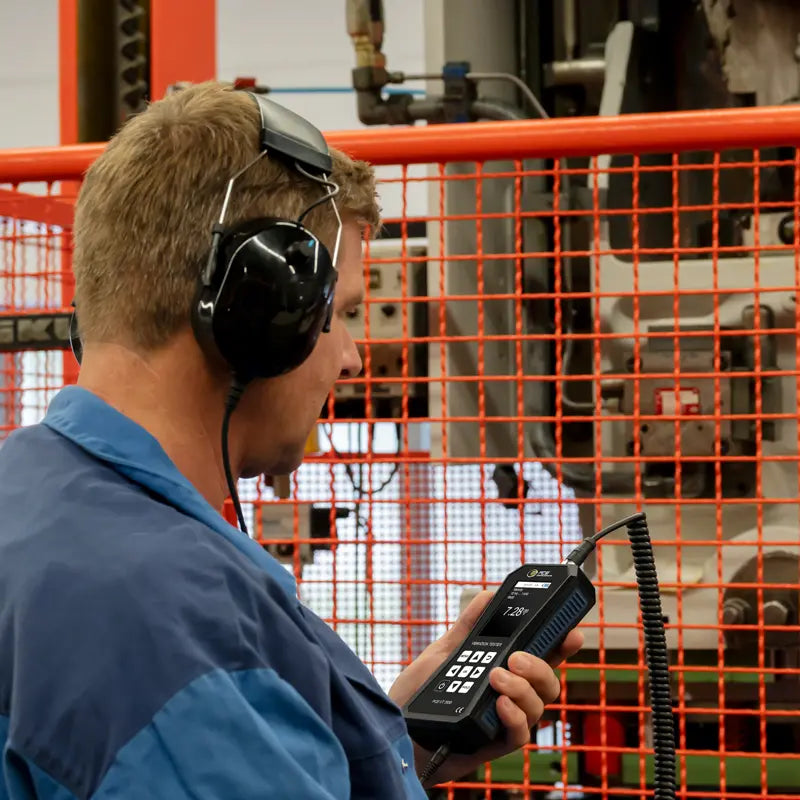

Introducing the PCE-VT 3950S accelerometer, a high-performance device with built-in memory and the ability to measure routes This rechargeable instrument captures vibrations up to 3999 m/s² and comes equipped with software for data analysis It offers seamless connectivity with a PC and is available with an optional ISO calibration certificate and headset Engineered for the swift and accurate assessment of vibrating machinery and components, this vibration meter can analyze vibration displacement, velocity, and acceleration.

It includes various measurement parameters such as RMS, peak, peak-to-peak, and crest factor, automatically assessing results based on ISO 10816-3 with clear good/bad ratings Additionally, the device features FFT analysis, supports route measurements for repeated evaluations, and retains measurements internally Users can easily transfer data to a PC via micro-USB for advanced analysis and CSV file export.

With firmware updates included and a rechargeable battery lasting up to 20 hours, the PCE-VT 3950S is built for reliability and efficiency in vibration monitoring.

Features and Benefits:

    •Mobile vibration measurement capability.

    •Wide measuring range up to 399.9 m/s² / 15744 in/s².

    •FFT analysis for comprehensive data representation.

    •Automatic evaluation according to ISO 10816-3.

    •Internal memory for data storage.

    •Rechargeable battery with a capacity of 2500 mAh.

    •User-friendly 2.8" LCD display.

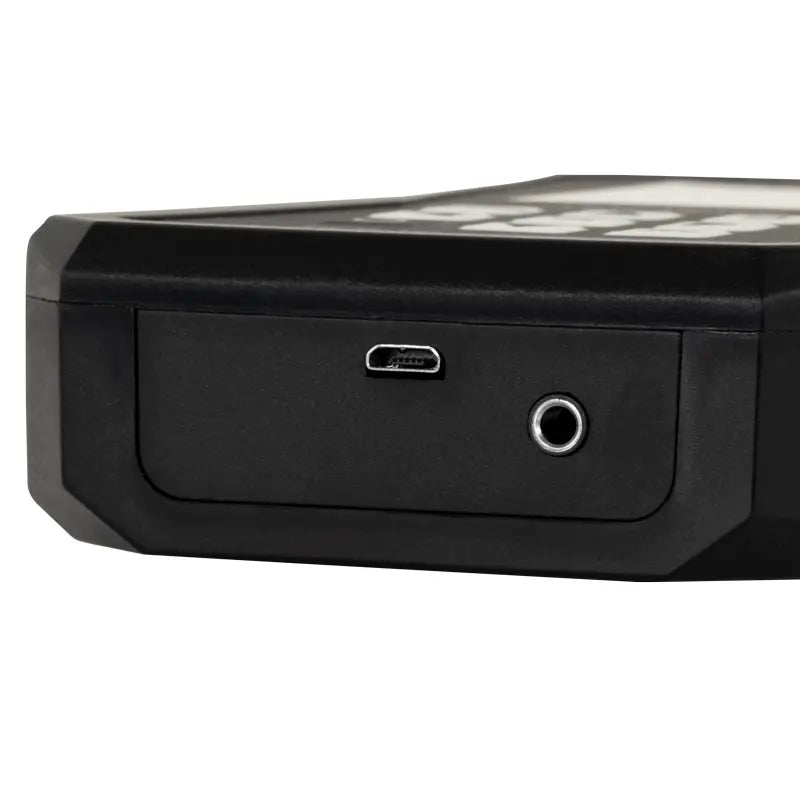

    •Micro-USB interface for data transfer and firmware updates.

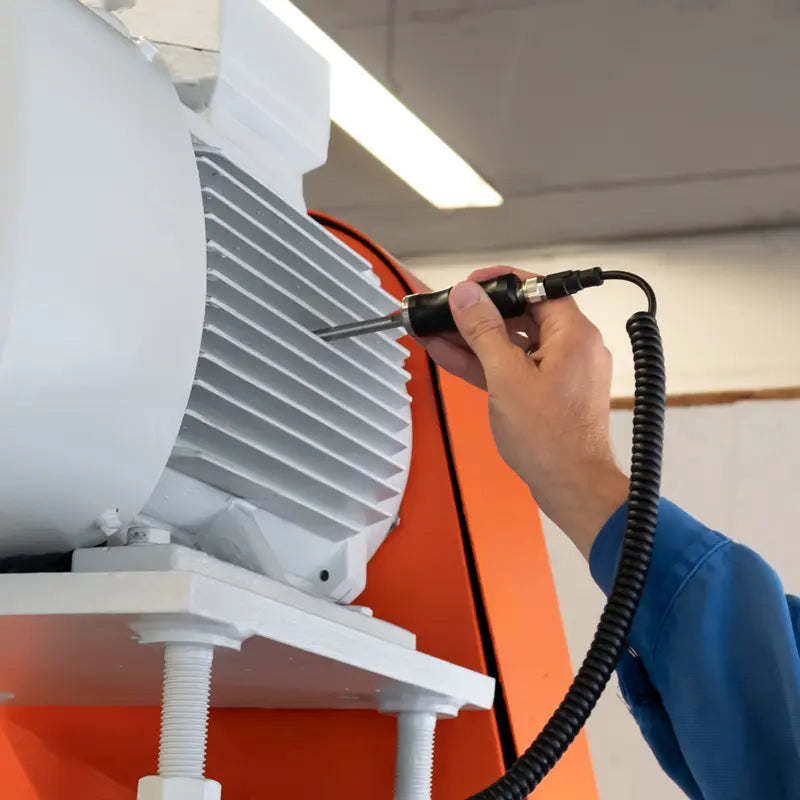

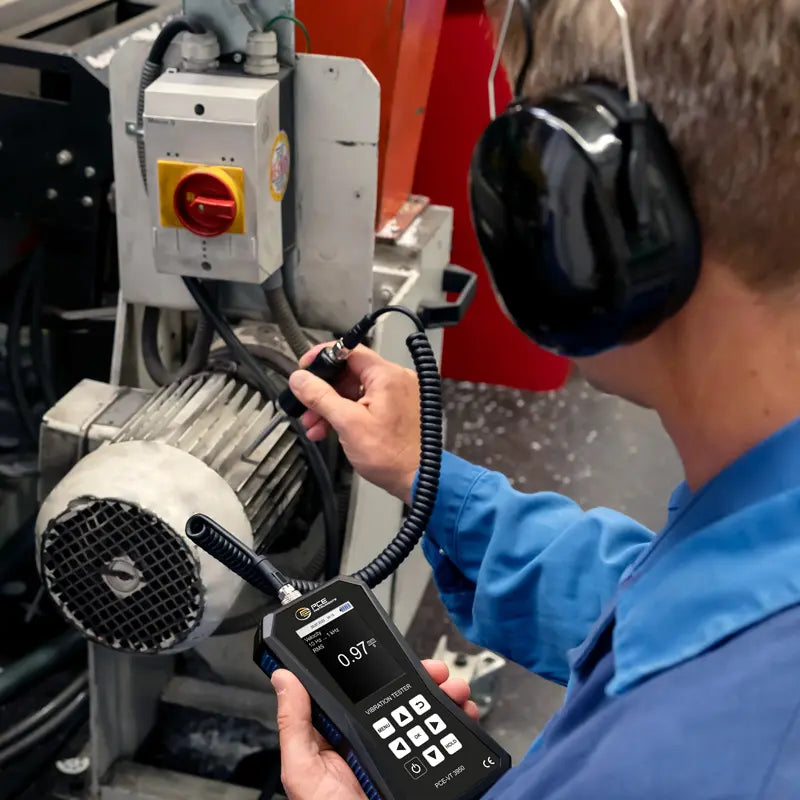

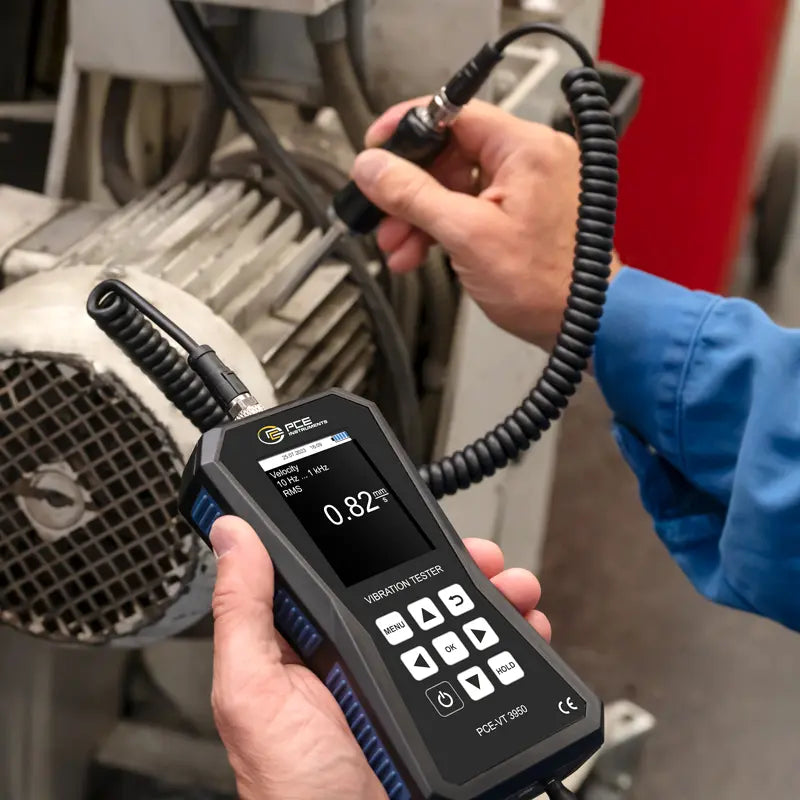

    •Used for maintaining and repairing machines.

    •Ideal for fast and precise checking of vibrating parts.

    •Designed for various vibration measurement scenarios in machinery.

Specifications:

 Measuring range (Acceleration) 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
 Resolution (Acceleration) 0.1 m/s² / 3.94 in/s²
 Accuracy @ 160 Hz (Acceleration) ±2 %
 Frequency range (Acceleration) 10 Hz ... 10 kHz
 Measuring range (Velocity) 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
 Resolution (Velocity) 0.1 mm/s / 0.0039 in/s
 Accuracy @ 160 Hz (Velocity) ±2 %
 Frequency range (Velocity) 10 Hz ... 1 kHz
 Measuring range (Rotational Speed) 600 ... 50000 RPM
 FFT acceleration (range) 10 Hz ... 8 kHz
 FFT velocity (range) 10 Hz… 1 kHz
 Route measurement capacity 100 routes each with 100 machines with 1000 measured values each
 Measuring range (Displacement) 0.000 ... 3.9 mm / 0.000 - 0.154 in
 Resolution (Displacement) 1 µm / 39.4 µin
 Accuracy @ 160 Hz (Displacement) ±2 %
 Frequency range (Displacement) 10 Hz ... 200 Hz
 Display 2.8" LC display
 Power supply internal: LiPo battery (3.7 V, 2500 mAh), external: USB 5 VDC, 500 mA
 Protection class IP52
 Operating and storage temperature -20 ... +65 °C / -4 ... 149 °F
 Weight 239 g / 8.4 oz
