Description:

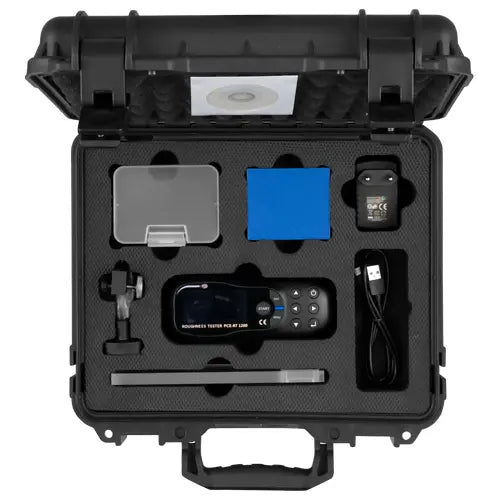

Introducing the PCE-RT 1200 Profilometer – a portable roughness tester engineered for swift evaluation of surface roughness parameters including Ra, Rz, Rq, and Rt This compact, handheld device boasts a vibrant OLED display and includes a micro-USB interface for seamless data transfer Also included are a calibration plate and roughness standard for reliable measurements Powered by a built-in li-ion battery, the PCE-RT 1200 is perfect for performing on-site assessments.

Its intuitive interface clearly presents measurements directly on the unit, while the ability to store up to 20 readings allows for further analysis with the included PC-compatible measurement software.

Features and Benefits:

•Compact and easy to handle.

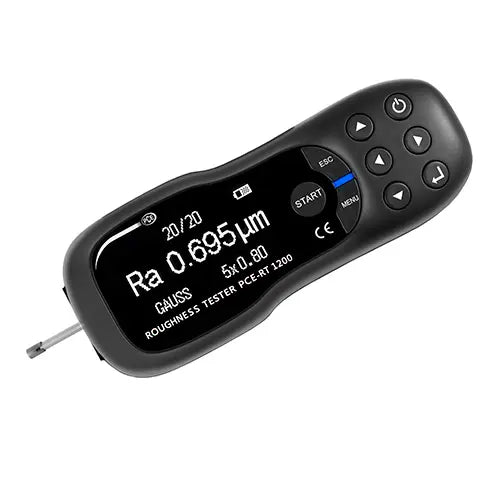

•Large OLED display for clear measurement readings.

•Measurable parameters include Ra, Rz, Rq, and Rt.

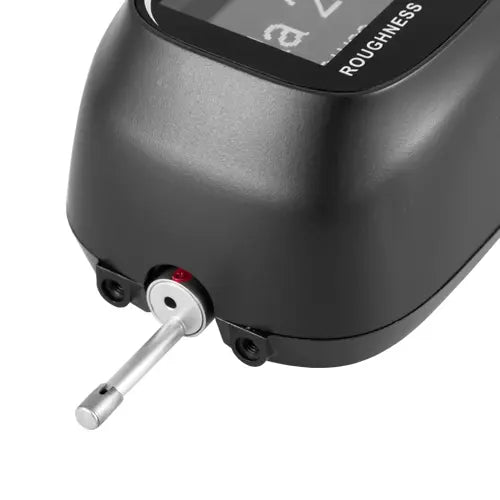

•High-quality diamond probe tip for accurate measurements.

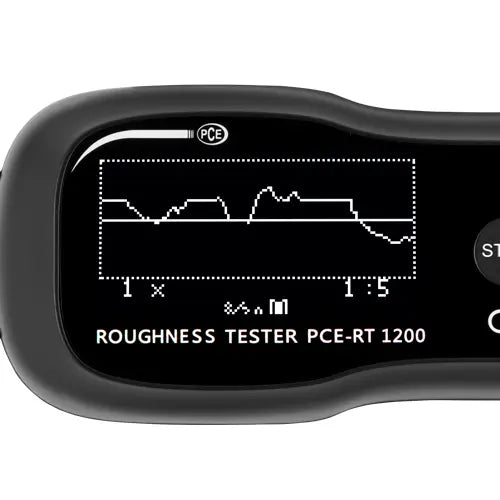

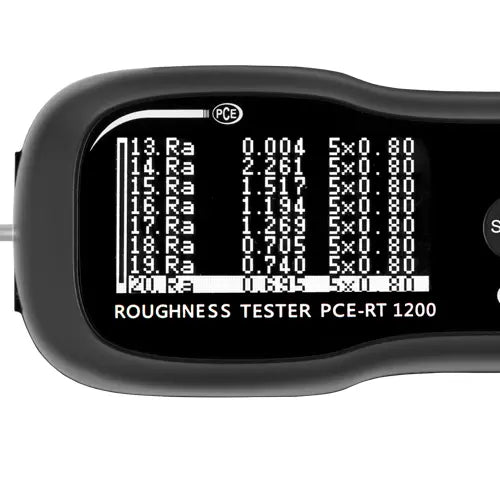

•Measured values can be displayed in tabular or graphical form.

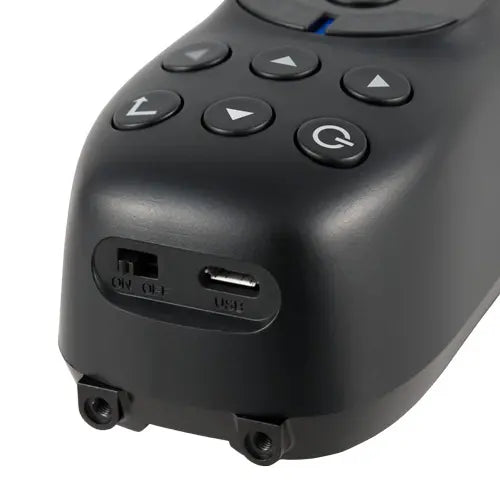

•Micro-USB interface for online data transmission to a PC.

•Rechargeable battery allowing up to 3000 measurements on a single charge.

•Laboratory testing.

•Production quality control.

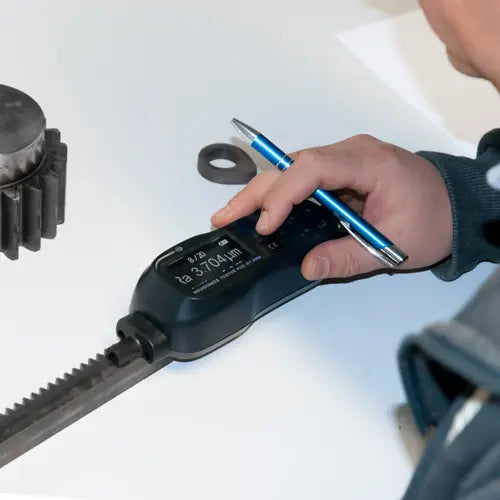

•Field measurements of surface roughness.

Specifications:

Measurement parameters	Ra, Rz, Rq, Rt
Measuring ranges	Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin; Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
Radius probe tip	5 µm / 196.850 µin
Material probe tip	Diamond, 90° angled
Max. recommended force for static measurement	4 mN (0.4 gf)
Radius longitudinal guide bar	45 mm / 1.77"
Standards	ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance	15 mm / 0.59"
Measuring principle	Inductive
Cut-off wavelength	0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
Testing speed	0.135 mm/s at cut-off wavelength: 0.25 mm; 0.5 mm/s at cut-off wavelength: 0.8 mm; 1 mm/s at cut-off wavelength: 2.5 mm; Reversing speed: 1 mm/s
Measuring accuracy	< ± 10%
Repeatability	< 6%
Display	OLED
Units	μm / μinch (switchable)
Interface	Micro-USB
Power supply	Rechargeable Li-ion battery
Dimensions L x W x H	150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
