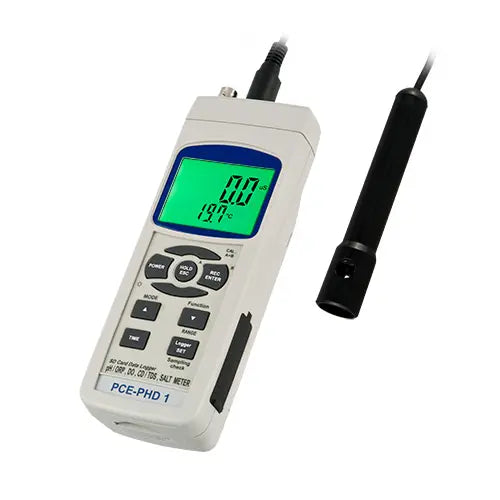

PCE-PHD 1-LF - Multifunctional Portable Conductivity Meter for Water Quality Testing

PCE-PHD 1-LF - Multifunctional Portable Conductivity Meter for Water Quality Testing

SKU: SKU: PCE-PHD 1-LF   Download PDF

Select a Variant:
  • PCE-PHD 1-LF - Multifunctional Portable Conductivity Meter for Water Quality Testing
Qty:
Regular price Now $554.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $554.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-PHD 1-LF Conductivity Meter, a compact and user-friendly device tailored for water quality analysis This versatile meter delivers exceptional accuracy at an accessible price point and is suitable for both laboratory and field testing It measures key parameters such as pH, redox potential, conductivity, salt levels, oxygen content, and water temperature Equipped with temperature compensation, this meter ensures reliable readings even when temperatures fluctuate.

Supplied with a conductivity electrode, the PCE-PHD 1-LF allows for additional electrode options available for separate purchase For extended functionality, you can also acquire an optional mains power adapter and a software package complete with an RS-232 cable As a real-time data logger, the PCE-PHD 1-LF enables seamless data storage on the included SD card in a Microsoft Excel format or direct data transfer to a computer using the RS-232 port, eliminating the need for extra software for data analysis.

Features and Benefits:

    •Real-time data logger.

    •Compatibility with SD cards up to 16 GB.

    •The stored data is saved directly as an Excel file on the SD card (no software needed for evaluation).

    •RS-232 interface for online data transmission.

    •High precision.

    •Low battery indication.

    •Large LC display.

    •Adjustable measuring rate.

    •Easy to use.

    •Robust housing.

    •Automatic calibration.

    •Manual or automatic temperature compensation.

    •BNC connector.

    •Suitable for laboratory and on-site measurement.

    •Electrode for conductivity included.

    •Laboratory testing of water quality.

    •In situ testing of pH value, redox, conductivity, salt content, oxygen level, and temperature.

Specifications:

 Measurement range 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
 Resolution 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
 Accuracy ±2 % of the measurement range + 1 digit
 Calibration 1413 mS/cm
 Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)
 Measurement rate 1 second up to 8 hrs 59 mins 59 secs
 Display LCD 52 x 38 mm / 2 x 1.5"
 Memory SD card up to 16 GB (2 GB card included)
 Interface RS-232
 Software Optional
 Power supply 6 x 1.5 V AA batteries (optional power adapter)
 Operating conditions 0 ... +50 ºC / < 85 % RH
 Dimensions 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
