Description:
Discover the PCE-PHD 1 Salt Meter, a versatile and user-friendly device designed for precise water quality analysis This portable unit provides accurate readings for pH levels, redox potential, conductivity, salt concentration, oxygen levels, and temperature, making it ideal for both lab settings and field testing With features like three-point calibration and automatic temperature compensation, you can trust the accuracy of your measurements, even when temperatures fluctuate.

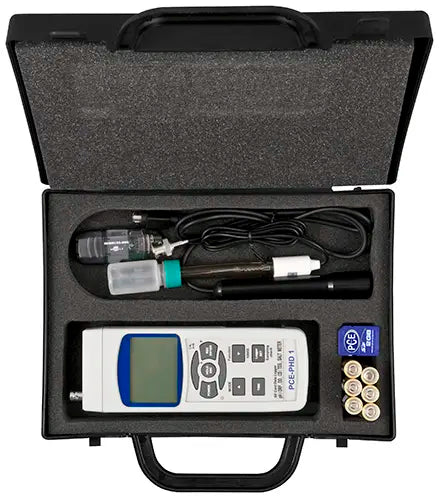

Included with the meter are both a pH electrode and a conductivity electrode, with options to purchase additional electrodes separately Enhance your setup with an optional mains adapter and a software kit featuring an RS-232 cable This salt meter functions as a real-time data logger, allowing you to store measurements directly onto the provided SD card in an Excel-friendly format, or transfer them to a computer via the RS-232 port.
No extra software is needed for data analysis, simplifying your water quality assessments.
Features and Benefits:
•Optimal price / performance ratio.
•Real-time data logger.
•SD card memory (1 ... 16 GB).
•The saved data is saved directly as an Excel file on the SD card (for evaluation, no software is required).
•RS-232 interface for online data transfer.
•Measures pH value, redox, conductivity, salt content, oxygen, and temperature.
•High precision.
•Low battery display.
•Large LC display.
•Adjustable measuring rate.
•Easy to use.
•Robust housing.
•Includes pH and conductivity electrode.
•Automatic calibration.
•Manual or automatic temperature compensation.
•BNC connector.
•Suitable for laboratory and on-site measurements.
•REDOX and oxygen electrode optionally available.
Specifications:
| pH measurement - Measurement range | 0 ... 14.0 pH |
| pH measurement - Resolution | 0.01 pH |
| pH measurement - Accuracy | ±0.02 pH + 2 digits |
| pH measurement - Calibration | 3 points (pH 4, pH 7, and pH 10) |
| pH measurement - Temperature compensation | Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF) |
| Redox measurement - Measurement range | 1999 ... 0 ... 1999 mV |
| Redox measurement - Resolution | 1 mV |
| Redox measurement - Accuracy | ± 0.5 % + 2 digits |
| Conductivity measurement - Measurement range | 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm |
| Conductivity measurement - Resolution | 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm |
| Conductivity measurement - Accuracy | ±2 % of the measurement range + 1 digit |
| Conductivity measurement - Calibration | 1413 mS/cm |
| Conductivity measurement - Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| Total dissolved solids (TDS) measurement - Measurement range | 0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm |
| Total dissolved solids (TDS) measurement - Resolution | 0.1 ppm, 1 ppm, 10 ppm, 100 ppm |
| Total dissolved solids (TDS) measurement - Accuracy | ±2 % of the measurement range + 1 digit |
| Total dissolved solids (TDS) measurement - Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| Salt content measurement - Measurement range | 0 ... 12 % (of weight) |
| Salt content measurement - Resolution | 0.1 % |
| Salt content measurement - Accuracy | ±0.5 % of the measurement range |
| Salt content measurement - Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| Oxygen measurement (optional) - Measurement range | 0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF |
| Oxygen measurement (optional) - Resolution | 0.1 mg/l, 0.1 %, 0.1 ºC |
| Oxygen measurement (optional) - Accuracy | ±0.4 mg/l, ±0.7 %, ±0.8 ºC |
| Oxygen measurement (optional) - Calibration | In the air |
| Oxygen measurement (optional) - Temperature compensation | Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF) |
| Temperature measurement - Measurement range | 0 ... 60 ºC / 32 ºF ... 140 ºF |
| Temperature measurement - Resolution | 0.1 ºC |
| Temperature measurement - Accuracy | ±0.8 ºC |
| Temperature measurement - Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| General specifications - Measurement rate | 1 second up to 8 hrs 59 mins 59 secs |
| General specifications - Display | LCD 52 x 38 mm / 2 x 1.5" |
| General specifications - Memory | SD card up to 16 GB (2 GB card included) |
| General specifications - Interface | RS-232 |
| General specifications - Software | Optional |
| General specifications - Power supply | 6 x 1.5 V AA batteries (optional power adapter) |
| General specifications - Operating conditions | 0 ... +50 ºC / < 85 % RH |
| General specifications - Dimensions | 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8" |
