PCE-PFG 100 - Digital Force Measuring Device with Graphic Display & USB Interface

Description:

Experience precision with this digital durometer, featuring an internal S load cell and a graphic display This portable force measurement tool is designed to assess both tensile and compressive forces efficiently With a rapid sampling rate of 500 Hz, it offers multiple measurement modes, including real-time (RT), peak value (PEAK), configurable average (Average), and automatic storage for up to 100 readings.

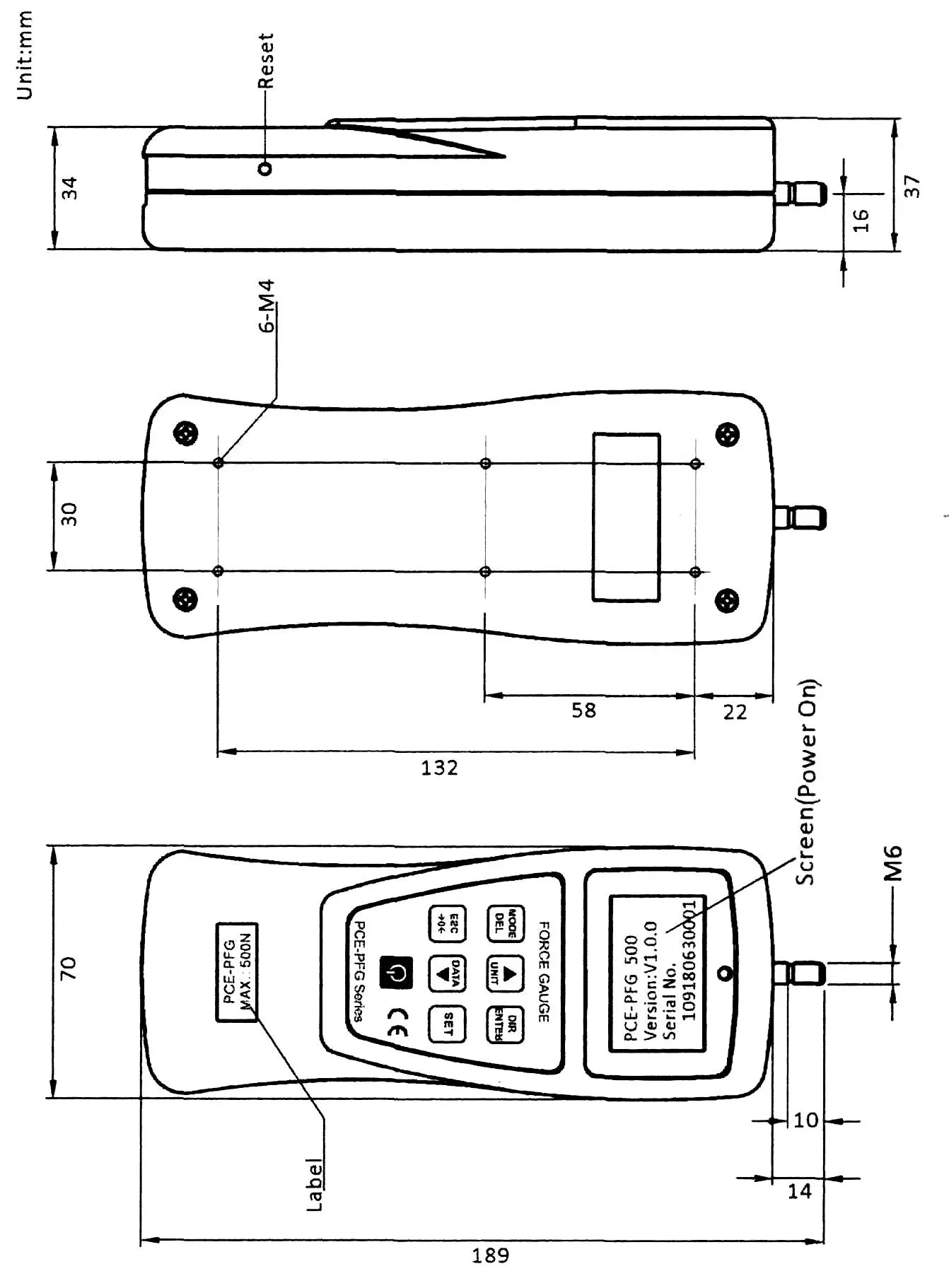

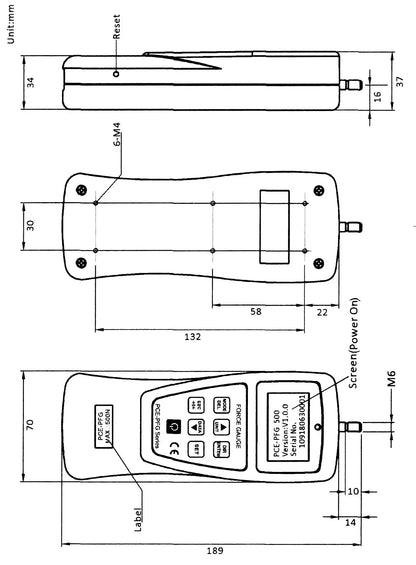

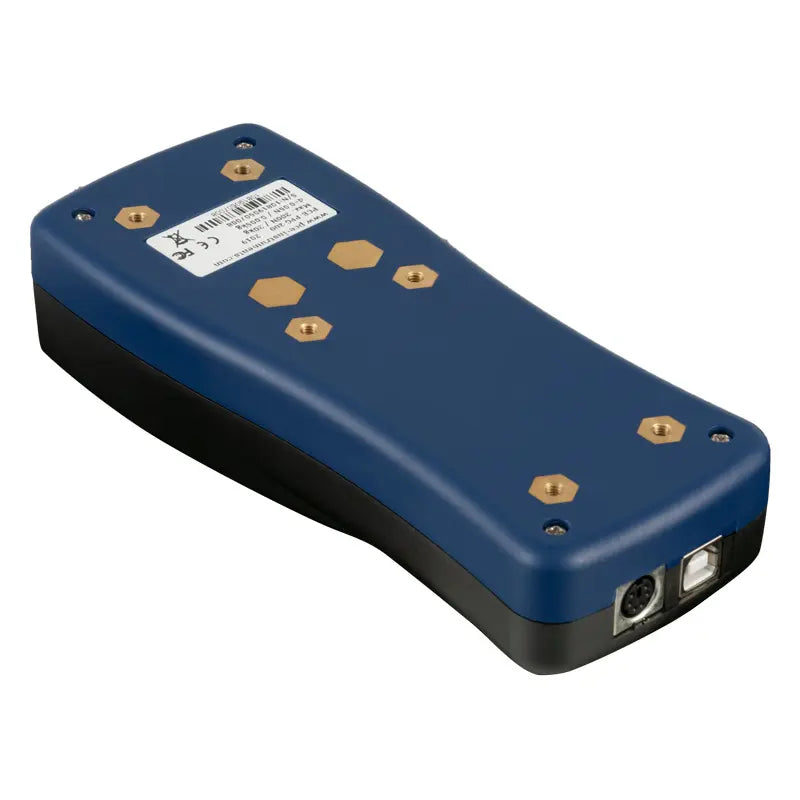

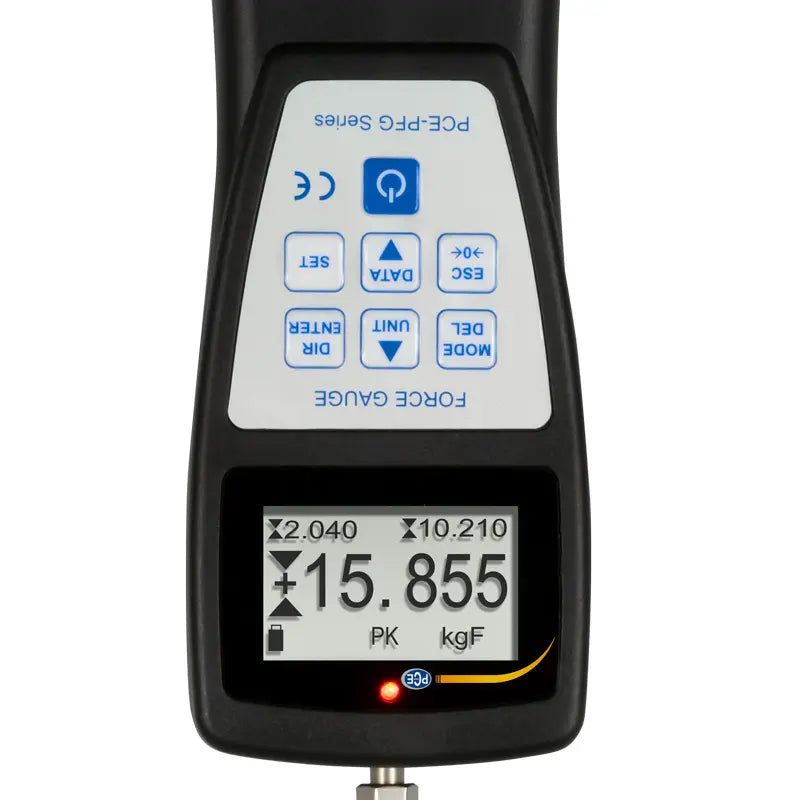

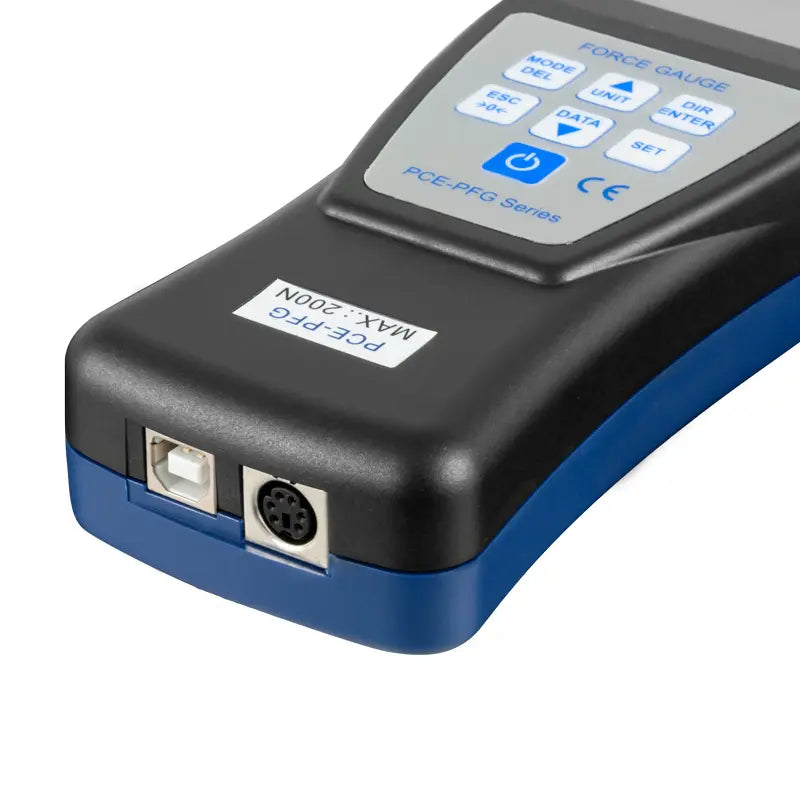

Measurement statistics, including MIN, MAX, and average values, are clearly displayed on the graphic screen, and data can be easily transferred to your PC through the USB-B interface The durometer also includes a limit value function that activates a multi-colored LED indicator (yellow, green, and red) alongside switching contacts for enhanced usability The display is rotatable, providing optimal visibility, and the device can be securely mounted on a test stand thanks to M4 threaded holes located at the back.

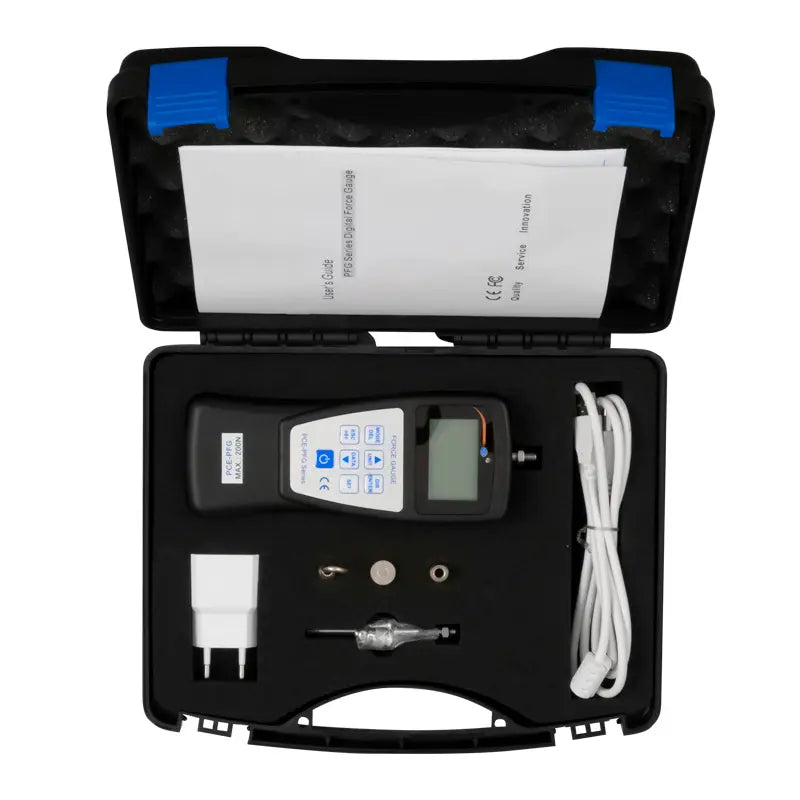

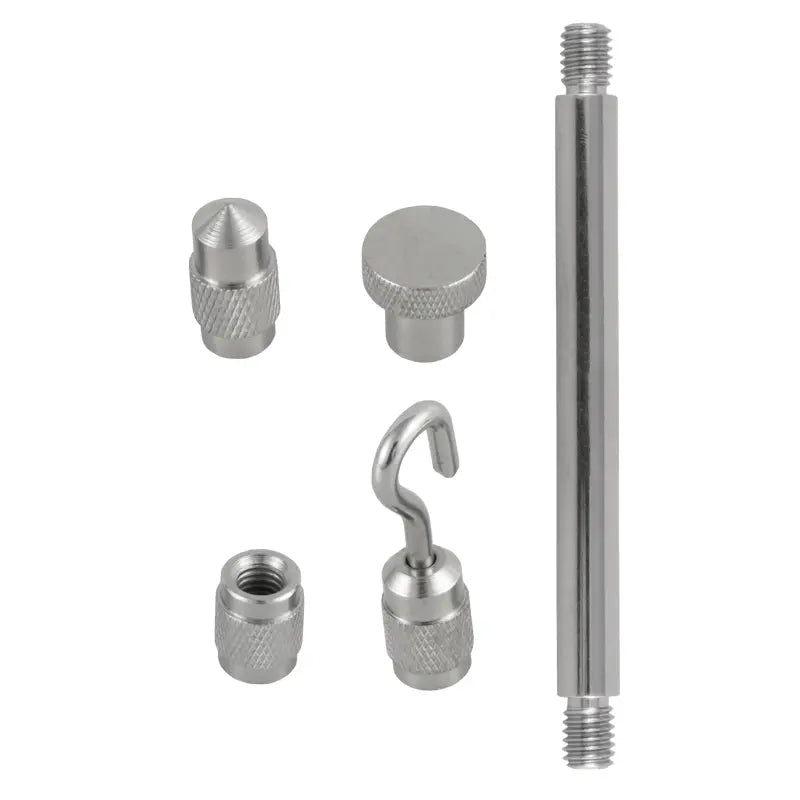

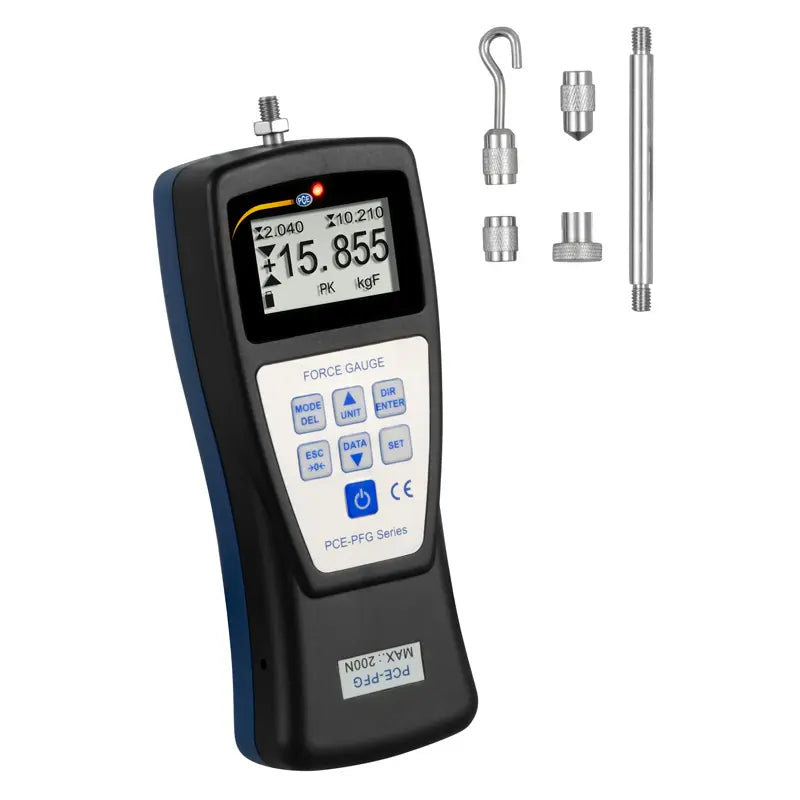

Force is applied through an M6 threaded rod connected to the internal load cell Several mounting accessories are included with your purchase Enjoy extended use with up to 36 hours of operation from a single charge (without background lighting), making this durometer an ideal, reliable choice for mobile force measurement tasks.

Features and Benefits:

•4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement).

•Internal memory for up to 100 measured values.

•Statistics evaluation (MIN / MAX / average).

•Rotatable display.

•Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.

•USB B interface.

•Battery life up to 36 hours.
