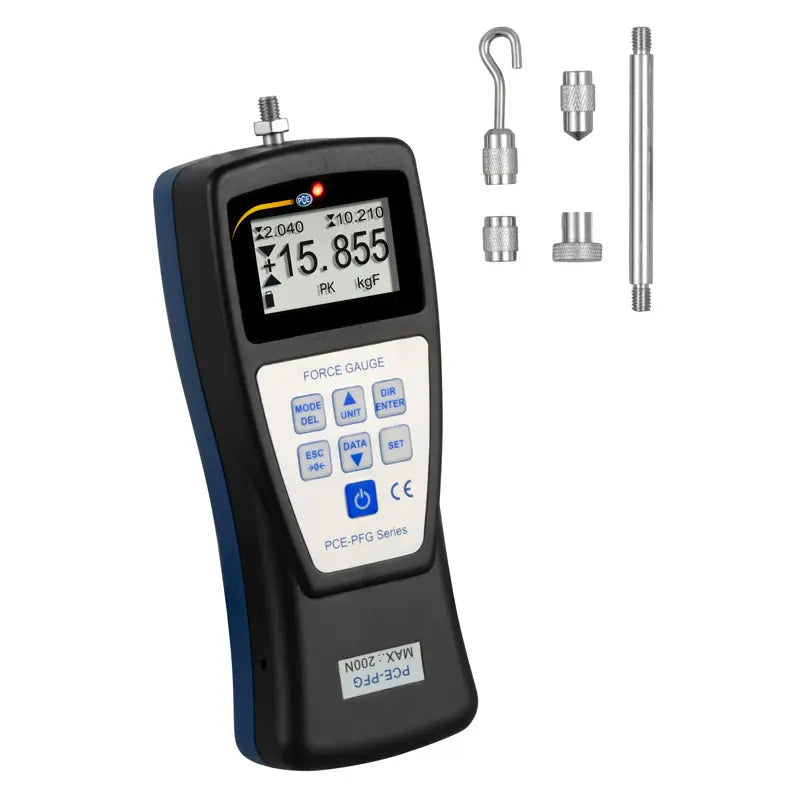

PCE-PFG 20 - Digital Durometer Force Gage with 500Hz Sampling Rate

Description:

Introducing the Durometer, a versatile digital device designed for accurately measuring tensile and compressive forces With a rapid sampling rate of 500 Hz, it provides multiple measurement modes including real-time (RT), maximum value (PEAK), configurable average value acquisition, and automatic storage of up to 100 measurements The clear graphic display presents not only the measurement data but also statistical evaluations such as MIN, MAX, and average values, all of which can be easily transferred to a PC through the USB interface.

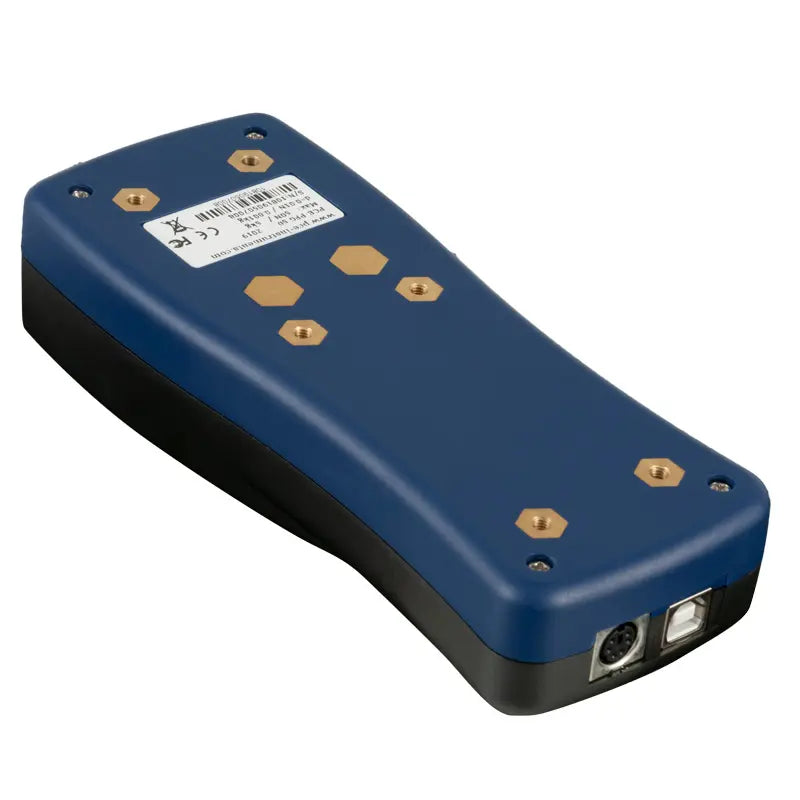

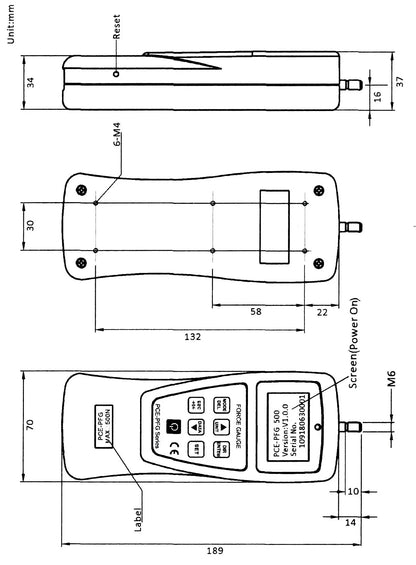

This device incorporates a limit value function for MIN and MAX, which activates a multi-colored LED indicator (yellow, green, and red) along with switching contacts The display is rotatable for your convenience, and the Durometer can be securely attached to a test stand using the M4 threaded holes located at the back Force is applied via an M6 threaded rod into the internal load cell, and various mounting accessories are included with your purchase.

Enjoy uninterrupted operation for up to 36 hours on a single charge (without background lighting), making this portable force measuring device a reliable tool for all your measurement needs.

Features and Benefits:

•4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement).

•Internal memory for up to 100 measured values.

•Statistics evaluation (MIN / MAX / average).

•Rotatable display.

•Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.

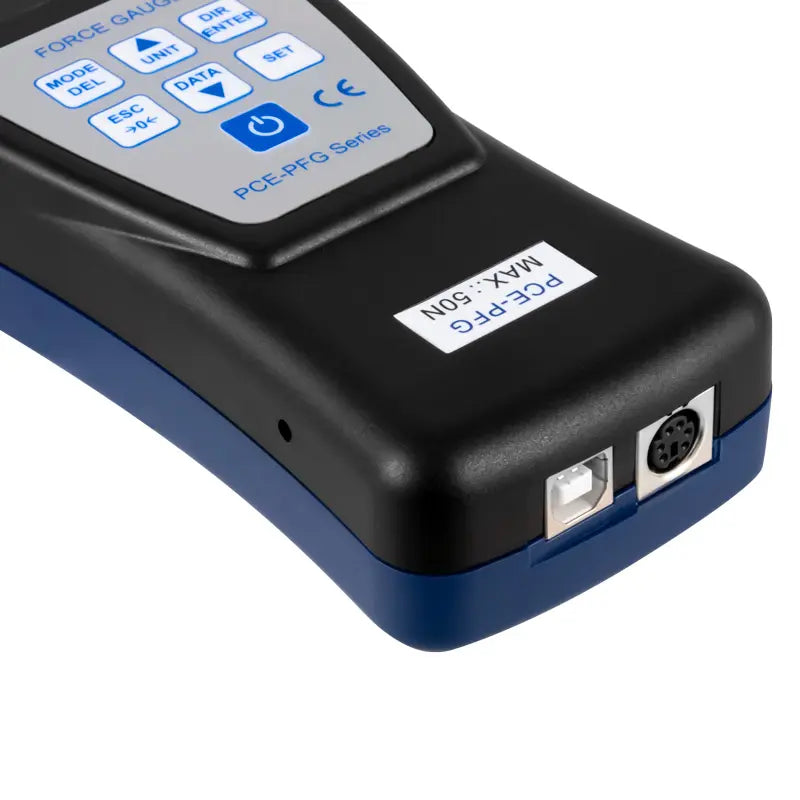

•USB B interface.

•Battery life up to 36 hours.
