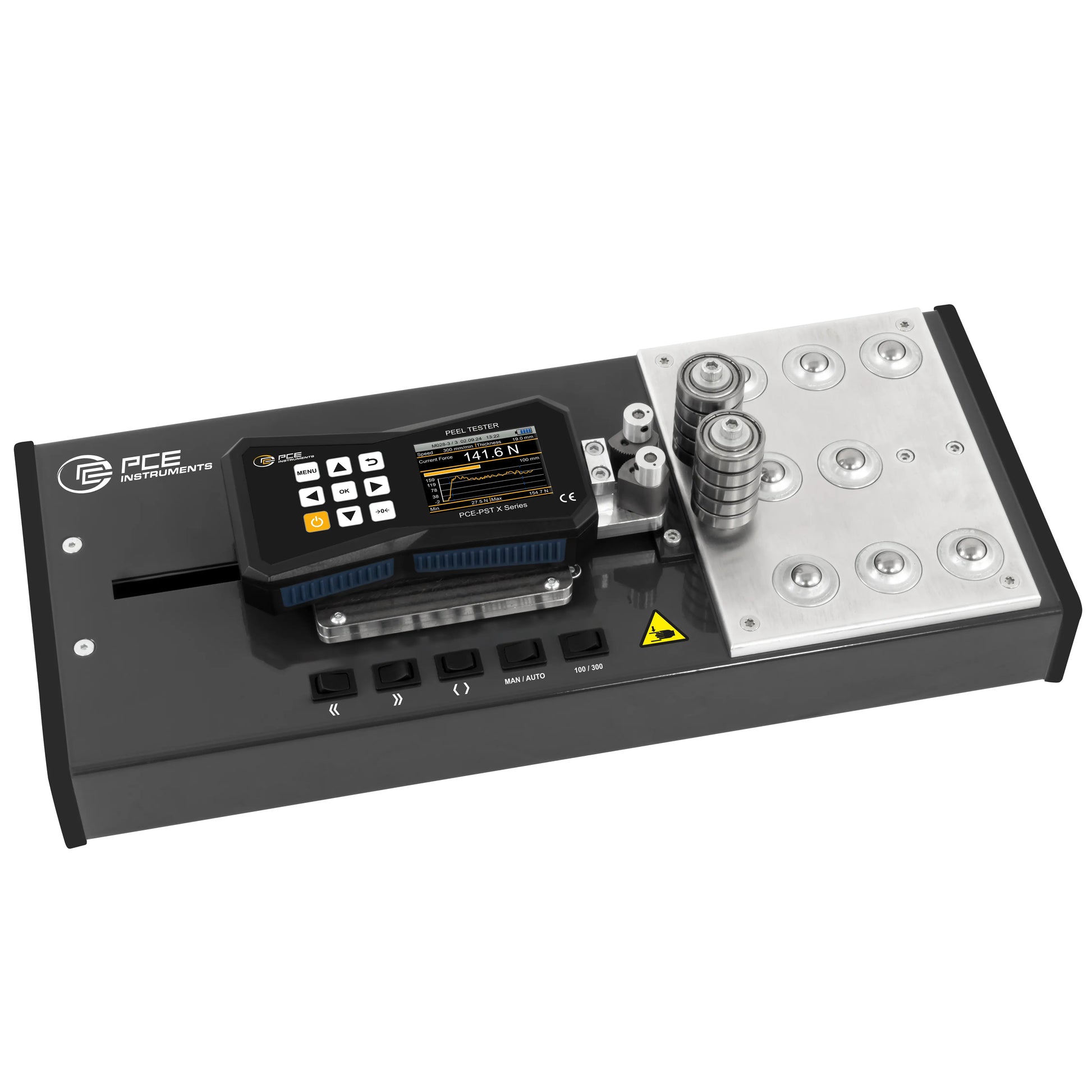

PCE-PST 1 - Handheld Test Stand for peel tests, 0-500 N measurement

Description:

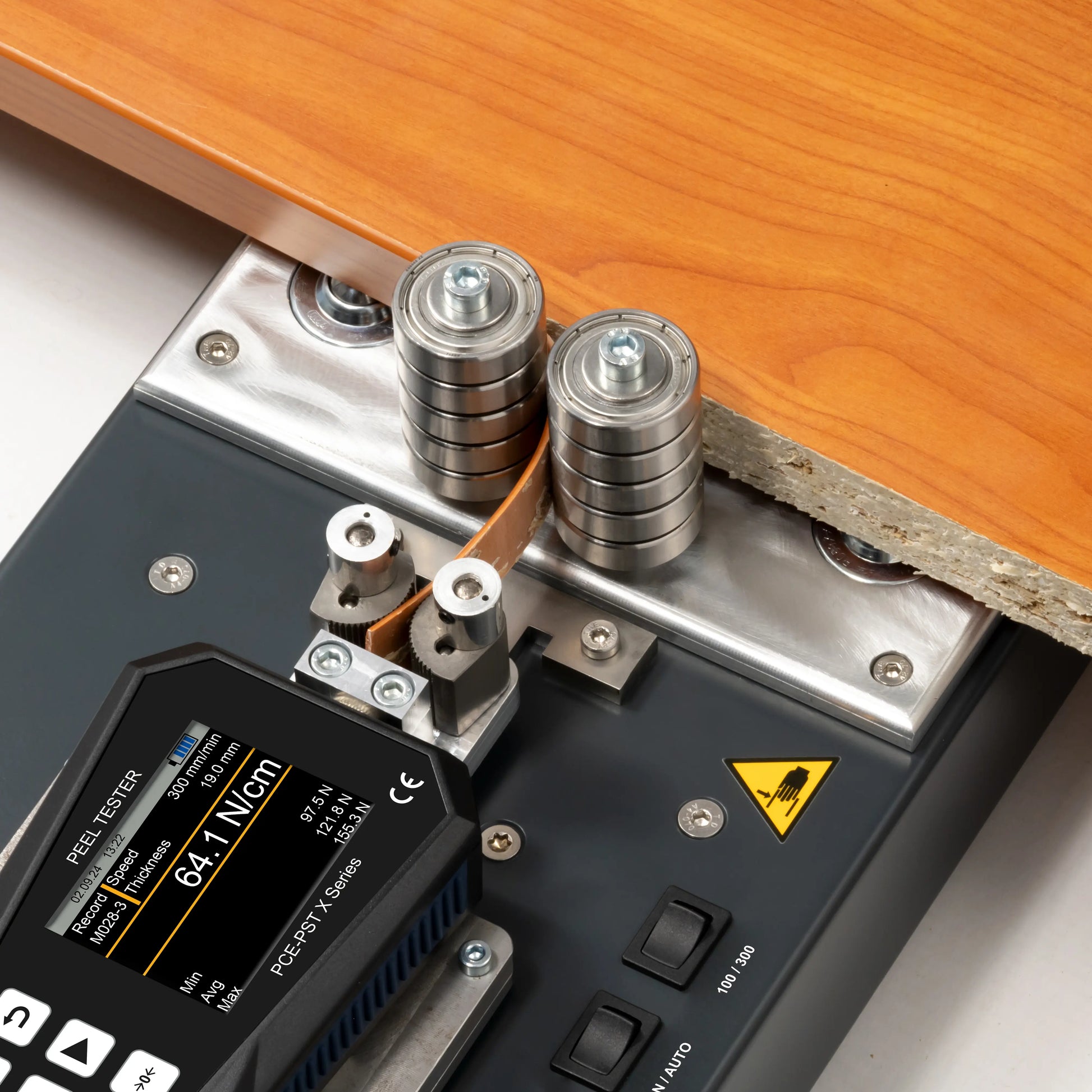

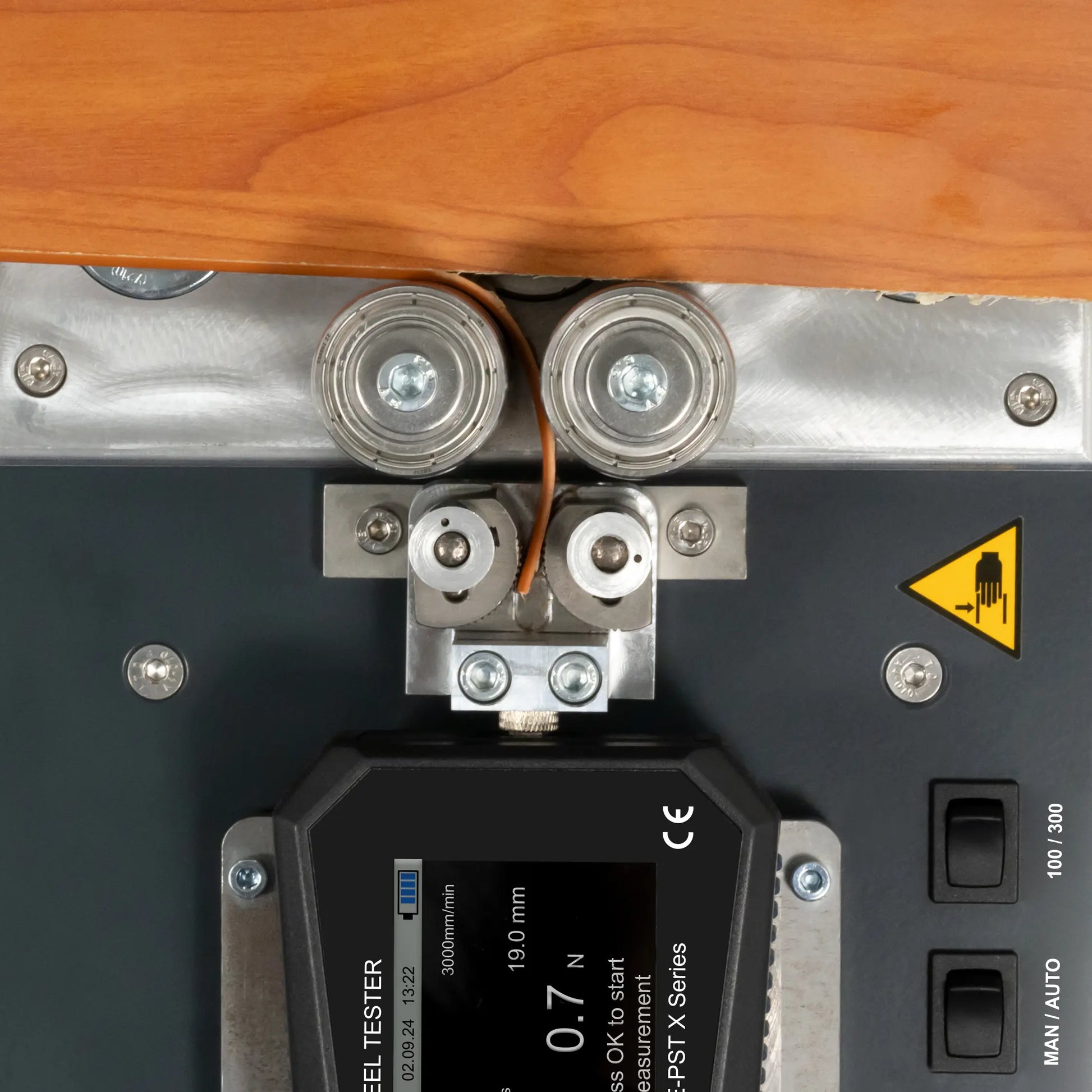

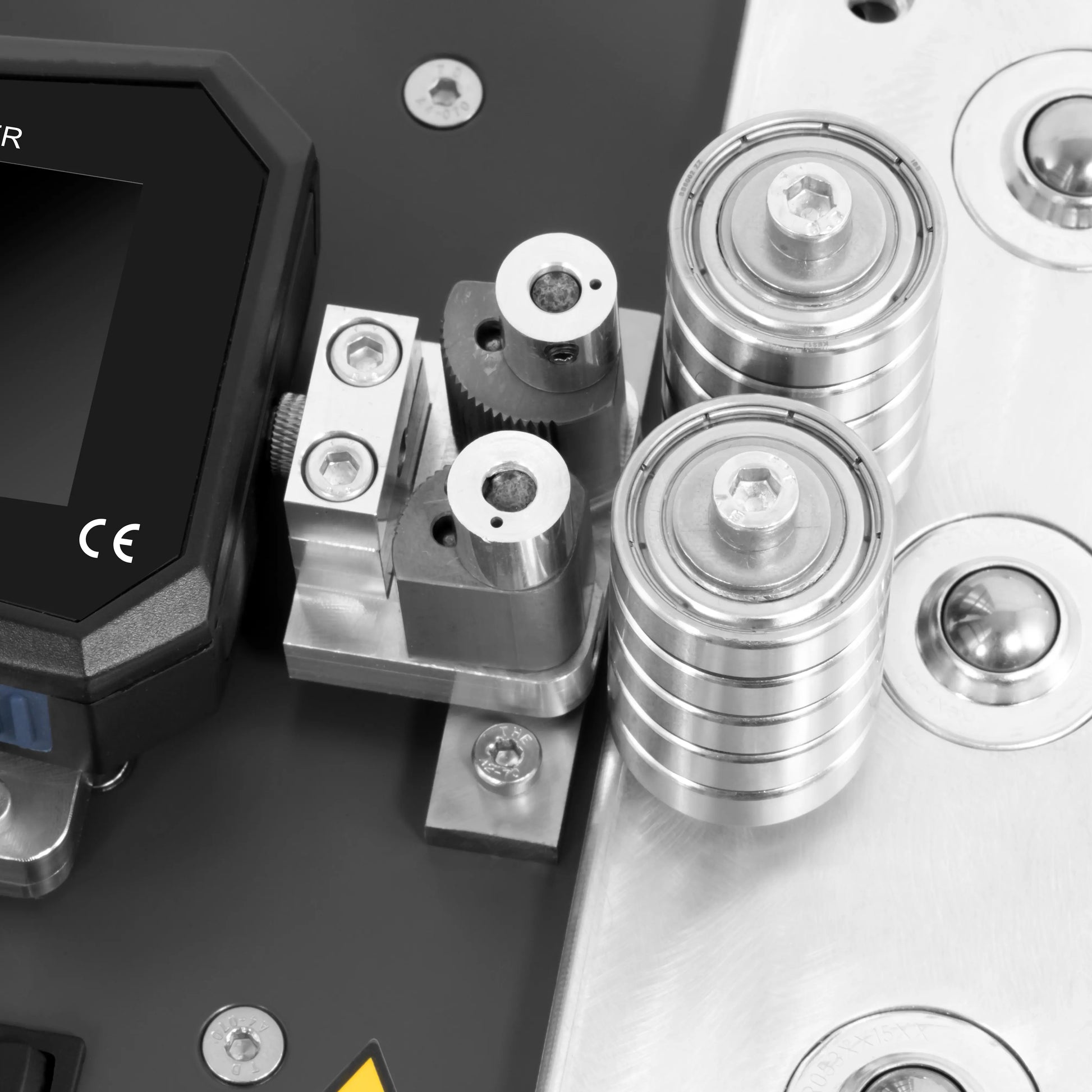

Experience precise force measurement with the Test Stand, a compact hand-held meter designed for accuracy within a range of 0 to 500 N Tailored for peel tests, this device provides a thorough evaluation of processing quality It features both manual and automatic measuring modes and incorporates ball rollers on the guide surface to minimize friction The Test Stand allows you to customize the sampling rate between 2 to 100 Hz, and measurements can be taken in either metric or imperial units.

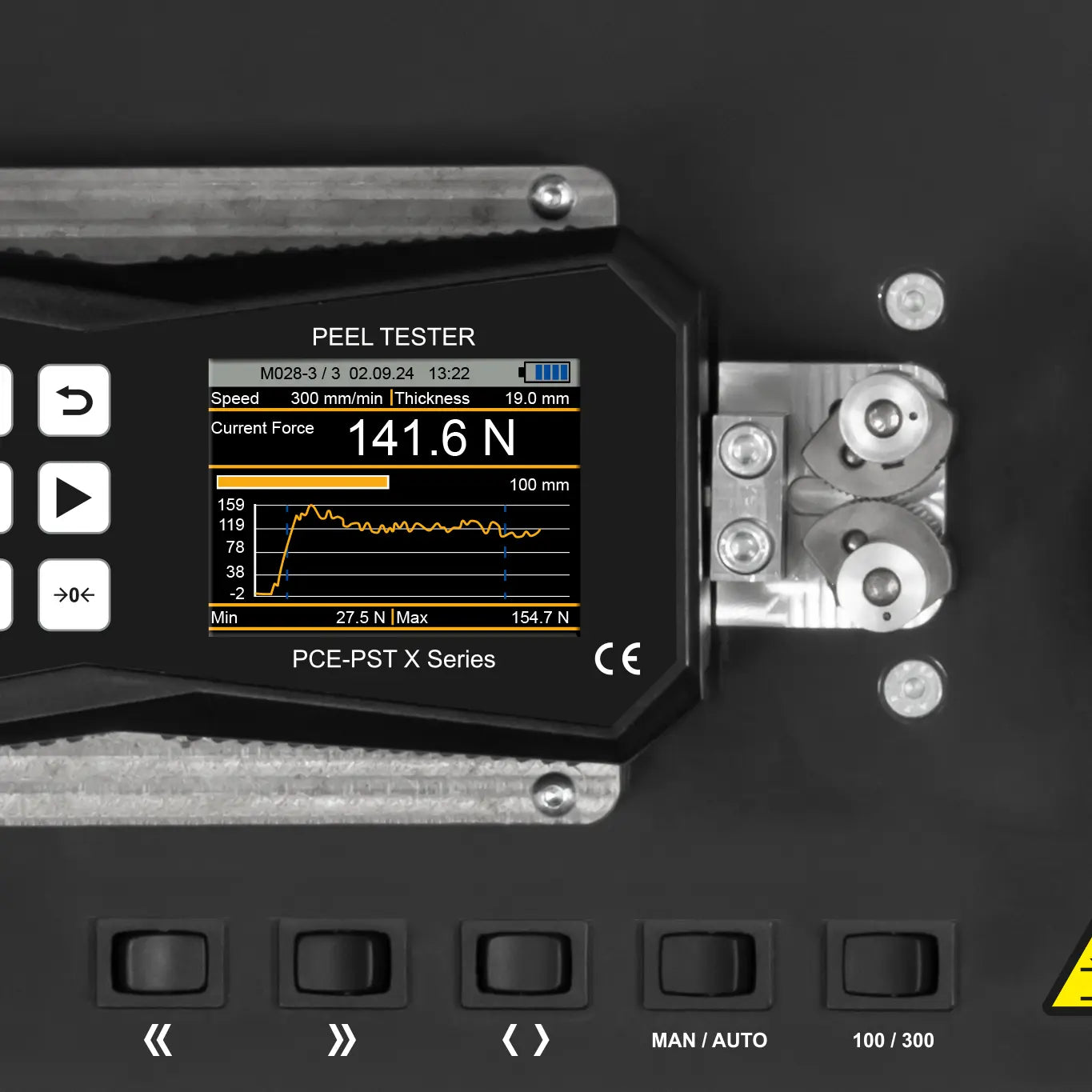

You can configure the measurement duration, including pre-run, measuring, and post-run times, from 0 to 10 seconds Equipped with a built-in data logger, the Test Stand captures both series and individual measurements, displaying key statistics like averages and extremes, as well as graphical representations Its maximum traverse distance reaches 150 mm, with two adjustable speeds of 100 mm/min and 300 mm/min, making it versatile enough to meet various testing needs.

Features and Benefits:

•for adhesive forces up to 500 N.

•high repeatability.

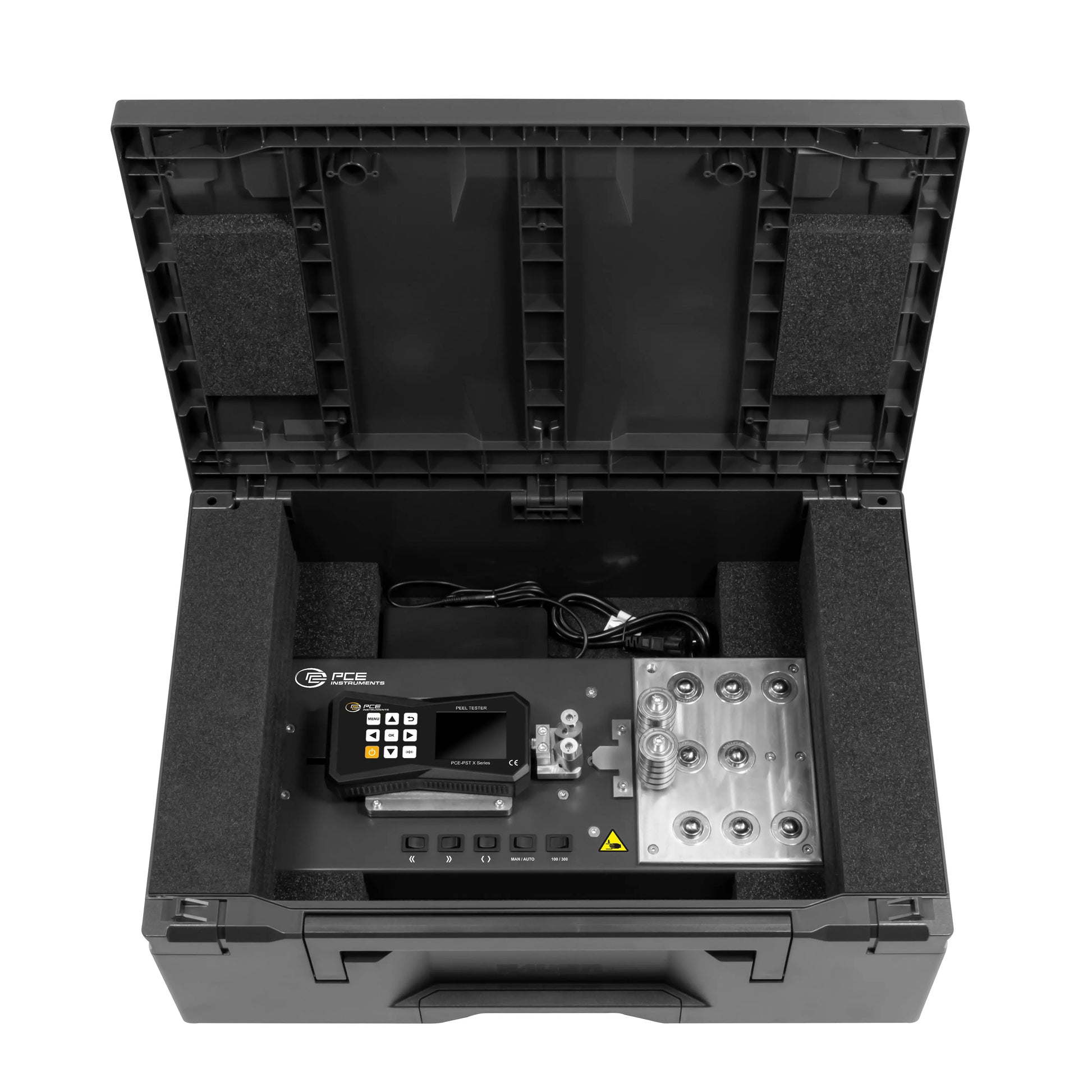

•portable.

•automatic and manual measurement mode.

•average measurements.

•adjustable pre-run and post-run.

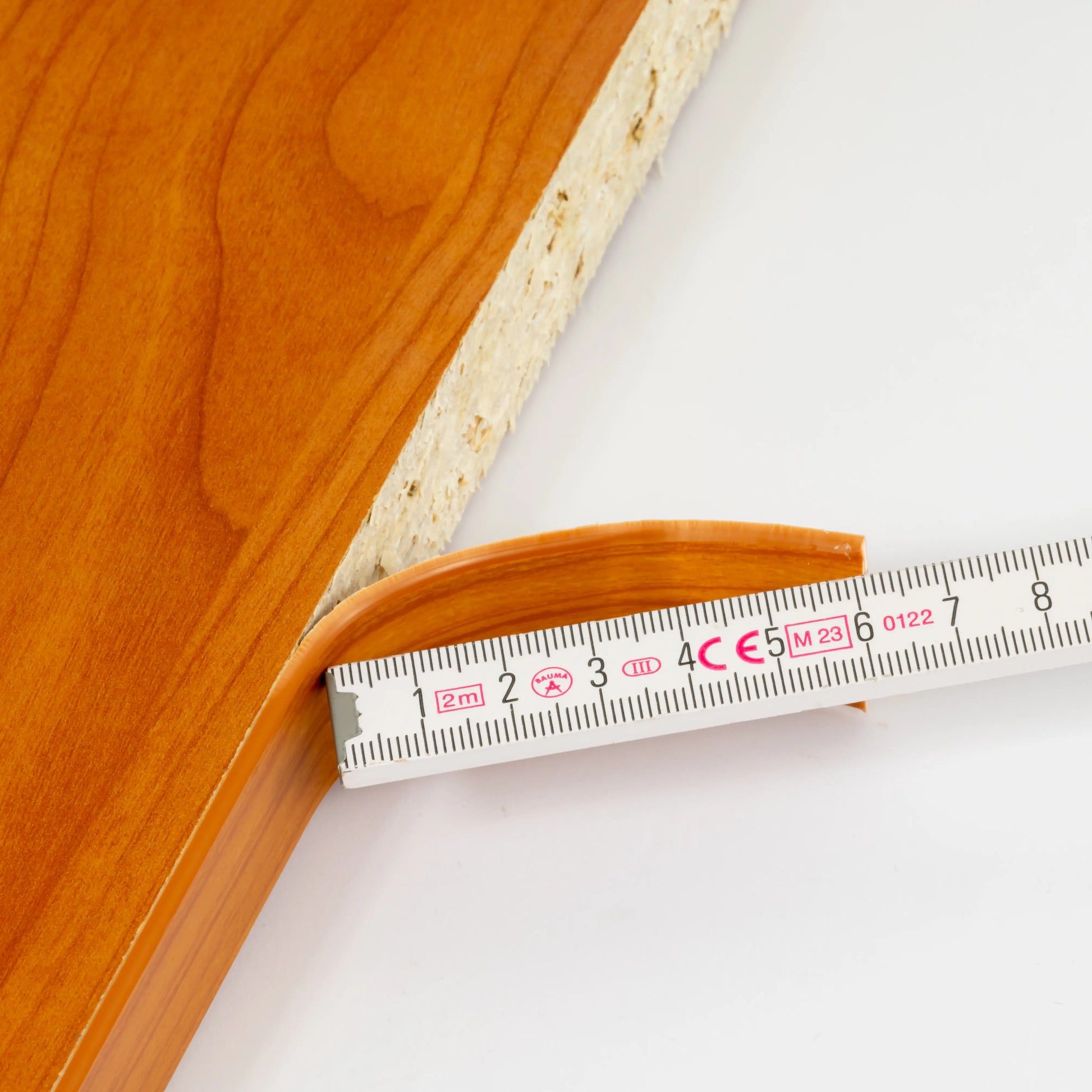

•testing composite materials such as coated wood-based materials.

•laminated surfaces or veneered panels.

•measuring the adhesive strength in bonded joints of various components.

Specifications:
