PCE-TG 300-NO2 - Advanced 600mm Condition Monitoring Device with Bluetooth Printing

PCE-TG 300-NO2 - Advanced 600mm Condition Monitoring Device with Bluetooth Printing

SKU: PCE-TG 300-NO2 Download PDF

Variant:
  • PCE-TG 300-NO2 - Advanced 600mm Condition Monitoring Device with Bluetooth Printing
Now $1,399.00
BEFORE   $0.00 Now $1,399.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

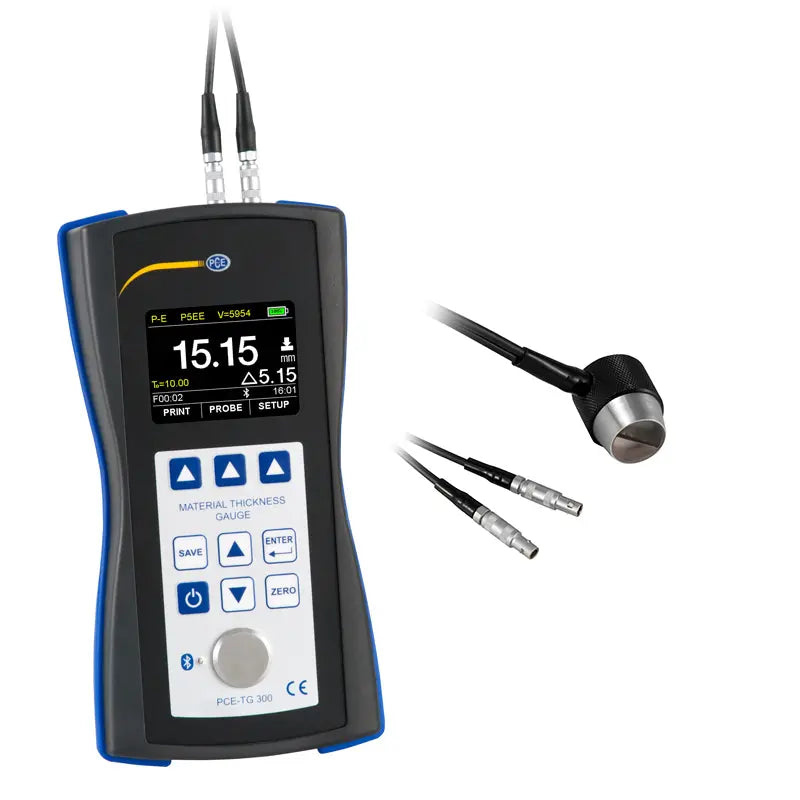

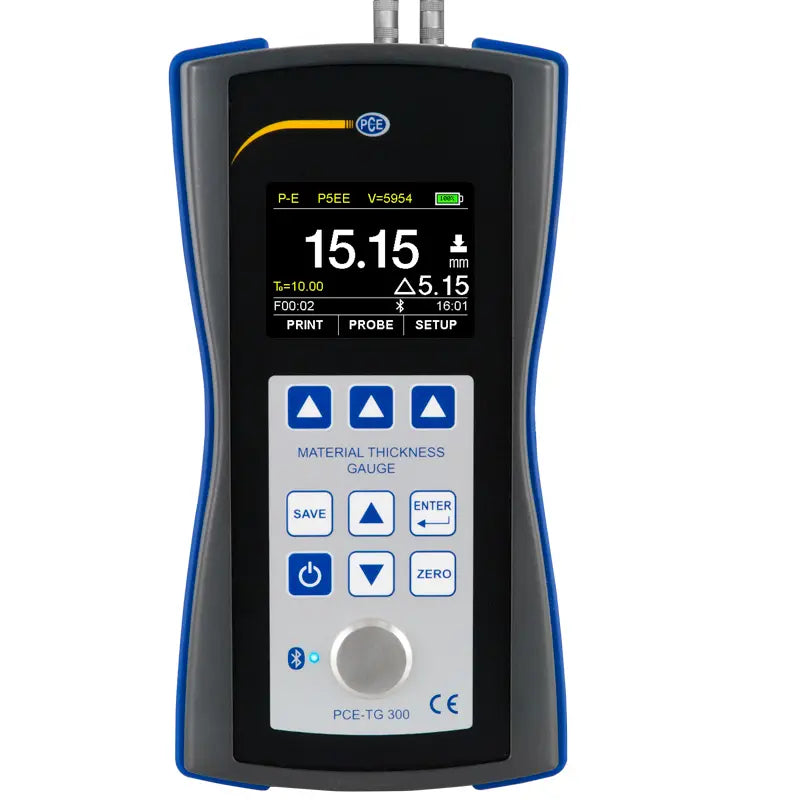

Introducing the PCE-TG 300-NO2, an advanced condition monitoring tool equipped with specialized sensors for a wide range of applications This device boasts a substantial measuring capability of up to 600 mm and offers both pulse-echo and echo-echo measurement modes, ideal for assessing wall thickness on all uniform materials With Bluetooth and USB connectivity for effortless data printing, it also features an intuitive TFT color display and internal memory for efficient data storage.

Included are various sensors, including a 90° angled sensor, enabling measurements in hard-to-reach areas This versatile device ensures non-destructive evaluation, even on coated surfaces.

Features and Benefits:

    •Large measuring range.

    •Various sensors available.

    •Battery operation.

    •Error and voids detection.

    •Internal measurement data memory.

    •Print via Bluetooth.

    •Measurement of wall thicknesses of metals, plastics, ceramics, epoxy resin, and glass..

Specifications:

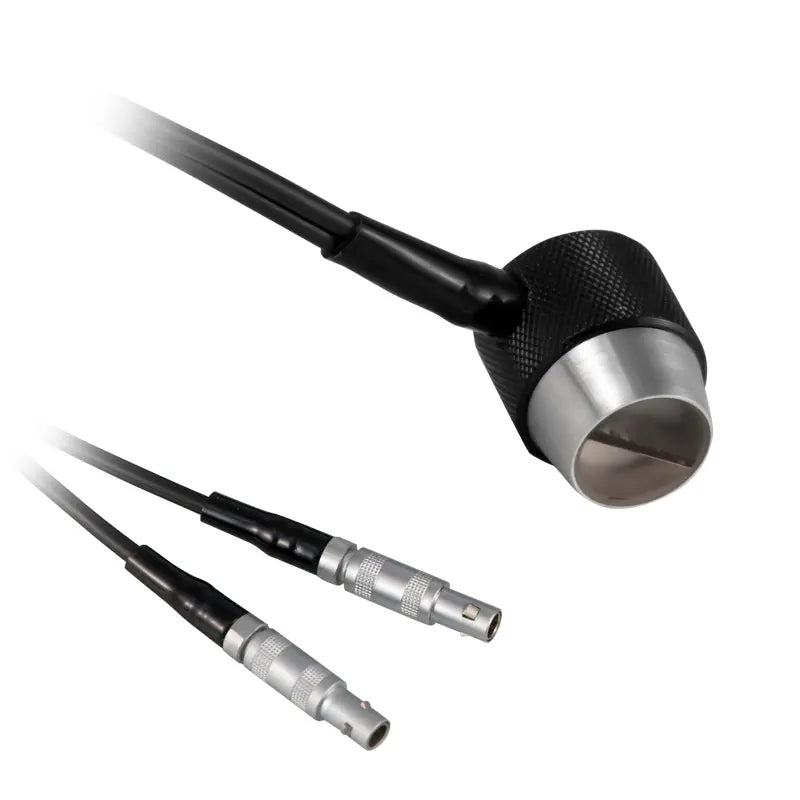

 Measuring range (PCE-TG-NO2 sensor): 3.0 … 300.0 mm / 0.118 ... 11.81" (steel)
 Minimum diameter of pipes: 30 mm / 1.18"
 Frequency: 2.5 MHz
 Diameter: 14 mm / 0.55"
 Measuring range (PCE-TG 300-NO2 device): P-E: 0.65 ... 600 mm / 0.025 ... 23.62" (steel)
 Measuring range (E-E mode): 2.50 ... 100 mm / 0.098 ... 2.36" (only with PCE-TG 300-P5EE sensor)
 Accuracy: ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm)
 Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
 Measurable materials: Metals, plastics, ceramics, epoxy resin, glass, and all homogeneous materials
 Working modes: Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g. paint)
 Calibration: sound velocity calibration, zero calibration, two-point calibration
 View Mode: Normal Mode, Scan Mode, Difference Mode
 Units: mm / inch

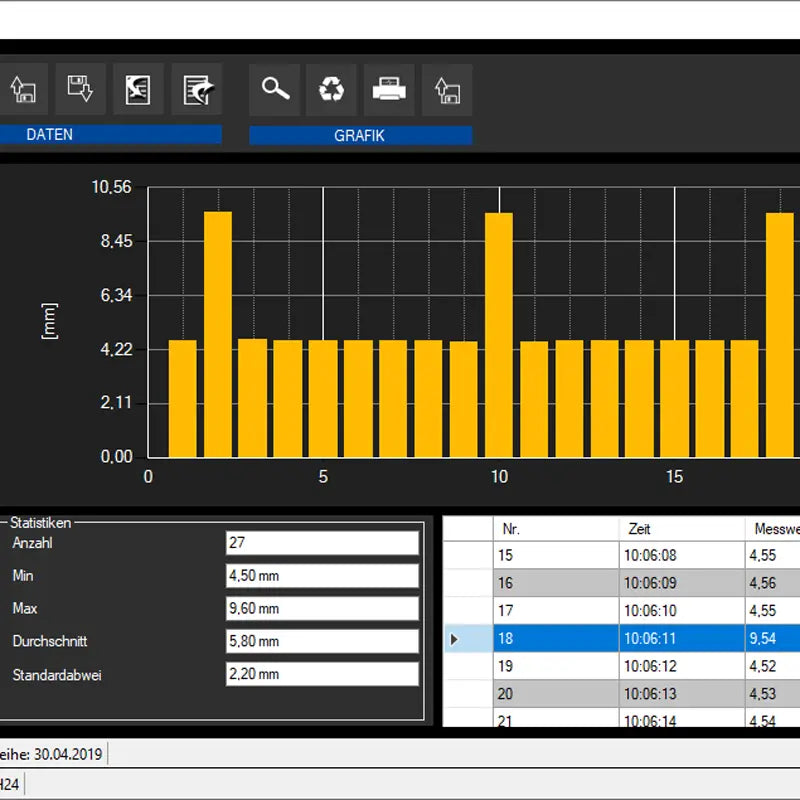

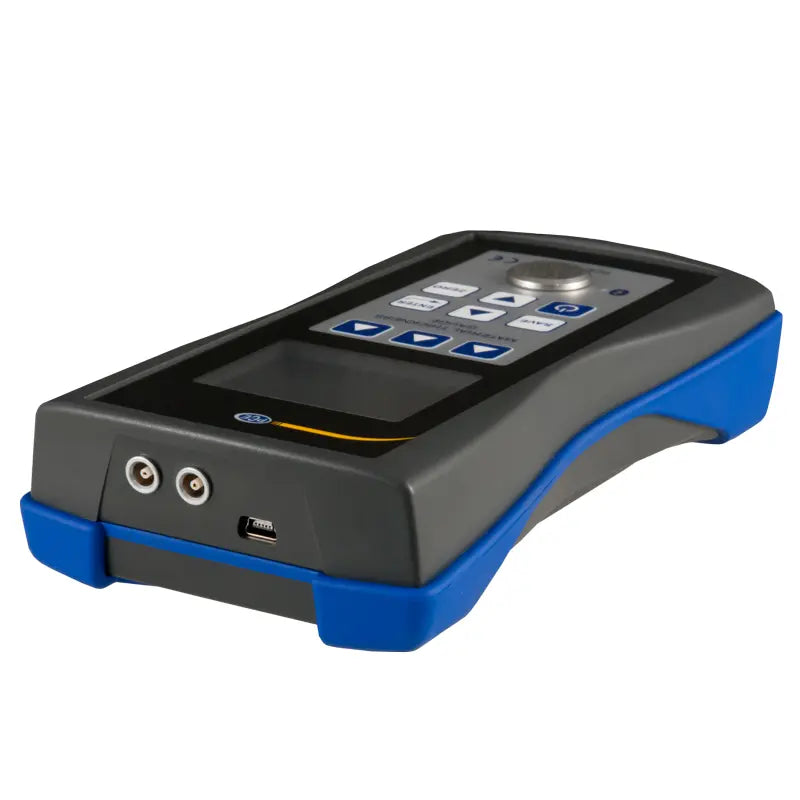

 Data transfer: printing via Bluetooth / USB 2.0
 Memory: non-volatile memory with 100 data groups with 100 data sets each
 Operating time: continuous operation 100 h, automatic stand-by mode (adjustable), auto power off mode (adjustable)

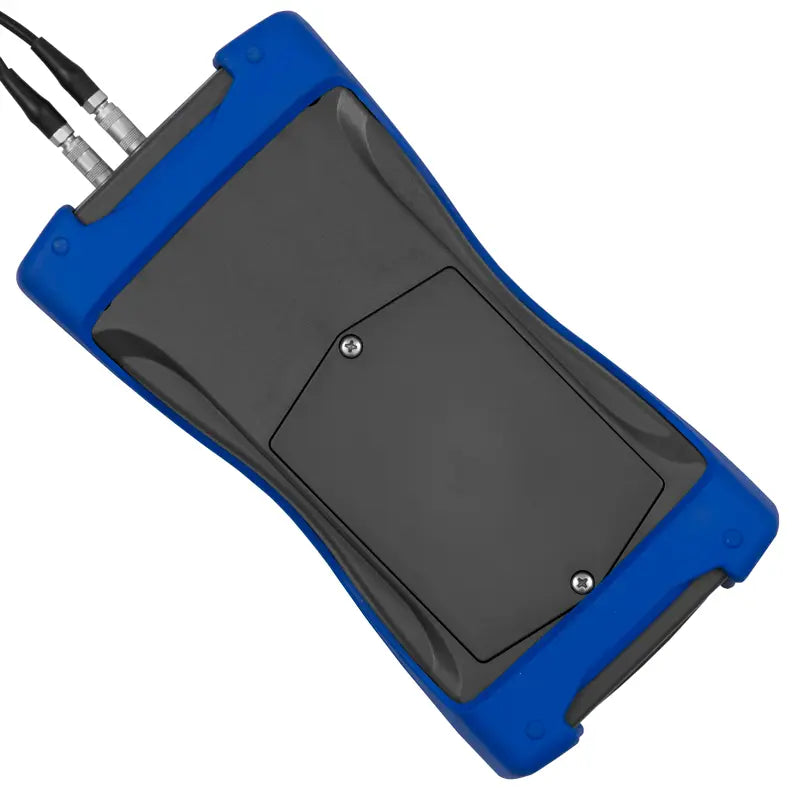

 Power supply: 4 x AA battery 1.5 V

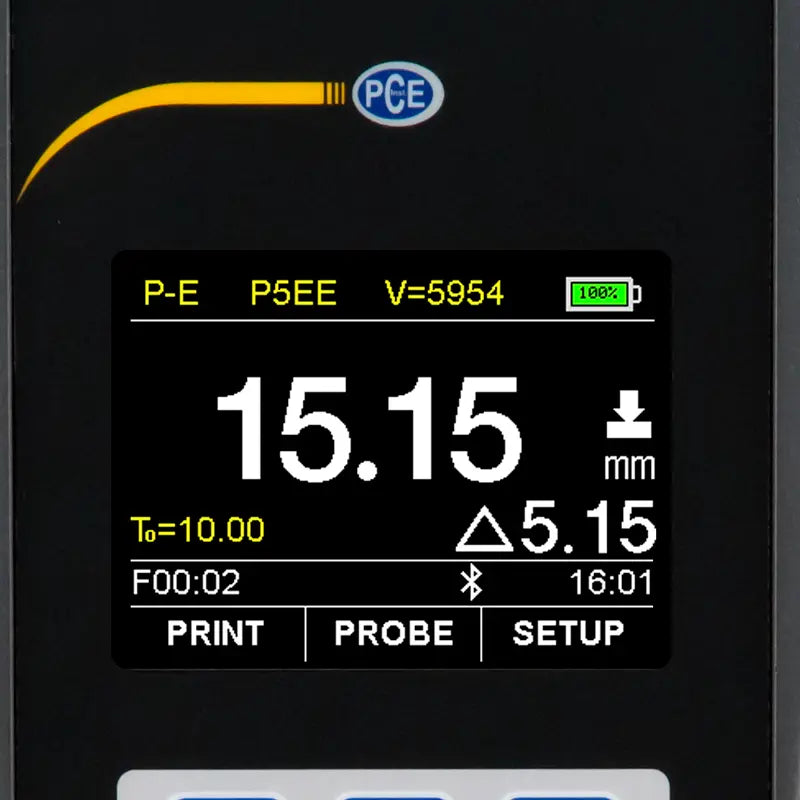

 Display: 320 x 240 pixels TFT LCD color display with brightness adjustment
 Operating conditions: 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing
 Storage conditions: -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing
 Dimensions: 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5"
