Product Information

Description:

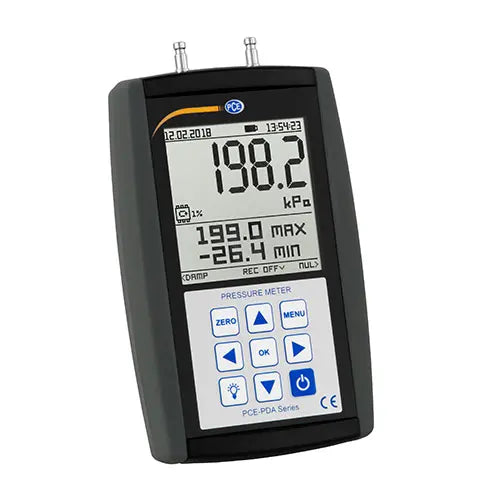

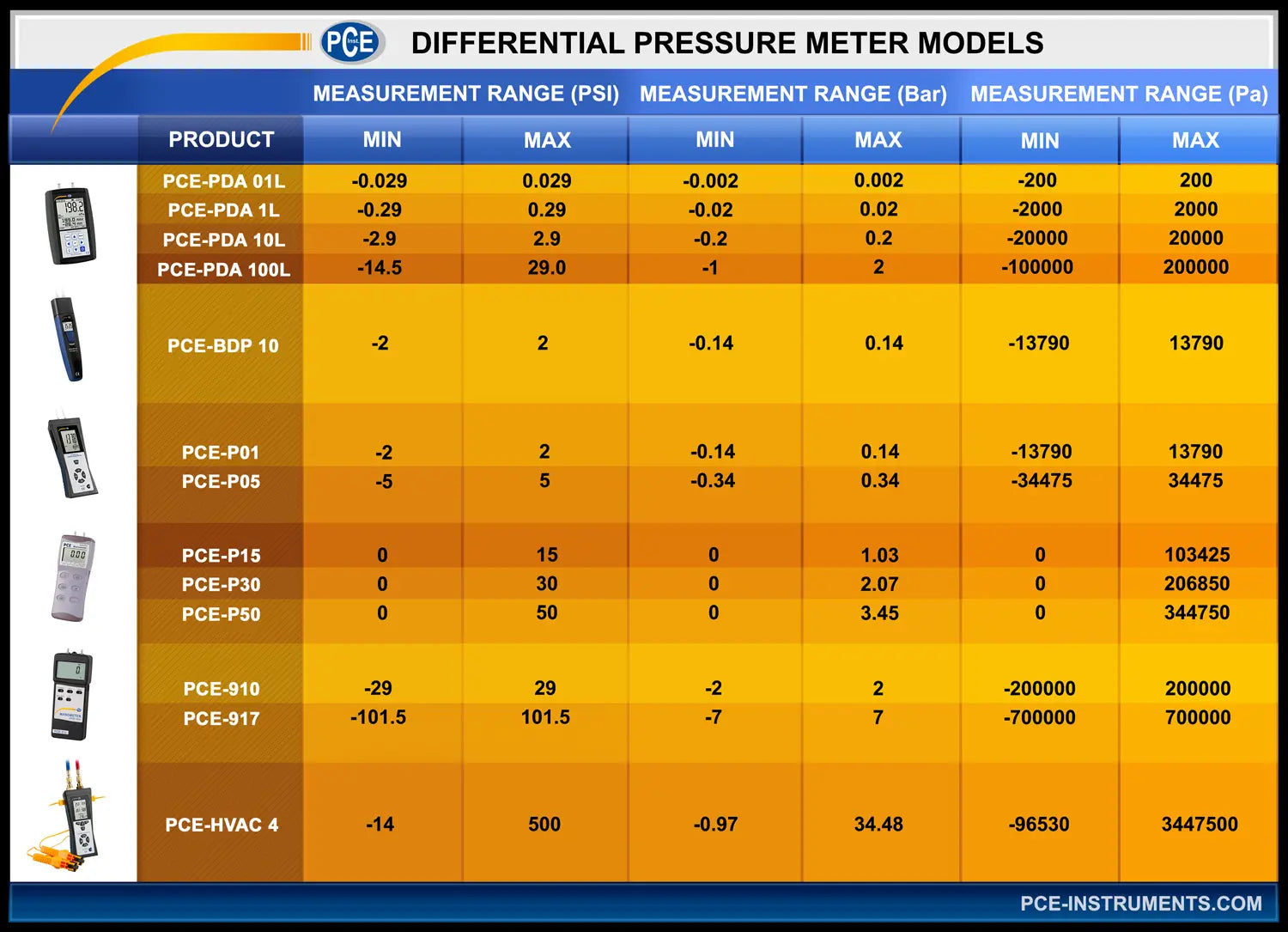

Introducing the PCE-PDA 100L, a versatile manometer ideal for measuring both relative and differential pressure This device is compatible with a Pitot tube and comes equipped with essential functionalities such as MAX MIN capabilities and advanced Datalogger features The PCE-PDA series offers reliable options for measuring gas pressure across multiple ranges, including ± 200 kPa, ± 2 kPa, and 20 kPa, tailored to specific models.

With the ability to display over 16 different units, this manometer also measures temperature, flow velocity, and volume flow Its two-part graphic display conveniently shows maximum and minimum differential pressure readings Additionally, the high-precision mode improves measurement resolution, while continuous data storage and leak testing functions enhance its usability Perfect for various applications, the PCE-PDA 100L combines functionality with reliability.

Features and Benefits:

•Graphic display with lighting.

•Min and Max value memory.

•Datalogger and leak test.

•Quick coupling connection.

•Temperature and flow measurement.

•High precision measuring mode.

•Simple operation (voice-controlled).

•Units switchable (Pa, kPa, hPa, ...).

Specifications:

Measuring range temperature	0 ... 50°C / 32 ... 122°F
Resolution temperature	0.1°C / 0.18°F
Accuracy temperature	± 1°C / 1.8°F
Measuring range pressure	-100 ... 200 kPa
Resolution pressure	1 / 10 Pa
Accuracy pressure	± 0.5% of final value
Nominal pressure	200 kPa
Overpressure	300 kPa
Burst pressure	400 kPa
Media	Liquids, air
Measuring rate	10 Hz
Measurement units	Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure connections	5 mm nipple for quick connectors
Max, Min and Hold function	Yes
Data logger	1024 memory slots, 1 s ... 255 h recording time per memory location, 1 s ... 24h recording interval
Medium	For air and non-explosive gases
Zero correction	Yes, with a zero key
Averaging	Yes, between 0.1 ... 9.9 s
Display	Graphic LCD with backlight
Protection	IP41
Power supply	2 x 1.5V AA battery / 1.2V NiMh battery, 5V / 500-mA USB power adapter
Current consumption	50-mA (with backlight), 10-mA (without backlight)
Operating temperature	0 ... 50°C / 32 ... 122°F
Storage temperature	10 ... 55°C / 50 ... 131°F
Dimensions	145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
Weight	About 285 g / < 1 lb
