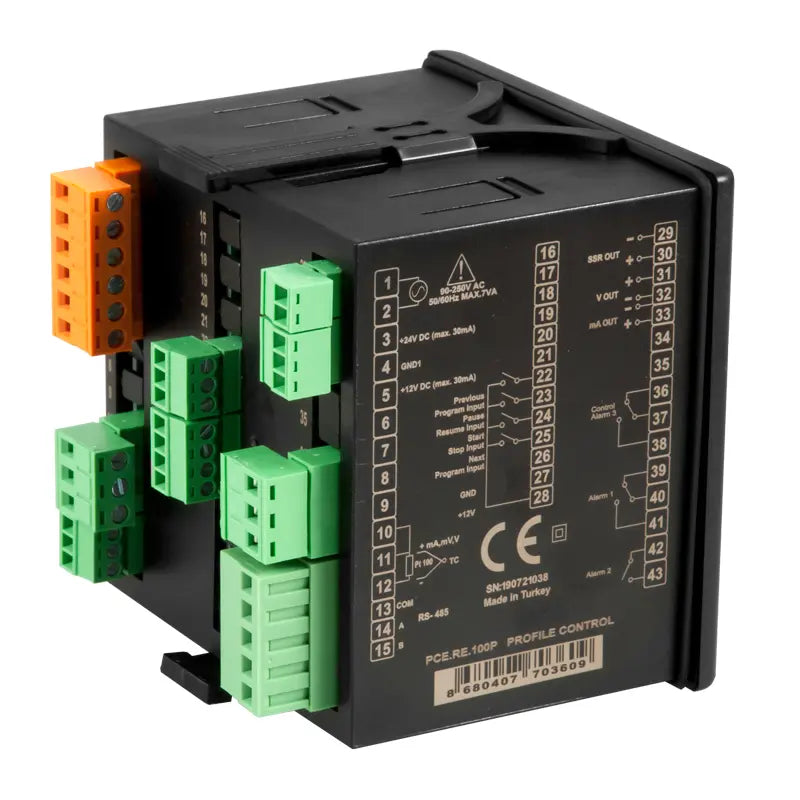

PCE-RE100P - PID Temperature Controller with RS485 and LCD Display

PCE-RE100P - PID Temperature Controller with RS485 and LCD Display

SKU: PCE-RE100P   Download PDF

Select a Variant:
  • PCE-RE100P - PID Temperature Controller with RS485 and LCD Display
Qty:
Now $435.00   Web pricing policy
BEFORE   $0.00 Now $435.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

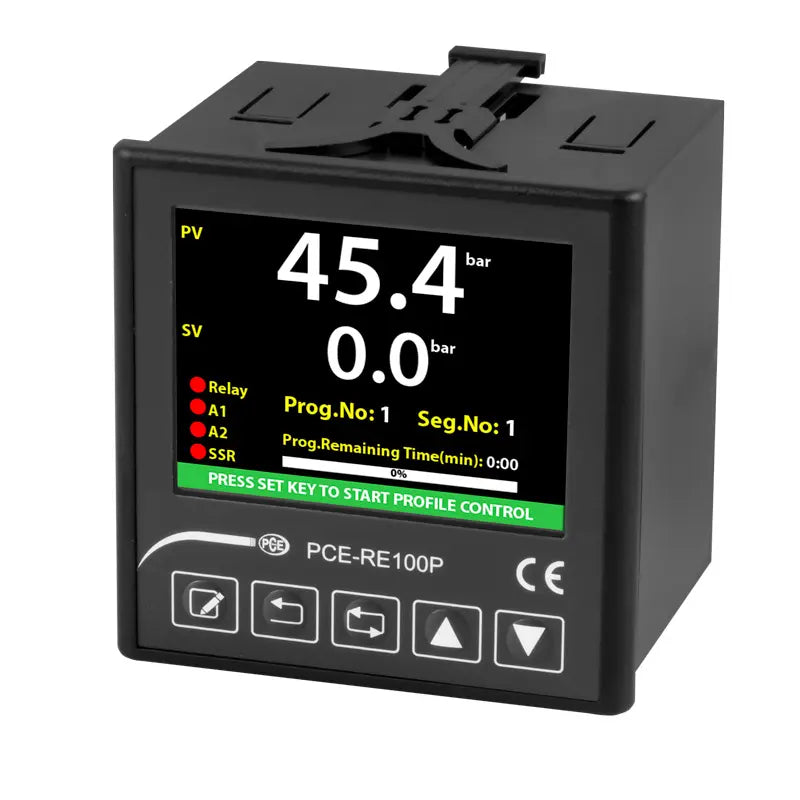

Introducing a versatile PID temperature controller, expertly designed for precise temperature and process management This controller is equipped with a variety of control outputs and a universal analog input, making it suitable for diverse applications With the capability to handle up to 16 programs, each containing 8 segments, users can expect tailored temperature control An intuitive LCD display shows set points, actual temperatures, output statuses, and the progress of control programs.

The device also includes an RS485 Modbus interface for seamless connection to process control systems, along with 4 digital inputs and an internal sensor supply, enhancing its functionality and usability.

Features and Benefits:

    •Universal input.

    •Adjustable program control.

    •3.5" LCD display.

    •Relay, SSR and analog output.

    •50 ms sampling rate.

    •Autotune PID.

    •Memory for several PID parameters.

    •RS485 Modbus interface.

Specifications:

 Measuring function Input type thermocouple, Input type resistance sensors, Input type process stream, Input type mV, Input type process voltage, Input type resistor, Digital input for program control
 Input type thermocouple measuring area Type B 200 ... 1800°C / 392 ... 3272°F, Type E -100 ... 900°C / -148 ... 1652°F, Type J -100 ... 900°C / -148 ... 1652°F, Type K -100 ... 1300°C / -148 ... 2372°F, Type L -100 ... 900°C / -148 ... 1652°F, Type N -200 ... 1300°C / -328 ... 2372°F, Type R 0 ... 1700°C / 32 ... 3092°F, Type S 0 ... 1700°C / 32 ... 3092°F, Type T -250 ... 300°C / -418 ... 572°F, Type U -200 ... 400°C / -328 ... 752°F
 Input type resistance sensors measuring area Pt100 -200 ... 850°C / -328 ... 1562°F, NTC -60 ... 150°C / -76 ... 302°F
 Input type process stream measuring area 0 ... 20-mA -32768 ... 32767, 4 ... 20-mA -3276.8 ... 3276.7
 Input type mV measuring area 0 ... 150 mV -327.68 ... 327.67
 Input type process voltage measuring area 0 ... 5V, 1 ... 5V, 0 ... 10V
 Input type resistor measuring area 0 ... 550 Ω, 0 ... 10 kΩ

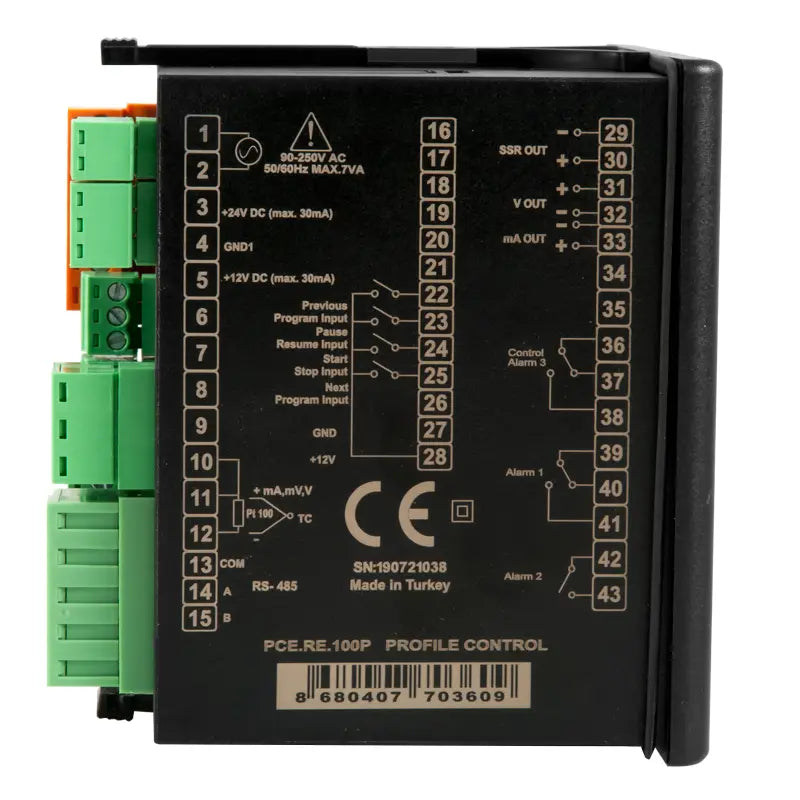

 Control outputs Relay: NO / NC 250V AC / 2 A, Alarm 1: NO / NC 250V AC / 2 A, Alarm 2: NO 250V AC / 2 A, SSR: 0 ... 12V / 40-mA, mA: 0/4 ... 20-mA (750 Ω max.), V: 0 ... 10V
 Power supply 90 ... 250V AC / 50/60 Hz, Input 7 VA

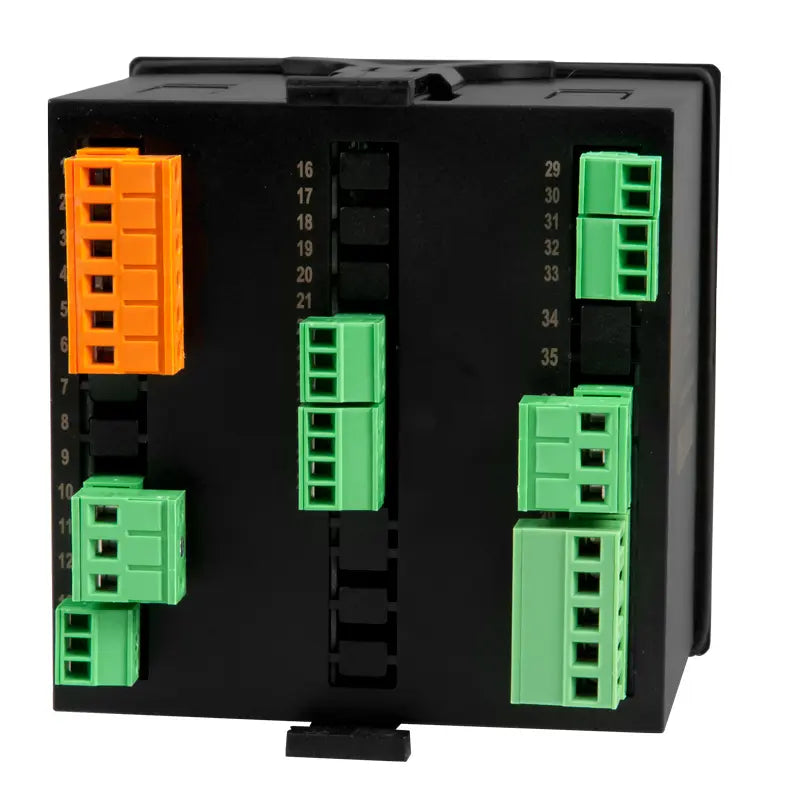

 Electrical connection 2.5 mm² via screw terminals
 Interface RS485 Modbus RTU
 Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
 Storage conditions -25 ... 70°C / -13 ... 158°F, max. 80% rh
 Degree of protection Front: IP65, Back side: IP20
 Dimensions 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
 Panel cut 92 x 92 mm / 3.6 x 3.6 in
