PCE-WMM 50 - Wall-Mounted CO2 Analyzer with Remote Display

PCE-WMM 50 - Wall-Mounted CO2 Analyzer with Remote Display

SKU: SKU: PCE-WMM 50 Download PDF

Variant:
  • PCE-WMM 50 - Wall-Mounted CO2 Analyzer with Remote Display
Regular price Now $581.00
Regular price BEFORE   $0.00 Sale price Now $581.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

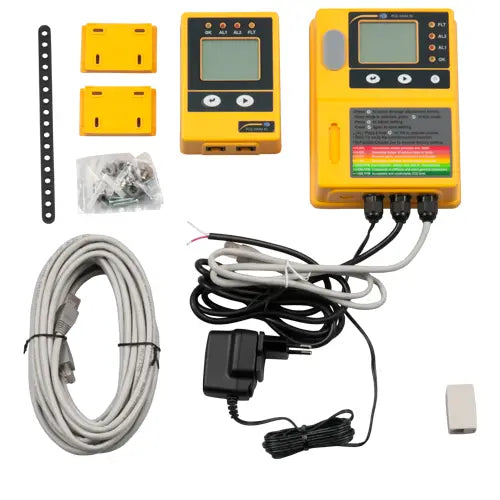

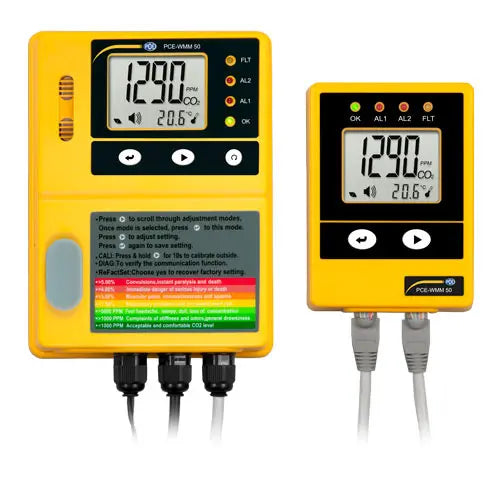

Ensure optimal indoor air quality with the PCE-WMM 50, a wall-mounted CO2 analyzer expertly designed to monitor carbon dioxide levels and ambient temperature (measured in ºC / ºF) This air quality device includes an alarm with a potential-free contact, enabling it to activate a fan, effectively reducing CO2 concentrations in your space Comprising two components—a sensor unit and a remote display unit—this system allows for safe monitoring outside of areas with potential exposure.

By keeping track of CO2 levels, this analyzer safeguards workers from the risks associated with carbon dioxide, a colorless, odorless gas prevalent in various industries such as food, metal, chemical, and waste management.

Features and Benefits:

    •CO2 gas measurement range: 0 ... 50000 ppm.

    •Temperature measurement range: 0 ... +45 ºC / +32 ... +113 ºF.

    •IP54-rated enclosure on sensor and remote display units.

    •2 adjustable alarm thresholds.

    •Alarm-activated potential-free contact can activate external devices.

    •Audible and visual alarm signals.

    •Indoor air quality monitoring.

    •Protecting workers from health hazards associated with CO2.

Specifications:

 CO2 measurement range 0 ... 50,000 ppm (5%) (vol.) NDIR sensor
 Temperature 0 ... +45 °C / +32 ... +113 ºF
 Supply of gas samples By diffusion
 Alarm contacts 1 potential-free change-over contactor to control external devices (NO/NC) by releasing alarm 1
 Switching power 30 V DC / 250 V AC, max. 2 A
 Alarm thresholds Alarm 1: 0.5 / 1 / 1.5 / 2 %; Alarm 2: 1.5 / 2 / 2.5 / 3 / 3.5 / 4 %
 Display elements 4-digit digital display for gas concentration, LEDs for operation and alarms
 Safety Continuous self-surveillance of temperature range, sensor lifetime
 Enclosure Synthetic, IP54-rated, watersplash proof
 Dimensions Approx. 168 x 125 x 47 mm / 6.62 x 4.93 x 1.85"
 Voltage supply 100 ... 240 V AC, 50 / 60 Hz
