Description:
Introducing an essential tool for vibration monitoring, ideal for those in maintenance This portable device is designed to assist in assessing machine and system vibrations with ease It features a HOLD function and peak value measurement capabilities, allowing users to take precise readings on the go
Equipped for automatic evaluation according to ISO 10816-3 standards, this handheld meter provides vital insights quickly.
Users can monitor vibration acceleration, velocity, and displacement directly on the clear display, making it straightforward to identify issues like machine imbalances that may lead to component damage
The device is user-friendly, displaying results in a colored graphic format, ensuring all instructions and menu options are clear With support for up to 12 switchable languages, it caters to a diverse range of users.

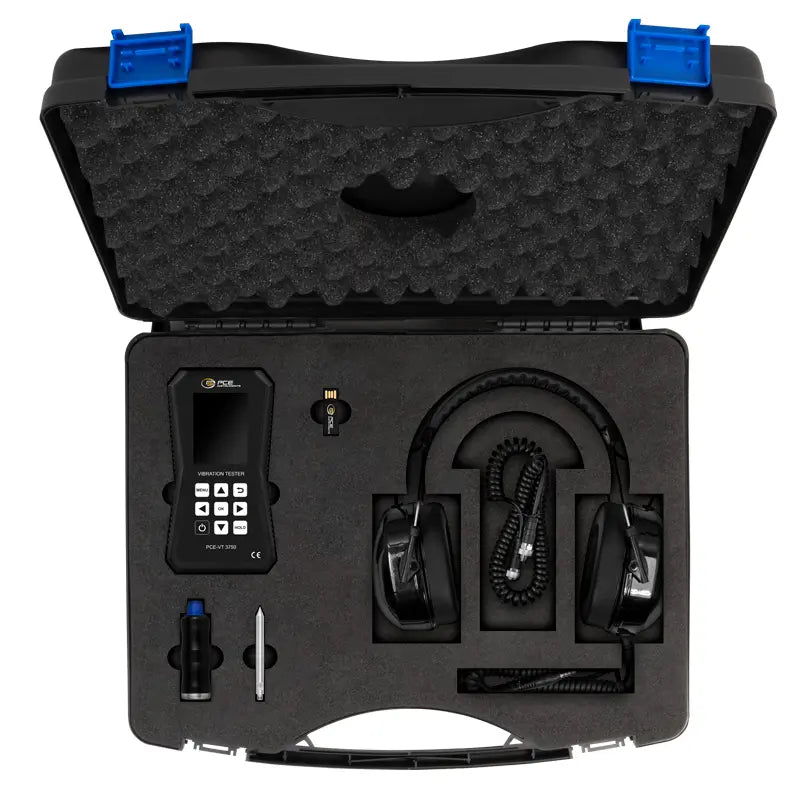

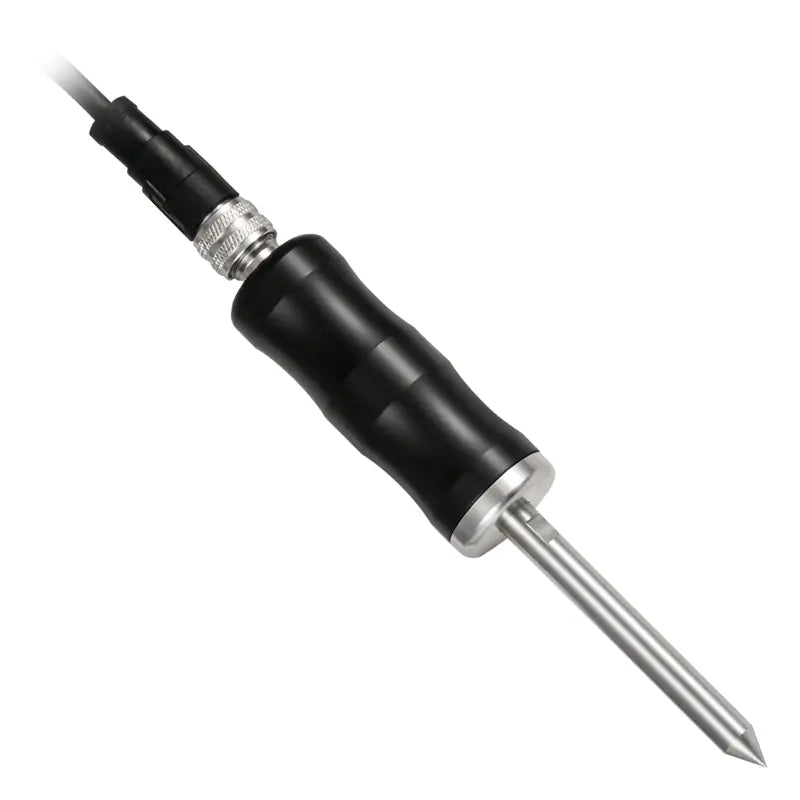

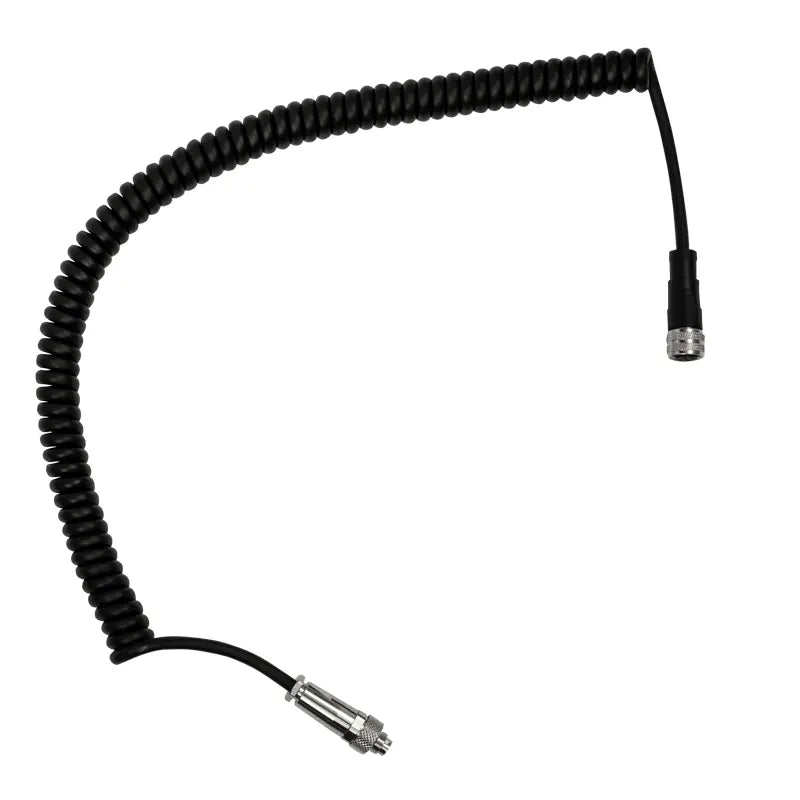

The package includes a sensor on a spiral cable, a magnet adapter, a service bag, and batteries to ensure you have everything needed to get started right away.
Features and Benefits:
•Automatic ISO 10816-3 evaluation.
•Easy to handle.
•For mobile vibration measurement.
•The measurement unit can be switched between the metric system and imperial units..
•Colored graphic display.
•Peak-hold function.

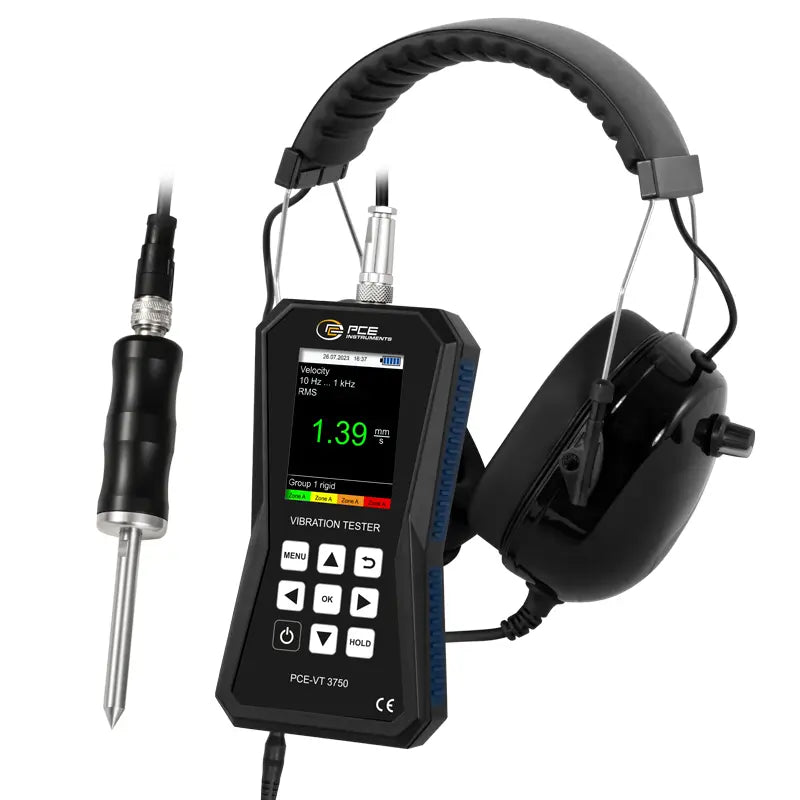

•incl. headset.
Specifications:
| Measuring range Acceleration | 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² |
| Resolution Acceleration | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz Acceleration | ±2 % |
| Frequency range Acceleration | 10 Hz ... 10 kHz |
| Measuring range Velocity | 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s |
| Resolution Velocity | 0.1 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz Velocity | ±2 % |
| Frequency range Velocity | 10 Hz ... 1 kHz |
| Measuring range Rotational Speed | 600 ... 50000 RPM |
| FFT acceleration | 10 Hz ... 8 kHz |
| FFT velocity | 10 Hz… 1 kHz |
| Accuracy @ 160 Hz | ± 2% |
| Number of FFT lines | 2048 |
| Route measurement | 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each |
| Measuring range Displacement | 0.000 ... 3.9 mm / 0.000 - 0.154 in |
| Resolution Displacement | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz Displacement | ±2 % |
| Frequency range Displacement | 10 Hz ... 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | Manual memory |
| Data logger | Various start/stop triggers |
| Measurement interval | between 1 s … 12 h |
| Memory locations | 50 memory locations with 43200 measured values each |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Power supply internal | LiPo battery (3.7 V, 2500 mAh) |
| Power supply external | USB 5 VDC, 500 mA |
| Headphone connection | 3.5 mm jack plug |
| Operating time | ca. 15 … 20 h (depending on display brightness) |
| Operating and storage conditions temperature | -20 ... +65 °C / -4 ... 149 °F |
| humidity | 10% RH ... 95% RH, non-condensing |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Weight | 239 g / 8.4 oz |
| Weight (sensor without cable) | 52 g / 1.8 oz |
| Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature sensor | -55 °C … +150 °C / -67 °F ... 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions sensor | Ø 17 x 46 mm / 0.67 x 1.8" |
