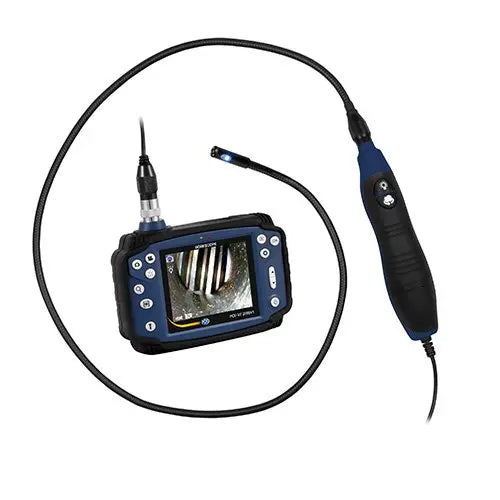

PCE-VE 200SV3 - 9mm Videoscope with 3.5" Display & LED Illumination

PCE-VE 200SV3 - 9mm Videoscope with 3.5" Display & LED Illumination

SKU: SKU: PCE-VE 200SV3   Download PDF

Select a Variant:
  • PCE-VE 200SV3 - 9mm Videoscope with 3.5" Display & LED Illumination
Qty:
Regular price Now $653.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $653.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience seamless machine diagnostics with our advanced videoscope, featuring a compact camera head measuring just 9 mm (04 inches) in diameter and a vibrant 35-inch LC display The device is powered by a robust 2600 mAh battery, ensuring extended usage, and boasts a generous cable length of 3 m (99 ft) for versatile maneuverability Equipped with a micro SD card slot, this inspection camera excels in accessing hard-to-reach areas across various industries such as mechanical engineering, heating and sanitary engineering, as well as automotive applications.

It is engineered to perform thorough inspections without dismantling machinery, ultimately enhancing efficiency and reducing costs The videoscope also features adjustable bright LEDs to illuminate your area of inspection while preventing overexposure With a digital magnification capability that offers options of 2x, 3x, or 4x, you can capture detailed images and videos, all of which can be conveniently stored on the micro SD card for easy access and documentation.

Features and Benefits:

    •9 mm / 0.4 in camera cable diameter.

    •3.5 in display with adjustable brightness.

    •2600 mAh battery.

    •3 m / 9.9 ft cable length.

    •Micro SD card slot for image storage.

    •Digital zoom feature up to 4 times.

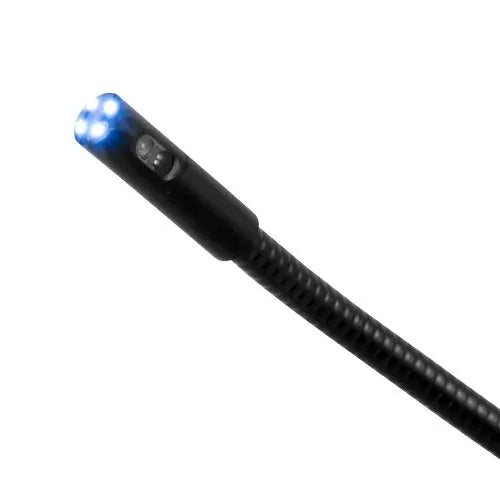

    •Adjustable LED illumination to prevent overexposure.

    •Non-destructive machine diagnosis in mechanical engineering.

    •Sanitary and heating engineering inspections.

    •Automotive industry inspections.

    •Building and construction industry applications.

Specifications:

 Display 3.5" LCD
 Resolution video function AVI (640x480)
 Resolution picture function JPEG (1600x1200)
 Image rotation 180° rotation and mirror function
 Freeze function Yes
 Zoom Up to 4 times
 Storage medium Micro SD card
 Menu languages English, German, Spanish, French, Russian, Japanese, Simplified Chinese, Traditional Chinese
 Interfaces Micro USB 2.0, TV out, Micro SD card slot
 TV output PAL
 Power supply Li-ion battery
 Battery Capacity 2600-mAh
 Operating conditions -10 ... 40°C / -10 ... 104°F, rel. Humidity <75%
 Cable diameter 9 mm / 0.4 in
 Image sensor 1/8" CMOS chip
 Resolution camera 640 x 480 pixels

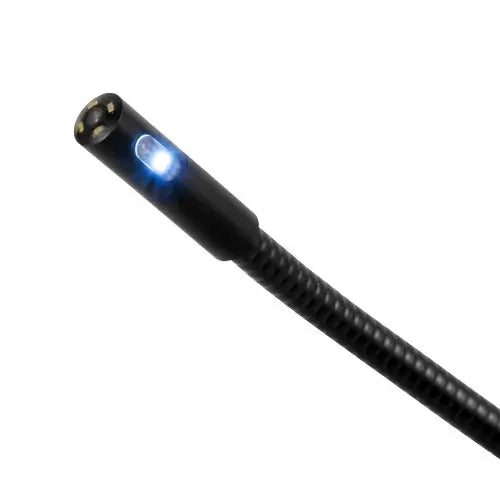

 Lighting the camera 4 LEDs on the front, 2 LEDs on the side
 Field of view / angle of view 90°
 Brightness control Manually
 Sight depth 15 ... 100 mm / .6 ... 3.9 in, front camera; 3-50 mm / .1 ... 2 in side camera
 Length of camera tube 3 m / 9.9 ft
 Pushcable Malleable, soft metal
 Fluid resistance Machine oil, light oil or saline 5%
 Protection against intrusion Water, oil and dust, according to protection class IP67
 Delivery Scope 1 x Videoscope PCE-VE 200SV3, 1 x USB cable, 1 x USB adapter, 1 x User manual
